EnVision LED

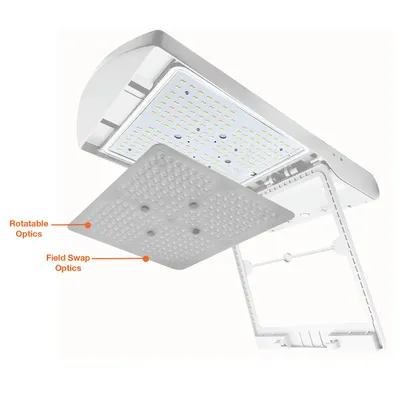

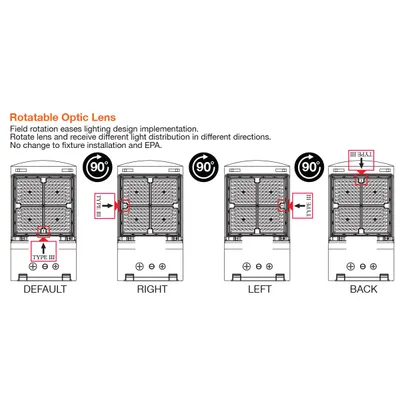

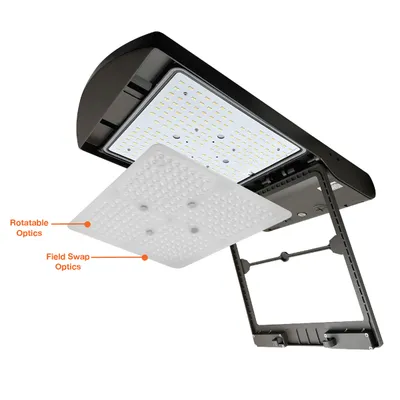

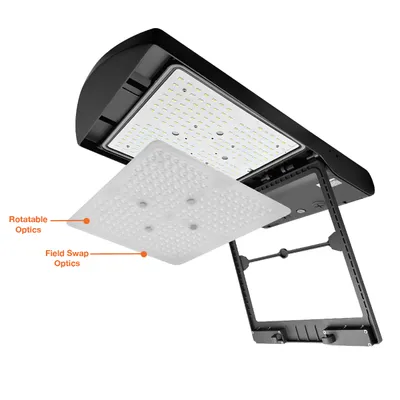

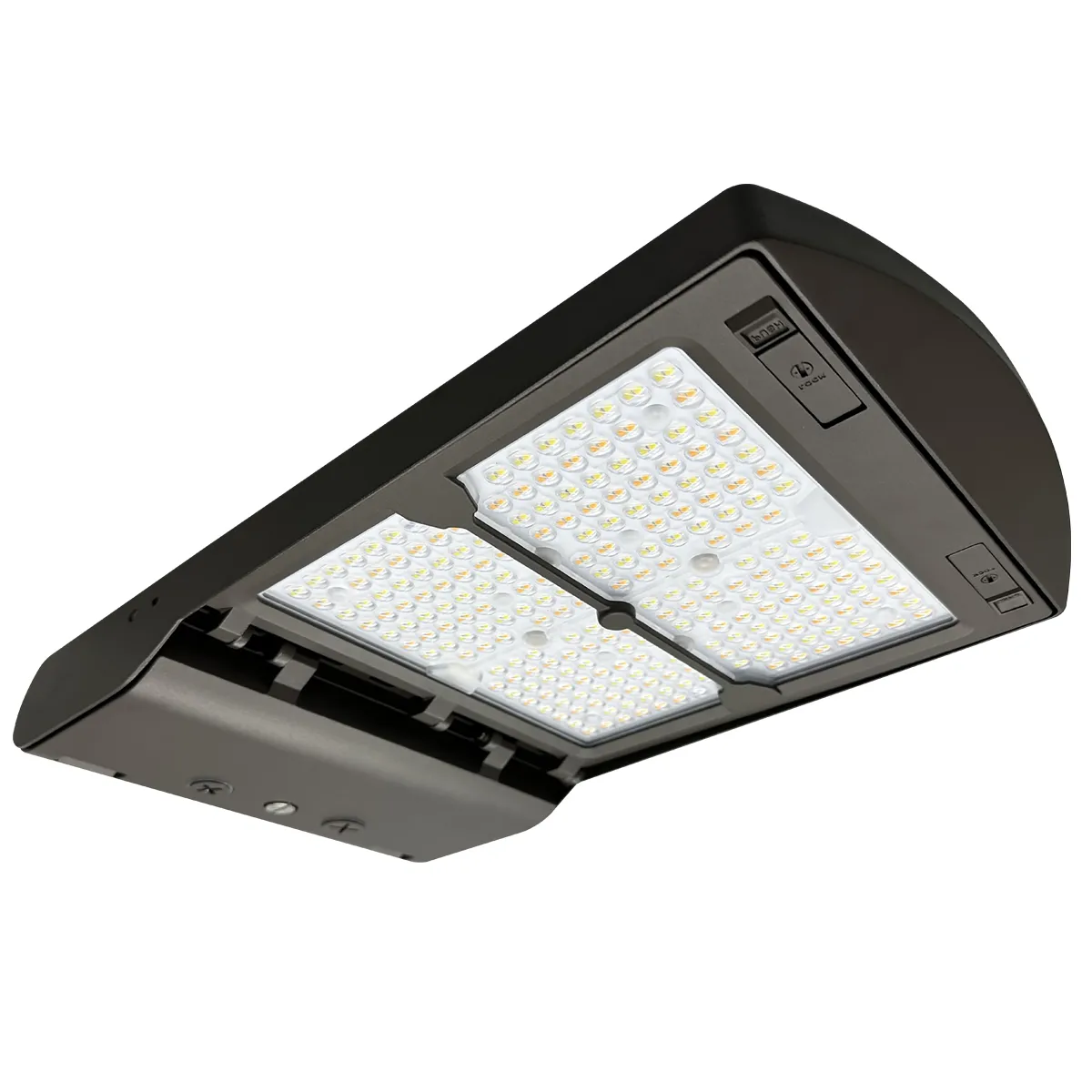

OPTIC-Line: Area Lights- EZ- Optic Swap (Type III -installed- II, IV , V Included) 3CCT+ 3 Power Selectable w/ Twist-C Technology: Control Ready - Fixture Body + Bracket Sold Seperately
New15 part numbers · Area & Flood Light 3 Fixtures - 3-CCT + Power Selectable
- Wattage
- 50–450W
- Lumens
- 7,500–67,500 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 277–480V, 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- IP rating
- IP65
- Finish
- Black, Bronze, White
- DLC
- DLC Premium
- Warranty
- 7 years

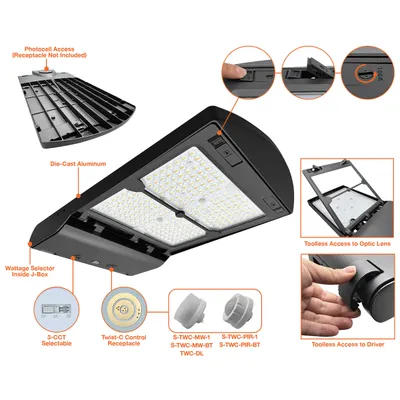

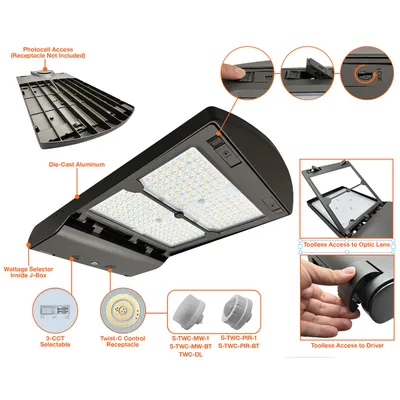

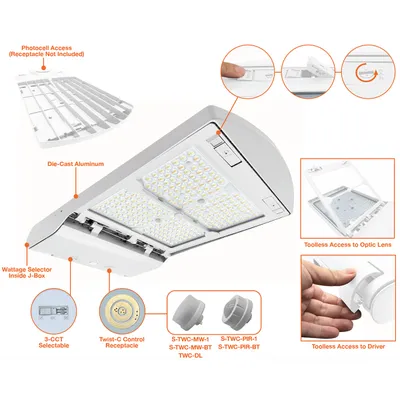

Key features
- 3CCT
- Twist-C
- Select-N-Switch
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-ARL3-OPT-5P150-TRI-BL-HV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 50/75/100/125/150W | — | 3000K/4000K/5000K | 277–480V | 0-10V | Black | Premium | Call for pricing | ||
 | LED-ARL3-OPT-5P150-TRI-BL-UNV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 50/75/100/125/150W | 7,500/11,250/15,000/18,750/22,500 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
| LED-ARL3-OPT-5P150-TRI-BZ-HV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 50/75/100/125/150W | 7,500/11,250/15,000/18,750/22,500 lm | 3000K/4000K/5000K | 277–480V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL3-OPT-5P150-TRI-BZ-UNV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 50/75/100/125/150W | — | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL3-OPT-5P150-TRI-WH-HV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 50/75/100/125/150W | — | 3000K/4000K/5000K | 277–480V | 0-10V | White | Premium | Call for pricing | ||
 | LED-ARL3-OPT-5P150-TRI-WH-UNV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 50/75/100/125/150W | 7,500/11,250/15,000/18,750/22,500 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
| LED-ARL3-OPT-5P300-TRI-BL-HV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 180/210/240/270/300W | — | 3000K/4000K/5000K | 277–480V | 0-10V | Black | Premium | Call for pricing | ||
 | LED-ARL3-OPT-5P300-TRI-BL-UNV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 180/210/240/270/300W | 27,000/31,500/36,000/40,500/45,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
 | LED-ARL3-OPT-5P300-TRI-BZ-HV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 180/210/240/270/300W | 27,000/31,500/36,000/40,500/45,000 lm | 3000K/4000K/5000K | 277–480V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL3-OPT-5P300-TRI-BZ-UNV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 180/210/240/270/300W | — | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL3-OPT-5P300-TRI-WH-HV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 180/210/240/270/300W | — | 3000K/4000K/5000K | 277–480V | 0-10V | White | Premium | Call for pricing | ||
 | LED-ARL3-OPT-5P300-TRI-WH-UNV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 180/210/240/270/300W | 27,000/31,500/36,000/40,500/45,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
| LED-ARL3-OPT-5P450-TRI-BL-UNV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 330/360/390/420/450W | 49,500/54,000/58,500/63,000/67,500 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
| LED-ARL3-OPT-5P450-TRI-BZ-UNV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 330/360/390/420/450W | 49,500/54,000/58,500/63,000/67,500 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL3-OPT-5P450-TRI-WH-UNV | Area Light G3: OPTIC-Line (EZ-Optic Swap (Type III -installed-, II, IV , V Included) | 330/360/390/420/450W | 49,500/54,000/58,500/63,000/67,500 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-arl3-opt-5p150-125w-t2.ies
- IES fileled-arl3-opt-5p150-075w-t5.ies
- IES fileled-arl3-opt-5p150-050w-t3.ies
- IES fileled-arl3-opt-5p150-075w-t3.ies
- IES fileled-arl3-opt-5p150-075w-t4.ies
- IES fileled-arl3-opt-5p150-100w-t3.ies
- IES fileled-arl3-opt-5p150-100w-t4.ies
- IES fileled-arl3-opt-5p150-100w-t5.ies
- IES fileled-arl3-opt-5p150-150w-t2.ies
- IES fileled-arl3-opt-5p150-050w-t5.ies
- IES fileled-arl3-opt-5p150-125w-t4.ies
- IES fileled-arl3-opt-5p150-150w-t4.ies
- IES fileled-arl3-opt-5p150-050w-t2.ies
- IES fileled-arl3-opt-5p150-125w-t3.ies
- IES fileled-arl3-opt-5p150-125w-t5.ies
- IES fileled-arl3-opt-5p150-050w-t4.ies
- IES fileled-arl3-opt-5p150-150w-t5.ies
- IES fileled-arl3-opt-5p150-100w-t2.ies
- IES fileled-arl3-opt-5p150-150w-t3.ies
- IES fileled-arl3-opt-5p150-075w-t2.ies
- IES fileled-arl3-opt-5p300-210w-t2.ies
- IES fileled-arl3-opt-5p300-240w-t5-hss.ies
- IES fileled-arl3-opt-5p300-240w-t5.ies
- IES fileled-arl3-opt-5p300-270w-t2-hss.ies
- IES fileled-arl3-opt-5p300-270w-t3-hss.ies
- IES fileled-arl3-opt-5p300-270w-t3.ies
- IES fileled-arl3-opt-5p300-270w-t4-hss.ies
- IES fileled-arl3-opt-5p300-270w-t4.ies
- IES fileled-arl3-opt-5p300-270w-t5-hss.ies
- IES fileled-arl3-opt-5p300-270w-t5.ies
- IES fileled-arl3-opt-5p300-300w-t2-hss.ies
- IES fileled-arl3-opt-5p300-300w-t2.ies
- IES fileled-arl3-opt-5p300-300w-t3-hss.ies
- IES fileled-arl3-opt-5p300-300w-t3.ies
- IES fileled-arl3-opt-5p300-300w-t4-hss.ies
- IES fileled-arl3-opt-5p300-300w-t4.ies
- IES fileled-arl3-opt-5p300-300w-t5-hss.ies
- IES fileled-arl3-opt-5p300-300w-t5.ies
- IES fileled-arl3-opt-5p300-180w-t2-hss.ies
- IES fileled-arl3-opt-5p300-180w-t2.ies
