R-Line: Rotating Wall Packs

1 / 24

EnVision LED

R-Line: Rotating Wall Packs

Light up your outdoor area with the EnVision Bolt Series, a line of Area Light fixtures with high lumen per watt efficacy (minimum 130lm/w).

10 part numbers · Rotating Wall Packs

Wattage
25–80W
Lumens
3,600–10,875 lm
Color temperature
3000K, 4000K, 5000K
Voltage
120–277V
Dimming
0-10V
CRI
80+
IP rating
IP65
Finish
Bronze
DLC
DLC Premium, DLC Listed
Warranty
5 years
Request a QuoteSpec sheet678-467-5515

Overview

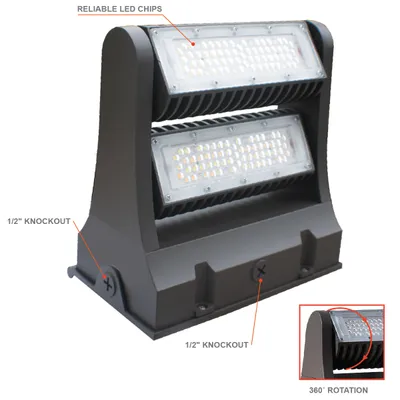

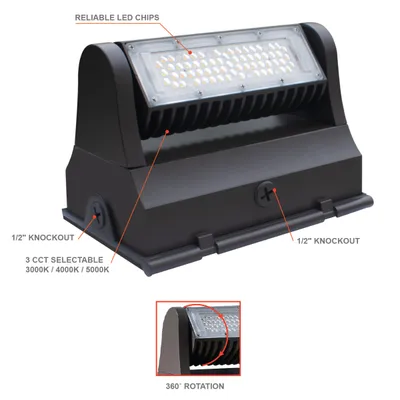

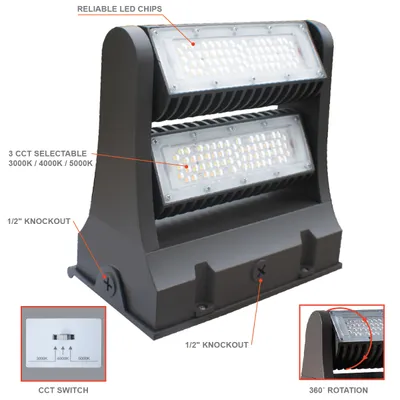

Light up your outdoor area with the EnVision Bolt Series, a line of Area Light fixtures with high lumen per watt efficacy (minimum 130lm/w). The Bolt Wall Packs are available in a variety of different styles: non-cutoff, fully cut-off, semi cut-off, adjustable, and a rotatable up/down light. EnVision's rotating wall pack is an architectural LED luminaire that allows end users to rotate the modules in a complete 360º to light up a desired area. The fixtures are slim and low profile while providing a high lumen output.

Key features

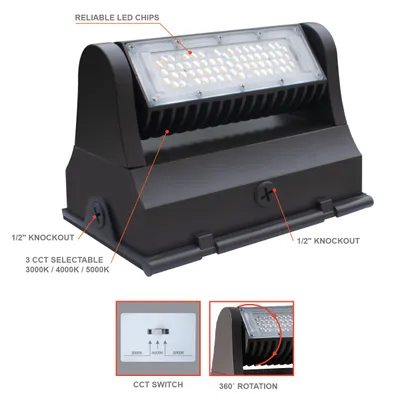

  • 3CCT
  • Select-N-Switch
  • 1CCT

Factory options

  • -EMB — 90 Minute Emergency Backup
  • -PC — On/off photocell
  • -BMS — HB01-DMS-C: Bi Level Motion + Daylight Sensor
  • -BMS1 — S-BMS-EXT-1: Bi Level Motion + Daylight Sensor
  • -BMS1BT — S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/ Bluetooth Control (ENVISION SMART APP)
  • 20KV — SG-20KV-UNV: 20KV Surge Protector

Add the suffix to the part number when ordering. See the spec sheet for compatibility.

Part numbers & ordering

Part #DescriptionWattsLumensCCTVoltageDimmingFinishDLCPriceAdd to cartCompare

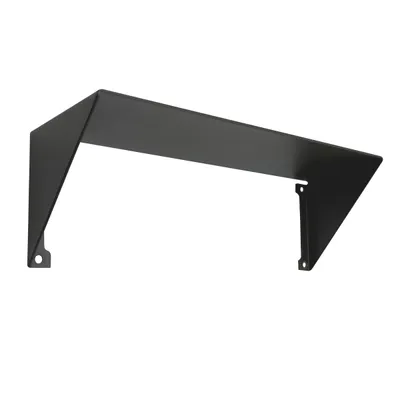

WPROT-SHIELDWall Pack: R-Line Shield———120–277V—Bronze—Call for pricing

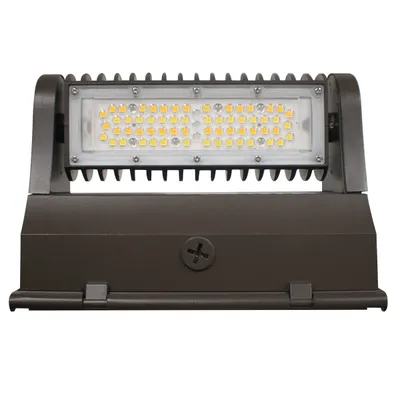

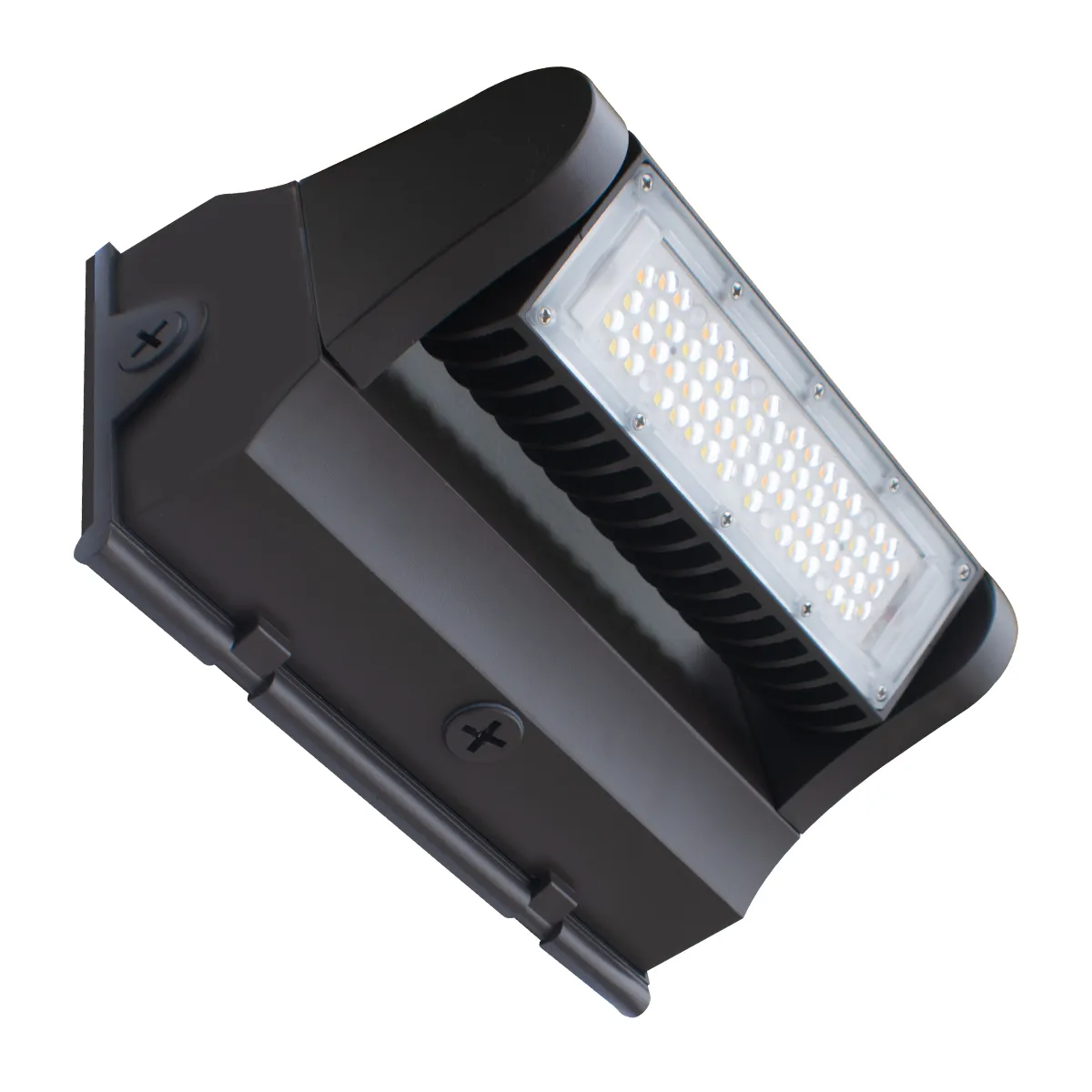

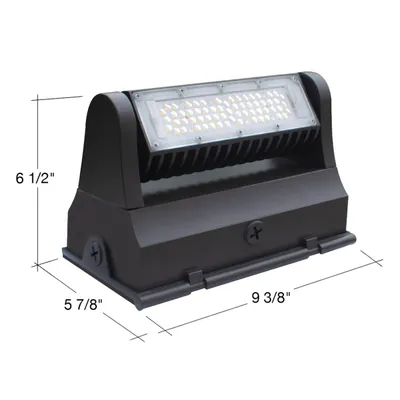

LED-WPROT2-25WS-TRI-BZWall Pack: R-Line One Module25W3,600 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
LED-WPROT2-40WS-30K-BZWall Pack: R-Line One Module40W4,890 lm3000K120–277V0-10VBronze—Call for pricing
LED-WPROT2-40WS-40K-BZWall Pack: R-Line One Module40W4,890 lm4000K120–277V0-10VBronzePremiumCall for pricing
LED-WPROT2-40WS-50K-BZWall Pack: R-Line One Module40W4,890 lm5000K120–277V0-10VBronzeListedCall for pricing

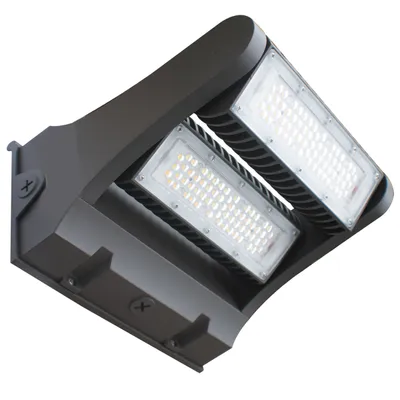

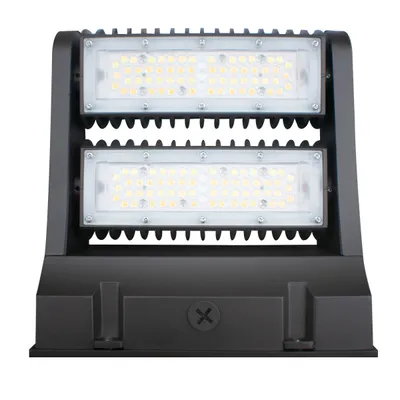

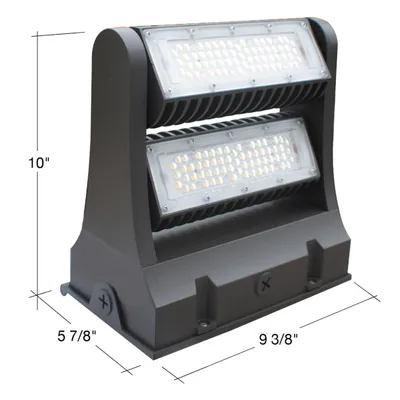

LED-WPROT2-60WD-TRI-BZWall Pack: R-Line Two Module60W8,280 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
LED-WPROT2-3P80WD-TRI-BZWall Pack: R-Line Two Module40/60/80W4,890/8,280/10,875 lm3000K/4000K/5000K120–277V0-10VBronzeListedCall for pricing
LED-WPROT2-80WD-30K-BZWall Pack: R-Line Two Module80W10,875 lm3000K120–277V0-10VBronze—Call for pricing
LED-WPROT2-80WD-40K-BZWall Pack: R-Line Two Module80W10,875 lm4000K120–277V0-10VBronzePremiumCall for pricing
LED-WPROT2-80WD-50K-BZWall Pack: R-Line Two Module40/60/80W4,890/8,280/10,875 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
