EnVision LED
RDL Internal External-JBX Downlights - No can needed
2 part numbers · RDL Downlight Series
- Wattage
- 8–18W
- Lumens
- 560–1,500 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- TRIAC/ELV
- CRI
- 90+
- Finish
- White
- Warranty
- 5 years

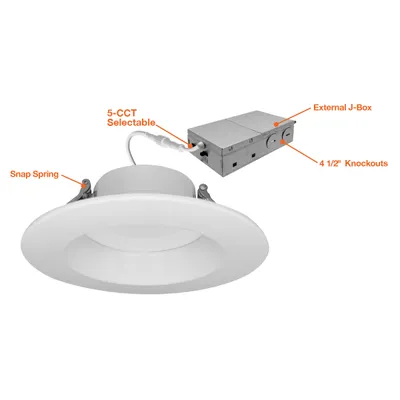

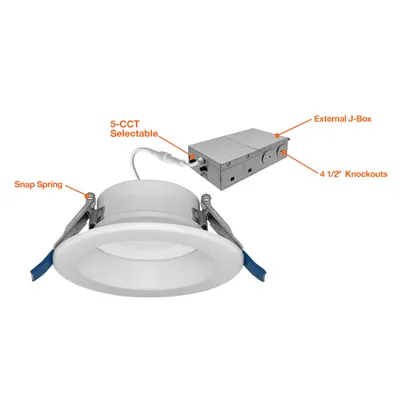

Key features
- 5CCT
- Select-N-Switch
Factory options
- -EMB — 90 Minute Emergency Backup
Add the suffix to the part number when ordering. See the spec sheet for compatibility.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

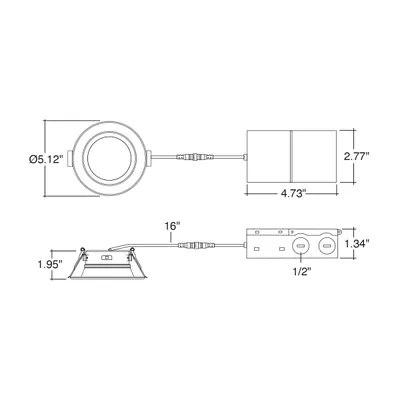

 | LED-RDL-EX-4-3P12-5CCT-WH-SM | 4" Retrofit Downlight: RDL-Line | 8/10/12W | 560/700/960 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

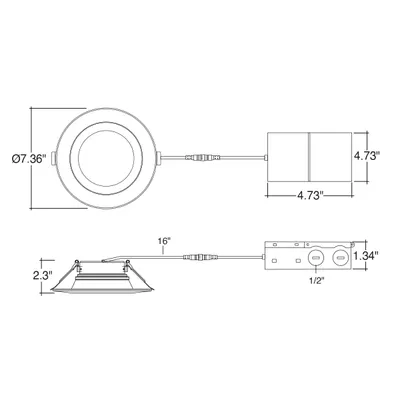

 | LED-RDL-EX-6-3P18-5CCT-WH-SM | 5/6" Retrofit Downlight: RDL-Line | 12/15/18W | 700/1,100/1,500 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing |
