EnVision LED

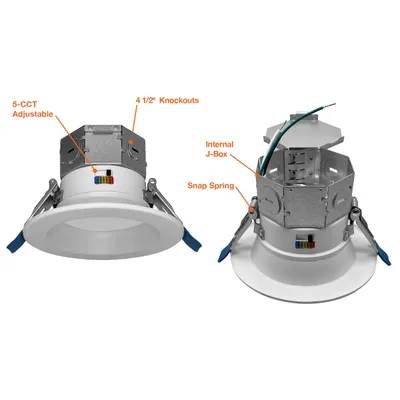

RDL Internal JBX Downlights - No can needed
2 part numbers · RDL Downlight Series
- Wattage
- 11–15W
- Lumens
- 750–1,125 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- TRIAC/ELV
- CRI
- 90+
- Finish
- White
- Warranty
- 5 years
Key features
- 5CCT
- Select-N-Switch
Factory options
- -EMB — 90 Minute Emergency Backup
Add the suffix to the part number when ordering. See the spec sheet for compatibility.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

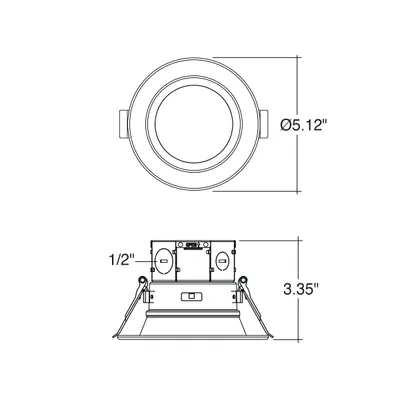

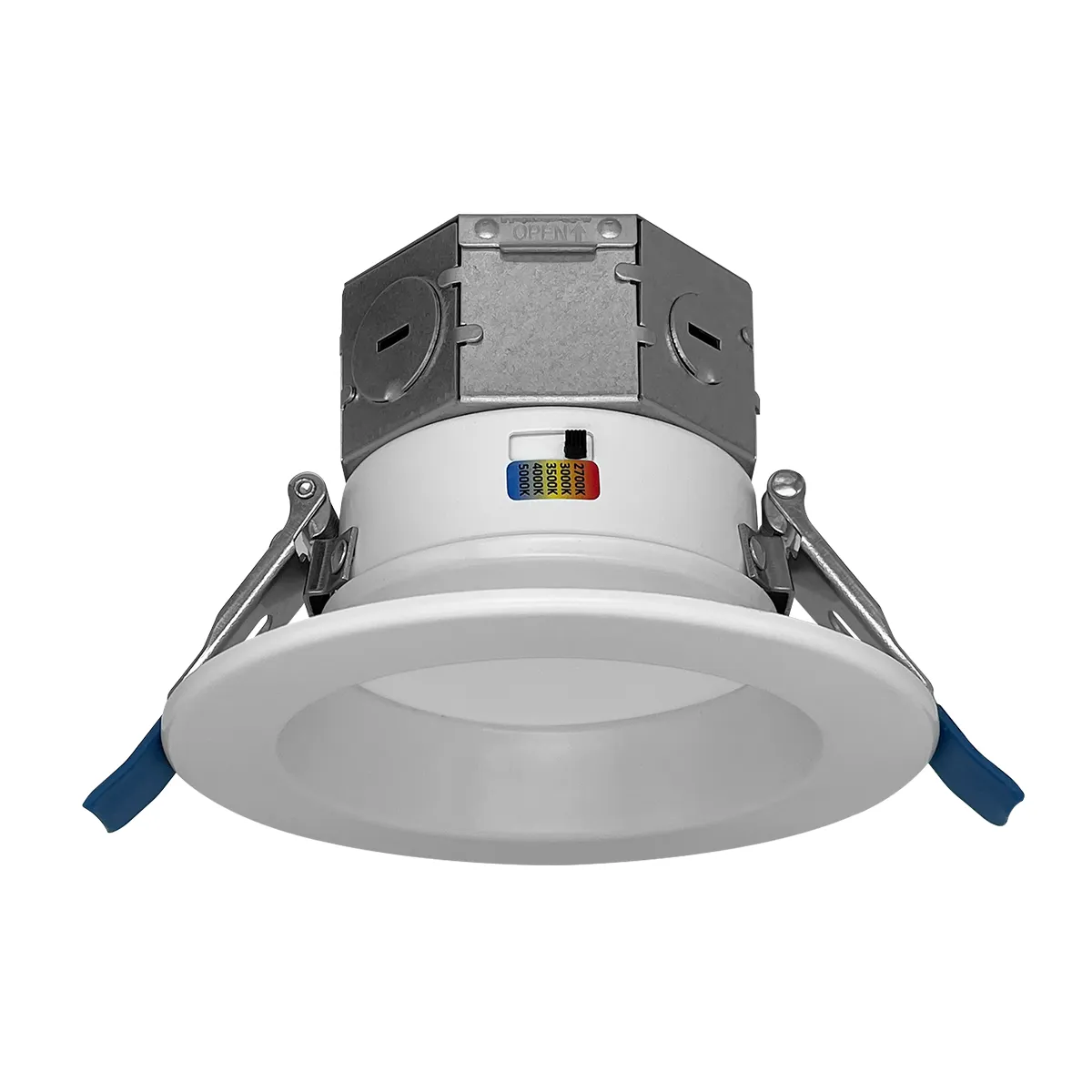

 | LED-RDL-JBX-4-11W-5CCT-WH-SM | 4" RDL-Line | 11W | 750 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

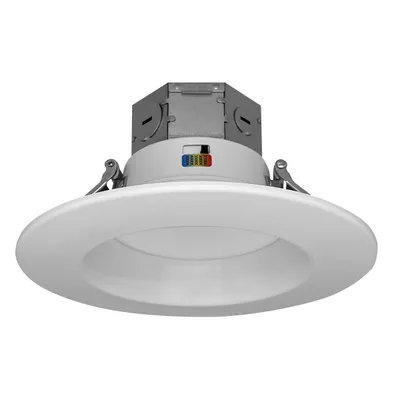

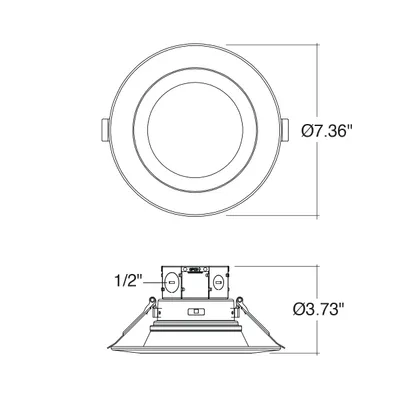

 | LED-RDL-JBX-5/6-15W-5CCT-WH-SM | 5/6" Retrofit Downlight: RDL-Line | 15W | 1,125 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- Product video
- IES fileled-rdl-jbx-4-11w-5cct-wh-sm-50k.ies
- IES fileled-rdl-jbx-4-11w-5cct-wh-sm-40k.ies
- IES fileled-rdl-jbx-4-11w-5cct-wh-sm-35k.ies
- IES fileled-rdl-jbx-4-11w-5cct-wh-sm-30k.ies
- IES fileled-rdl-jbx-4-11w-5cct-wh-sm-27k.ies
- IES fileled-rdl-jbx-5-6-15w-5cct-wh-sm-27k.ies
- IES fileled-rdl-jbx-5-6-15w-5cct-wh-sm-30k.ies
- IES fileled-rdl-jbx-5-6-15w-5cct-wh-sm-35k.ies
- IES fileled-rdl-jbx-5-6-15w-5cct-wh-sm-40k.ies
- IES fileled-rdl-jbx-5-6-15w-5cct-wh-sm-50k.ies
