EnVision LED

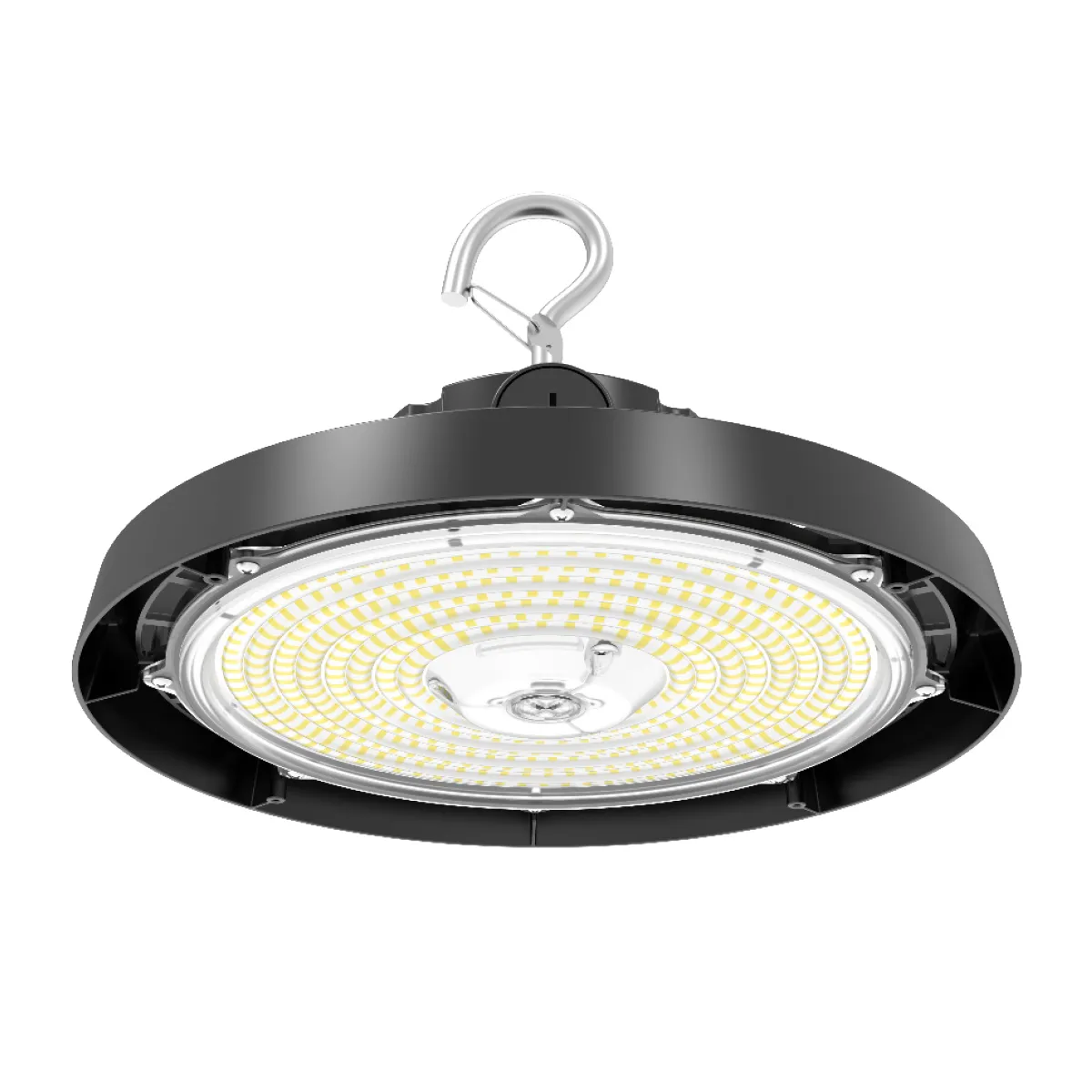

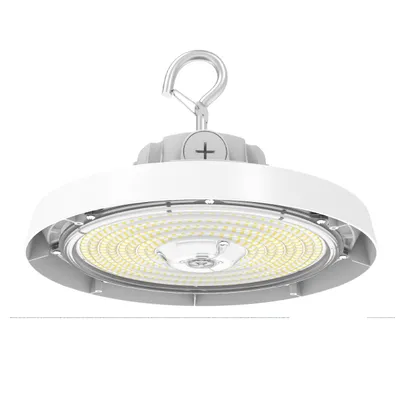

RHB3 UFO High Bay: Optic-Line
6 part numbers · High Bay (Round)
- Wattage
- 60–240W
- Lumens
- 9,000–36,000 lm
- Color temperature
- 3500K, 4000K, 5000K
- Voltage
- 277–480V, 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Black, White
- DLC
- DLC Listed
- Warranty
- 5 years

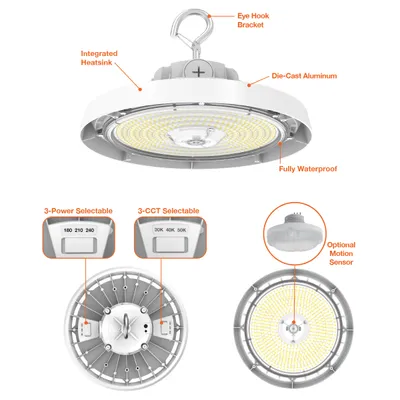

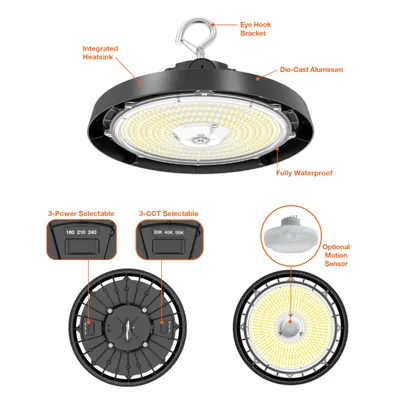

Key features
- 3CCT
- Select-N-Switch
- Twist-C
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-RHB3C-3B-3P150-TRI-BL-HV-10 | RHB3 UFO High Bay: Optic-Line | 60/100/150W | 9,000/15,000/22,500 lm | 3500K/4000K/5000K | 277–480V | 0-10V | Black | Listed | Call for pricing | ||
| LED-RHB3C-3B-3P150-TRI-BL-UNV-10 | RHB3 UFO High Bay: Optic-Line | 60/100/150W | 9,000/15,000/22,500 lm | 3500K/4000K/5000K | 120–277V | 0-10V | Black | Listed | Call for pricing | ||
 | LED-RHB3C-3B-3P150-TRI-WH-UNV-10 | RHB3 UFO High Bay: Optic-Line | 60/100/150W | 9,000/15,000/22,500 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | Listed | Call for pricing | ||
 | LED-RHB3C-3B-3P240-TRI-BL-HV-10 | RHB3 UFO High Bay: Optic-Line | 180/200/240W | 27,000/31,500/36,000 lm | 3500K/4000K/5000K | 277–480V | 0-10V | Black | Listed | Call for pricing | ||
| LED-RHB3C-3B-3P240-TRI-BL-UNV-10 | RHB3 UFO High Bay: Optic-Line | 180/200/240W | 27,000/31,500/36,000 lm | 3500K/4000K/5000K | 120–277V | 0-10V | Black | Listed | Call for pricing | ||
 | LED-RHB3C-3B-3P240-TRI-WH-UNV-10 | RHB3 UFO High Bay: Optic-Line | 180/200/240W | 27,000/31,500/36,000 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | Listed | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-rhb3c-3b-3p150-tri-150w-4k-110-deg.ies
- IES fileled-rhb3c-3b-3p150-tri-100w-4k-110-deg.ies
- IES fileled-rhb3c-3b-3p150-tri-060w-4k-110-deg.ies
- IES fileled-rhb3c-3b-3p150-tri-060w-4k-060-deg.ies
- IES fileled-rhb3c-3b-3p150-tri-060w-4k-080-deg.ies
- IES fileled-rhb3c-3b-3p150-tri-150w-4k-060-deg.ies
- IES fileled-rhb3c-3b-3p150-tri-150w-4k-080-deg.ies
- IES fileled-rhb3c-3b-3p150-tri-100w-4k-080-deg.ies
- IES fileled-rhb3c-3b-3p150-tri-100w-4k-060-deg.ies
- IES fileled-rhb3c-3b-3p240-4k-180w-060d.ies
- IES fileled-rhb3c-3b-3p240-4k-240w-080d.ies
- IES fileled-rhb3c-3b-3p240-4k-210w-060d.ies
- IES fileled-rhb3c-3b-3p240-4k-240w-110d.ies
- IES fileled-rhb3c-3b-3p240-4k-180w-110d.ies
- IES fileled-rhb3c-3b-3p240-4k-180w-080d.ies
- IES fileled-rhb3c-3b-3p240-4k-210w-110d.ies
- IES fileled-rhb3c-3b-3p240-4k-210w-080d.ies
- IES fileled-rhb3c-3b-3p240-4k-240w-060d.ies
