EnVision LED

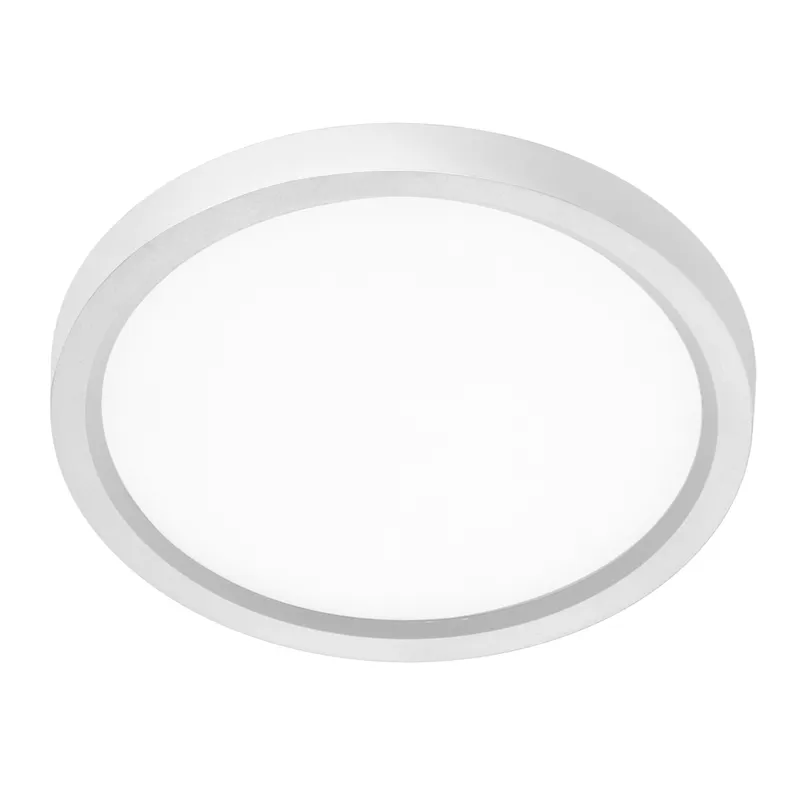

Round 120-277V 0-10V Dimmable Models
Applications include universal J-Box sizes, new EnVision slimline disk can be used in new construction and remodel applications.With the integration of edge-lit technology, driverless AC LED technology, and full dimmability, EnVision has cr
18 part numbers · Round SlimLine Edge-Lit Surface Mount Series
- Wattage
- 6–30W
- Lumens
- 600–2,460 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120–277V, 120V
- Dimming
- 0-10V, Dimmable
- CRI
- 90+
- Finish
- White
- Warranty
- 5 years
Overview

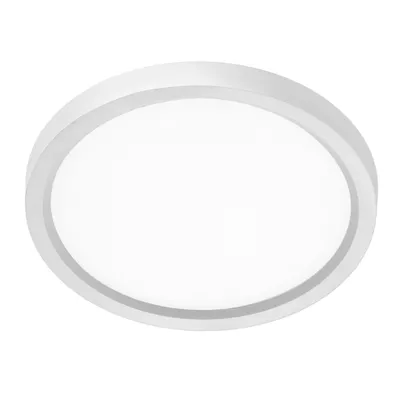

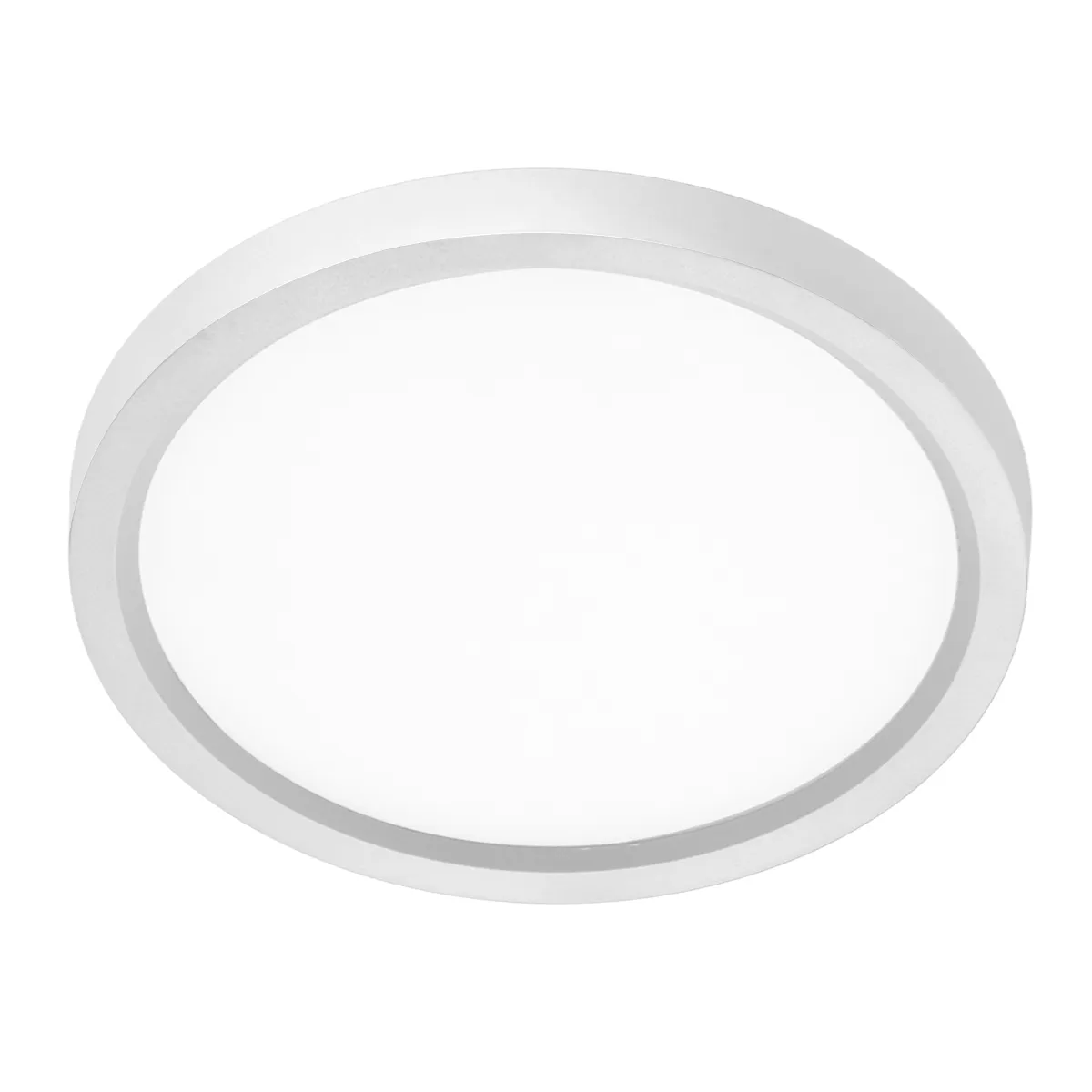

Applications include universal J-Box sizes, new EnVision slimline disk can be used in new construction and remodel applications.With the integration of edge-lit technology, driverless AC LED technology, and full dimmability, EnVision has created the most advanced disk on the market. It features two disk sizes, a slim width of .85”, and is designed to be a one of a kind in the LED market. Using edge-lit driver less technology, our SlimLine disk illuminates low glare while featuring an even light distribution. In addition, the SlimLine disk is wet rated and has a CRI >90.

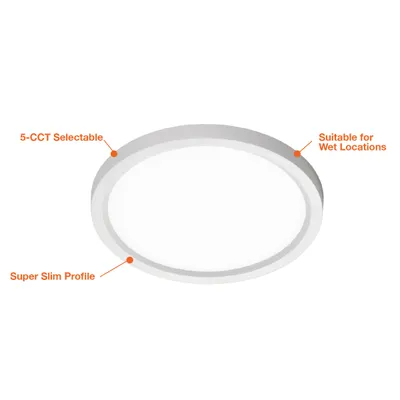

Key features
- 5CCT
- Select-N-Switch
- 1CCT
- 3CCT
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-SLDSKR-5-10W-5CCT-WH-0/10V | 5" Surface Mount Round: Slim-Line | 10W | 650 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| LED-SLDSKR-5-10W-TRI-0/10V | 5" Surface Mount Round: Slim-Line | 10W | 650 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

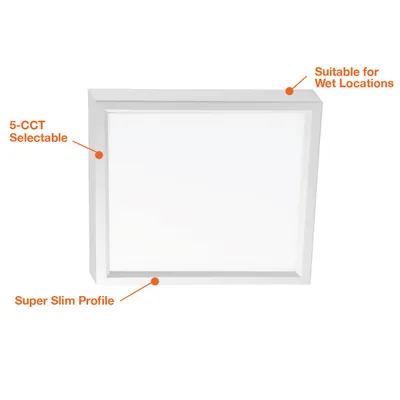

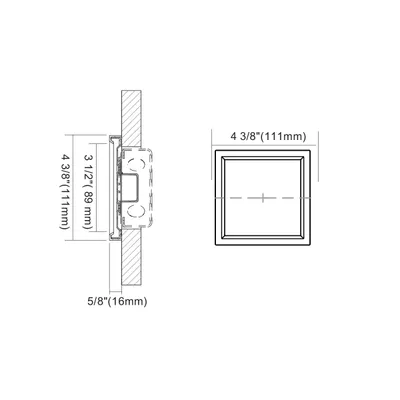

 | LED-SLDSKSQ-5-10W-30K-0/10V | 5" SlimLine Surface Mount Square | 10W | 650 lm | 3000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | LED-SLDSKSQ-5-10W-5CCT-WH-0/10V | 5" SlimLine Surface Mount Square | 10W | 650 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | LED-SLSM-5R-11W-5CCT-WH | 5" Surface Mount Round: Slim-Line | 11W | 800 lm | 2700K/3000K/3500K/4000K/5000K | 120V | Dimmable | White | — | Call for pricing | ||
 | LED-SLSM-5R-3P12-5CCT-WH-UNV | 5" Surface Mount Round: Slim-Line | 6/8/12W | 600/800/1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

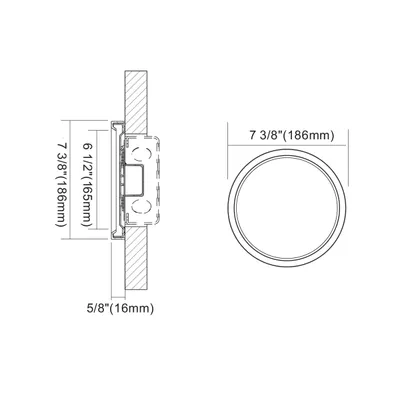

 | LED-SLDSKR-7-15W-5CCT-WH-0/10V | 7" Surface Mount Round: Slim-Line eta 03/2023 | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

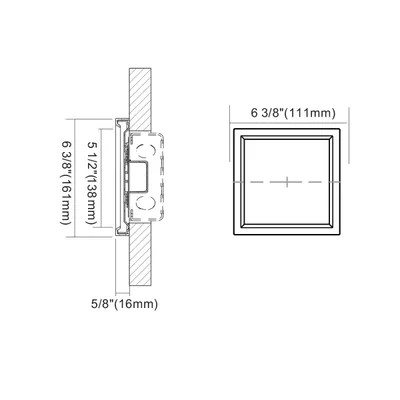

 | LED-SLDSKSQ-7-15W-5CCT-WH-0/10V | 7" SlimLine Surface Mount Square | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| LED-SLDSKSQ-7-15W-TRI-0/10V | 7" SlimLine Surface Mount Square | 15W | 1,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | LED-SLSM-7R-15W-5CCT-WH | 7" Surface Mount Round: Slim-Line | 15W | 1,050 lm | 2700K/3000K/3500K/4000K/5000K | 120V | Dimmable | White | — | Call for pricing | ||
 | LED-SLSM-7R-3P15-5CCT-WH-UNV | 7" Surface Mount Round: Slim-Line | 7/10/15W | 675/1,000/1,250 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | LED-SLDSKR-12-22W-5CCT-WH-0/10V | 12" Surface Mount Round: Slim-Line | 22W | 1,450 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| LED-SLDSKR-12-22W-TRI-0/10V | 12" Surface Mount Round: Slim-Line | 22W | 1,450 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

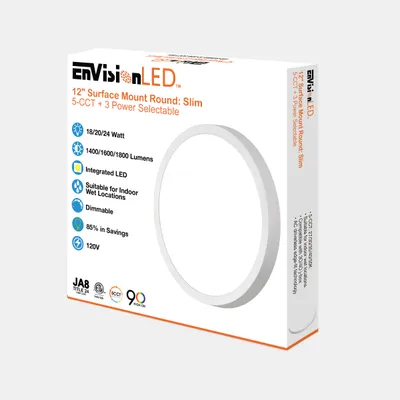

 | LED-SLSM-12R-3P24-5CCT-WH | 12" Surface Mount Round: Slim-Line | 18/20/24W | 1,400/1,600/1,800 lm | 2700K/3000K/3500K/4000K/5000K | 120V | Dimmable | White | — | Call for pricing | ||
 | LED-SLSM-12R-3P24-5CCT-WH-UNV | 12" Surface Mount Round: Slim-Line | 18/20/24W | 1,500/1,700/2,000 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | LED-SLDSKR-15-30W-5CCT-WH-0/10V | 15" Surface Mount Round: Slim-Line | 30W | 2,000 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | LED-SLSM-15R-3P30-5CCT-WH | 15" Surface Mount Round: Slim-Line | 20/25/30W | 1,500/1,750/2,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | Dimmable | White | — | Call for pricing | ||
 | LED-SLSM-15R-3P30-5CCT-WH-UNV | 15" Surface Mount Round: Slim-Line | 20/25/30W | 1,700/2,200/2,460 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-sldskr-5-10w-5cct.zip
- IES fileled-sldskr-7-15w-iesna2002.ies
- IES fileled-sldskr-12-22w-d_iesna2002-1.ies
- IES fileled-sldsk-15r-30w-ies.ies
- IES fileled-sldsksq-5-10w-iesna2002.ies
- IES fileled-sldsksq-7-15w-iesna2002.ies
- IES fileled-sldsksq-7-15w-iesna2002.ies
- IES fileled-slsm-12r-3p24-5cct-wh-18w-5000k_iesna2002.ies
- IES fileled-slsm-12r-3p24-5cct-wh-24w-5000k_iesna2002.ies
- IES fileled-slsm-12r-3p24-5cct-wh-20w-5000k_iesna2002.ies
- IES fileled-slsm-12r-3p24-5cct-wh-unv-24w-5000k_iesna2002.ies
- IES fileled-slsm-12r-3p24-5cct-wh-unv-20w-5000k_iesna2002.ies
- IES fileled-slsm-12r-3p24-5cct-wh-unv-18w-5000k_iesna2002.ies
- IES fileled-slsm-5r-11w-5cct-wh-11w-5000k.ies
- IES fileled-slsm-15r-3p30-5cct-wh-30w-5000k_iesna2002.ies
- IES fileled-slsm-15r-3p30-5cct-wh-25w-5000k.ies
- IES fileled-slsm-15r-3p30-5cct-wh-20w-5000k_iesna2002.ies
- IES fileled-slsm-15r-3p30-5cct-wh-unv-30w-5000k_iesna2002.ies
- IES fileled-slsm-15r-3p30-5cct-wh-unv-20w-5000k_iesna2002.ies
- IES fileled-slsm-15r-3p30-5cct-wh-unv-25w-5000k_iesna2002.ies
- IES fileled-slsm-5r-3p12-5cct-wh-unv-12w-5000k_iesna2002.ies
- IES fileled-slsm-5r-3p12-5cct-wh-unv-06w-5000k_iesna2002.ies
- IES fileled-slsm-5r-3p12-5cct-wh-unv-08w-5000k_iesna2002.ies
- IES fileled-slsm-7r-15w-5cct-wh-15w-5000k.ies
- IES fileled-slsm-7r-3p15-5cct-wh-unv-10w-5000k_iesna2002.ies
- IES fileled-slsm-7r-3p15-5cct-wh-unv-7w-5000k_iesna2002.ies
- IES fileled-slsm-7r-3p15-5cct-wh-unv-15w-5000k_iesna2002.ies
