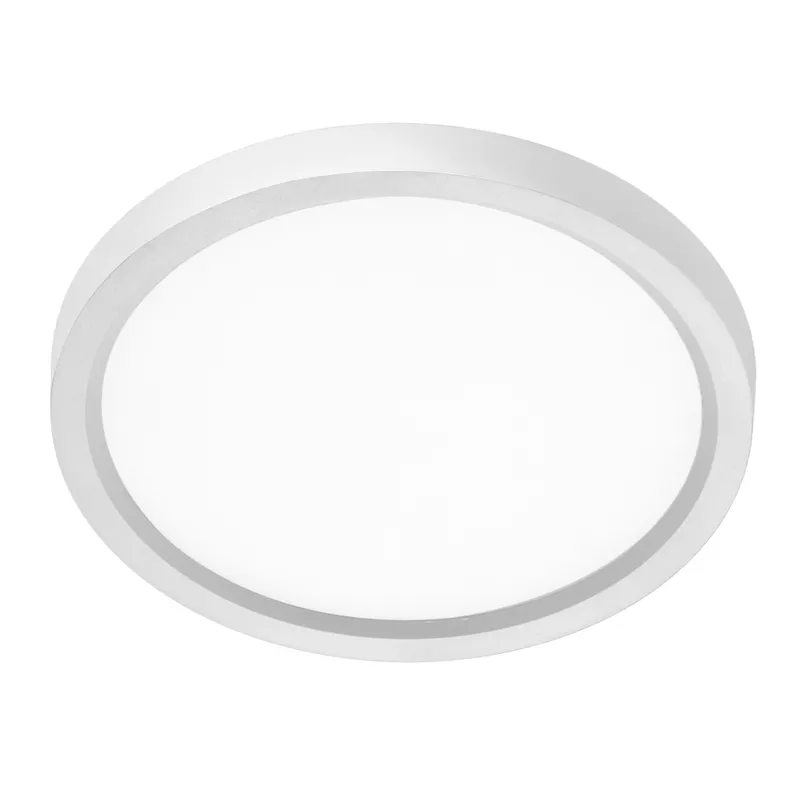

EnVision LED
Round Triac Dimmable Models
Applications include universal J-Box sizes, new EnVision slimline disk can be used in new construction and remodel applications.With the integration of edge-lit technology, driverless AC LED technology, and full dimmability, EnVision has cr
16 part numbers · Round SlimLine Edge-Lit Surface Mount Series
- Wattage
- 10–40W
- Lumens
- 650–2,700 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- TRIAC/ELV, Dimmable
- CRI
- 90+
- Finish
- White, Black, Brushed Nickel
- Warranty
- 5 years

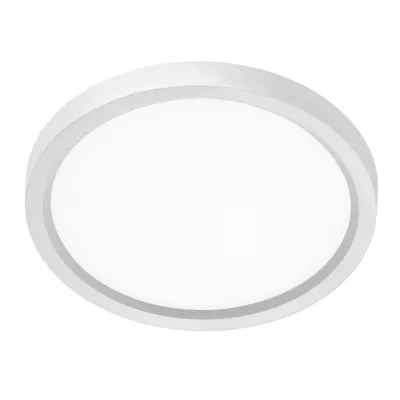

Overview

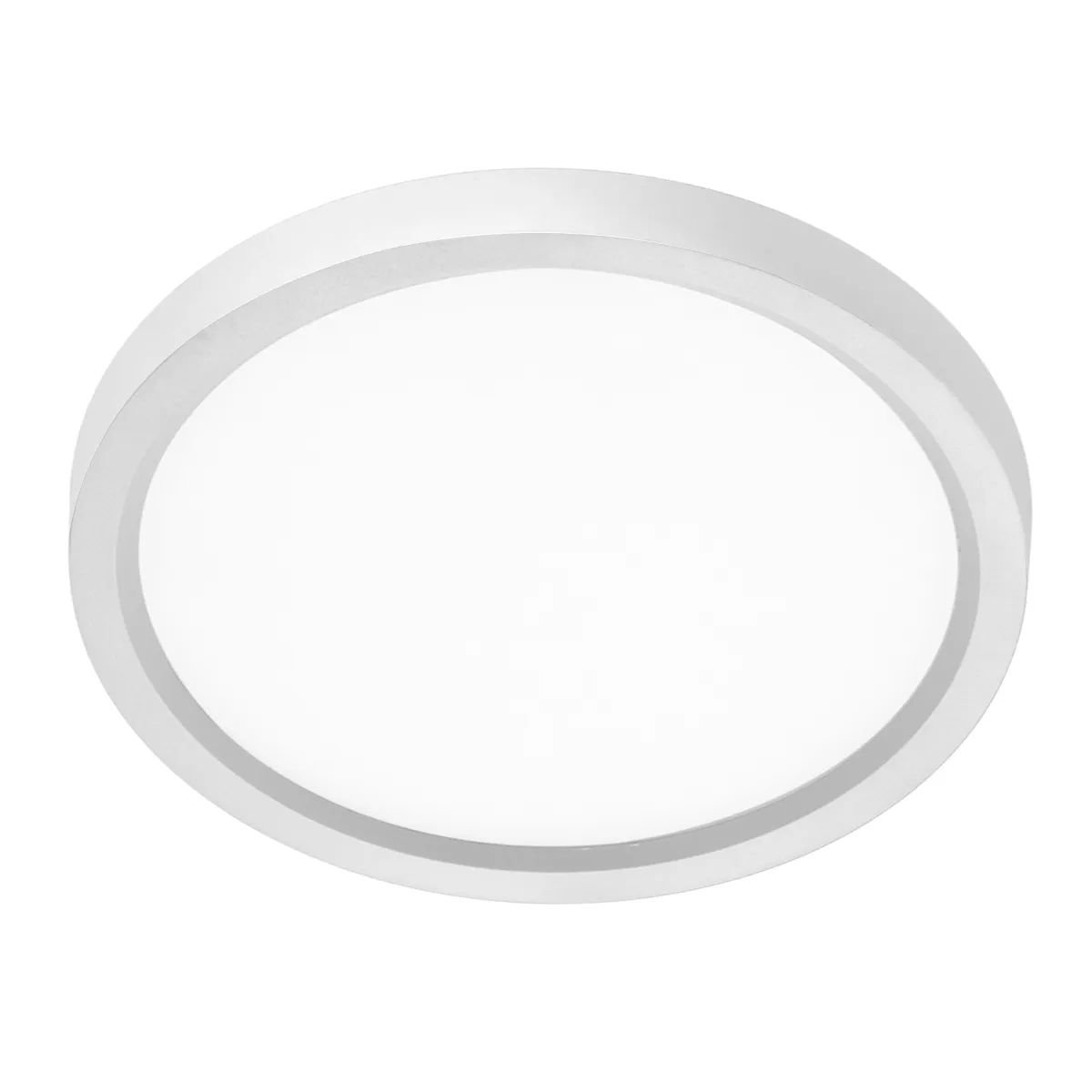

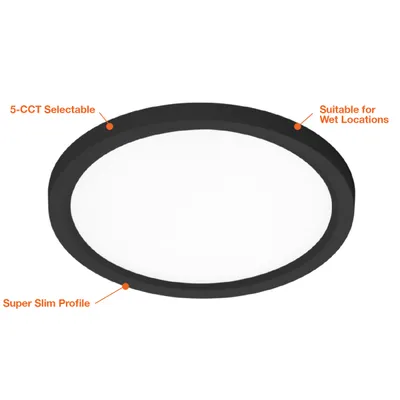

Applications include universal J-Box sizes, new EnVision slimline disk can be used in new construction and remodel applications.With the integration of edge-lit technology, driverless AC LED technology, and full dimmability, EnVision has created the most advanced disk on the market. It features two disk sizes, a slim width of .85”, and is designed to be a one of a kind in the LED market. Using edge-lit driver less technology, our SlimLine disk illuminates low glare while featuring an even light distribution. In addition, the SlimLine disk is wet rated and has a CRI >90.
Key features

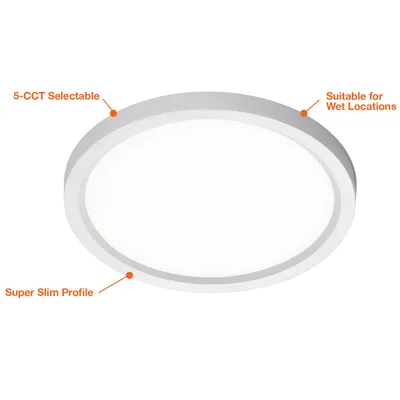

- 5CCT
- Select-N-Switch

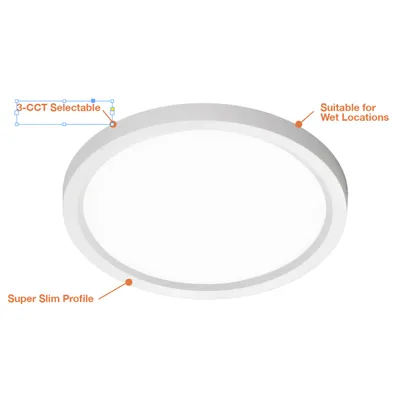

- 3CCT
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

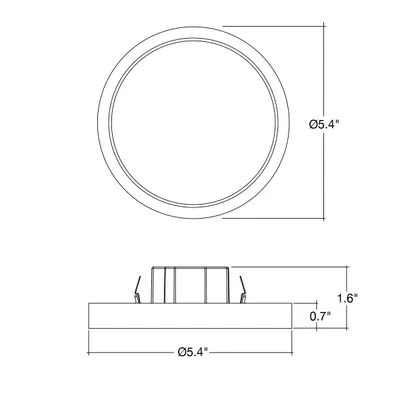

 | LED-SLDSKR-5-10W-5CCT-WH | 5" Surface Mount Round: Slim-Line | 10W | 650 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-SLDSKR-7-15W-5CCT-WH | 7" Surface Mount Round: Slim-Line | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

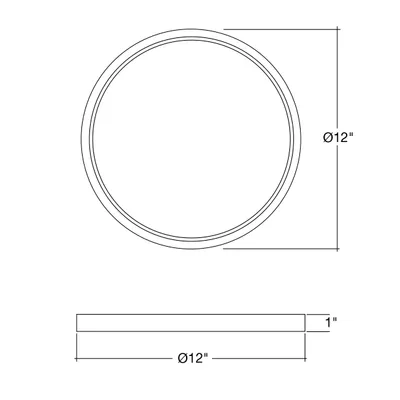

| LED-SLDSKR-12-22W-5CCT-WH | 12" Surface Mount Round: Slim-Line | 22W | 1,400 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

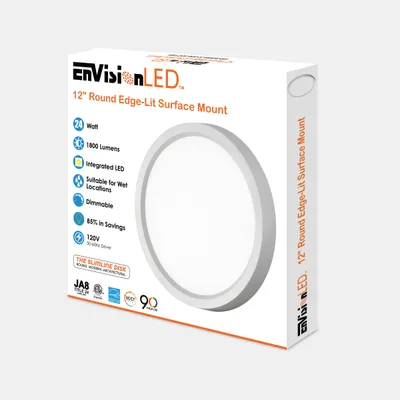

 | LED-SLDSKR-12-24W-5CCT-WH | 12" Surface Mount Round: Slim-Line | 24W | 1,800 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

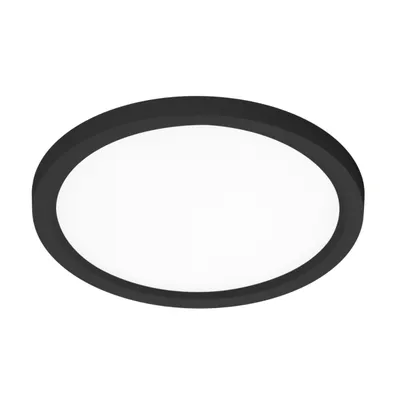

| LED-SLDSKR-15-30W-5CCT-BLK | 15" Surface Mount Round: Slim-Line | 30W | 2,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||

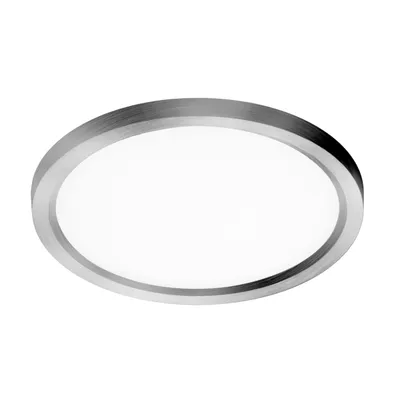

| LED-SLDSKR-15-30W-5CCT-BN | 15" Surface Mount Round: Slim-Line | 30W | 2,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Brushed Nickel | — | Call for pricing | ||

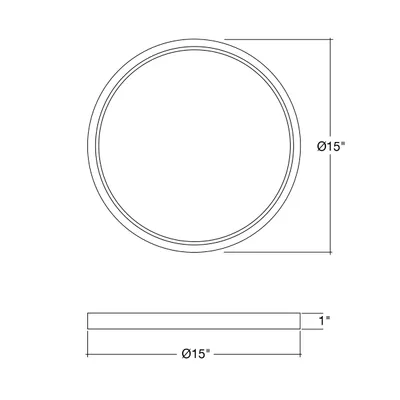

 | LED-SLDSKR-15-30W-5CCT-WH | 15" Surface Mount Round: Slim-Line | 30W | 2,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

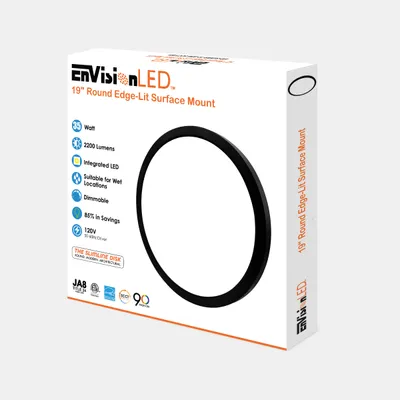

 | LED-SLDSKR-19-35W-5CCT-BLK | 19" Surface Mount Round: Slim-Line | 35W | 2,200 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | LED-SLDSKR-19-35W-5CCT-BN | 19" Surface Mount Round: Slim-Line | 35W | 2,200 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Brushed Nickel | — | Call for pricing | ||

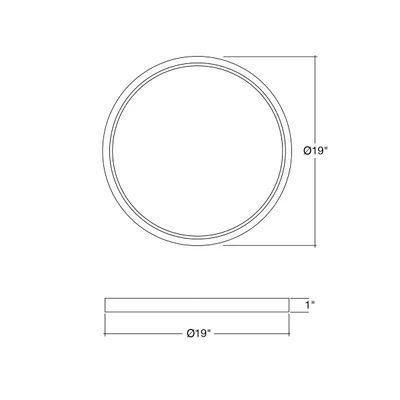

 | LED-SLDSKR-19-35W-5CCT-WH | 19" Surface Mount Round: Slim-Line | 35W | 2,200 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-SLDSKR-19-35W-TRI-WH | 19" Surface Mount Round: Slim-Line | 35W | 2,200 lm | 3000K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-SLSM-19R-3P35-5CCT-WH | 19" Surface Mount Round: Slim-Line | 25/30/35W | 1,800/2,000/2,200 lm | 2700K/3000K/3500K/4000K/5000K | 120V | Dimmable | White | — | Call for pricing | ||
| LED-SLDSKR-24-40W-5CCT-BL | 24" Surface Mount Round: Slim-Line | 40W | 2,700 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | LED-SLDSKR-24-40W-5CCT-WH | 24" Surface Mount Round: Slim-Line | 40W | 2,700 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-SLSM-24R-3P40-5CCT-WH | 24" Surface Mount Round: Slim-Line | 30/35/40W | 2,250/2,450/2,700 lm | 2700K/3000K/3500K/4000K/5000K | 120V | Dimmable | White | — | Call for pricing | ||
| LED-SLDSKR-5-10W-30KDISC | 5" Surface Mount Round: Slim-Line | 10W | 650 lm | 3000K | 120V | TRIAC/ELV | White | — | Call for pricing | — |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-sldskr-5-10w-5cct.zip
- IES fileled-sldskr-7-15w-iesna2002.ies
- IES fileled-sldskr-12-24w-5cct-wh-ies.ies
- IES fileled-sldsk-15r-30w-ies.ies
- IES fileled-sldsk-19r-35w-ies.ies
- IES fileled-slsm-19r-3p35-5cct-wh-30w-5000k_iesna2002.ies
- IES fileled-slsm-19r-3p35-5cct-wh-25w-5000k_iesna2002.ies
- IES fileled-slsm-19r-3p35-5cct-wh-35w-5000k_iesna2002.ies
- IES fileled-slsm-24r-3p40-5cct-wh-30w-5000k_iesna2002.ies
- IES fileled-slsm-24r-3p40-5cct-wh-35w-5000k_iesna2002.ies
- IES fileled-slsm-24r-3p40-5cct-wh-40w-5000k_iesna2002.ies
