EnVision LED

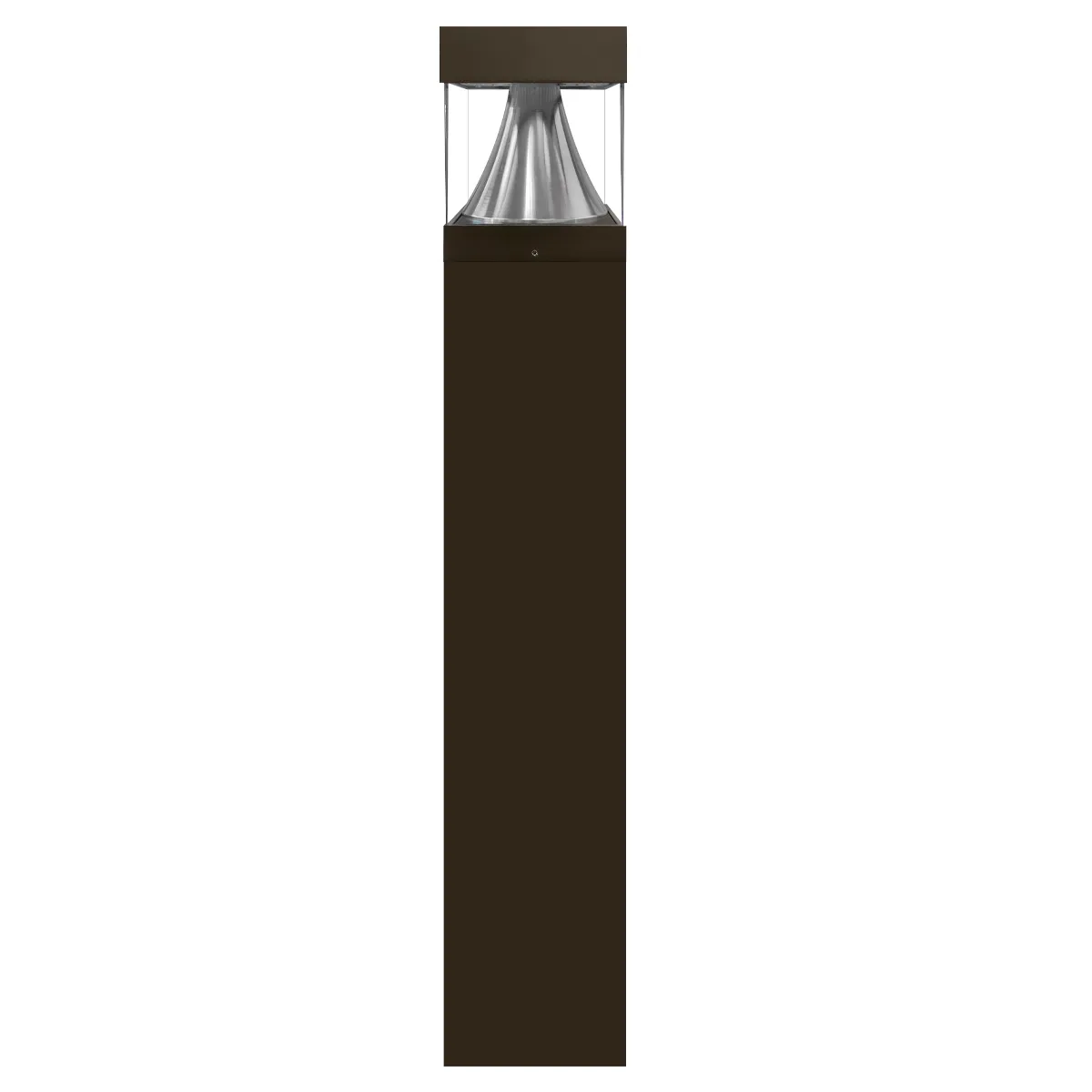

Square Bollards: Head and Base Sold Together
Square Bollard Base & Head Included • 5 different head options • Round Version: Base and head sold separately • Square Version: Head and base sold as a set
2 part numbers · Bollards: Bolt-Line
- Wattage
- 12–22W
- Lumens
- 1,560–2,860 lm
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Bronze
- DLC
- DLC Listed
- Warranty
- 5 years
Overview
Square Bollard Base & Head Included • 5 different head options • Round Version: Base and head sold separately • Square Version: Head and base sold as a set
Key features
- Select-N-Switch
Factory options
- -EMB — 90 Minute Emergency Backup
- -PC — On/off photocell
- -BMS — HD407VC-R: Bi Level Motion + Daylight Sensor
- 20KV — SG-20KV-UNV: 20KV Surge Protector
- -HV — 347-480V Step Down Transformer
Add the suffix to the part number when ordering. See the spec sheet for compatibility.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-BLD-3P22-SQ-5CCT-UNV-CN-FL-BL-44 | Bollard Round Bronze Base Only (custom paint finish w/2 week lead time) | 12/16/22W | 1,560/2,080/2,860 lm | — | 120–277V | 0-10V | Bronze | Listed | Call for pricing | ||
 | LED-BLD-3P22-SQ-5CCT-UNV-CN-FL-BZ-44 | Bollard Square Bronze Square Cone Flat Top | 12/16/22W | 1,560/2,080/2,860 lm | — | 120–277V | 0-10V | Bronze | Listed | Call for pricing |
