EnVision LED

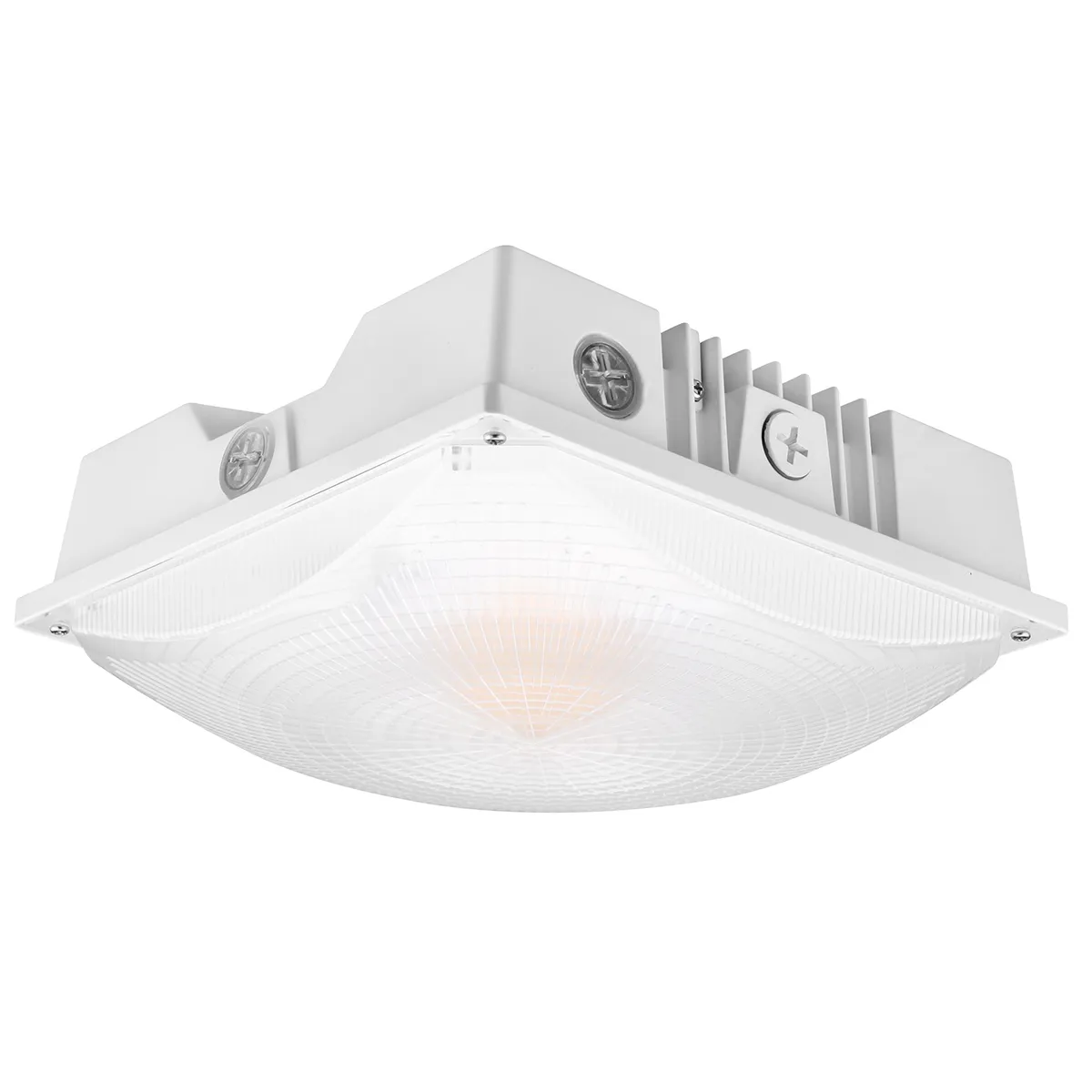

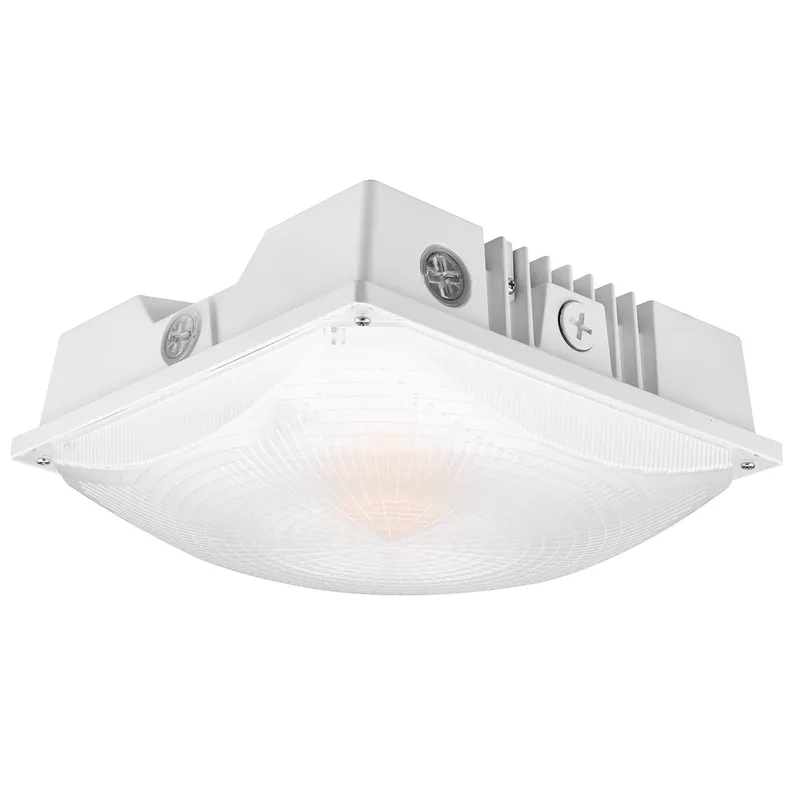

Square Canopy Fixtures 3CCT + 3-Power Selectable

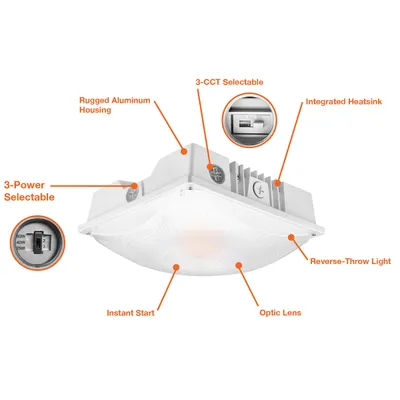

• Rugged powder-coated die-cast aluminum housing • Integrated heatsink • Silicone seals inhibit moisture ingress
2 part numbers · Canopy LED Fixtures
- Wattage
- 25–60W
- Lumens
- 3,625–8,700 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Bronze, White
- DLC
- DLC Premium
- Warranty
- 5 years
Overview
• Rugged powder-coated die-cast aluminum housing • Integrated heatsink • Silicone seals inhibit moisture ingress

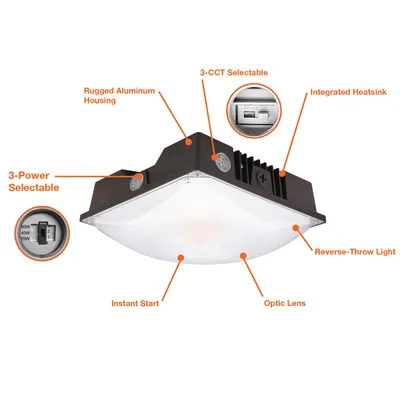

Key features
- 3CCT
- Select-N-Switch
Factory options
- -BMS — HD407VC-R: Bi Level Motion + Daylight Sensor
Add the suffix to the part number when ordering. See the spec sheet for compatibility.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-SCP-3P60W-TRI-BZ | Square Canopy: Slim-Line | 25/40/60W | 3,625/5,800/8,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | LED-SCP-3P60W-TRI-WH | Square Canopy: Slim-Line | 25/40/60W | 3,625/5,800/8,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing |
