EnVision LED

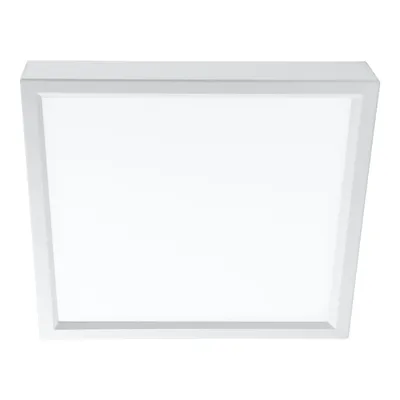

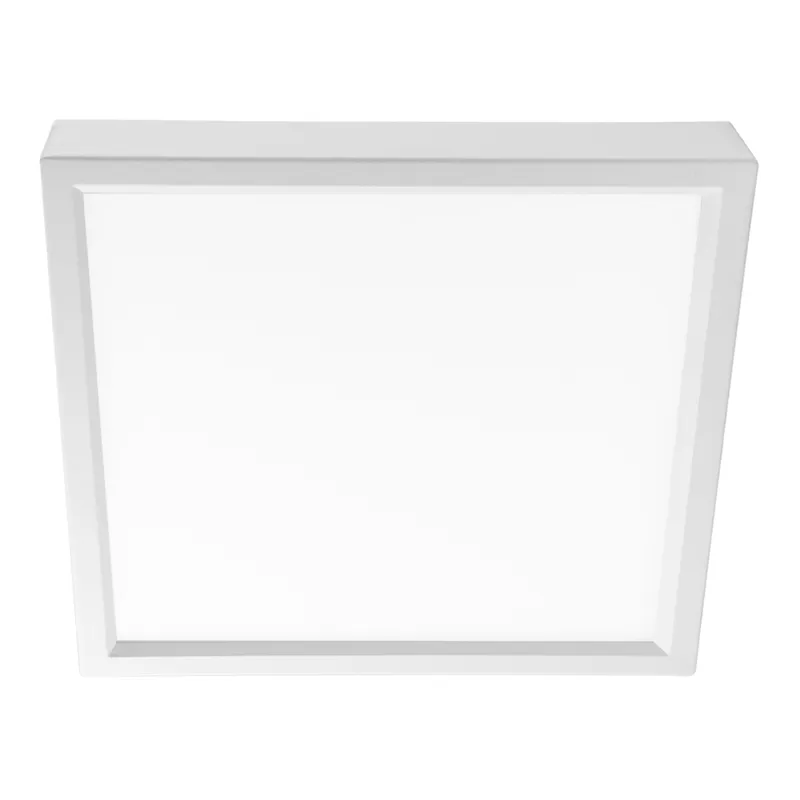

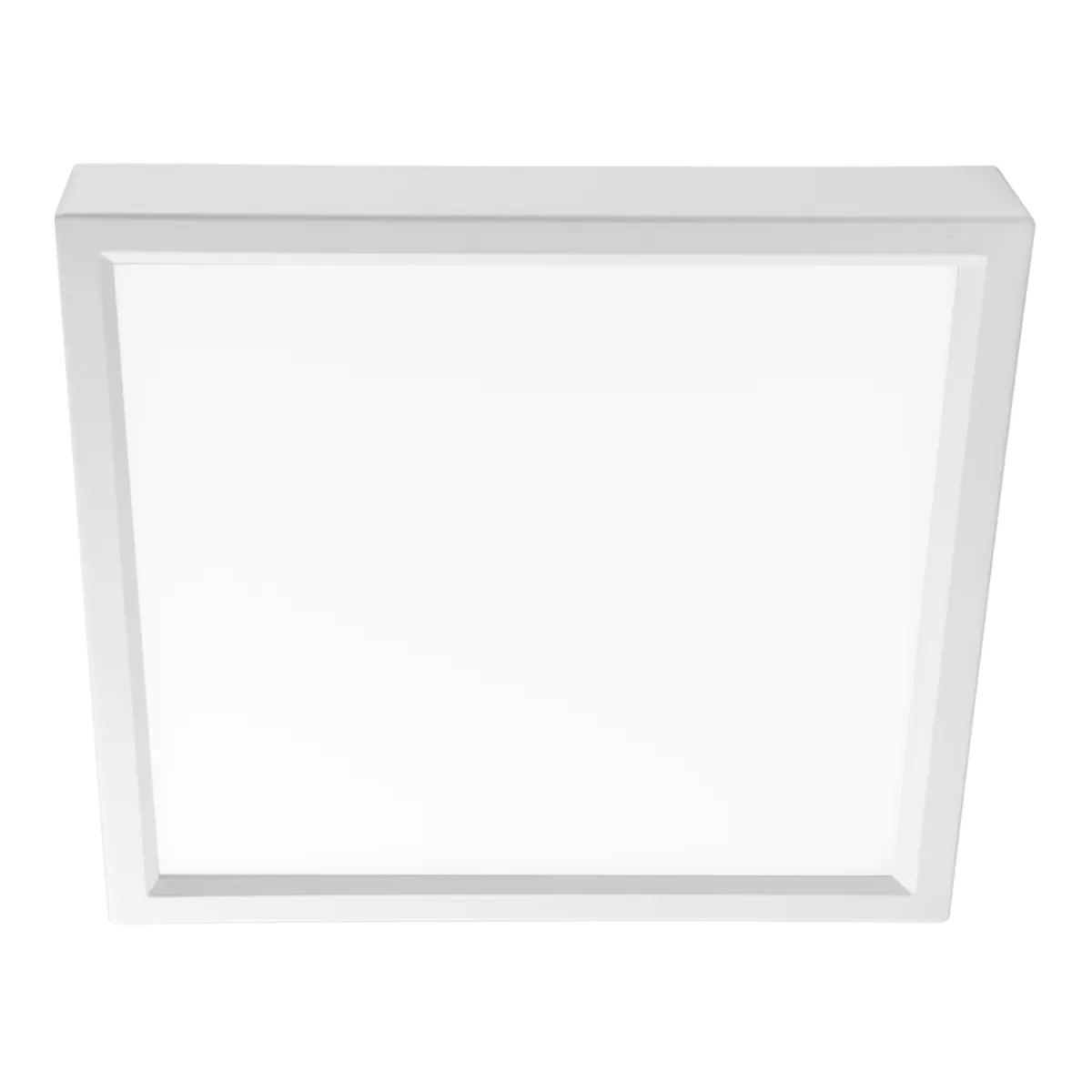

Square Triac Dimmable Models
Applications include universal J-Box sizes, 4" and 6" LED Cans.
6 part numbers · Square SlimLine Edge-Lit Surface Mount Series
- Wattage
- 10–22W
- Lumens
- 650–1,450 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- TRIAC/ELV
- CRI
- 90+
- Finish
- White
- Warranty
- 5 years
Overview
Applications include universal J-Box sizes, 4" and 6" LED Cans. The new EnVision slimline disk can be used in new construction and remodel applications.With the integration of edge-lit technology, driverless AC LED technology, and full dimmability, EnVision has created the most advanced disk on the market. It features two disk sizes, a slim width of .85”, and is designed to be a one of a kind in the LED market. Using edge-lit driver less technology, our SlimLine disk illuminates low glare while featuring an even light distribution. In addition, the SlimLine disk is wet rated and has a CRI >90.

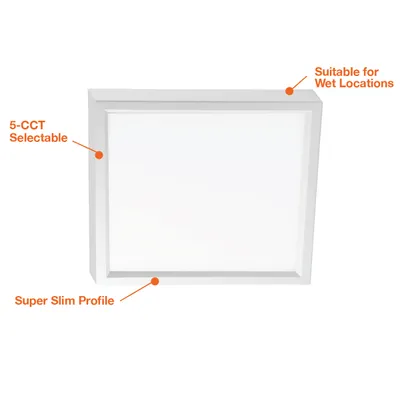

Key features
- 3CCT
- Select-N-Switch
- 5CCT
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-SLDSKSQ-5-10W-5CCT-WH | 5" SlimLine Surface Mount Square | 10W | 650 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-SLDSKSQ-5-10W-TRI | 5" SlimLine Surface Mount Square | 10W | 650 lm | 3000K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-SLDSKSQ-7-15W-5CCT-WH | 7" SlimLine Surface Mount Square | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
| LED-SLDSKSQ-7-15W-TRI | 7" SlimLine Surface Mount Square | 15W | 1,000 lm | 3000K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-SLDSKSQ-12-22W-5CCT-WH | 12" SlimLine Surface Mount Square | 22W | 1,450 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
| LED-SLDSKSQ-12-22W-TRI | 12" SlimLine Surface Mount Square | 22W | 1,450 lm | 3000K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing |
