EnVision LED
Tubular Linears - Downlight Only - QUICKSHIP

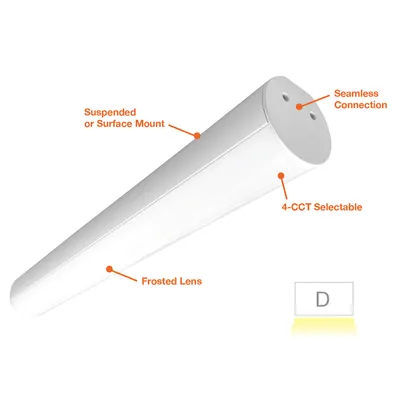

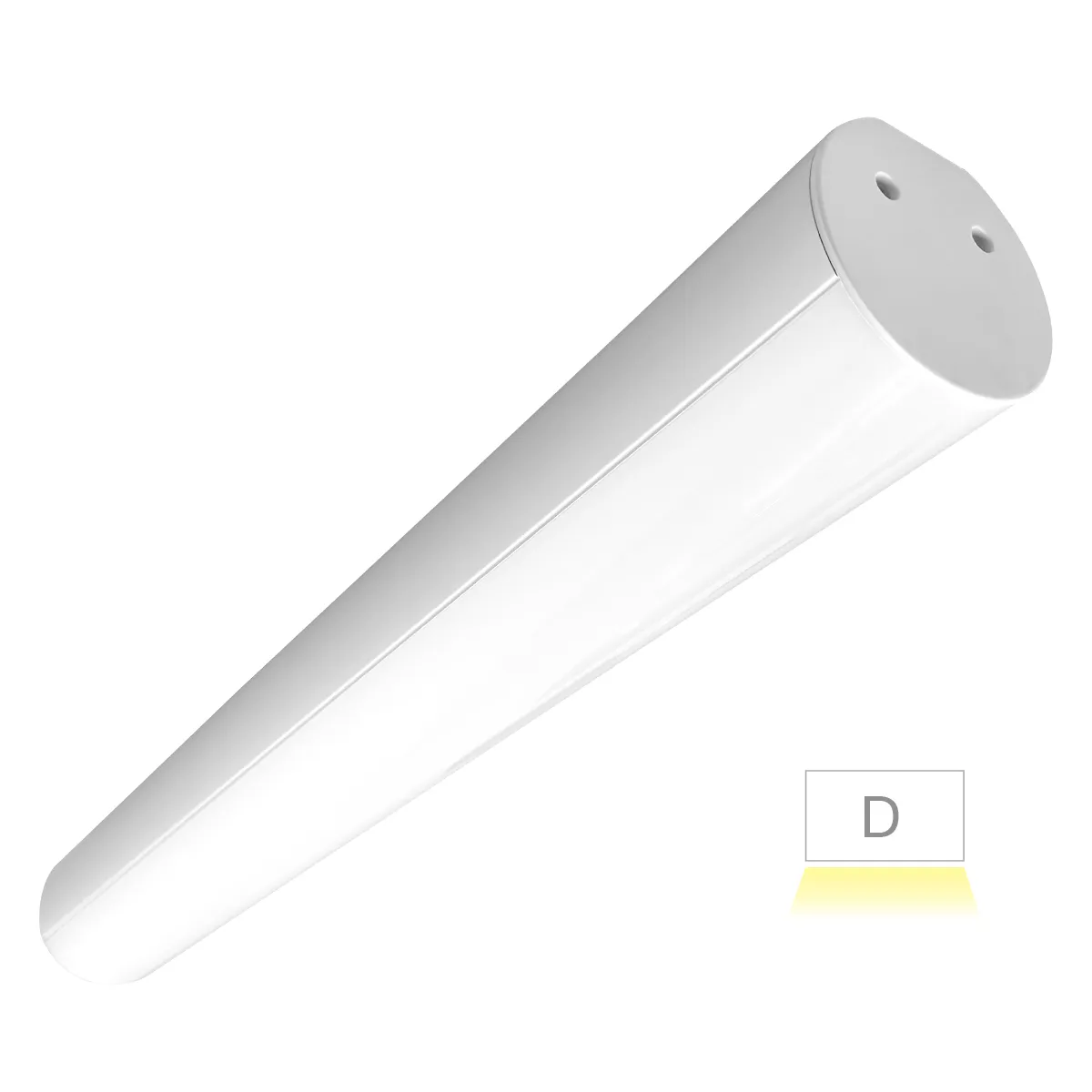

New3 part numbers · ARCY-Line: Architectural Suspended Tubular Linear- 2" Width x 3.5" Depth
- Wattage
- 20–80W
- Lumens
- 2,300–9,200 lm
- Color temperature
- 3000K, 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- Warranty
- 5 years
Key features
- 4CCT
- Select-N-Switch
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

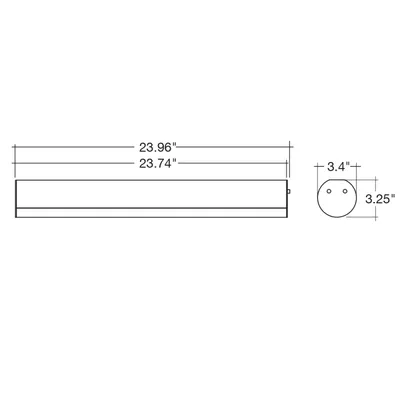

 | LED-TBL-2FT-20W-D-4CCT-WH | 2' Architectural Tubular Linear | 20W | 2,300 lm | 3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

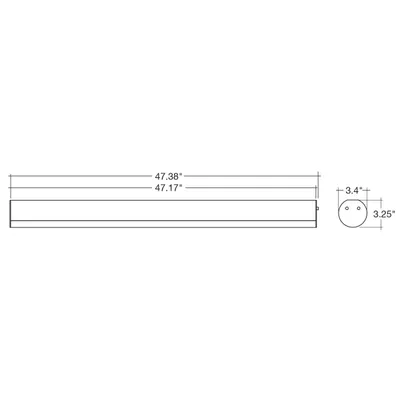

 | LED-TBL-4FT-40W-D-4CCT-WH | 4' Architectural Tubular Linear | 40W | 4,600 lm | 3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

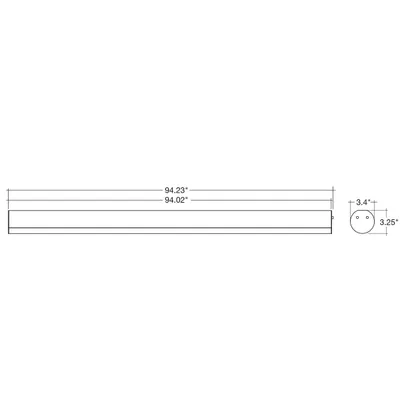

 | LED-TBL-8FT-80W-D-4CCT-WH | 8' Architectural Tubular Linear | 80W | 9,200 lm | 3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-tbl-2ft-20w-d-4cct-wh-40k-ies.ies
- IES fileled-tbl-2ft-20w-d-4cct-wh-30k-ies.ies
- IES fileled-tbl-2ft-20w-d-4cct-wh-35k-ies.ies
- IES fileled-tbl-2ft-20w-d-4cct-wh-50k-ies.ies
- IES fileled-tbl-4ft-40w-d-4cct-wh-40k-ies.ies
- IES fileled-tbl-4ft-40w-d-4cct-wh-35k-ies.ies
- IES fileled-tbl-4ft-40w-d-4cct-wh-30k-ies.ies
- IES fileled-tbl-4ft-40w-d-4cct-wh-50k-ies.ies
- IES fileled-tbl-8ft-80w-d-4cct-wh-50k-ies.ies
- IES fileled-tbl-8ft-80w-d-4cct-wh-30k-ies.ies
- IES fileled-tbl-8ft-80w-d-4cct-wh-40k-ies.ies
- IES fileled-tbl-8ft-80w-d-4cct-wh-35k-ies.ies
