Keystone Technologies

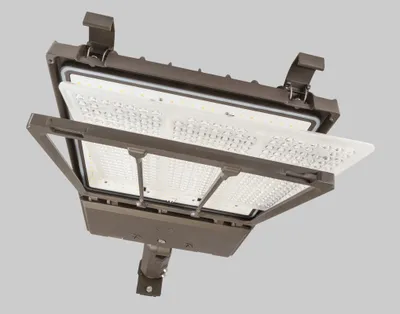

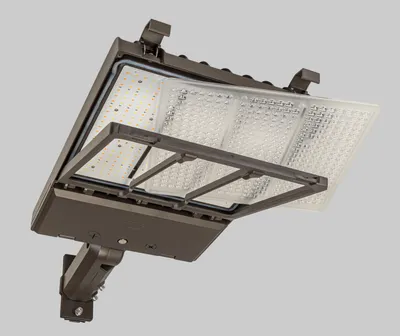

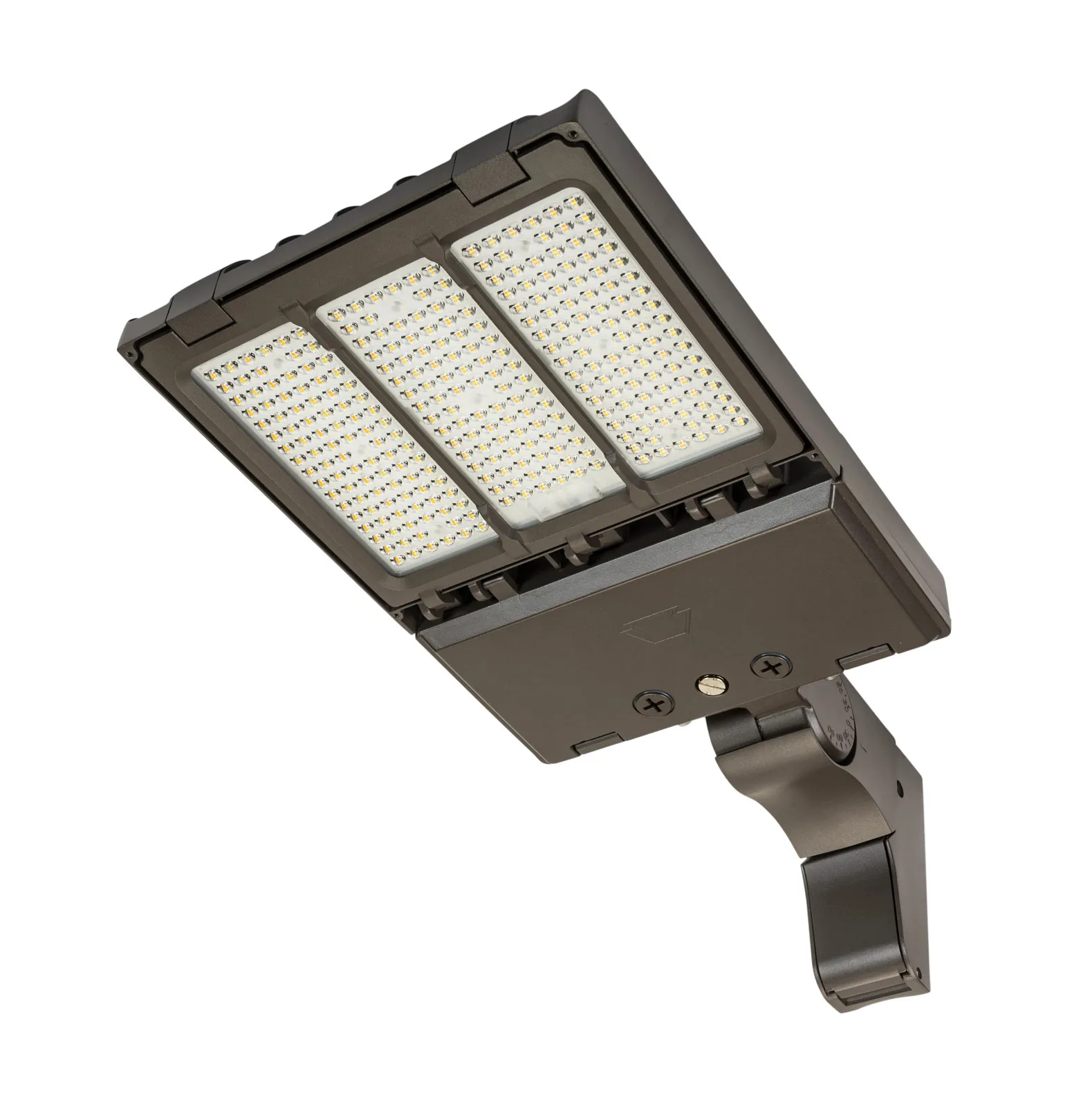

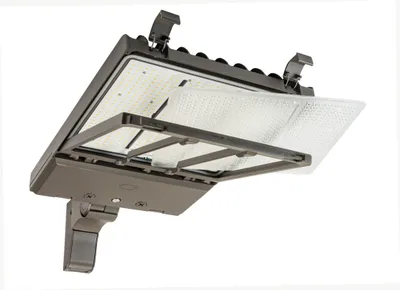

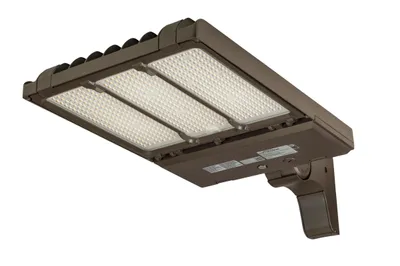

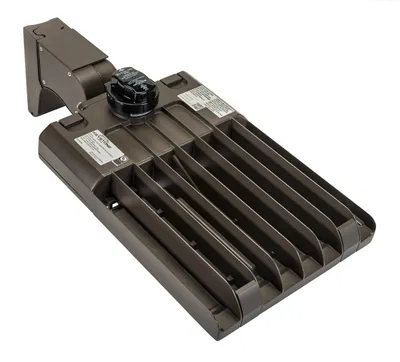

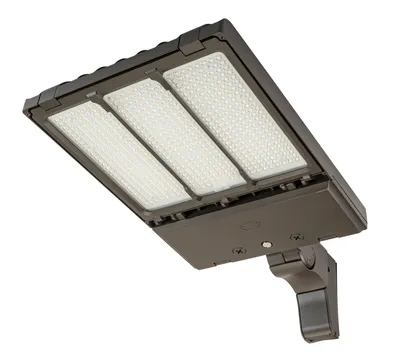

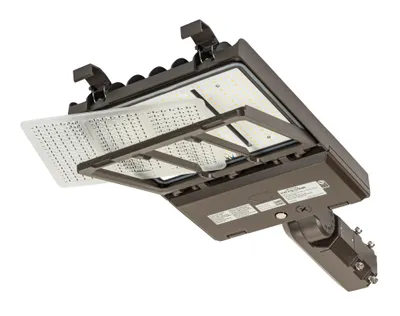

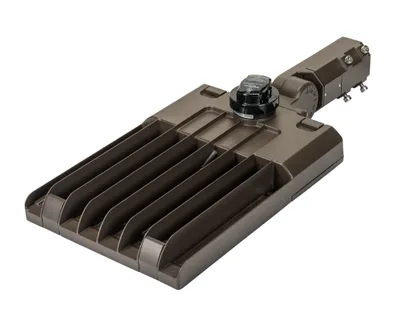

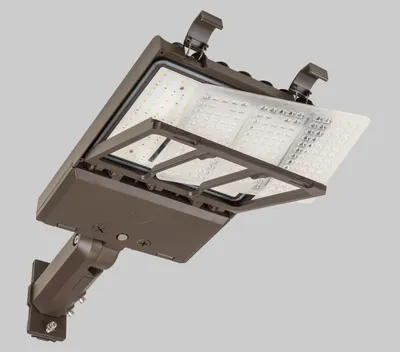

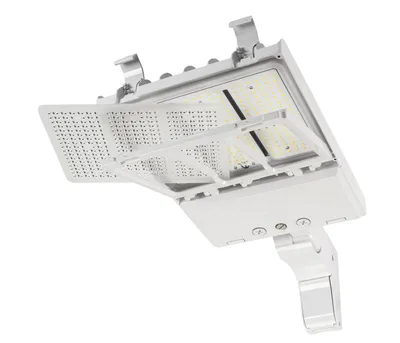

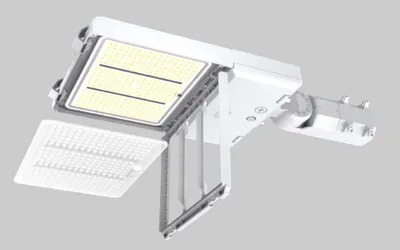

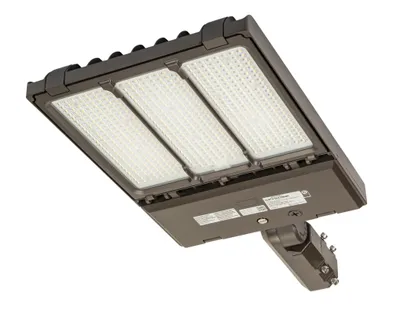

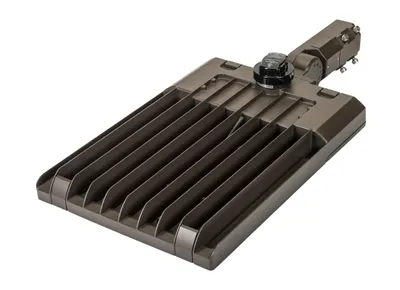

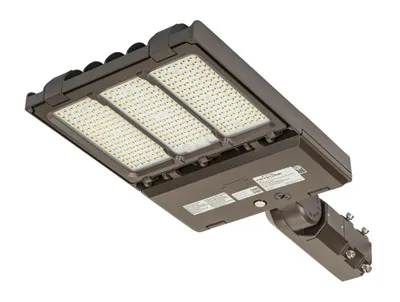

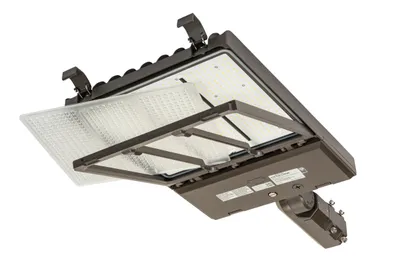

Area Lights – Stocking Special with OpticSwap

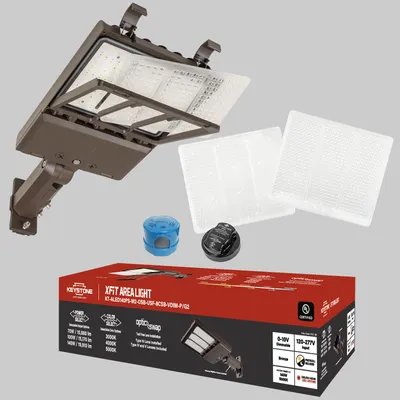

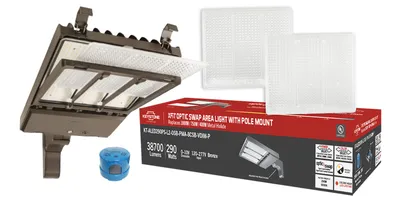

A package including a Power and Color Select-equipped Area Light with OpticSwap, with build-out accessories allowing for customization.
14 part numbers · Outdoor
- Wattage
- 70–290W
- Lumens
- 10,700–39,960 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish

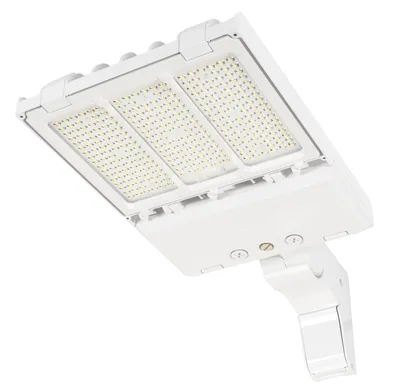

- Bronze, White
- DLC
- DLC Premium
- Warranty
- 10 years
Overview
A package including a Power and Color Select-equipped Area Light with OpticSwap, with build-out accessories allowing for customization.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | KT-ALED140PS-M2-OSA-PMA-8CSB-VDIM/G2 | 140W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Medium Housing | Optics Selectable A (Type III and V) | Adjust. Pole Mount |120-277V Input | 0-10V Dimmable | Bronze Housing | Gen2 | 70/100/140W | 10,730/14,790/19,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-ALED140PS-M2-OSA-USF-8CSB-VDIM/G2 | 140W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Medium Housing | Optics Selectable A (Type III and V) | Unv. Slipfitter Mount | 120-277V Input | 0-10V Dimmable | Bronze Housing | Gen2 | 70/100/140W | 10,730/14,790/19,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-ALED140PS-M2-OSB-PMA-8CSB-VDIM-P-W/G2 | 140W Power Select | Color Select | LED Area Light with NEMA Type 7-pin Twist Lock Receptacle + 3-pin Twist Lock Photocell | Series 2 Medium Housing | Optics Selectable B (Type III, IV, and V) | Adjust. Pole Mount | 120-277V Input | 0-10V Dimmable | Standa | 70/100/140W | 10,730/14,790/19,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
| KT-ALED140PS-M2-OSB-PMA-8CSB-VDIM-P/G2 | 140W Power Select | Color Select | LED Area Light with NEMA Type 7-pin Twist Lock Receptacle + 3-pin Twist Lock Photocell | Series 2 Medium Housing | Optics Selectable B (Type III, IV, and V) | Adjust. Pole Mount|120-277V Input | 0-10V Dimmable | Standard | 70/100/140W | 10,730/14,790/19,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-ALED140PS-M2-OSB-SF-8CSB-VDIM-P-W | 140W Power Select Color Select LED Area Light with NEMA Type 7-pin Twist Lock Receptacle + Shorting Cap. Series 2 Medium Housing. Optics Selectable B (Type III, IV, and V). Slip Fitter Mount. NEMA Type 3-pin Twist Lock Photocell. 120-277V Input. 0-10V Dim | 70/100/140W | 10,700/14,750/20,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | KT-ALED140PS-M2-OSB-USF-8CSB-VDIM-P/G2 | 140W Power Select | Color Select | LED Area Light with NEMA Type 7-pin Twist Lock Receptacle + 3-pin Twist Lock Photocell | Series 2 Medium Housing | Optics Selectable B (Type III, IV, and V) | Univ. Slipfitter Mount | 120-277V Input | 0-10V Dimmable | St | 70/100/140W | 10,730/14,790/19,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-ALED290PS-L2-OSA-PMA-8CSB-VDIM/G2 | 290W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Large Housing | Optics Selectable A (Type III and V) | Adjust. Pole Mount | 120-277V Input | 0-10V Dimmable | Bronze Housing | Gen2 | 185/210/290W | 27,540/30,860/39,960 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-ALED290PS-L2-OSA-USF-8CSB-VDIM/G2 | 290W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Large Housing | Optics Selectable A (Type III and V) | Unv. Slipfitter Mount | 120-277V Input | 0-10V Dimmable | Bronze Housing | Gen2 | 185/210/290W | 27,540/30,860/39,960 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| KT-ALED290PS-L2-OSB-PMA-8CSB-VDIM-P/G2 | 290W Power Select | Color Select | LED Area Light with NEMA Type 7-pin Twist Lock Receptacle + 3-pin Twist Lock Photocell | Series 2 Large Housing | Optics Selectable B (Type III, IV, and V) | Adjust. Pole Mount | 120-277V Input | 0-10V Dimmable | Standar | 185/210/290W | 27,540/30,860/39,960 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-ALED290PS-L2-OSB-USF-8CSB-VDIM-P/G2 | 290W Power Select | Color Select | LED Area Light with NEMA Type 7-pin Twist Lock Receptacle + 3-pin Twist Lock Photocell | Series 2 Large Housing | Optics Selectable B (Type III, IV, and V) | Univ. Slipfitter Mount | 120-277V Input | 0-10V Dimmable | Sta | 185/210/290W | 27,540/30,860/39,960 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-ALED140PS-M2-OSB-PMA-8CSB-VDIM-PDISC | 140W Power Select Color Select LED Area Light with NEMA Type 7-pin Twist Lock Receptacle + Shorting Cap. Series 2 Medium Housing. Optics Selectable B (Type III, IV, and V). Adjustable Pole Mount. NEMA Type 3-pin Twist Lock Photocell. 120-277V Input. 0-10V | 70/100/140W | 10,700/14,750/20,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | — | |
 | KT-ALED140PS-M2-OSB-SF-8CSB-VDIM-PDISC | 140W Power Select Color Select LED Area Light with NEMA Type 7-pin Twist Lock Receptacle + Shorting Cap. Series 2 Medium Housing. Optics Selectable B (Type III, IV, and V). Slip Fitter Mount. NEMA Type 3-pin Twist Lock Photocell. 120-277V Input. 0-10V Dim | 70/100/140W | 10,700/14,750/20,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | — | |
| KT-ALED290PS-L2-OSB-PMA-8CSB-VDIM-PDISC | 290W Power Select Color Select LED Area Light with NEMA Type 7-pin Twist Lock Receptacle + Shorting Cap. Series 2 Large Housing. Optics Selectable B (Type III, IV, and V). Adjustable Pole Mount. NEMA Type 3-pin Twist Lock Photocell. 120-277V Input. 0-10V | 185/210/290W | 27,000/31,700/42,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | — | |
 | KT-ALED290PS-L2-OSB-SF-8CSB-VDIM-PDISC | 290W Power Select Color Select LED Area Light with NEMA Type 7-pin Twist Lock Receptacle + Shorting Cap. Series 2 Large Housing. Optics Selectable B (Type III, IV, and V). Slip Fitter Mount. NEMA Type 3-pin Twist Lock Photocell. 120-277V Input. 0-10V Dimm | 185/210/290W | 27,000/31,700/42,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | — |
