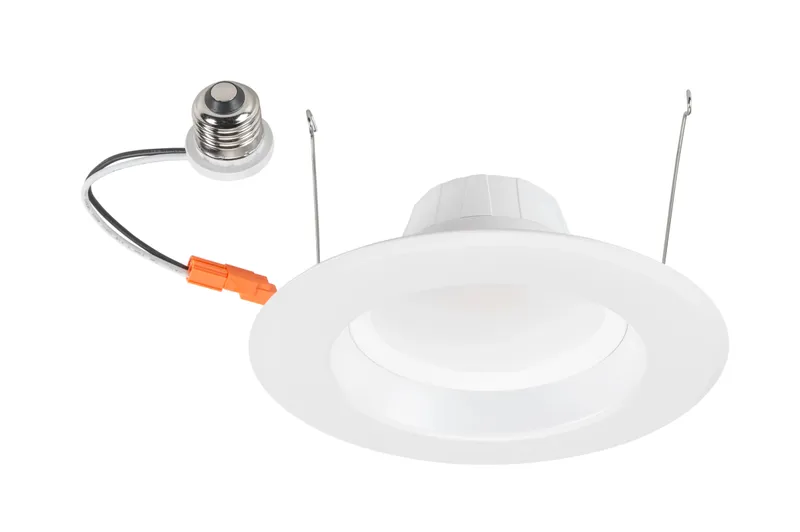

Keystone Technologies
Downlights – Retrofit Trim

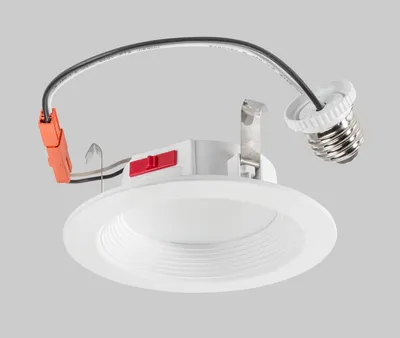

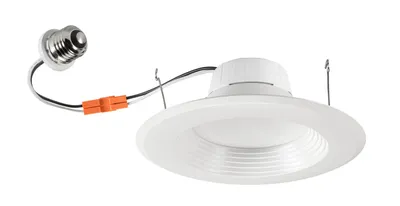

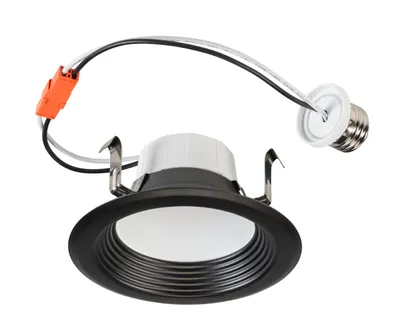

Aviva retrofit trim downlights come in multiple styles: smooth regression, baffle, wafer, and gimbal unit.
51 part numbers · Downlights
- Wattage
- 6–15W
- Lumens
- 520–1,350 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- TRIAC/ELV
- CRI
- 80–90+
- Finish
- Black, Brushed Nickel, Bronze, White
- Warranty
- 3–5 years
Overview
Aviva retrofit trim downlights come in multiple styles: smooth regression, baffle, wafer, and gimbal unit. All simply screw into the socket of any existing can light.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

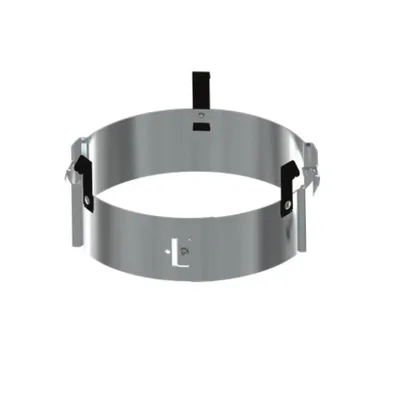

 | KT-ADPT-RD-6C-TS | Torsion spring adapter for 6in residential downlight retrofit | — | — | — | — | — | — | — | Call for pricing | ||

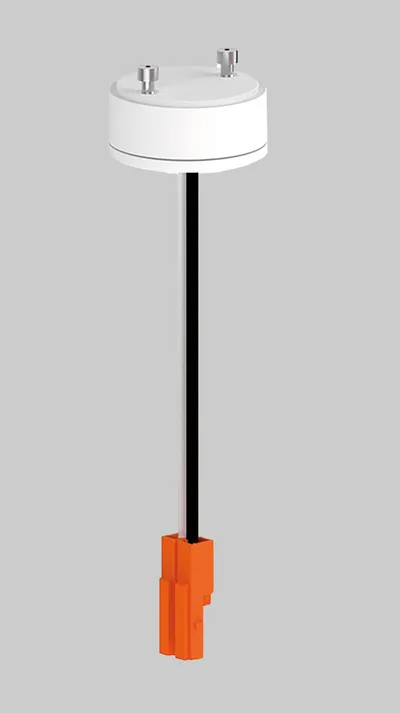

 | KT-ADPT-RD-GU24 | GU24 Adapter for Residential Downlight Retrofit | — | — | — | — | — | — | — | Call for pricing | ||

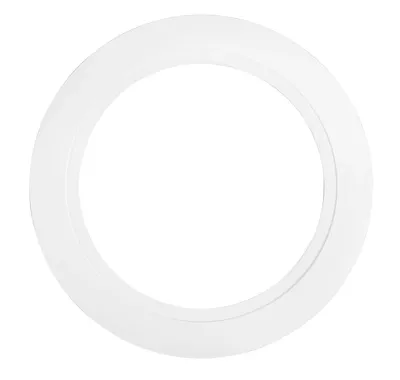

 | KT-GOOF-RD-4C | 4in Goof Ring for 4in Residential Circular Downlight | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-GOOF-RD-6C | 6in Goof Ring for 6in Residential Circular Downlight | — | — | — | — | — | — | — | Call for pricing | ||

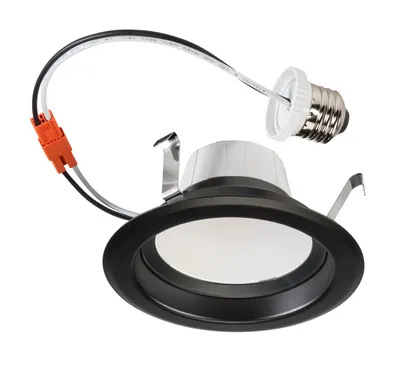

 | KT-LED8RD-4CB-9CSF-DIM-B | 4" Baffled Circular LED Residential Retrofit | Black Trim | 8W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | — | 720 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||

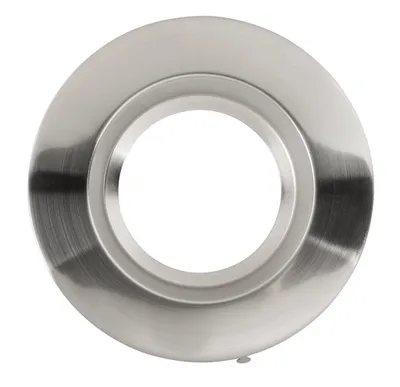

 | KT-TRIM-RD-4C-BN | 4in Interchangeable Trim for 4in Residential Circular Downlight, Brushed Nickel | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||

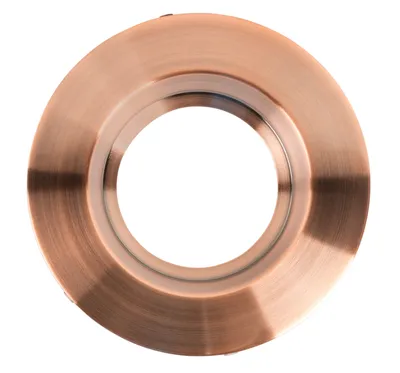

 | KT-TRIM-RD-4C-BR | 4in Interchangeable Trim for 4in Residential Circular Downlight, Bronze | — | — | — | — | — | Bronze | — | Call for pricing | ||

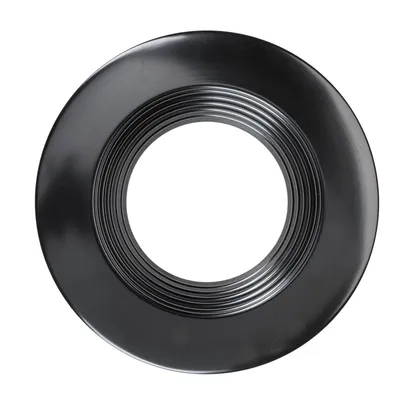

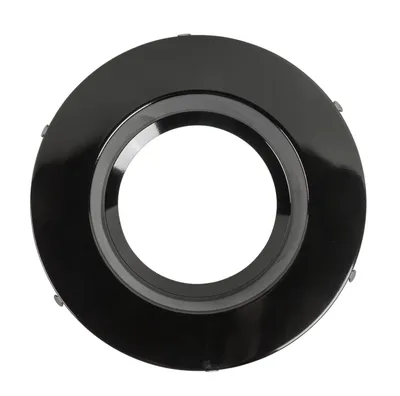

 | KT-TRIM-RD-4C-MB | 4in Interchangeable Trim for 4in Residential Circular Downlight, Matte Black | — | — | — | — | — | Black | — | Call for pricing | ||

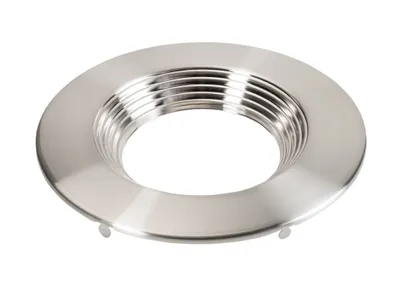

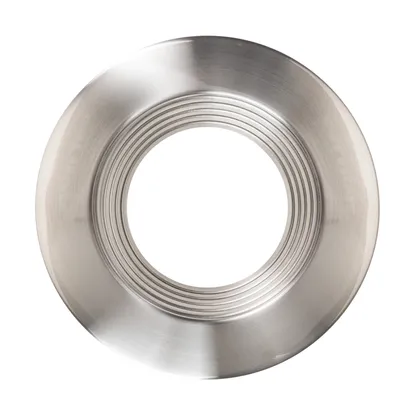

 | KT-TRIM-RD-4CB-BN | 4In Interchangeable Trim for Baffled 4in Residential Circular Downlight, Brushed Nickel | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||

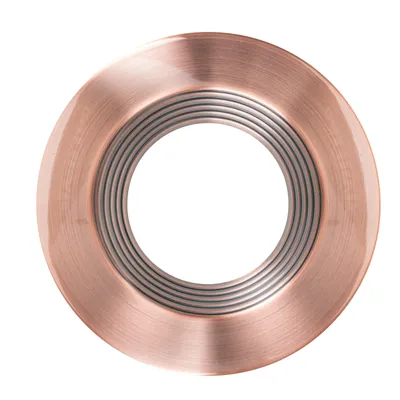

| KT-TRIM-RD-4CB-BR | 4in Interchangeable Trim for Baffled 4in Residential Circular Downlight, Bronze | — | — | — | — | — | Bronze | — | Call for pricing | ||
| KT-TRIM-RD-4CB-MB | 4in Interchangeable Trim for Baffled 4in Residential Circular Downlight, Matte Black | — | — | — | — | — | Black | — | Call for pricing | ||
 | KT-TRIM-RD-6C-BN | 6in Interchangeable Trim for 6in Residential Circular Downlight, Brushed Nickel | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||
 | KT-TRIM-RD-6C-BR | 6in Interchangeable Trim for 6in Residential Circular Downlight, Bronze | — | — | — | — | — | Bronze | — | Call for pricing | ||
| KT-TRIM-RD-6CB-BN | 6 in Interchangeable Trim for Baffled 6in Residential Circular Downlight, Brushed Nickel | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||
| KT-TRIM-RD-6CB-BR | 6in Interchangeable Trim for Baffled 6in Residential Circular Downlight, Bronze | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-TRIM-RD-6CB-MB | 6In Interchangeable Trim for Baffled 6In Residential Circular Downlight, Matte Black | — | — | — | — | — | Black | — | Call for pricing | ||

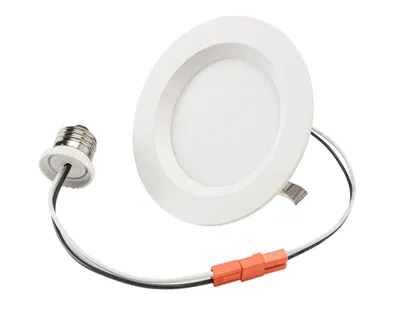

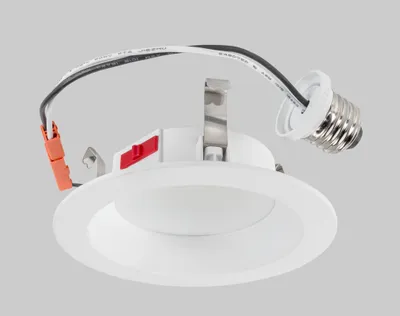

 | KT-LED6RD-4C-830-DIM-CS | 4in Circular LED Residential Retrofit, 120V Input, 6W, 3000K, 80CRI, TRIAC Dimming, Contractor Series, E26 Adapter Included | 6W | 550 lm | 3000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-LED7RD-4C-9CSF-DIM-CS | 4in Circular LED Residential Retrofit | Plastic housing | 7.5W | Color Select 27/30/35/40/50K | 90 CRI | 120V input | TRIAC dimming | Includes E26 adapter | Contractor Series | 7W | — | 2700K/3000K/3500K/4000K/5000K | 120V | — | White | — | Call for pricing | ||
| KT-LED7RD-4C-9CSF-DIM-CS-BP | 4in Circular LED Residential Retrofit| Plastic housing | 7.5W | Color Select 27/30/35/40/50K | 90 CRI | 120V input | TRIAC dimming | Includes E26 adapter | Contractor Series | Bulk Pack - 12 pack carton qty | 7W | — | 2700K/3000K/3500K/4000K/5000K | 120V | — | White | — | Call for pricing | ||

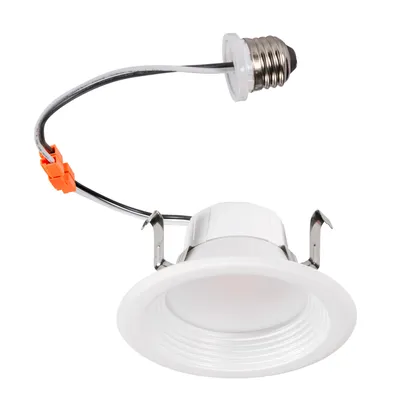

 | KT-LED7RD-4CB-9CSF-DIM-CS | 4in Circular LED Residential Retrofit | Plastic housing | 7.5W | Color Select 27/30/35/40/50K | 90 CRI | 120V input | TRIAC dimming | Includes E26 adapter | Contractor Series | 7W | — | 2700K/3000K/3500K/4000K/5000K | 120V | — | White | — | Call for pricing | ||
| KT-LED7RD-4CB-9CSF-DIM-CS-BP | 4in Baffled Circular LED Residential Retrofit | Plastic housing | 7.5W | Color Select 27/30/35/40/50K | 90 CRI | 120V input | TRIAC dimming | Includes E26 adapter | Contractor Series | Bulk pack / 12 pack carton qty | 7W | — | 2700K/3000K/3500K/4000K/5000K | 120V | — | White | — | Call for pricing | ||
 | KT-LED7RD-6C-830-DIM-CS | 6in Circular LED Residential Retrofit, 120V Input, 7W, 3000K, 80CRI, TRIAC Dimming, Contractor Series, E26 Adapter Included | 7W | 650 lm | 3000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

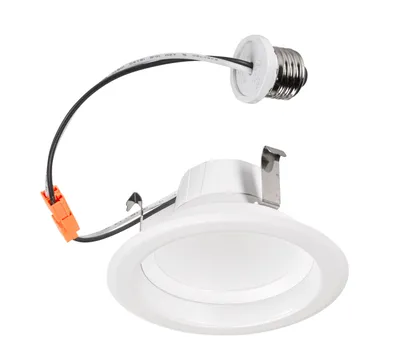

 | KT-LED8RD-4C-9CSF-DIM | 4in Circular LED Residential Retrofit feat. Color Select, 120V Input, 8W, 2700/3000/3500/4000/5000K, 90CRI, TRIAC Dimming, E26 Adapter Included | 8W | 720 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

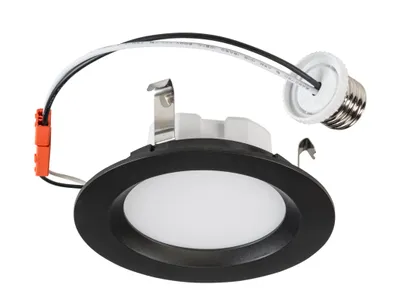

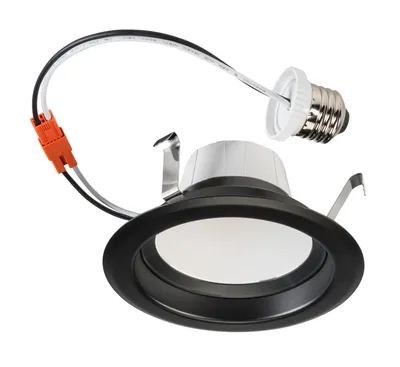

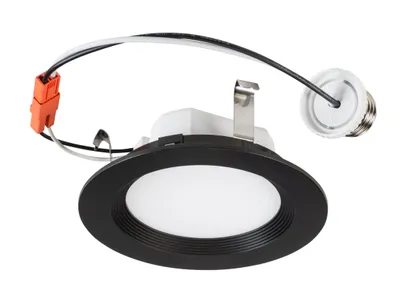

 | KT-LED8RD-4C-9CSF-DIM-B | 4" Circular LED Residential Retrofit | Black Trim | 8W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 8W | 720 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||

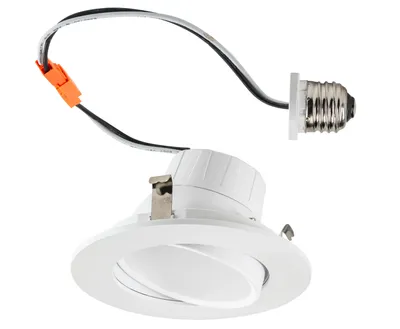

 | KT-LED8RD-4C-9CSF-DIM-G | 4in Circular LED Residential Retrofit Gimbal feat. Color Select, 120V Input, 8W, 2700/3000/3500/4000/5000K, 90CRI, TRIAC Dimming, E26 Adapter Included | 8W | 800 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

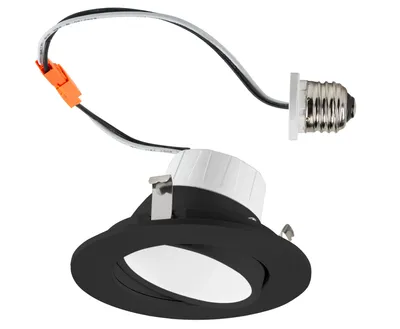

 | KT-LED8RD-4C-9CSF-DIM-G-B | 4" Circular LED Residential Retrofit Gimbal | Black Trim | 8W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 8W | 750 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||

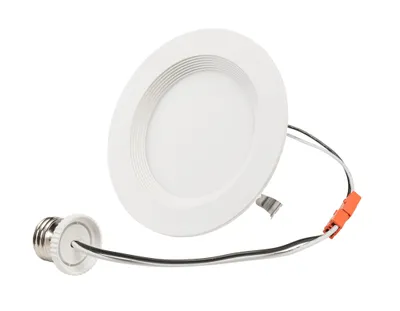

 | KT-LED8RD-4CB-9CSF-DIM | 4in Baffled Circular LED Residential Retrofit feat. Color Select, 120V Input, 8W, 2700/3000/3500/4000/5000K, 90CRI, TRIAC Dimming, E26 Adapter Included | 8W | 720 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

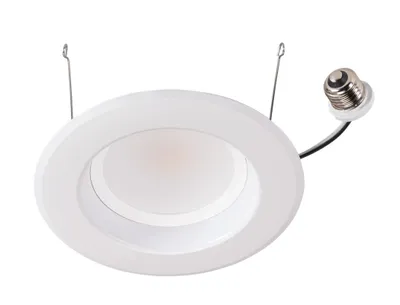

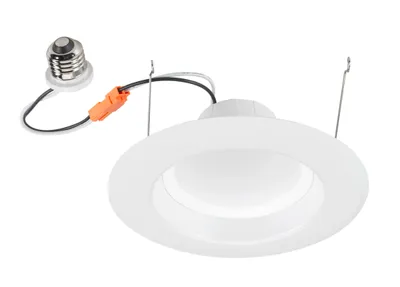

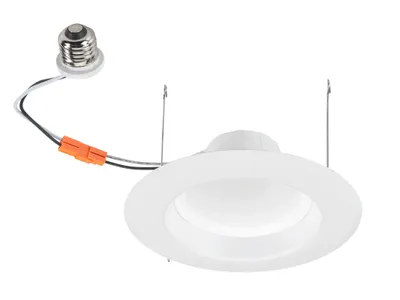

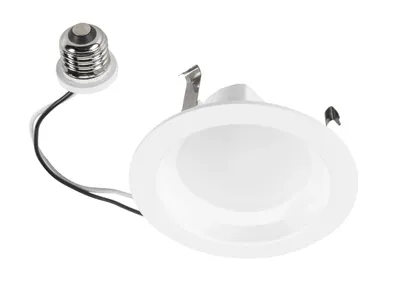

 | KT-LED8RD-6C-9CSF-DIM | 6in Circular LED Residential Retrofit feat. Color Select, 120V Input, 8W, 2700/3000/3500/4000/5000K, 90CRI, TRIAC Dimming, E26 Adapter Included | 8W | 750 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

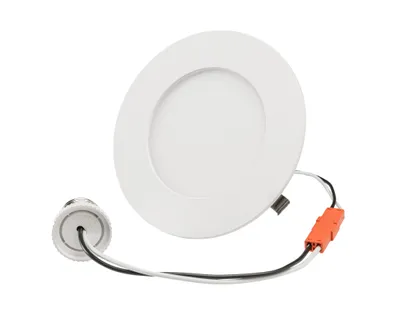

 | KT-LED10PSWD-4A-9CSF-DIM | 4" LED Slim Wafer Downlight Retrofit | Power Select 10/8/6W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 6/8/10W | 550/700/850 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

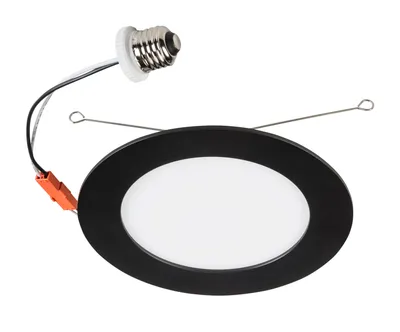

 | KT-LED10PSWD-4A-9CSF-DIM-B | 4" LED Slim Wafer Downlight Retrofit | Black Trim | Power Select 10/8/6W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 6/8/10W | 520/700/840 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | KT-LED10PSWD-4B-9CSF-DIM | 4" LED Regressed Smooth Wafer Downlight Retrofit | Power Select 10/8/6W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 6/8/10W | 550/700/850 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-LED10PSWD-4B-9CSF-DIM-B | 4" LED Regressed Smooth Wafer Downlight Retrofit | Black Trim | Power Select 10/8/6W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 6/8/10W | 520/670/820 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | KT-LED10PSWD-4BB-9CSF-DIM | 4" LED Regressed Baffle Wafer Downlight Retrofit | Power Select 10/8/6W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 6/8/10W | 550/700/850 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-LED10PSWD-4BB-9CSF-DIM-B | 4" LED Regressed Baffled Wafer Downlight Retrofit | Black Trim | Power Select 10/8/6W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 6/8/10W | 520/650/800 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | KT-LED10RD-6C-830-DIM-CS /G2 | 6in Circular LED Residential Retrofit | Plastic housing | 10W | 3000K | 80 CRI | 120V input | TRIAC dimming | Includes E26 adapter | Contractor Series | 2nd Generation | 10W | — | — | 120V | — | White | — | Call for pricing | ||

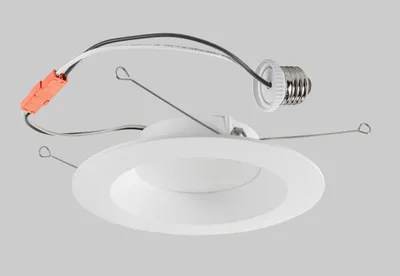

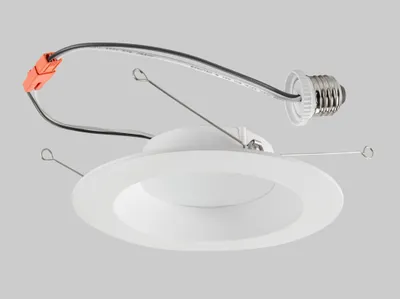

 | KT-LED10RD-6C-9CSF-DIM-CS | 6in Circular LED Residential Retrofit | Plastic housing | 10W | Color Select 27/30/35/40/50K | 90 CRI | 120V input | TRIAC dimming | Includes E26 adapter | Contractor Series | 10W | — | 2700K/3000K/3500K/4000K/5000K | 120V | — | White | — | Call for pricing | ||
| KT-LED10RD-6C-9CSF-DIM-CS-BP | 6in Circular LED Residential Retrofit | Plastic housing | 10W | Color Select 27/30/35/40/50K | 90 CRI | 120V input | TRIAC dimming | Includes E26 adapter | Contractor Series | Bulk pack / 12 pack carton qty | 10W | — | 2700K/3000K/3500K/4000K/5000K | 120V | — | White | — | Call for pricing | ||

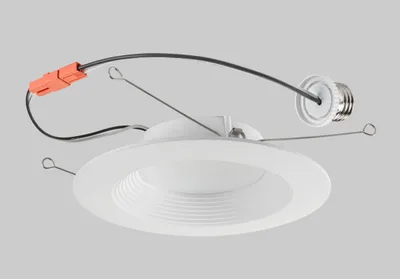

 | KT-LED10RD-6CB-9CSF-DIM-CS | 6in Baffled Circular LED Residential Retrofit | Plastic housing | 10W | Color Select 27/30/35/40/50K | 90 CRI | 120V input | TRIAC dimming | Includes E26 adapter | Contractor Series | 10W | — | 2700K/3000K/3500K/4000K/5000K | 120V | — | White | — | Call for pricing | ||
| KT-LED10RD-6CB-9CSF-DIM-CS-BP | 6in Baffled Circular LED Residential Retrofit | Plastic housing | 10W | Color Select 27/30/35/40/50K | 90 CRI | 120V input | TRIAC dimming | Includes E26 adapter | Contractor Series | Bulk pack - 12 pack carton qty | 10W | — | 2700K/3000K/3500K/4000K/5000K | 120V | — | White | — | Call for pricing | ||

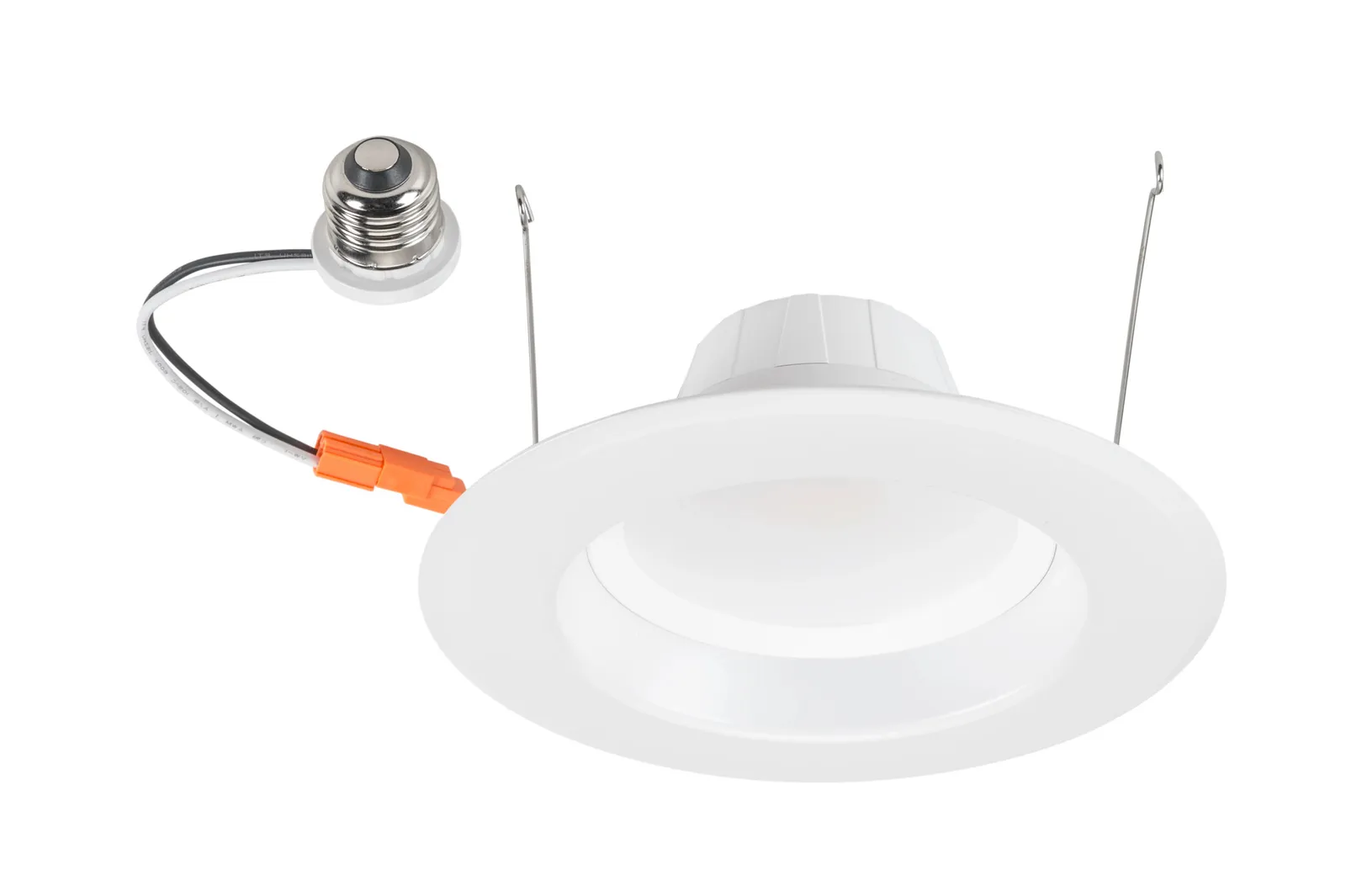

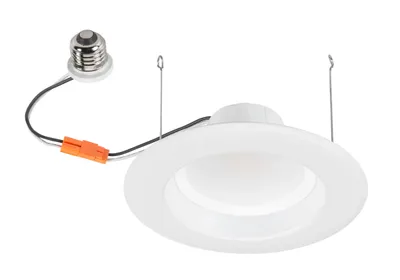

 | KT-LED10RD-6C-9CSF-DIM | 6in Circular LED Residential Retrofit feat. Color Select, 120V Input, 10.5W, 2700/3000/3500/4000/5000K, 90CRI, TRIAC Dimming, E26 Adapter Included | 10.5W | 950 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

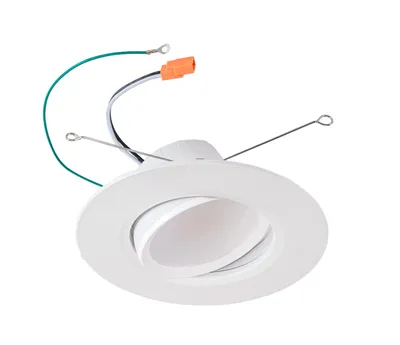

 | KT-LED11RD-6C-9CSF-DIM-G | 6in Circular LED Residential Retrofit Gimbal feat. Color Select, 120V Input, 11W, 2700/3000/3500/4000/5000K, 90CRI, TRIAC Dimming, E26 Adapter Included | 11W | 1,150 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

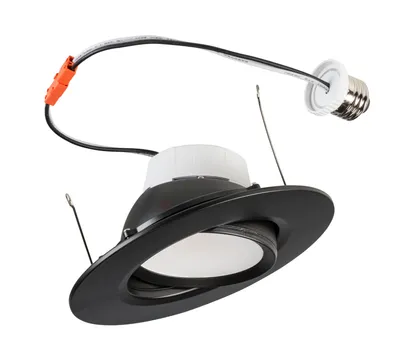

 | KT-LED11RD-6C-9CSF-DIM-G-B | 5”/6" Circular LED Residential Retrofit Gimbal | Black Trim | 11W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 11W | 1,150 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | KT-LED14PSRD-6C-9CSF-DIM | 6in Circular LED Commercial Downlight feat. Power Select and Color Select. 14/10/8W, 120V Input, 2700/3000/3500/4000/5000K, 90CRI, TRIAC Dimming, E26 Adapter Included | 8/10/14W | 800/950/1,250 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-LED14PSRD-6C-9CSF-DIM-B | 5”/6" Circular LED Residential Retrofit | Black Trim | Power Select 14/10/8W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 8/10/14W | 800/950/1,250 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | KT-LED14PSRD-6CB-9CSF-DIM | 6in Baffle Circular LED Commercial Downlight feat. Power Select and Color Select. 14/10/8W, 120V Input, 2700/3000/3500/4000/5000K, 90CRI, TRIAC Dimming, E26 Adapter Included | 8/10/14W | 780/930/1,230 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

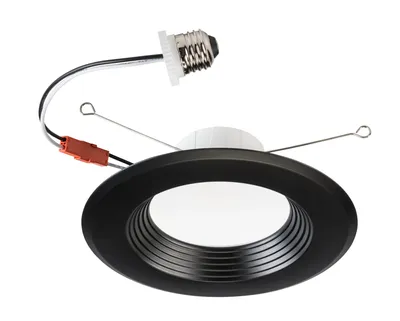

 | KT-LED14PSRD-6CB-9CSF-DIM-B | 5”/6" Baffled Circular LED Residential Retrofit | Black Trim | Power Select 14/10/8W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 8/10/14W | 780/930/1,230 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | KT-LED14RD-6C-9CSF-DIM | 6in Circular LED Residential Retrofit feat. Color Select, 120V Input, 14W, 2700/3000/3500/4000/5000K, 90CRI, TRIAC Dimming, E26 Adapter Included | 14W | 1,250 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

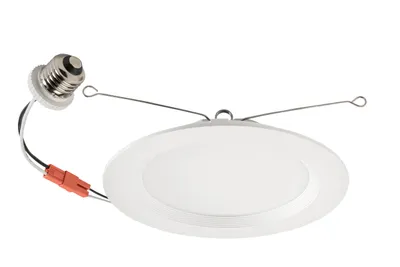

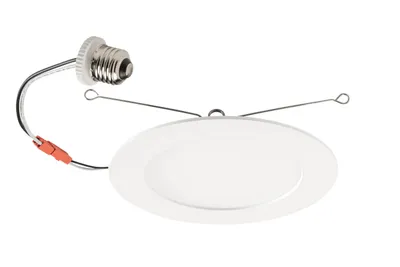

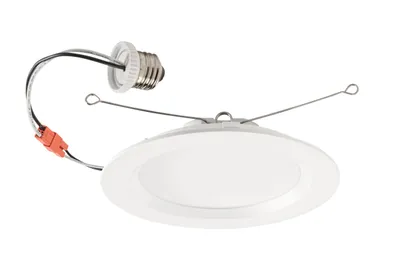

 | KT-LED15PSWD-6A-9CSF-DIM | 6" LED Slim Wafer Downlight Retrofit | Power Select 15/13/11W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 11/13/15W | 1,000/1,200/1,350 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-LED15PSWD-6A-9CSF-DIM-B | 6" LED Slim Wafer Downlight Retrofit | Black Trim | Power Select 15/13/11W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 11/13/15W | 1,000/1,200/1,300 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | KT-LED15PSWD-6B-9CSF-DIM | 6" LED Regressed Smooth Wafer Downlight Retrofit | Power Select 15/13/11W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 11/13/15W | 1,000/1,200/1,350 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-LED15PSWD-6BB-9CSF-DIM | 6" LED Regressed Baffle Wafer Downlight Retrofit | Power Select 15/13/11W | Color Select 2700/3000/3500/4000/5000K | TRIAC Dimming | Quick Disconnect E26 Base | 11/13/15W | 1,000/1,200/1,350 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing |
