Keystone Technologies
Downlights – Wafer

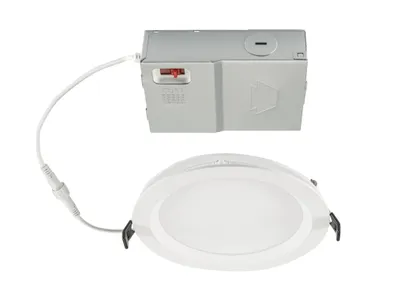

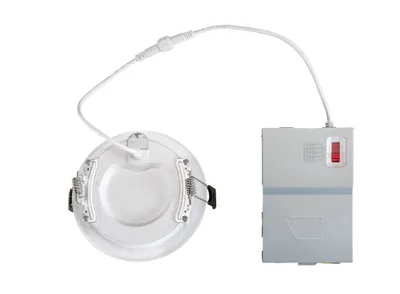

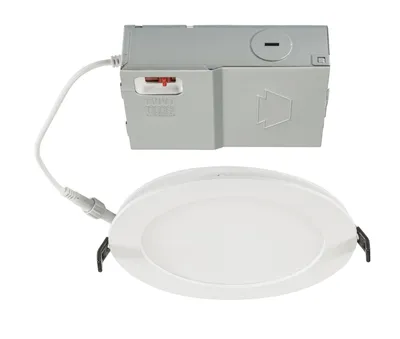

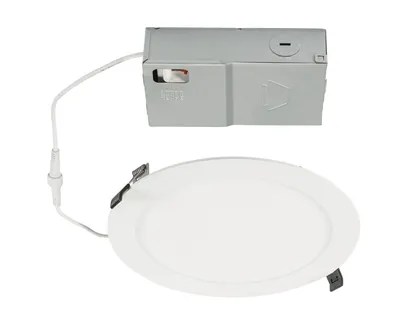

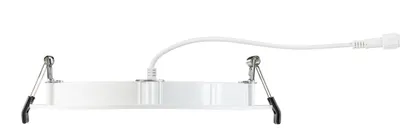

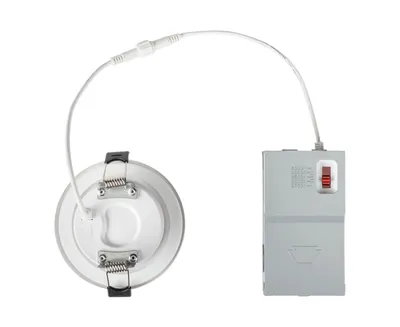

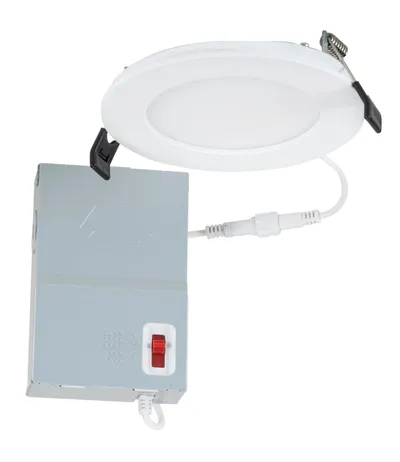

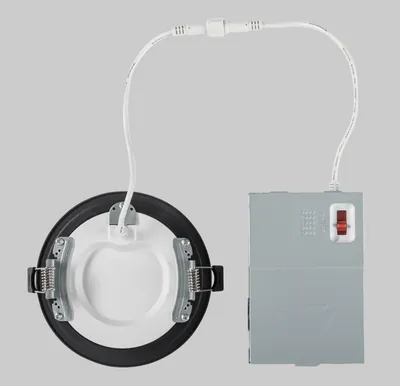

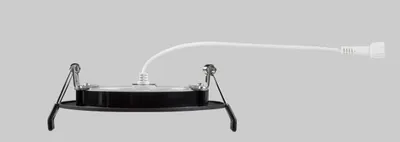

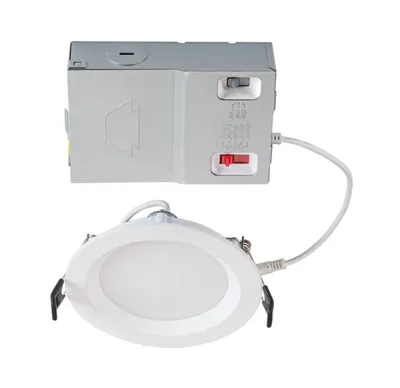

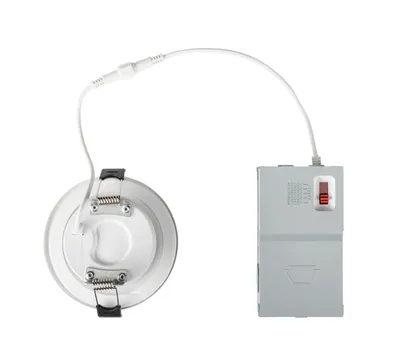

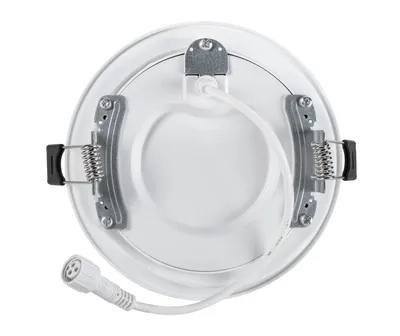

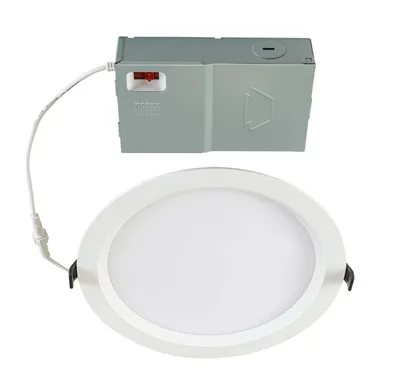

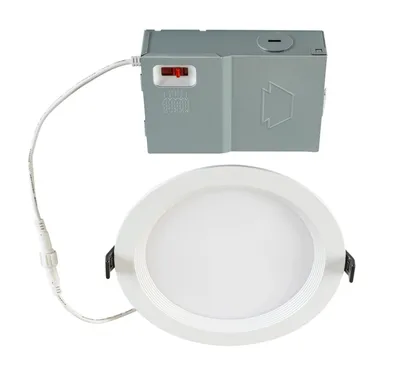

The Circa wafer LED downlight is a slim lamp with big performance for both commercial and residential applications -- flexible enough to install in narrow spaces or obstructed plenums.
53 part numbers · Downlights
- Wattage
- 6.5–23W
- Lumens
- 650–1,900 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V, 120–277V
- Dimming
- TRIAC/ELV, 0-10V
- CRI
- 90+
- Finish
- Brushed Nickel, Bronze, Black, White
- Warranty
- 5 years
Overview
The Circa wafer LED downlight is a slim lamp with big performance for both commercial and residential applications -- flexible enough to install in narrow spaces or obstructed plenums. Comes in several different styles.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | KT-WDLED-4-JPLATE-1 | New Construction Plate for 4in Recessed and Wafer Downlights. Used for Joist installations. | — | — | — | — | — | — | — | Call for pricing | ||

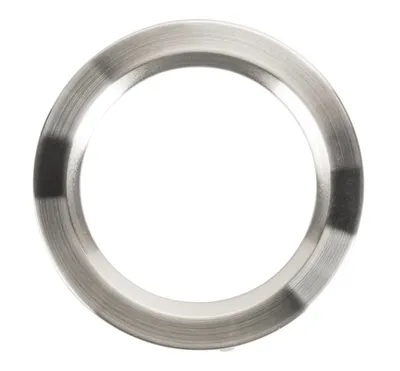

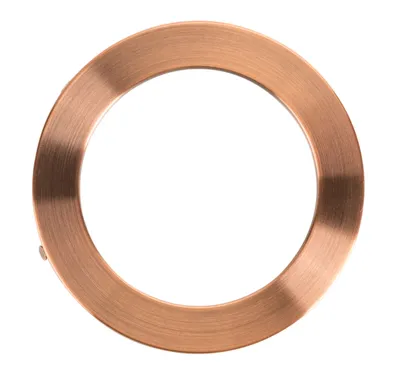

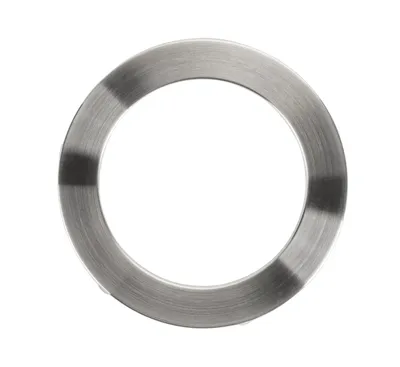

 | KT-WDLED-4A-BN-TRIM | 4in Interchangeable Trim for 4A Slim Wafer Downlight, Brushed Nickel | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||

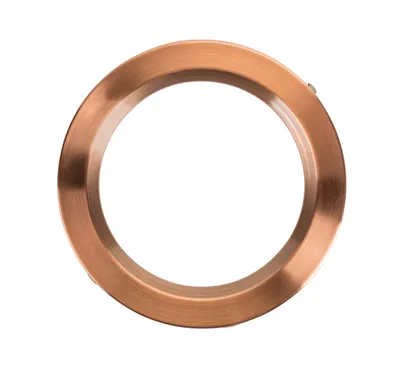

 | KT-WDLED-4A-BR-TRIM | 4in Interchangeable Trim for 4A Slim Wafer Downlight, Bronze | — | — | — | — | — | Bronze | — | Call for pricing | ||

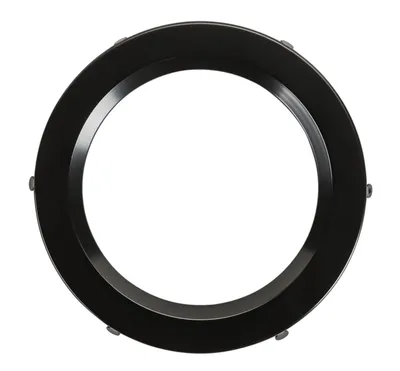

 | KT-WDLED-4A-MB-TRIM | 4in Interchangeable Trim for 4A Slim Wafer Downlight, Matte Black | — | — | — | — | — | Black | — | Call for pricing | ||

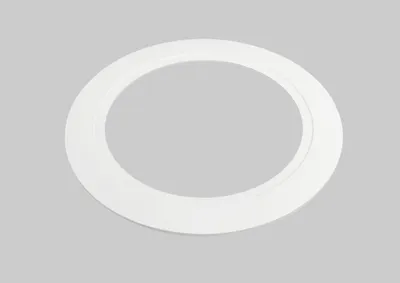

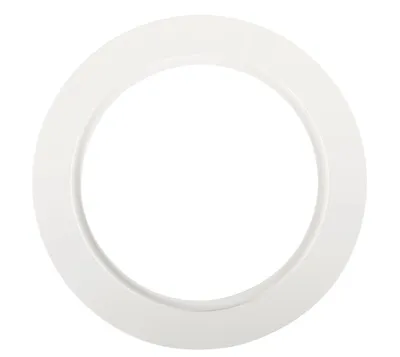

 | KT-WDLED-4AB-GOOF | Goof Ring for 4A Slim And 4B Recessed Wafer Downlight, 6in OD | — | — | — | — | — | White | — | Call for pricing | ||
 | KT-WDLED-4B-BN-TRIM | 4in Interchangeable Trim for 4B Recessed Wafer Downlight, Brushed Nickel | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||
| KT-WDLED-4B-BR-TRIM | 4in Interchangeable Trim for 4B Recessed Wafer Downlight, Bronze | — | — | — | — | — | Bronze | — | Call for pricing | ||
| KT-WDLED-4B-MB-TRIM | 4in Interchangeable Trim for 4B Recessed Wafer Downlight, Matte Black | — | — | — | — | — | Black | — | Call for pricing | ||
 | KT-WDLED-6-JPLATE-1 | New Construction Plate for 6in Recessed and Wafer Downlights. Used for Joist installations. | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-WDLED-6A-BN-TRIM | 6in Interchangeable Trim for 6A Slim Wafer Downlight, Brushed Nickel | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||
 | KT-WDLED-6A-BR-TRIM | 6in Interchangeable Trim for 6A Slim Wafer Downlight, Bronze | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-WDLED-6A-MB-TRIM | 6in Interchangeable Trim for 6A Slim Wafer Downlight, Matte Black | — | — | — | — | — | Black | — | Call for pricing | ||
 | KT-WDLED-6AB-GOOF | Goof Ring for 6A Slim And 6B Recessed Wafer Downlight, 8in OD | — | — | — | — | — | White | — | Call for pricing | ||
 | KT-WDLED-6B-BN-TRIM | 6in Interchangeable Trim for 6B Recessed Wafer Downlight, Brushed Nickel | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||
 | KT-WDLED-6B-BR-TRIM | 6in Interchangeable Trim for 6B Recessed Wafer Downlight, Bronze | — | — | — | — | — | Bronze | — | Call for pricing | ||
| KT-WDLED-6B-MB-TRIM | 6in Interchangeable Trim for 6B Recessed Wafer Downlight, Matte Black | — | — | — | — | — | Black | — | Call for pricing | ||
 | KT-WDLED-8/10-JPLATE-1 | New Construction Plate for 8in and 10in Recessed and Wafer Downlights. Used for Joist installations. | — | — | — | — | — | — | — | Call for pricing | ||
| KT-WDLED-8A-BN-TRIM | 8in Interchangeable Trim for 8A Slim Wafer Downlight, Brushed Nickel | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||
| KT-WDLED-8A-BR-TRIM | 8in Interchangeable Trim for 8A Slim Wafer Downlight, Bronze | — | — | — | — | — | Bronze | — | Call for pricing | ||
| KT-WDLED-8A-MB-TRIM | 8in Interchangeable Trim for 8A Slim Wafer Downlight, Matte Black | — | — | — | — | — | Black | — | Call for pricing | ||
| KT-WDLED-8AB-GOOF | Goof Ring for 8A Slim And 8B Recessed Wafer Downlight, 10in OD | — | — | — | — | — | White | — | Call for pricing | ||
| KT-WDLED-8B-BN-TRIM | 8in Interchangeable Trim for 8B Recessed Wafer Downlight, Brushed Nickel | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||
| KT-WDLED-8B-BR-TRIM | 8in Interchangeable Trim for 8B Recessed Wafer Downlight, Bronze | — | — | — | — | — | Bronze | — | Call for pricing | ||
| KT-WDLED-8B-MB-TRIM | 8in Interchangeable Trim for 8B Recessed Wafer Downlight, Matte Black | — | — | — | — | — | Black | — | Call for pricing | ||

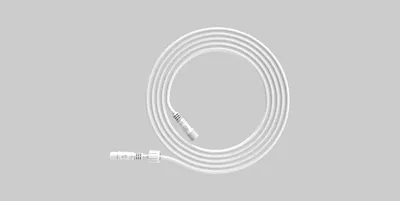

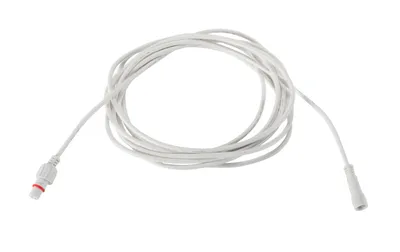

 | KT-WDLED-EC-12 | 12' Extension Cords for all Wafer Downlights | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-WDLED-EC-20 | 20' Extension Cords for all Wafer Downlights | — | — | — | — | — | — | — | Call for pricing | ||
| KT-WDLED-EC-6 | 6' Extension Cords for all Wafer Downlights | — | — | — | — | — | — | — | Call for pricing | ||

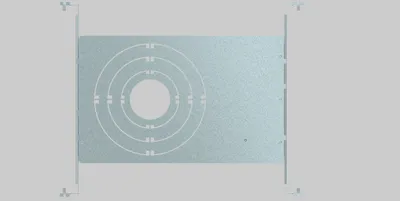

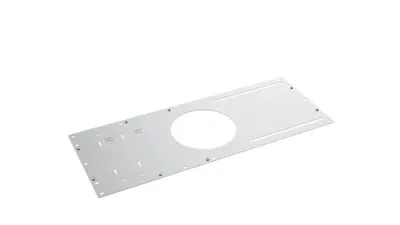

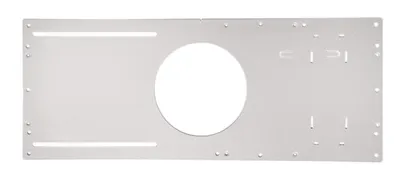

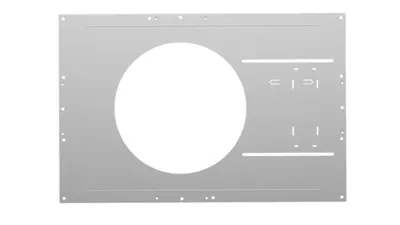

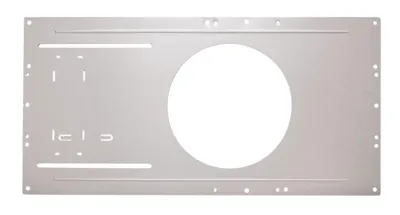

 | KT-WDLED-PLATE-2 | New Construction Mounting Plate for all Slim and Regressed Wafer Downlights (4", 6", 8"). Used for Joist and T-grid Installations. | — | — | — | — | — | — | — | Call for pricing | ||

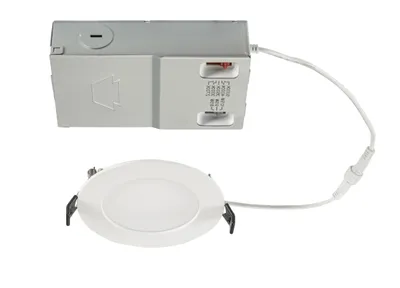

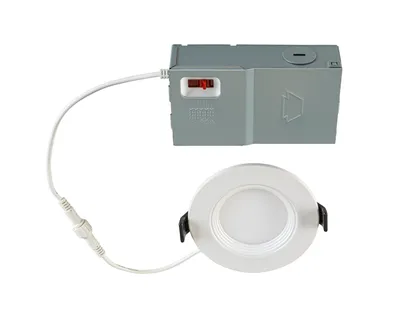

 | KT-WDLED6.5-3A-9CSF-FDIM | 3in Circular LED Slim Wafer Downlight feat. Color Select, 6.5W, 2700/ 3000/ 3500/ 4000/ 5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver | 6.5W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-WDLED6.5-3A-9CSF-FDIM-B | 3in Circular LED Slim Wafer Downlight feat. Color Select, 6.5W, 2700/ 3000/ 3500/ 4000/ 5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver, Black Housing | 6.5W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||

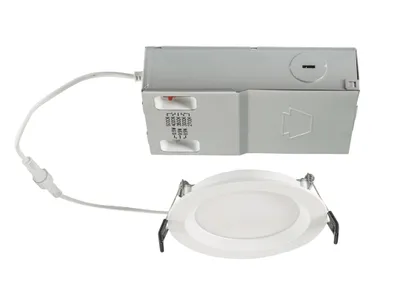

 | KT-WDLED6.5-3B-9CSF-FDIM | 3in Circular LED Recessed Wafer Downlight feat. Color Select, 6.5W, 2700/ 3000/ 3500/ 4000/ 5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver | 6.5W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-WDLED6.5-3BB-9CSF-FDIM | 3in Circular LED Baffled Wafer Downlight feat. Color Select, 6.5W, 2700/ 3000/ 3500/ 4000/ 5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver | 6.5W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

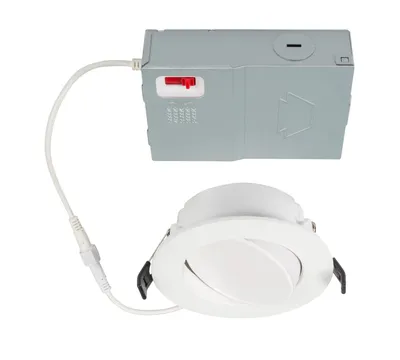

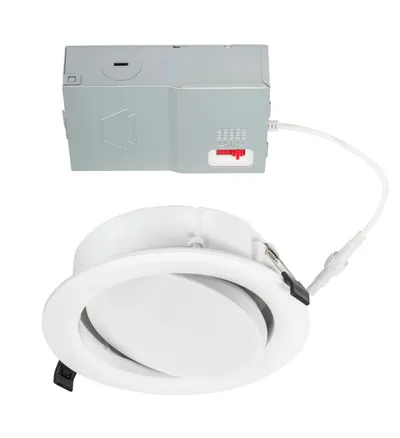

 | KT-WDLED8-4A-9CSF-FDIM-G | 4in Gimbal Wafer Downlight feat. Color Select, 8W, 2700/3000/3500/4000/5000K, 90 CRI, 120V Input, Phase Dimming, Remote Driver | 8W | 650 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

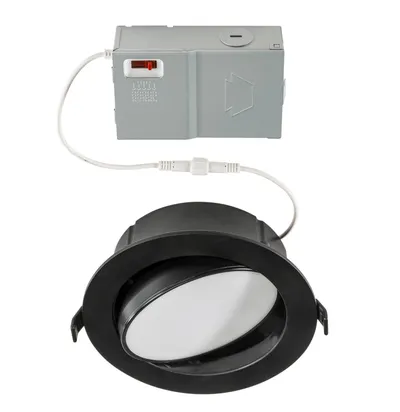

 | KT-WDLED8-4A-9CSF-FDIM-G-B | 4in Gimbal Wafer Downlight feat. Color Select, 8W, 2700/3000/3500/4000/5000K, 90 CRI, 120V Input, Phase Dimming, Remote Driver, Black Housing | 8W | 650/670/695/700/710 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||

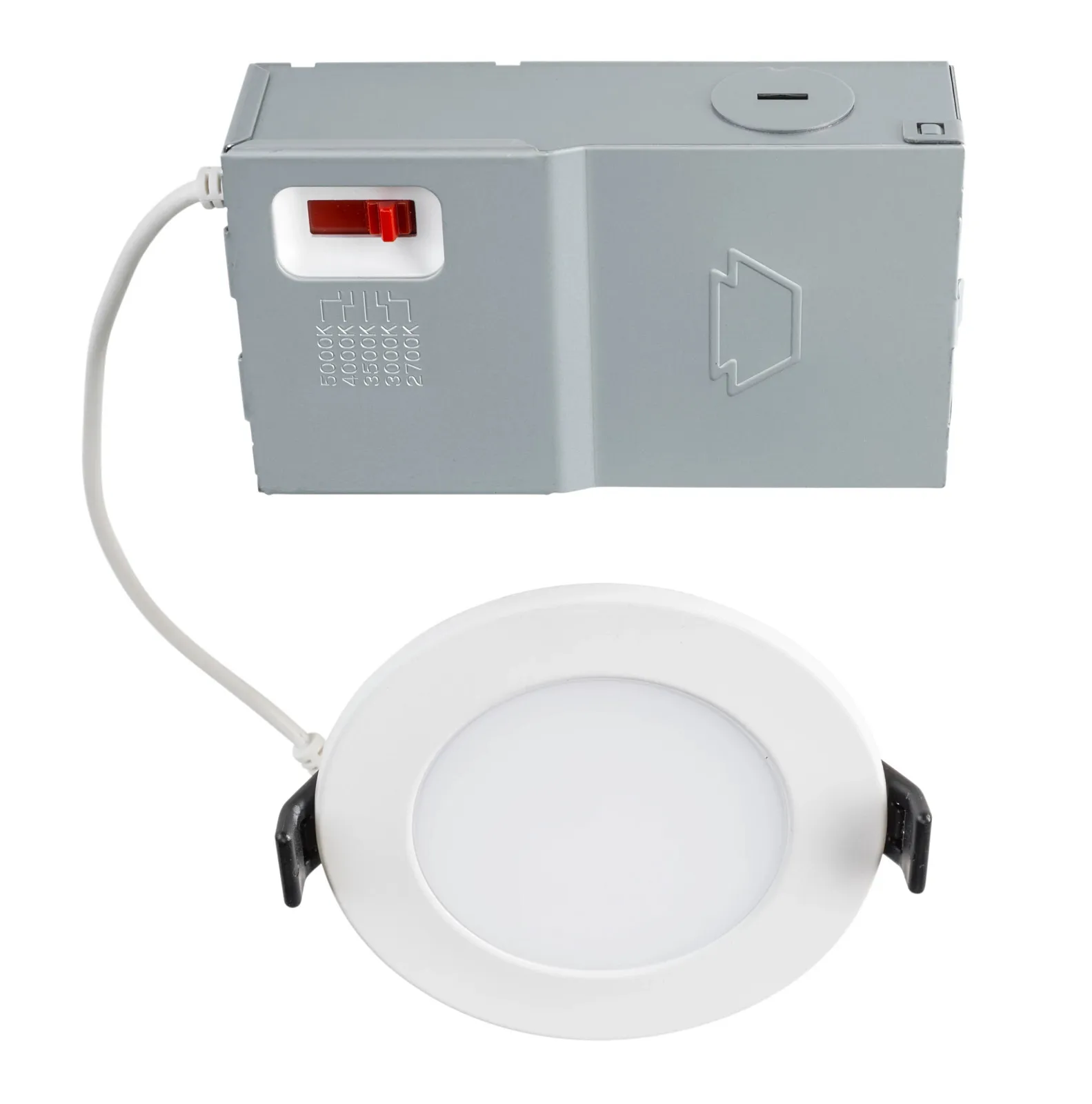

 | KT-WDLED9-4A-9CSF-FDIM | 4in Circular LED Slim Wafer Downlight feat. Color Select, 9W, 2700/3000/3500/4000/5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver | 9W | 650 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-WDLED9-4A-9CSF-FDIM-B | 4in Circular LED Slim Wafer Downlight feat. Color Select, 9W, 2700/ 3000/ 3500/ 4000/ 5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver, Black Housing | 9W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | KT-WDLED9-4B-9CSF-FDIM | 4in Circular LED Recessed Wafer Downlight feat. Color Select, 9W, 2700/3000/3500/4000/5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver | 9W | 650 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

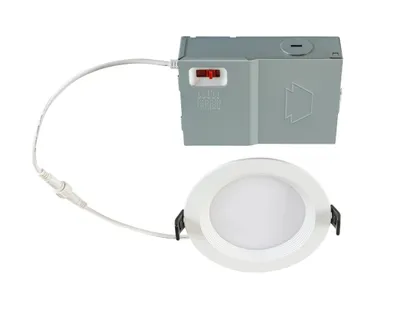

 | KT-WDLED9-4BB-9CSF-FDIM | 4in Circular LED Baffled Wafer Downlight feat. Color Select, 9W, 2700/3000/3500/4000/5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver | 9W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-WDLED10.5PS-4A-9CSF-VDIM | 4in Circular LED Slim Wafer Downlight feat. Power and Color Select, 10.5/9.5/8.5W, 2700/3000/3500/4000/5000K, 90CRI, 120-277V Input, 0-10V Dimming, Remote Driver | 8.5/9.5/10.5W | 650/720/800 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-WDLED10.5PS-4B-9CSF-VDIM | 4in Circular LED Recessed Wafer Downlight feat. Power and Color Select, 10.5/9.5/8.5W, 2700/3000/3500/4000/5000K, 90CRI, 120-277V Input, 0-10V Dimming, Remote Driver | 8.5/9.5/10.5W | 650/720/800 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-WDLED12-6A-9CSF-FDIM-G | 6in Gimbal Wafer Downlight feat. Color Select, 12W, 2700/3000/3500/4000/5000K, 90 CRI, 120V Input, Phase Dimming, Remote Driver | 12W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-WDLED12-6A-9CSF-FDIM-G-B | 6in Gimbal Wafer Downlight feat. Color Select, 12W, 2700/3000/3500/4000/5000K, 90 CRI, 120V Input, Phase Dimming, Remote Driver, Black Housing | 12W | 970/1,000/1,035/1,050 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | KT-WDLED13-6A-9CSF-FDIM | 6in Circular LED Slim Wafer Downlight feat. Color Select, 13W, 2700/3000/3500/4000/5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver | 13W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-WDLED13-6A-9CSF-FDIM-B | 6in Circular LED Slim Wafer Downlight feat. Color Select, 13W, 2700/ 3000/ 3500/ 4000/ 5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver, Black Housing | 13W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | KT-WDLED13-6B-9CSF-FDIM | 6in Circular LED Recessed Wafer Downlight feat. Color Select, 13W, 2700/3000/3500/4000/5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver | 13W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-WDLED13-6BB-9CSF-FDIM | 6in Circular LED Baffled Wafer Downlight feat. Color Select, 13W, 2700/3000/3500/4000/5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver | 13W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-WDLED14PS-6A-9CSF-VDIM | 6in Circular LED Slim Wafer Downlight feat. Power and Color Select, 14/12/10W, 2700/3000/3500/4000/5000K, 90CRI, 120-277V Input, 0-10V Dimming, Remote Driver | 10/12/14W | 850/1,000/1,200 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-WDLED14PS-6B-9CSF-VDIM | 6in Circular LED Recessed Wafer Downlight feat. Power and Color Select, 14/12/10W, 2700/3000/3500/4000/5000K, 90CRI, 120-277V Input, 0-10V Dimming, Remote Driver | 10/12/14W | 850/1,000/1,200 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-WDLED23-8A-9CSF-FDIM | 8in Circular LED Slim Wafer Downlight feat. Color Select, 23W, 2700/3000/3500/4000/5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver | 23W | 1,900 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-WDLED23-8B-9CSF-FDIM | 8in Circular LED Recessed Wafer Downlight feat. Color Select, 23W, 2700/3000/3500/4000/5000K, 90CRI, 120V Input, Phase Dimming, Remote Driver | 23W | 1,900 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-WDLED23-8BB-9CSF-FDIM | 8in Circular LED Baffled Wafer Downlight feat. Color Select, 23W, 2700/3000/3500/4000/5000K, 90CRI, 120V Input, Phase Dimming, Remote Drive | 23W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | KT-WDLED23PS-8A-9CSF-VDIM | 8in Circular LED Slim Wafer Downlight feat. Power and Color Select, 23/18/14W, 2700/3000/3500/4000/5000K, 90CRI, 120-277V Input, 0-10V Dimming, Remote Driver | 14/18/23W | 1,100/1,400/1,800 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-WDLED23PS-8B-9CSF-VDIM | 8in Circular LED Recessed Wafer Downlight feat. Power and Color Select, 23/18/14W, 2700/3000/3500/4000/5000K, 90CRI, 120-277V Input, 0-10V Dimming, Remote Driver | 14/18/23W | 1,100/1,400/1,800 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileKT-WDLED6.5-3A-9CSF-FDIM_5K_1V.IES
- IES fileKT-WDLED6.5-3B-9CSF-FDIM_5K_1V.IES
- IES fileKT-WDLED6.5-3BB-9CSF-FDIM_5K_1V.IES
- IES fileKT-WDLED9-4A-9CSF-FDIM_IES.zip
- IES fileKT-WDLED9-4A-9CSF-FDIM-B_9W_5K_1V.IES
- IES fileKT-WDLED9-4B-9CSF-FDIM_5K_1V.IES
- IES fileKT-WDLED9-4BB-9CSF-FDIM_5K_1V.IES
- IES fileKT-WDLED10.5PS-4A-9CSF-VDIM_10.5W_120V_4000K.ies
- IES fileKT-WDLED10.5PS-4B-9CSF-VDIM_10.5W_120V_4000K.IES
- IES fileKT-WDLED13-6A-9CSF-FDIM_IES.zip
- IES fileKT-WDLED13-6A-9CSF-FDIM-B_13W_5K_1V.IES
- IES fileKT-WDLED13-6B-9CSF-FDIM_5K_1V.IES
- IES fileKT-WDLED13-6BB-9CSF-FDIM_5K_1V.IES
- IES fileKT-WDLED14PS-6A-9CSF-VDIM_14W_120V_4000K.ies
- IES fileKT-WDLED14PS-6B-9CSF-VDIM_14W_120V_4000K.IES
- IES fileKT-WDLED23-8A-9CSF-FDIM_5K_1V.IES
- IES fileKT-WDLED23-8B-9CSF-FDIM_5K_1V.IES
- IES fileKT-WDLED23-8BB-9CSF-FDIM_5K_1V.IES
- IES fileKT-WDLED23PS-8A-9CSF-VDIM_23W_120V_4000K.ies
- IES fileKT-WDLED23PS-8B-9CSF-VDIM_23W_120V-4000K.IES
- IES fileKT-WDLED8-4A-9CSF-FDIM-G-3500K_IESNA2002.IES
- IES fileKT-WDLED8-4A-9CSF-FDIM-G-B_IES_ZIP.zip
- IES fileKT-WDLED12-6A-9CSF-FDIM-G-3500K_IESNA2002.IES
- IES fileKT-WDLED12-6A-9CSF-FDIM-G-B_IES_ZIP.zip
