Keystone Technologies

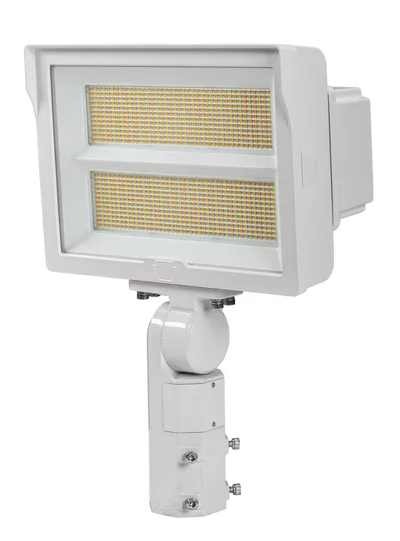

Floodlights – High Power

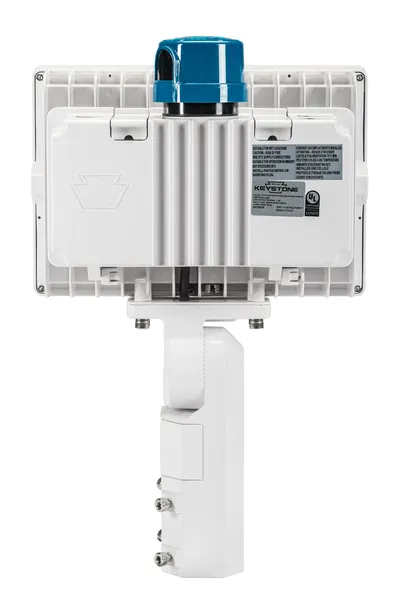

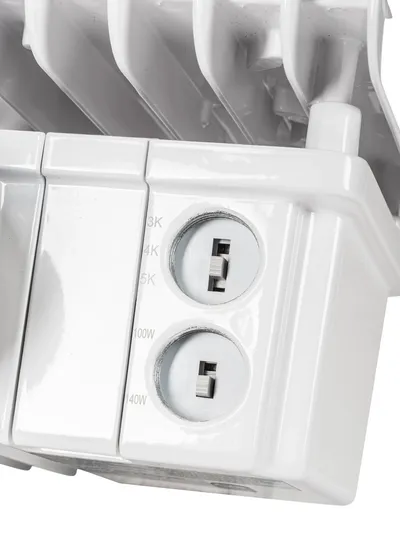

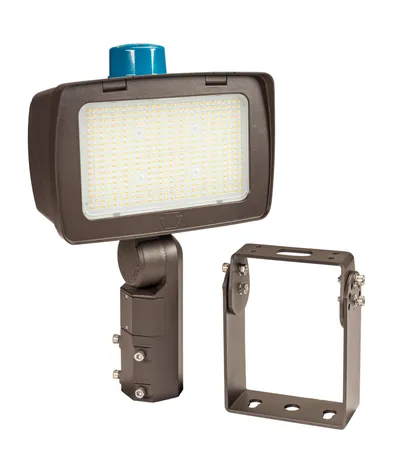

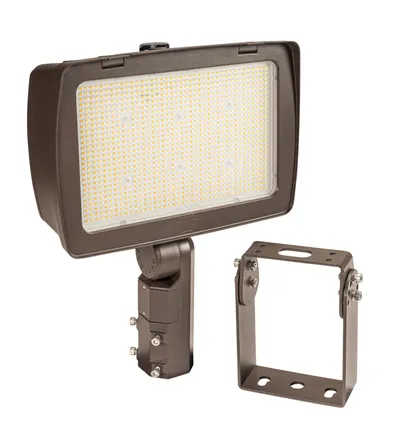

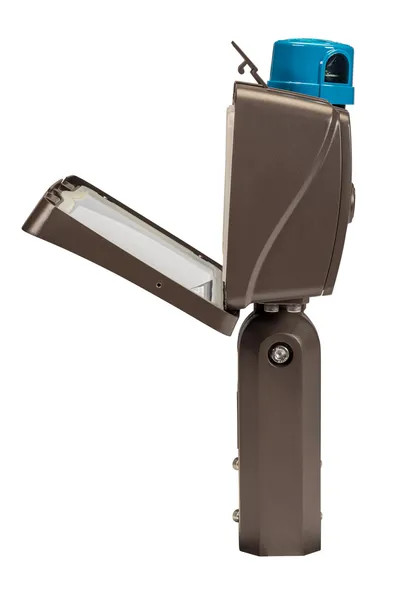

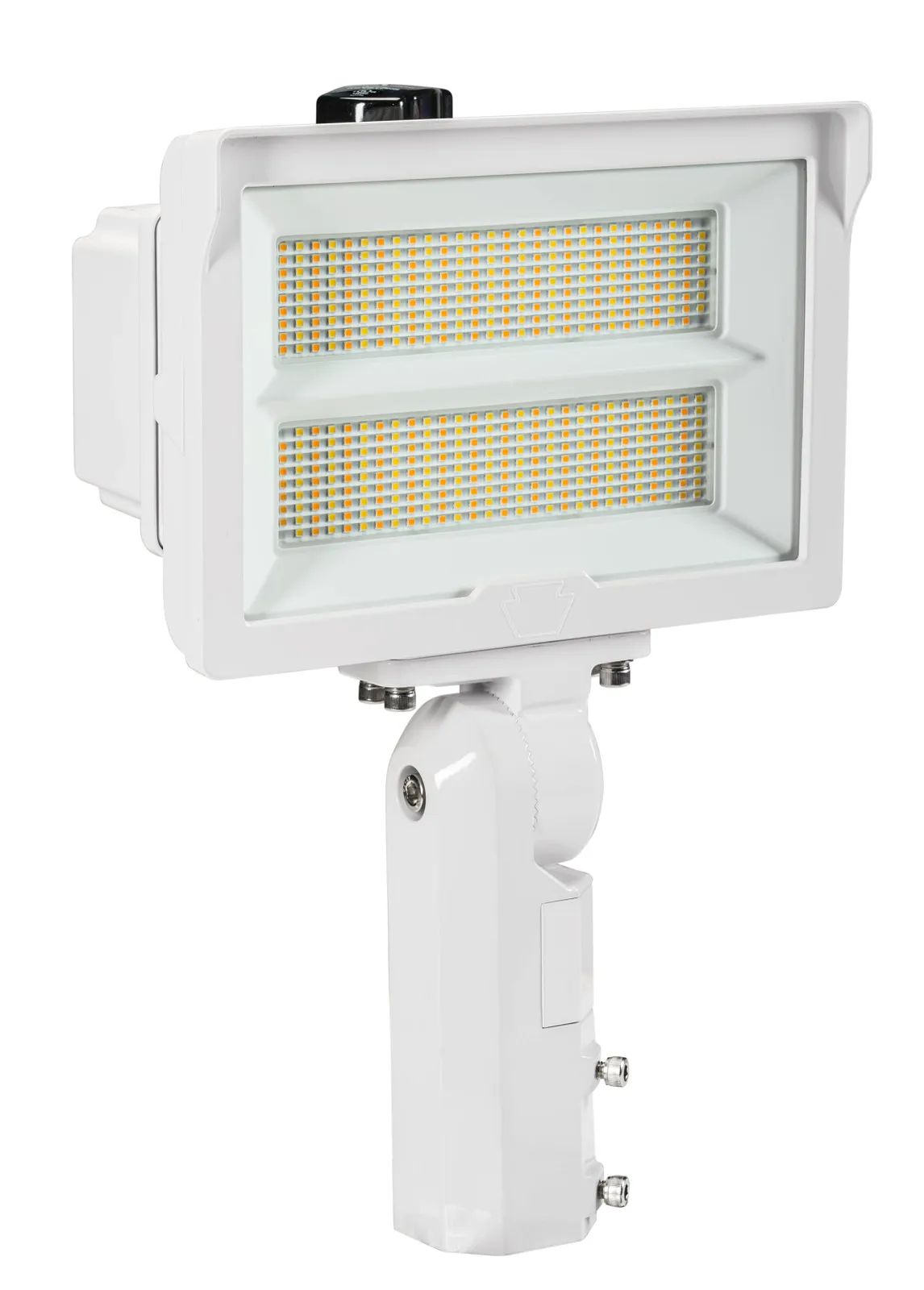

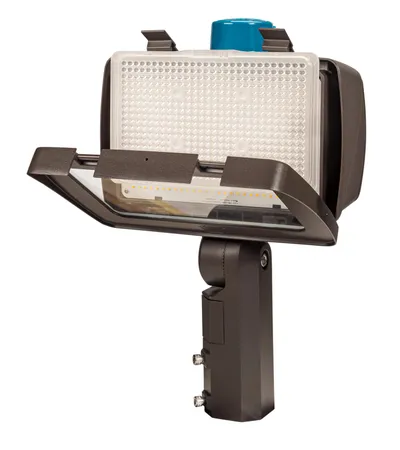

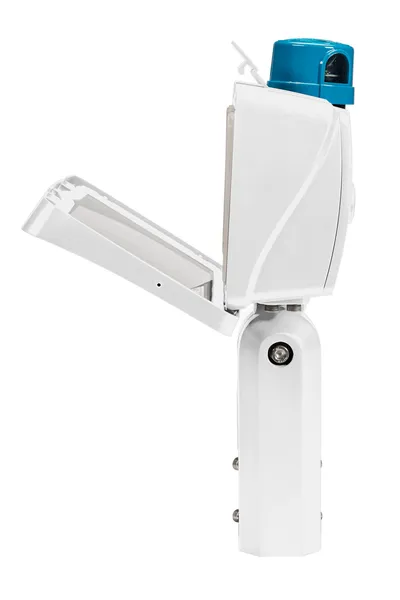

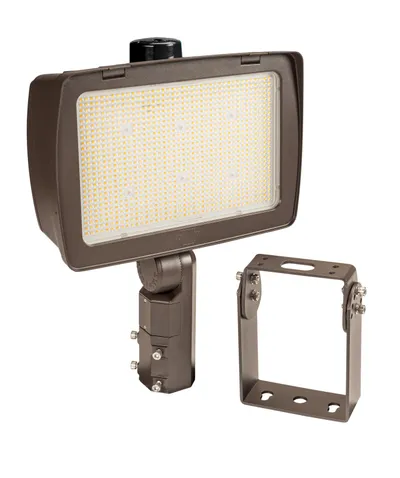

Formidable illumination with field-adjustable outputs, two included mounts, and a NEMA/ANSI 3-pin photocell.
48 part numbers · Outdoor
- Wattage
- 100–290W
- Lumens
- 14,200–37,700 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V, 277–480V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Bronze, White, Blue, Green, Red
- DLC
- DLC Premium
- Warranty
- 5–10 years
Overview
Formidable illumination with field-adjustable outputs, two included mounts, and a NEMA/ANSI 3-pin photocell. Available in standard and high-voltage options.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

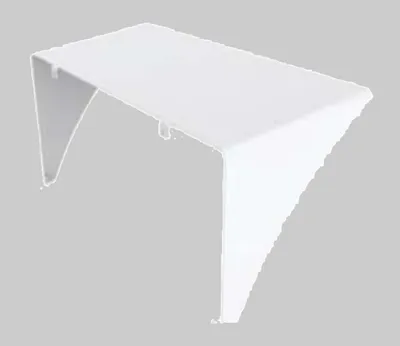

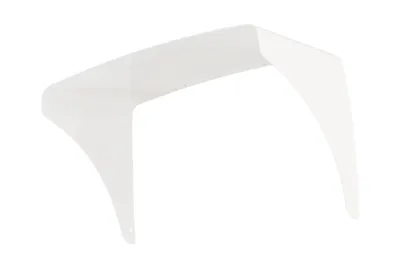

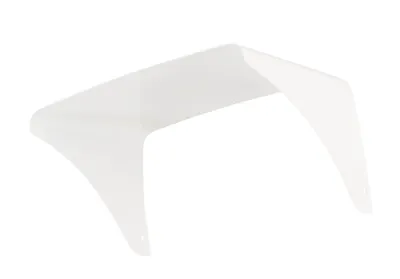

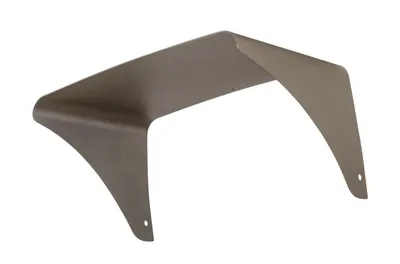

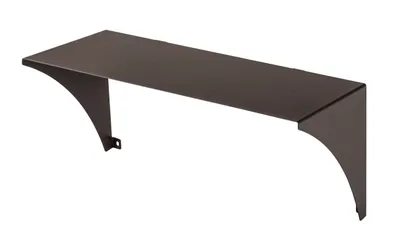

 | KT-FLED-GS-R2-1-KIT | Glare shield for 140W Rectangular Series 2 LED Flood Light | — | — | — | — | — | Bronze | — | Call for pricing | ||

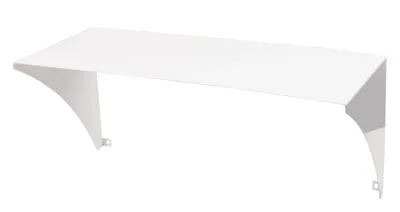

 | KT-FLED-GS-R2-1-KIT-W | Glare shield for 140W Rectangular Series 2 LED Flood Light. White Finish. | — | — | — | — | — | White | — | Call for pricing | ||
| KT-FLED-GS-R2-2-KIT | Glare shield for 290W Rectangular Series 2 LED Flood Light | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-FLED-GS-R2-2-KIT-W | Glare shield for 290W Rectangular Series 2 LED Flood Light. White Finish. | — | — | — | — | — | White | — | Call for pricing | ||
 | KT-FLED-GS-R4-1-KIT | Glare shield | Bronze | Used on 140W Rectangular Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-FLED-GS-R4-1-KIT-W | Glare shield | White | Used on 140W Rectangular Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-FLED-GS-R4-2-KIT | Glare shield | Bronze | Used on 290W Rectangular Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-FLED-GS-R4-2-KIT-W | Glare shield | White | Used on 290W Rectangular Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||

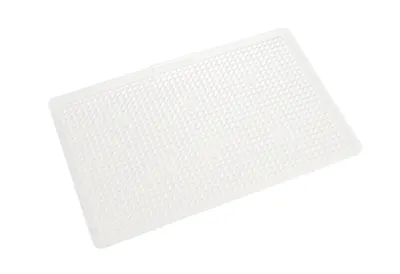

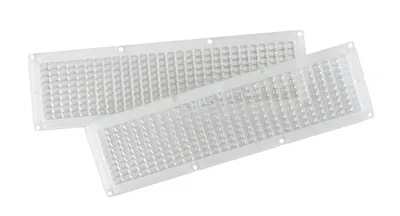

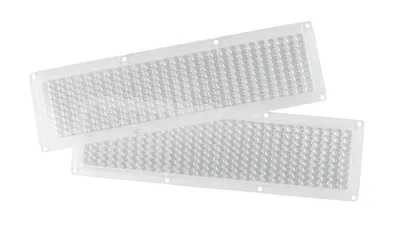

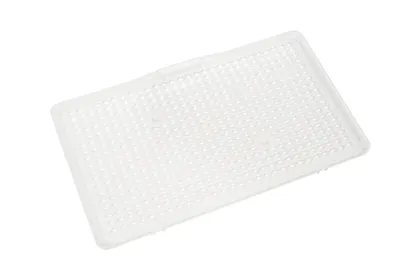

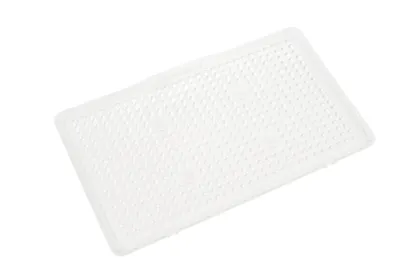

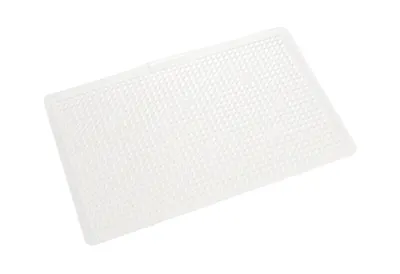

 | KT-FLED-LENS-R2C-1-KIT | 6H x 6V lens for 140W Rectangular Series 2 LED Flood Light | — | — | — | — | — | — | — | Call for pricing | ||
| KT-FLED-LENS-R2C-2-KIT | 6H x 6V lens for 290W Rectangular Series 2 LED Flood Light | — | — | — | — | — | — | — | Call for pricing | ||

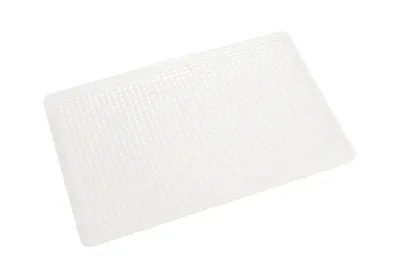

 | KT-FLED-LENS-R2D-1-KIT | 5H x 5V lens for 140W Rectangular Series 2 LED Flood Light | — | — | — | — | — | — | — | Call for pricing | ||
| KT-FLED-LENS-R2D-2-KIT | 5H x 5V lens for 290W Rectangular Series 2 LED Flood Light | — | — | — | — | — | — | — | Call for pricing | ||

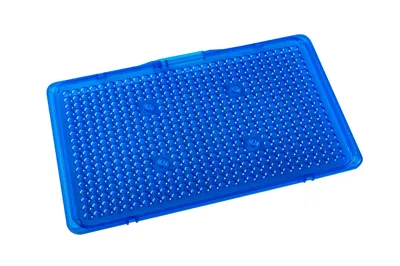

 | KT-FLED-LENS-R4B-1-BLUE-KIT | NEMA 7H X 6V Blue Lens Kit for 140W High Power Floodlights with OpticSwap | — | — | — | — | — | Blue | — | Call for pricing | ||

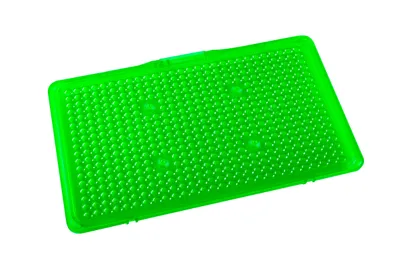

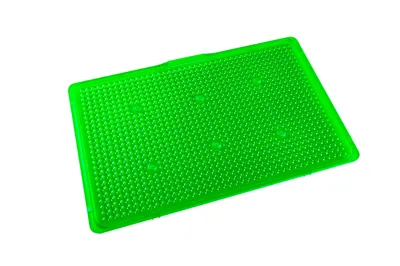

 | KT-FLED-LENS-R4B-1-GREEN-KIT | NEMA 7H X 6V Green Lens Kit for 140W High Power Floodlights with OpticSwap | — | — | — | — | — | Green | — | Call for pricing | ||
 | KT-FLED-LENS-R4B-1-KIT | 7H x 6V lens | Used on 140W Rectangular Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||

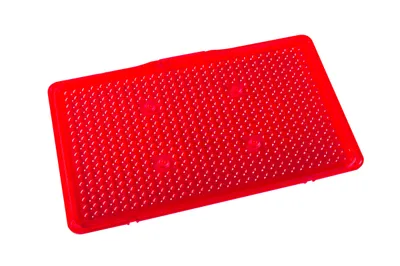

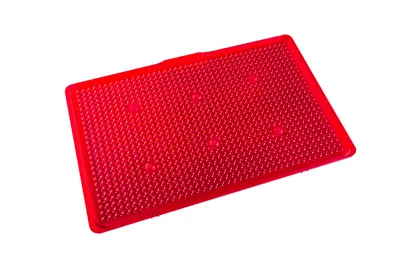

 | KT-FLED-LENS-R4B-1-RED-KIT | NEMA 7H X 6V Red Lens Kit for 140W High Power Floodlights with OpticSwap | — | — | — | — | — | Red | — | Call for pricing | ||

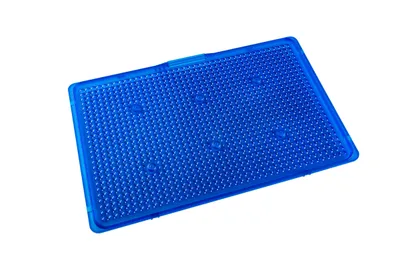

 | KT-FLED-LENS-R4B-2-BLUE-KIT | NEMA 7H X 6V Blue Lens Kit for 290W High Power Floodlights with OpticSwap | — | — | — | — | — | Blue | — | Call for pricing | ||
 | KT-FLED-LENS-R4B-2-GREEN-KIT | NEMA 7H X 6V Green Lens Kit for 290W High Power Floodlights with OpticSwap | — | — | — | — | — | Green | — | Call for pricing | ||
 | KT-FLED-LENS-R4B-2-KIT | 7H x 6V lens | Used on 290W Rectangular Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-FLED-LENS-R4B-2-RED-KIT | NEMA 7H X 6V Red Lens Kit for 290W High Power Floodlights with OpticSwap | — | — | — | — | — | Red | — | Call for pricing | ||
| KT-FLED-LENS-R4C-1-BLUE-KIT | NEMA 6H X 6V Blue Lens Kit for 140W High Power Floodlights with OpticSwap | — | — | — | — | — | Blue | — | Call for pricing | ||
| KT-FLED-LENS-R4C-1-GREEN-KIT | NEMA 6H X 6V Green Lens Kit for 140W High Power Floodlights with OpticSwap | — | — | — | — | — | Green | — | Call for pricing | ||

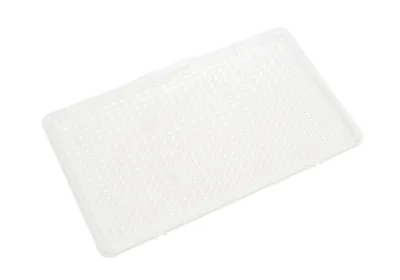

 | KT-FLED-LENS-R4C-1-KIT | 6H x 6V lens | Used on 140W Rectangular Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||
| KT-FLED-LENS-R4C-1-RED-KIT | NEMA 6H X 6V Red Lens Kit for 140W High Power Floodlights with OpticSwap | — | — | — | — | — | Red | — | Call for pricing | ||
| KT-FLED-LENS-R4C-2-BLUE-KIT | NEMA 6H X 6V Blue Lens Kit for 290W High Power Floodlights with OpticSwap | — | — | — | — | — | Blue | — | Call for pricing | ||
| KT-FLED-LENS-R4C-2-GREEN-KIT | NEMA 6H X 6V Green Lens Kit for 290W High Power Floodlights with OpticSwap | — | — | — | — | — | Green | — | Call for pricing | ||
 | KT-FLED-LENS-R4C-2-KIT | 7H x 6V lens | Used on 290W Rectangular Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||
| KT-FLED-LENS-R4C-2-RED-KIT | NEMA 6H X 6V Red Lens Kit for 290W High Power Floodlights with OpticSwap | — | — | — | — | — | Red | — | Call for pricing | ||
| KT-FLED-LENS-R4D-1-BLUE-KIT | NEMA 5H X 5V Blue Lens Kit for 140W High Power Floodlights with OpticSwap | — | — | — | — | — | Blue | — | Call for pricing | ||
| KT-FLED-LENS-R4D-1-GREEN-KIT | NEMA 5H X 5V Green Lens Kit for 140W High Power Floodlights with OpticSwap | — | — | — | — | — | Green | — | Call for pricing | ||
 | KT-FLED-LENS-R4D-1-KIT | 5H x 5V lens | Used on 140W Rectangular Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||
| KT-FLED-LENS-R4D-1-RED-KIT | NEMA 5H X 5V Red Lens Kit for 140W High Power Floodlights with OpticSwap | — | — | — | — | — | Red | — | Call for pricing | ||
| KT-FLED-LENS-R4D-2-BLUE-KIT | NEMA 5H X 5V Blue Lens Kit for 290W High Power Floodlights with OpticSwap | — | — | — | — | — | Blue | — | Call for pricing | ||
| KT-FLED-LENS-R4D-2-GREEN-KIT | NEMA 5H X 5V Green Lens Kit for 290W High Power Floodlights with OpticSwap | — | — | — | — | — | Green | — | Call for pricing | ||
 | KT-FLED-LENS-R4D-2-KIT | 5H x 5V lens | Used on 290W Rectangular Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||
| KT-FLED-LENS-R4D-2-RED-KIT | NEMA 5H X 5V Red Lens Kit for 290W High Power Floodlights with OpticSwap | — | — | — | — | — | Red | — | Call for pricing | ||

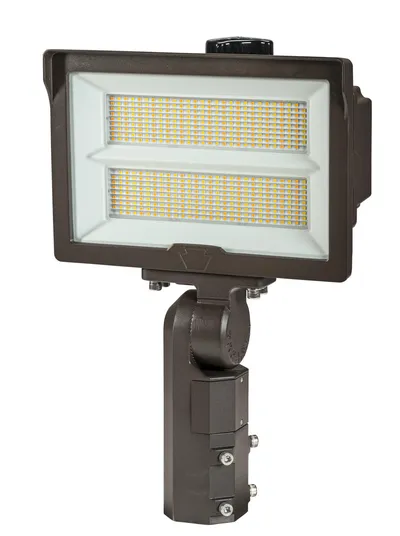

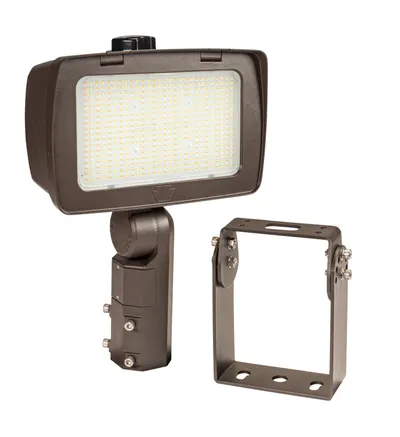

 | KT-FLED140PS-R2B-UNV-8CSB-VDIM /TAA | 140W LED Flood Light feat. Power Select, Color Select. Rectangular Series 2 with Built-in Photocell. 120-277V Input, 3000K/4000K/5000K. Standard Bronze Housing. 7H x 6V Distribution, Slip Fitter and Trunnion Mount Included. TAA Compliant | — | — | 3000K/4000K/5000K | — | — | — | — | Call for pricing | ||

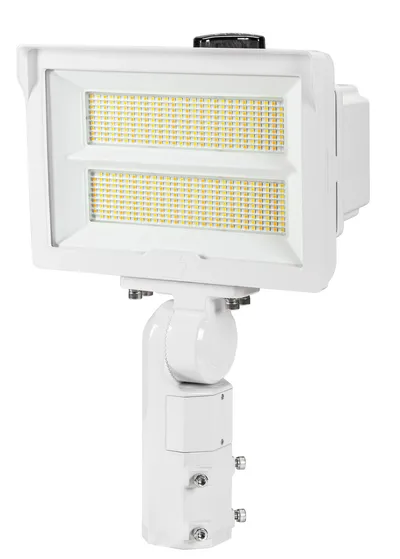

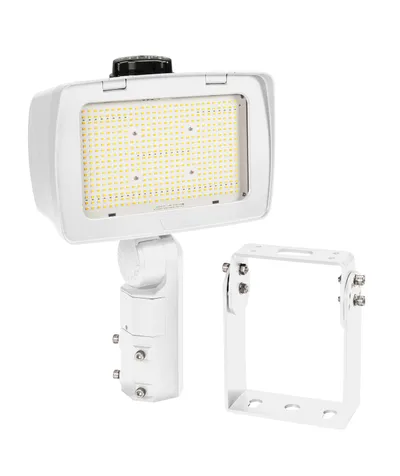

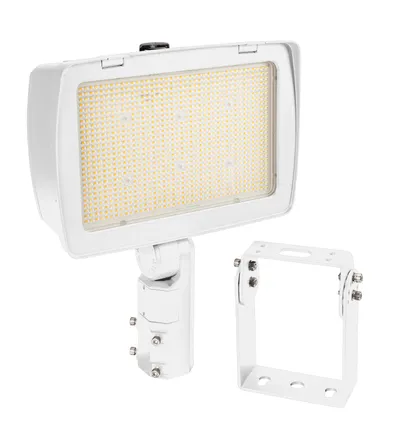

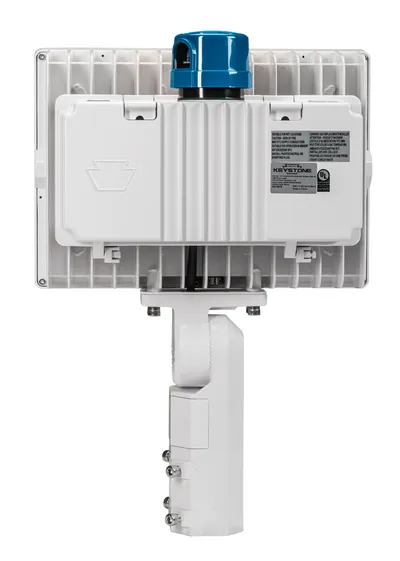

| KT-FLED140PS-R2B-UNV-8CSB-VDIM-W | 140W LED Flood Light feat. Power Select, Color Select. Rectangular Series 2 with 3-pin Photocell. 120-277V Input, 3000K/4000K/5000K. White Housing. 7H x 6V Distribution, Slip Fitter and Trunnion Mount Included. | 100/140W | 14,200/18,900 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | KT-FLED140PS-R2C-UNV-8CSB-VDIM-W | 140W LED Flood Light feat. Power Select, Color Select. Rectangular Series 2 with 3-pin Photocell. 120-277V Input, 3000K/4000K/5000K. White Housing. 6H x 6V Distribution, Slip Fitter and Trunnion Mount Included. | 100/140W | 14,200/18,900 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | KT-FLED140PS-R2D-UNV-8CSB-VDIM-W | 140W LED Flood Light feat. Power Select, Color Select. Rectangular Series 2 with 3-pin Photocell. 120-277V Input, 3000K/4000K/5000K. White Housing. 5H x 5V Distribution, Slip Fitter and Trunnion Mount Included. | 100/140W | 14,200/18,900 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||

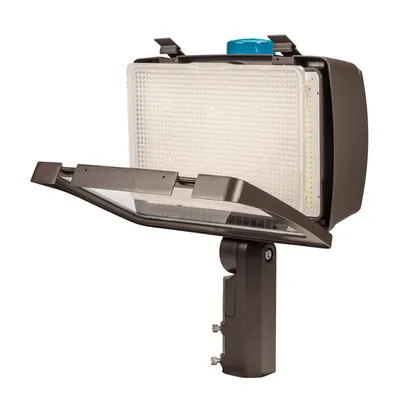

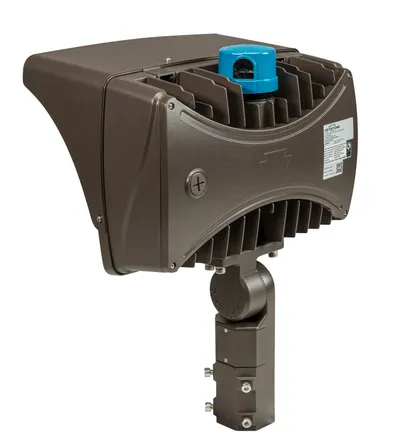

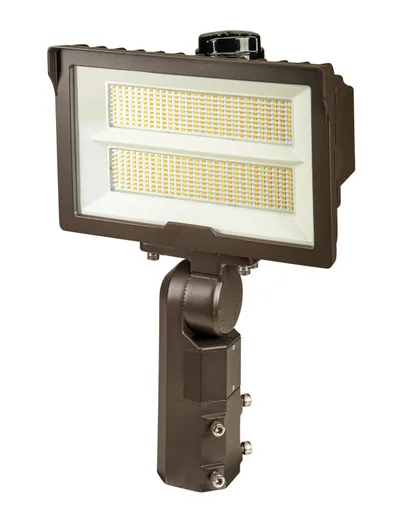

 | KT-FLED140PS-R4-OSF-UNV-8CSB-VDIM | 140/100W LED High Power Flood Light feat. Power Select, Color Select. Rectangular Series 4 with 3-pin Photocell. 120-277V Input, 3000/4000/5000K. Standard Bronze Housing. Optic Swap Designation F, 7H x 6V Distribution Installed, 6H x 6V & 5H x 5V Incl | 100/140W | — | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||

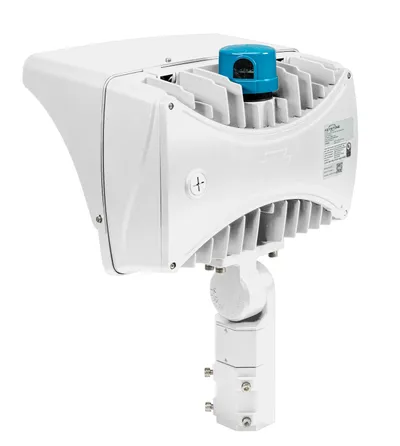

 | KT-FLED140PS-R4-OSF-UNV-8CSB-VDIM-W | 140/100W LED High Power Flood Light feat. Power Select, Color Select. Rectangular Series 4 with 3-pin Photocell. 120-277V Input. 3000/4000/5000K. Standard White Housing. Optic Swap Designation F, 7H x 6V Distribution Installed, 6H x 6V & 5H x 5V Incl | 100/140W | — | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | KT-FLED140PSHV-R4-OSF-UNV-8CSB-VDIM | 140/100W LED High Power Flood Light feat. Power Select, Color Select. Rectangular Series 4 with 3-pin Photocell. 277-480V Input. 3000/4000/5000K. Standard Bronze Housing. Optic Swap Designation F, 7H x 6V Distribution Installed, 6H x 6V & 5H x 5V Inc | 100/140W | — | 3000K/4000K/5000K | 277–480V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-FLED290PS-R2B-UNV-8CSB-VDIM-W | 290W LED Flood Light feat. Power Select, Color Select. Rectangular Series 2 with 3-pin Photocell. 120-277V Input, 3000K/4000K/5000K. White Housing. 7H x 6V Distribution, Slip Fitter and Trunnion Mount Included. | 210/290W | 27,700/37,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||

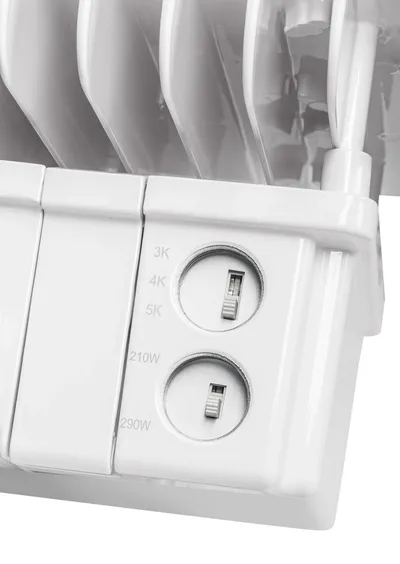

 | KT-FLED290PS-R4-OSF-UNV-8CSB-VDIM | 290/210W LED High Power Flood Light feat. Power Select, Color Select. Rectangular Series 4 with 3-pin Photocell. 120-277V Input. 3000/4000/5000K. Standard Bronze Housing. Optic Swap Designation F, 7H x 6V Distribution Installed, 6H x 6V & 5H x 5V Inc | 210/290W | — | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-FLED290PS-R4-OSF-UNV-8CSB-VDIM-W | 290/210W LED High Power Flood Light feat. Power Select, Color Select. Rectangular Series 4 with 3-pin Photocell. 120-277V Input. 3000/4000/5000K. Standard White Housing. Optic Swap Designation F, 7H x 6V Distribution Installed, 6H x 6V & 5H x 5V Incl | 210/290W | — | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | KT-FLED290PSHV-R2B-UNV-8CSB-VDIM /TAA | 290W LED Flood Light feat. Power Select, Color Select. Rectangular Series 2 with Built-in Photocell. 277-480V Input, 3000K/4000K/5000K. Standard Bronze Housing. 7H x 6V Distribution, Slip Fitter and Trunnion Mount Included. TAA Compliant | 210/290W | 27,700/37,700 lm | 3000K/4000K/5000K | 277–480V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-FLED290PSHV-R4-OSF-UNV-8CSB-VDIM | 290/210W LED High Power Flood Light feat. Power Select, Color Select. Rectangular Series 4 with 3-pin Photocell. 277-480V Input. 3000/4000/5000K. Standard Bronze Housing. Optic Swap Designation F, 7H x 6V Distribution Installed, 6H x 6V & 5H x 5V Inc | 210/290W | — | 3000K/4000K/5000K | 277–480V | 0-10V | Bronze | Premium | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileKT-FLED140PS-R2B-UNV-8CSB-VDIM_140W-277V-3000K.ies
- IES fileKT-FLED140PS-R4-OSF-UNV-8CSB-VDIM_IES.zip
- IES fileKT-FLED290PS-R2B-UNV-8CSB-VDIM_290W-277V-3000K.ies
- IES fileKT-FLED290PS-R4-OSF-UNV-8CSB-VDIM_IES.zip
- IES fileKT-FLED140PSHV-R4-OSF-UNV-8CSB-VDIM_IES.zip
- IES fileKT-FLED140PS-R2B-UNV-8CSB-VDIM_IES.zip
- IES fileKT-FLED290PSHV-R4-OSF-UNV-8CSB-VDIM_IES.zip
- IES fileKT-FLED290PSHV-R2B-UNV-8CSB-VDIM_IES.zip
- IES fileKT-FLED-LENS-R4B-1-BLUE-KIT_140W_7Hx6V.ies
- IES fileKT-FLED-LENS-R4C-1-BLUE-KIT_140W_6Hx6V.ies
- IES fileKT-FLED-LENS-R4D-1-BLUE-KIT_140W_5Hx5V.ies
- IES fileKT-FLED-LENS-R4B-1-GREEN-KIT_140W_7Hx6V.ies
- IES fileKT-FLED-LENS-R4C-1-GREEN-KIT_140W_6Hx6V.ies
- IES fileKT-FLED-LENS-R4D-1-GREEN-KIT_140W_5Hx5V.ies
- IES fileKT-FLED-LENS-R4B-1-RED-KIT_140W_7Hx6V.ies
- IES fileKT-FLED-LENS-R4C-1-RED-KIT_140W_6Hx6V.ies
- IES fileKT-FLED-LENS-R4D-1-RED-KIT_140W_5Hx5V.ies
- IES fileKT-FLED-LENS-R4B-2-BLUE-KIT_290W_7Hx6V.ies
- IES fileKT-FLED-LENS-R4C-2-BLUE-KIT_290W_6Hx6V.ies
- IES fileKT-FLED-LENS-R4D-2-BLUE-KIT_290W_5Hx5V.ies
- IES fileKT-FLED-LENS-R4B-2-GREEN-KIT_290W_7Hx6V.ies
- IES fileKT-FLED-LENS-R4C-2-GREEN-KIT_290W_6Hx6V.ies
- IES fileKT-FLED-LENS-R4D-2-GREEN-KIT_290W_5Hx5V.ies
- IES fileKT-FLED-LENS-R4B-2-RED-KIT_290W_7Hx6V.ies
- IES fileKT-FLED-LENS-R4C-2-RED-KIT_290W_6Hx6V.ies
- IES fileKT-FLED-LENS-R4D-2-RED-KIT_290W_5Hx5V.ies
