Keystone Technologies

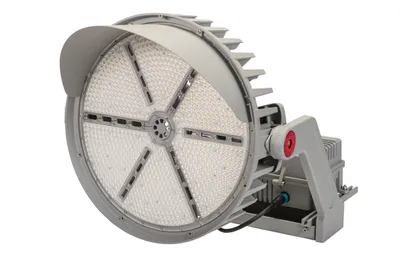

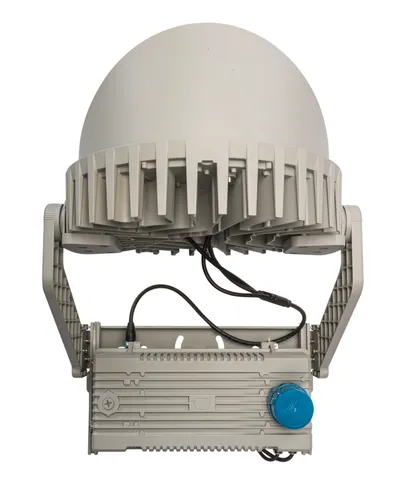

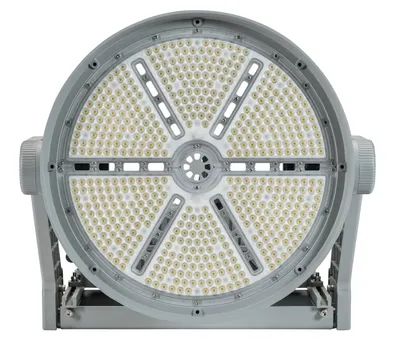

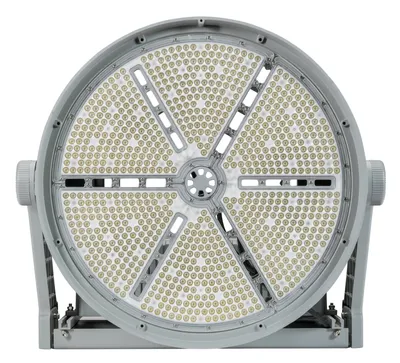

Floodlights – Sports Light

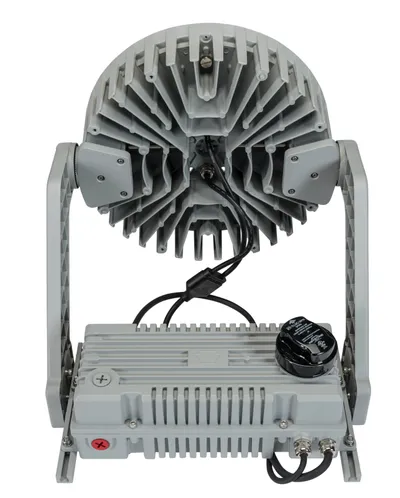

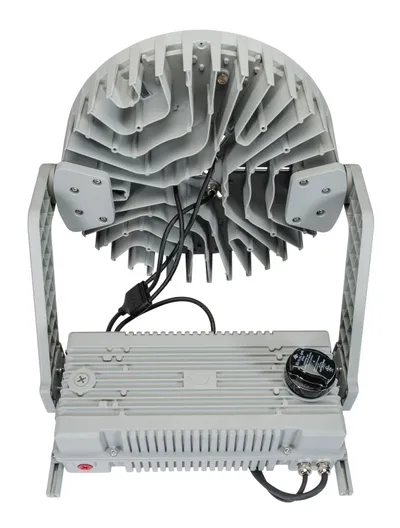

Features a detachable driver to simplify installation and maintenance for pole-mounted lighting at stadiums, municipal parks, ski resorts, and other expansive outdoor facilities.
33 part numbers · Outdoor
- Wattage
- 500–750W
- Lumens
- 70,000–105,000 lm
- Color temperature
- 5000K
- Voltage
- 120–277V, 277–480V
- Dimming
- 0-10V
- CRI
- 70+
- Finish
- Gray
- DLC
- DLC Premium
- Warranty
- 1–10 years
Overview
Features a detachable driver to simplify installation and maintenance for pole-mounted lighting at stadiums, municipal parks, ski resorts, and other expansive outdoor facilities.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

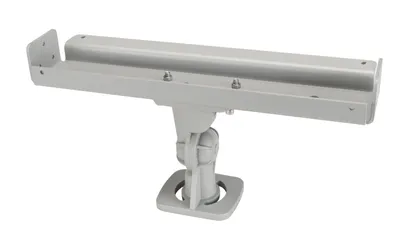

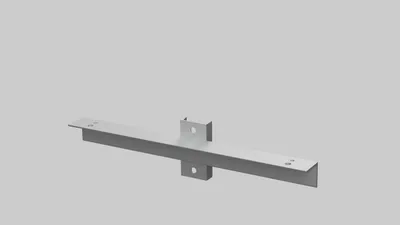

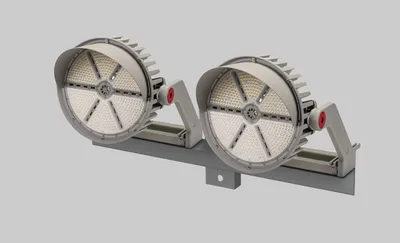

 | KT-CAB-2A-UNV | Galvanized cross arm bracket | Compatible with SLFLED fixtures | 2 fixture maximum | Universal mounting - for use on wood, steel, and concrete poles | MOUNTING HARDWARE NOT INCLUDED | — | — | — | — | — | — | — | Call for pricing | ||

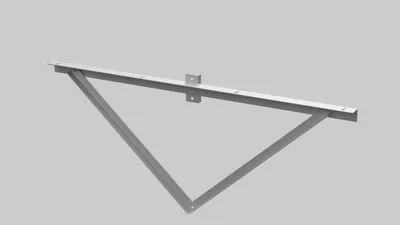

 | KT-CAB-4A-UNV | Galvanized cross arm bracket | Compatible with SLFLED fixtures | 4 fixture maximum | Universal mounting - for use on wood, steel, and concrete poles | MOUNTING HARDWARE NOT INCLUDED | — | — | — | — | — | — | — | Call for pricing | ||

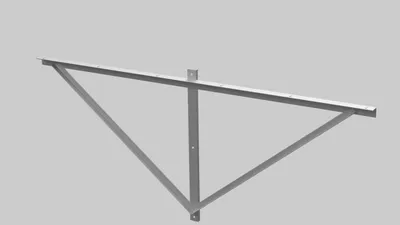

 | KT-CAB-6A-UNV | Galvanized cross arm bracket | Compatible with SLFLED fixtures | 6 fixture maximum | Universal mounting - for use on wood, steel, and concrete poles | MOUNTING HARDWARE NOT INCLUDED | — | — | — | — | — | — | — | Call for pricing | ||

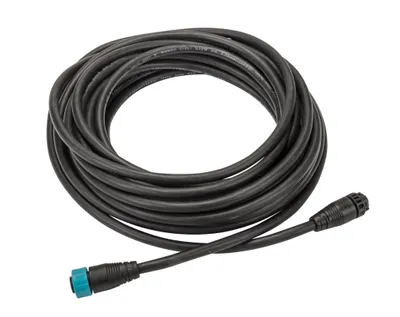

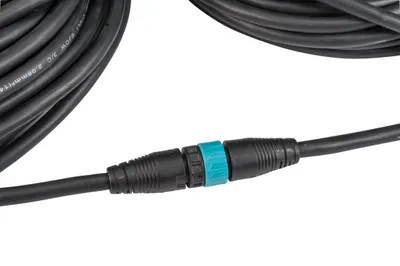

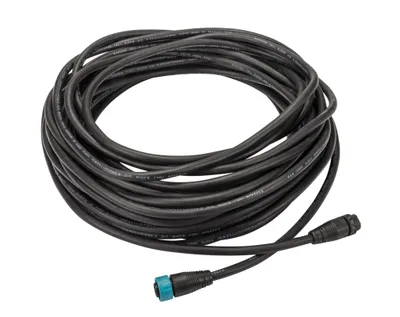

 | KT-SLFLED-EC-35 | 35’ extension cord to remote mount LED driver for SLFLED fixtures | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-SLFLED-EC-65 | 65’ extension cord to remote mount LED driver for SLFLED fixtures | — | — | — | — | — | — | — | Call for pricing | ||

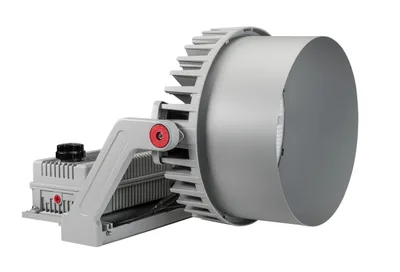

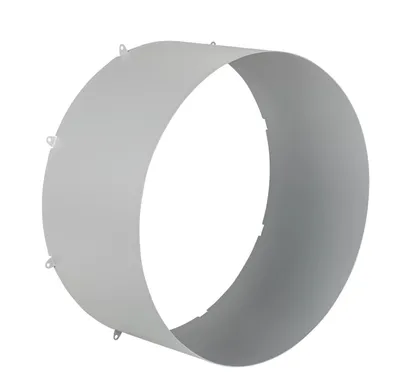

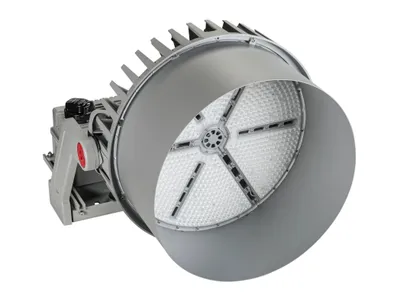

 | KT-SLFLED-GS-360-M1-KIT | 360deg Glare shield kit | Gray | Used on 750W Series 1 Sports Light Flood | Kit includes glare shield and mounting hardware | — | — | — | — | — | Gray | — | Call for pricing | ||
| KT-SLFLED-GS-360-S1-KIT | 360deg Glare shield kit | Gray | Used on 500W Series 1 Sports Light Flood | Kit includes glare shield and mounting hardware | — | — | — | — | — | Gray | — | Call for pricing | ||

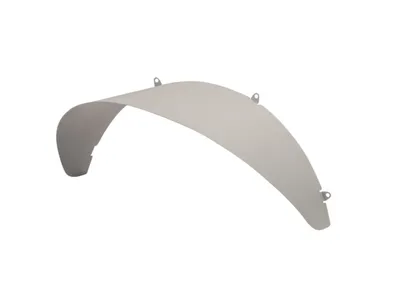

 | KT-SLFLED-GS-M1-KIT | Glare shield kit | Gray | Used on 750W Series 1 Sports Light Flood | Kit includes glare shield and mounting hardware | — | — | — | — | — | Gray | — | Call for pricing | ||
| KT-SLFLED-GS-S1-KIT | Glare shield kit | Gray | Used on 500W Series 1 Sports Light Flood | Kit includes glare shield and mounting hardware | — | — | — | — | — | Gray | — | Call for pricing | ||

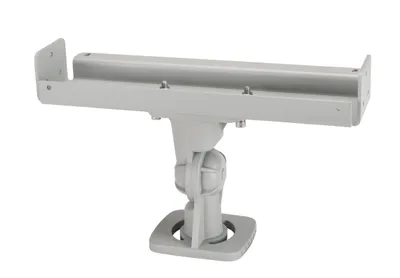

 | KT-SLFLED-KM-1-KIT | Knuckle mount for 500W LED Sports Light Flood, Small | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-SLFLED-KM-2-KIT | Knuckle mount for 750W LED Sports Light Flood, Medium | — | — | — | — | — | — | — | Call for pricing | ||

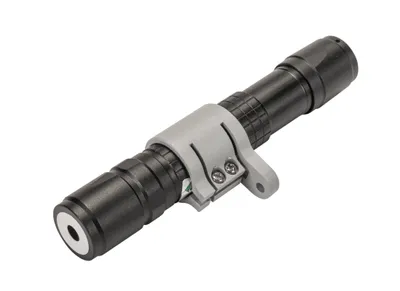

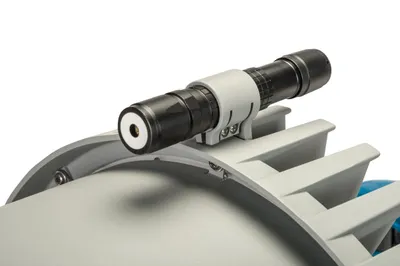

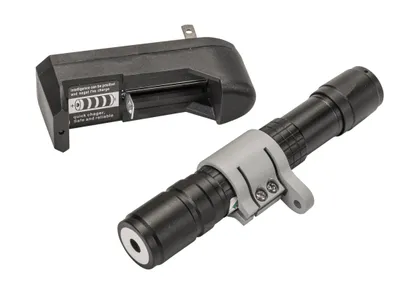

 | KT-SLFLED-LASER-G | Green laser pointer for Sports Light Flood aiming. Includes hardware to mount to SLFLED fixtures | — | — | — | — | — | — | — | Call for pricing | ||

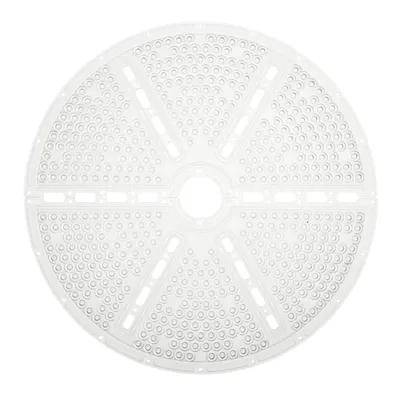

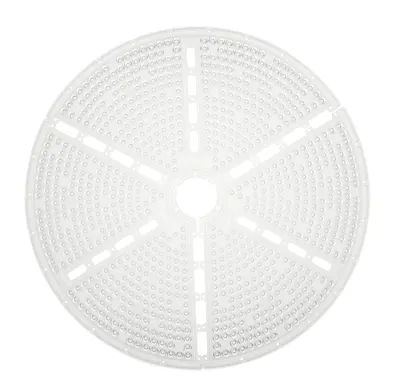

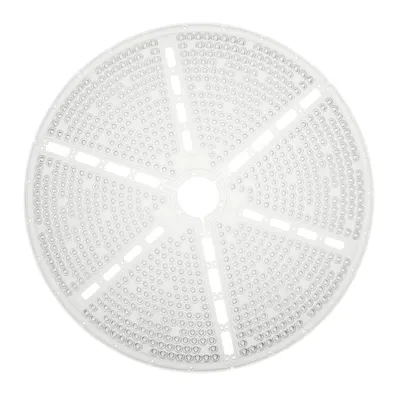

 | KT-SLFLED-LENS-M1-20-KIT | 20° beam angle lens for 750W Series 1 Sports Light Flood, medium housing. (1) kit equals (3) physical lenses | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-SLFLED-LENS-M1-40-KIT | 40° beam angle lens for 750W Series 1 Sports Light Flood, medium housing. (1) kit equals (3) physical lenses | — | — | — | — | — | — | — | Call for pricing | ||
| KT-SLFLED-LENS-M1-60-KIT | 60° beam angle lens for 750W Series 1 Sports Light Flood, medium housing. (1) kit equals (3) physical lenses | — | — | — | — | — | — | — | Call for pricing | ||
| KT-SLFLED-LENS-M1-80-KIT | 80° beam angle lens for 750W Series 1 Sports Light Flood, medium housing. (1) kit equals (3) physical lenses | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-SLFLED-LENS-S1-20-KIT | 20° beam angle lens for 500W Series 1 Sports Light Flood, small housing. (1) kit equals (2) physical lenses | — | — | — | — | — | — | — | Call for pricing | ||
| KT-SLFLED-LENS-S1-40-KIT | 40° beam angle lens for 500W Series 1 Sports Light Flood, small housing. (1) kit equals (2) physical lenses | — | — | — | — | — | — | — | Call for pricing | ||
| KT-SLFLED-LENS-S1-60-KIT | 60° beam angle lens for 500W Series 1 Sports Light Flood, small housing. (1) kit equals (2) physical lenses | — | — | — | — | — | — | — | Call for pricing | ||
| KT-SLFLED-LENS-S1-80-KIT | 80° beam angle lens for 500W Series 1 Sports Light Flood, small housing. (1) kit equals (2) physical lenses | — | — | — | — | — | — | — | Call for pricing | ||

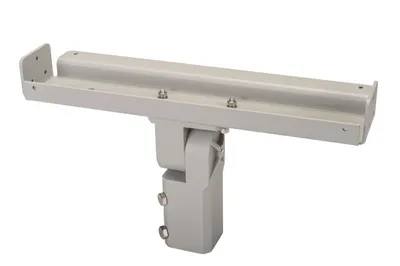

 | KT-SLFLED-SF-M1-KIT | Slip fitter mount kit for Series 1 Sports Light Flood, Medium Housing. Fits 2 3/8" tenon. Gray | — | — | — | — | — | Gray | — | Call for pricing | ||
| KT-SLFLED-SF-S1-KIT | Slip fitter mount kit for Series 1 Sports Light Flood, Small Housing. Fits 2 3/8" tenon. Gray | — | — | — | — | — | Gray | — | Call for pricing | ||

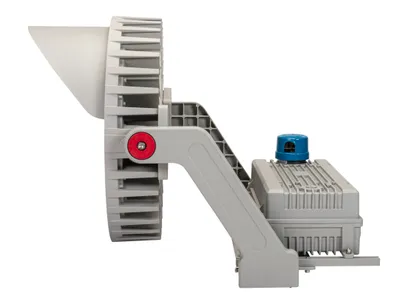

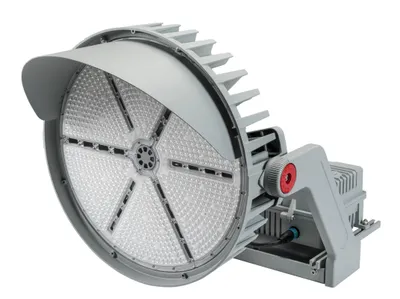

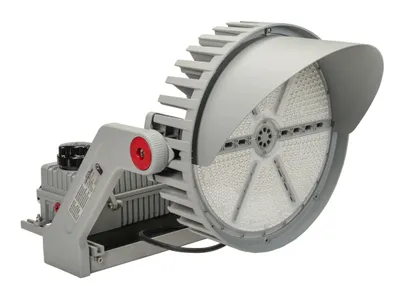

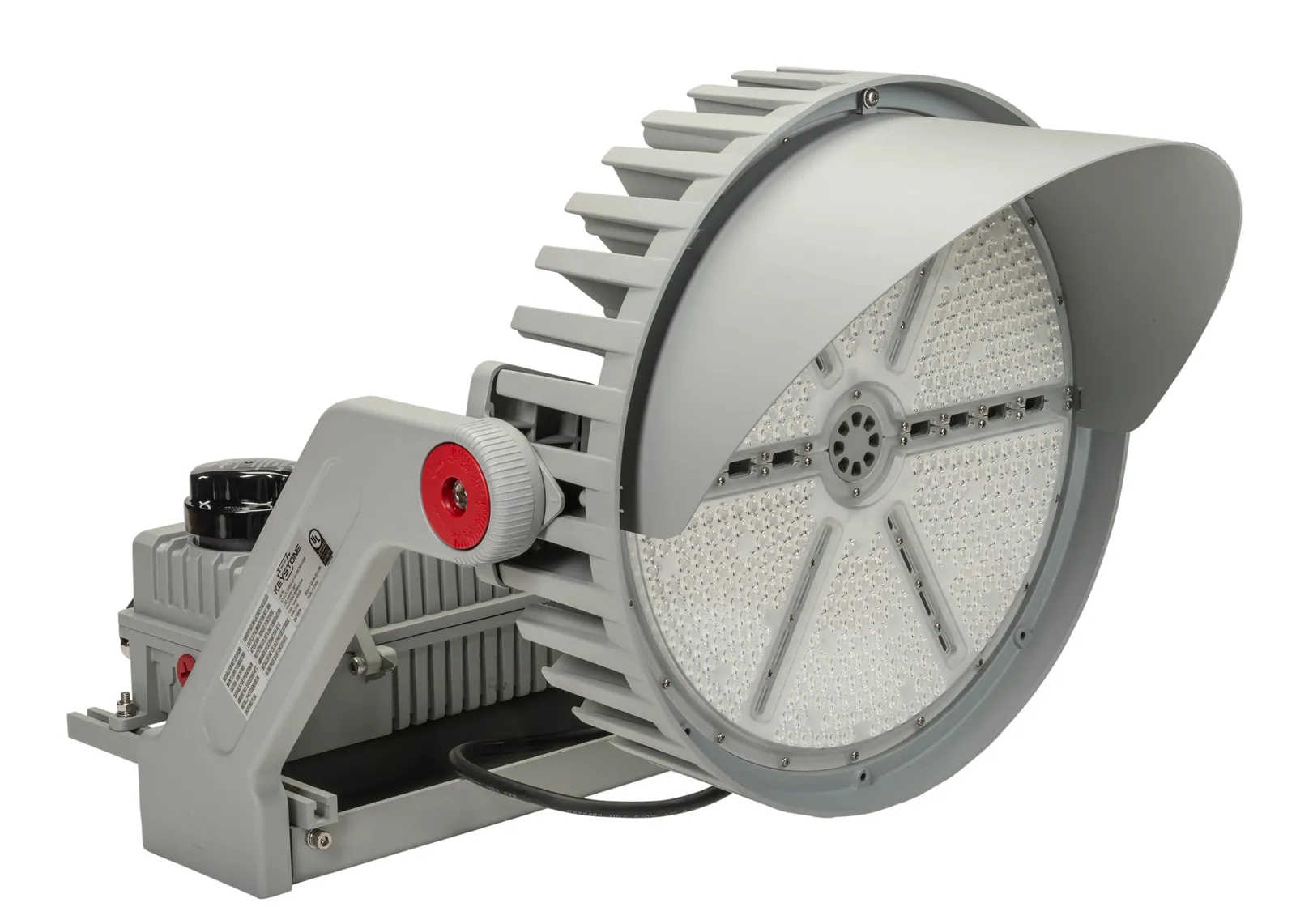

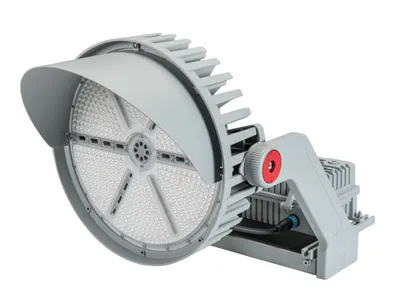

 | KT-SLFLED500-S1-20-YM-750-VDIM | 500W LED Sports Light Flood, 5000K, 70 CRI, 20° Beam Angle, 120-277V Input, 0-10V Dimmable, Yoke Mount and Glare Shield Included, Series 1 Small Housing, Gray. Fully Assembled | 500W | 70,000 lm | 5000K | 120–277V | 0-10V | Gray | Premium | Call for pricing | ||
| KT-SLFLED500-S1-30-YM-750-VDIM | 500W LED Sports Light Flood, 5000K, 70 CRI, 30° Beam Angle, 120-277V Input, 0-10V Dimmable, Yoke Mount and Glare Shield Included, Series 1 Small Housing, Gray. Fully Assembled | 500W | 70,000 lm | 5000K | 120–277V | 0-10V | Gray | Premium | Call for pricing | ||
| KT-SLFLED500-S1-40-YM-750-VDIM | 500W LED Sports Light Flood, 5000K, 70 CRI, 40° Beam Angle, 120-277V Input, 0-10V Dimmable, Yoke Mount and Glare Shield Included, Series 1 Small Housing, Gray. Fully Assembled | 500W | 70,000 lm | 5000K | 120–277V | 0-10V | Gray | Premium | Call for pricing | ||
| KT-SLFLED500HV-S1-20-YM-750-VDIM | 500W LED Sports Light Flood, 5000K, 70 CRI, 20° Beam Angle, 208-480V Input, 0-10V Dimmable, Yoke Mount and Glare Shield Included, Series 1 Small Housing, Gray. Fully Assembled | 500W | 70,000 lm | 5000K | 277–480V | 0-10V | Gray | Premium | Call for pricing | ||
 | KT-SLFLED500HV-S1-30-YM-750-VDIM | 500W LED Sports Light Flood, 5000K, 70 CRI, 30° Beam Angle, 208-480V Input, 0-10V Dimmable, Yoke Mount and Glare Shield Included, Series 1 Small Housing, Gray. Fully Assembled | 500W | 70,000 lm | 5000K | 277–480V | 0-10V | Gray | Premium | Call for pricing | ||
| KT-SLFLED500HV-S1-40-YM-750-VDIM | 500W LED Sports Light Flood, 5000K, 70 CRI, 40° Beam Angle, 208-480V Input, 0-10V Dimmable, Yoke Mount and Glare Shield Included, Series 1 Small Housing, Gray. Fully Assembled | 500W | 70,000 lm | 5000K | 277–480V | 0-10V | Gray | Premium | Call for pricing | ||
 | KT-SLFLED750-M1-20-YM-750-VDIM | 750W LED Sports Light Flood, 5000K, 70 CRI, 20° Beam Angle, 120-277V Input, 0-10V Dimmable, Yoke Mount and Glare Shield Included, Series 1 Medium Housing, Gray. Fully Assembled | 750W | 105,000 lm | 5000K | 120–277V | 0-10V | Gray | Premium | Call for pricing | ||
| KT-SLFLED750-M1-30-YM-750-VDIM | 750W LED Sports Light Flood, 5000K, 70 CRI, 30° Beam Angle, 120-277V Input, 0-10V Dimmable, Yoke Mount and Glare Shield Included, Series 1 Medium Housing, Gray. Fully Assembled | 750W | 105,000 lm | 5000K | 120–277V | 0-10V | Gray | Premium | Call for pricing | ||
| KT-SLFLED750-M1-40-YM-750-VDIM | 750W LED Sports Light Flood, 5000K, 70 CRI, 40° Beam Angle, 120-277V Input, 0-10V Dimmable, Yoke Mount and Glare Shield Included, Series 1 Medium Housing, Gray. Fully Assembled | 750W | 105,000 lm | 5000K | 120–277V | 0-10V | Gray | Premium | Call for pricing | ||
| KT-SLFLED750HV-M1-20-YM-750-VDIM | 750W LED Sports Light Flood, 5000K, 70 CRI, 20° Beam Angle, 208-480V Input, 0-10V Dimmable, Yoke Mount and Glare Shield Included, Series 1 Medium Housing, Gray. Fully Assembled | 750W | 105,000 lm | 5000K | 277–480V | 0-10V | Gray | Premium | Call for pricing | ||
 | KT-SLFLED750HV-M1-30-YM-750-VDIM | 750W LED Sports Light Flood, 5000K, 70 CRI, 30° Beam Angle, 208-480V Input, 0-10V Dimmable, Yoke Mount and Glare Shield Included, Series 1 Medium Housing, Gray. Fully Assembled | 750W | 105,000 lm | 5000K | 277–480V | 0-10V | Gray | Premium | Call for pricing |
