Keystone Technologies
LED Drivers – Constant Current – Power Select Adjustable
Flexible, field-adjustable constant current LED drivers with 4 output power options to choose from by sliding a switch.
24 part numbers · Ballasts, LED drivers and power supplies
- Wattage
- 15–100W
- Voltage
- 120–277V
- Dimming
- 0-10V
- Warranty
- 5–10 years
Overview
Flexible, field-adjustable constant current LED drivers with 4 output power options to choose from by sliding a switch. Multiple form factors for a variety of applications.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

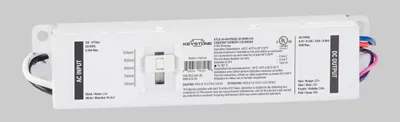

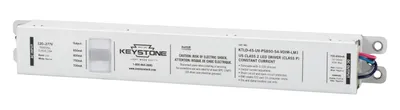

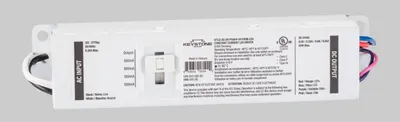

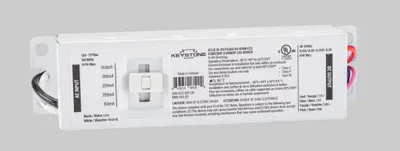

 | KTLD-15-UV-PS300-54-VDIM-LP1 | Power Select constant current LED driver, 15W, Selectable output currents include 200mA, 230mA, 270mA, and 300mA, 30-54Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 15W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-15-UV-PS300-54-VDIM-LS3 | Power Select constant current LED driver, 15W, Selectable output currents include 150mA, 200mA, 250mA, and 300mA, 30-54Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 15W | — | — | 120–277V | — | — | — | Call for pricing | ||

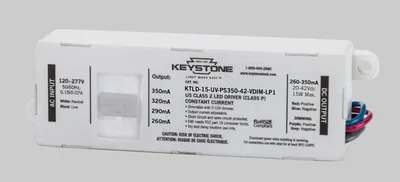

 | KTLD-15-UV-PS350-42-VDIM-LP1 | Power Select constant current LED driver, 15W, Selectable output currents include 260mA, 290mA, 320mA, and 350mA, 20-42Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 15W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-15-UV-PS350-42-VDIM-LS3 | Power Select constant current LED driver, 15W, Selectable output currents include 200mA, 250mA, 300mA, and 350mA, 20-42Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 15W | — | — | 120–277V | — | — | — | Call for pricing | ||

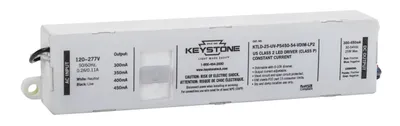

 | KTLD-25-UV-PS450-54-VDIM-LP2 | Power Select constant current LED driver, 25W, Selectable output currents include 300mA, 350mA, 400mA, and 450mA, 30-54Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 25W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-25-UV-PS450-54-VDIM-LS3 | Power Select constant current LED driver, 25W, Selectable output currents include 300mA, 350mA, 400mA, and 450mA, 30-54Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 25W | — | — | 120–277V | — | — | — | Call for pricing | ||

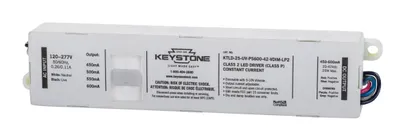

 | KTLD-25-UV-PS600-42-VDIM-LP2 | Power Select constant current LED driver, 25W, Selectable output currents include 450mA, 500mA, 550mA, and 600mA, 20-42Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 25W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-25-UV-PS600-42-VDIM-LS3 | Power Select constant current LED driver, 25W, Selectable output currents include 450mA, 500mA, 550mA, and 600mA, 20-42Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 25W | — | — | 120–277V | — | — | — | Call for pricing | ||
 | KTLD-35-UV-PS650-54-VDIM-LS4 | Power Select constant current LED driver, 35W, Selectable output currents include 500mA, 550mA, 600mA, and 650mA, 30-54Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 35W | — | — | 120–277V | — | — | — | Call for pricing | ||
 | KTLD-35-UV-PS850-42-VDIM-LS4 | Power Select constant current LED driver, 35W, Selectable output currents include 700mA, 750mA, 800mA, and 850mA, 20-42Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 35W | — | — | 120–277V | — | — | — | Call for pricing | ||

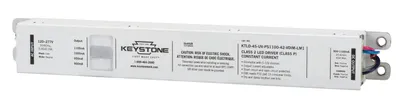

 | KTLD-45-UV-PS1100-42-VDIM-LM1 | Power Select constant current LED driver, 45W, Selectable output currents include 900mA, 950mA, 1000mA, and 1100mA, 20-42Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 45W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-45-UV-PS1100-42-VDIM-LS4 | Power Select constant current LED driver, 45W, Selectable output currents include 900mA, 950mA, 1000mA, and 1100mA, 20-42Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 45W | — | — | 120–277V | — | — | — | Call for pricing | ||
 | KTLD-45-UV-PS850-54-VDIM-LS4 | Power Select constant current LED driver, 45W, Selectable output currents include 700mA, 750mA, 800mA, and 850mA, 30-54Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 45W | — | — | 120–277V | — | — | — | Call for pricing | ||
 | KTLD-75-UV-PS1400-54-VDIM-LM2 | Power Select constant current LED driver, 75W, Selectable output currents include 1100mA, 1200mA, 1300mA, and 1400mA, 30-54Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 75W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-75-UV-PS1400-54-VDIM-LS5 | Power Select constant current LED driver, 75W, Selectable output currents include 1100mA, 1200mA, 1300mA, and 1400mA, 30-54Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 75W | — | — | 120–277V | — | — | — | Call for pricing | ||

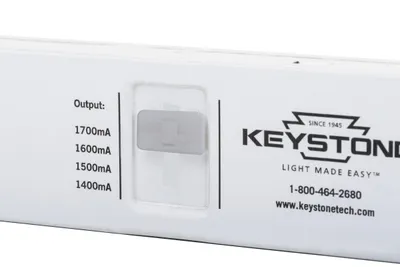

| KTLD-75-UV-PS1700-42-VDIM-LM2 | Power Select constant current LED driver, 75W, Selectable output currents include 1400mA, 1500mA, 1600mA, and 1700mA, 20-42Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 75W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-75-UV-PS1700-42-VDIM-LS5 | Power Select constant current LED driver, 75W, Selectable output currents include 1400mA, 1500mA, 1600mA, and 1700mA, 20-42Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 75W | — | — | 120–277V | — | — | — | Call for pricing | ||

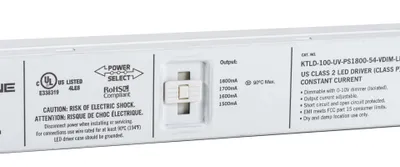

 | KTLD-100-UV-PS1800-54-VDIM-LS5 | Power Select Constant Current LED driver, 100W, Selectable output currents include 1500mA, 1600mA, 1700mA, 1800mA; 30-54 Vdc Output Voltage, 120-277V Input, 0-10V Dimming, Class 2 Ouput | 100W | — | — | 120–277V | — | — | — | Call for pricing | ||

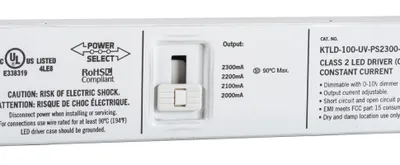

 | KTLD-100-UV-PS2300-42-VDIM-LS5 | Power Select Constant Current LED driver, 100W, Selectable output currents include 2000mA, 2100mA, 2200mA, 2300mA; 20-42 Vdc Output Voltage, 120-277V Input, 0-10V Dimming, Class 2 Ouput | 100W | — | — | 120–277V | — | — | — | Call for pricing | ||
 | KTLD-35-UV-PS650-54-VDIM-LM1DISC | Power Select constant current LED driver, 35W, Selectable output currents include 500mA, 550mA, 600mA, and 650mA, 30-54Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 35W | — | — | 120–277V | 0-10V | — | — | Call for pricing | — | |
 | KTLD-35-UV-PS850-42-VDIM-LM1DISC | Power Select constant current LED driver, 35W, Selectable output currents include 700mA, 750mA, 800mA, and 850mA, 20-42Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 35W | — | — | 120–277V | 0-10V | — | — | Call for pricing | — | |
 | KTLD-45-UV-PS850-54-VDIM-LM1DISC | Power Select constant current LED driver, 45W, Selectable output currents include 700mA, 750mA, 800mA, and 850mA, 30-54Vdc Output Voltage, 120-277V Input, 0-10V Dimming | 45W | — | — | 120–277V | 0-10V | — | — | Call for pricing | — | |

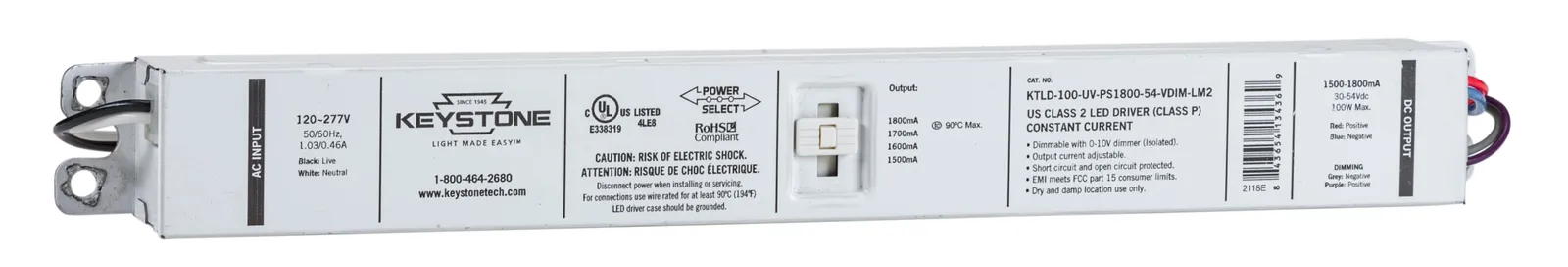

 | KTLD-100-UV-PS1800-54-VDIM-LM2DISC | Power Select Constant Current LED driver, 100W, Selectable output currents include 1500mA, 1600mA, 1700mA, 1800mA; 30-54 Vdc Output Voltage, 120-277V Input, 0-10V Dimming, Class 2 Ouput | 100W | — | — | 120–277V | 0-10V | — | — | Call for pricing | — | |
 | KTLD-100-UV-PS2300-42-VDIM-LM2DISC | Power Select Constant Current LED driver, 100W, Selectable output currents include 2000mA, 2100mA, 2200mA, 2300mA; 20-42 Vdc Output Voltage, 120-277V Input, 0-10V Dimming, Class 2 Ouput | 100W | — | — | 120–277V | 0-10V | — | — | Call for pricing | — |
