Keystone Technologies
LED Drivers – Constant Current – Programmable Cradle

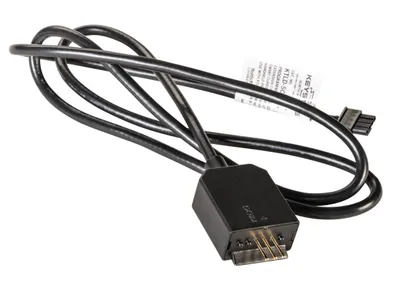

Connects the driver to SmartCurrent PC software via USB; cable included.
15 part numbers · Ballasts, LED drivers and power supplies
- Wattage
- 12–85W
- Voltage
- 120–277V
- Dimming
- 0-10V
- Warranty
- 5–10 years
Overview
Connects the driver to SmartCurrent PC software via USB; cable included. Available with a variety of jig adapters to accommodate a variety of case sizes.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

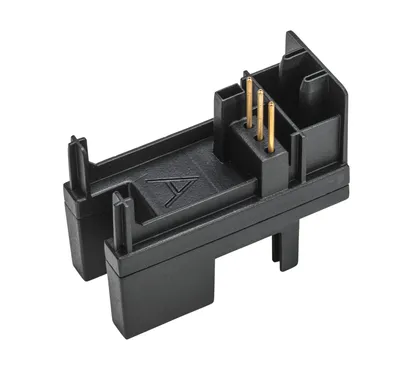

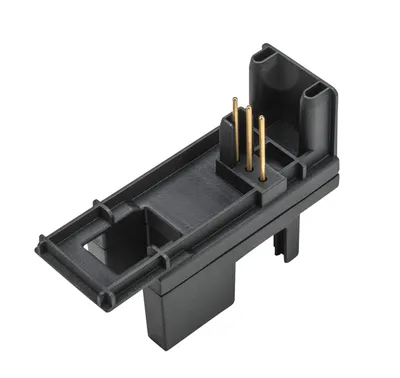

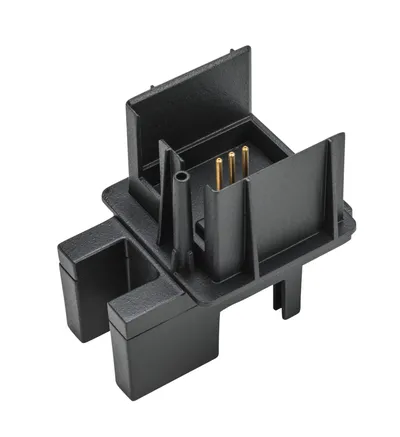

 | KTLD-SC-ADPT-1A | Programming Jig Adapter for Keystone Smart Current LED Driver, for U7 and U4 case drivers. For Handheld programming option. Must be used in conjunction with KTLD-SC-PGMR-1 | — | — | — | — | — | — | — | Call for pricing | ||

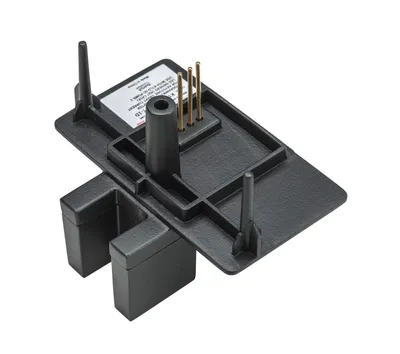

 | KTLD-SC-ADPT-1B /G2 | Programming Jig Adapter for Keystone Smart Current LED Driver, Gen 2, for W1 case drivers. Must be used in conjunction with KTLD-SC-PGMR-1 /G2 | — | — | — | — | — | — | — | Call for pricing | ||
 | KTLD-SC-ADPT-1C /G2 | Programming Jig Adapter of Keystone Smart Current LED Driver, Gen 2, for AF4 and AF1 Case Drivers. Must be used in conjuction with KTLD-SC-PGMR-1 /G2 | — | — | — | — | — | — | — | Call for pricing | ||
 | KTLD-SC-ADPT-1D | Programming Jig Adapter of Keystone Smart Current LED Driver, for AQ7 Case Drivers. Must be used in conjuction with KTLD-SC-PGMR-1 | — | — | — | — | — | — | — | Call for pricing | ||
 | KTLD-SC-ADPT-1E | Programming Jig Adapter of Keystone Smart Current LED Driver, for W2 Case Drivers. Must be used in conjuction with KTLD-SC-PGMR-1 | — | — | — | — | — | — | — | Call for pricing | ||

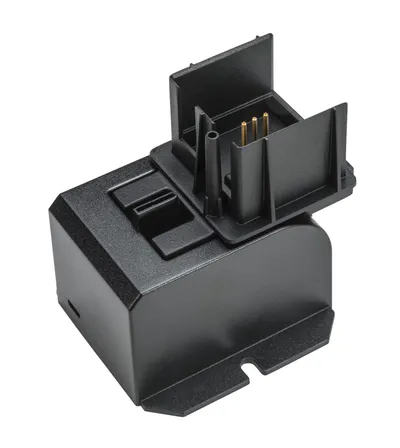

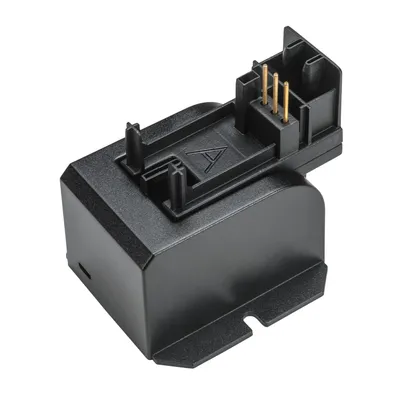

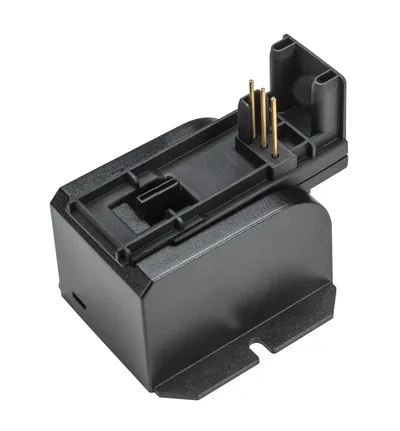

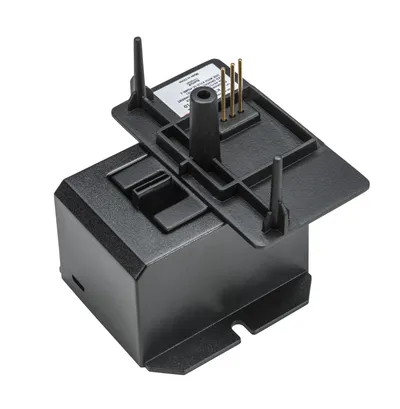

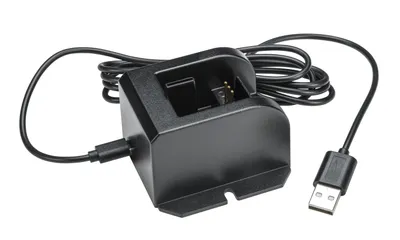

 | KTLD-SC-PGMR-1 /G2 | Programming Jig for Keystone Smart Current LED Driver, Gen 2, U5 & U4 Case. Includes USB cable | — | — | — | — | — | — | — | Call for pricing | ||

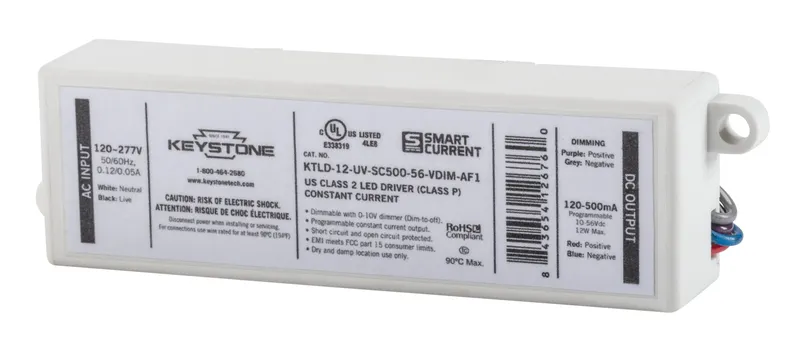

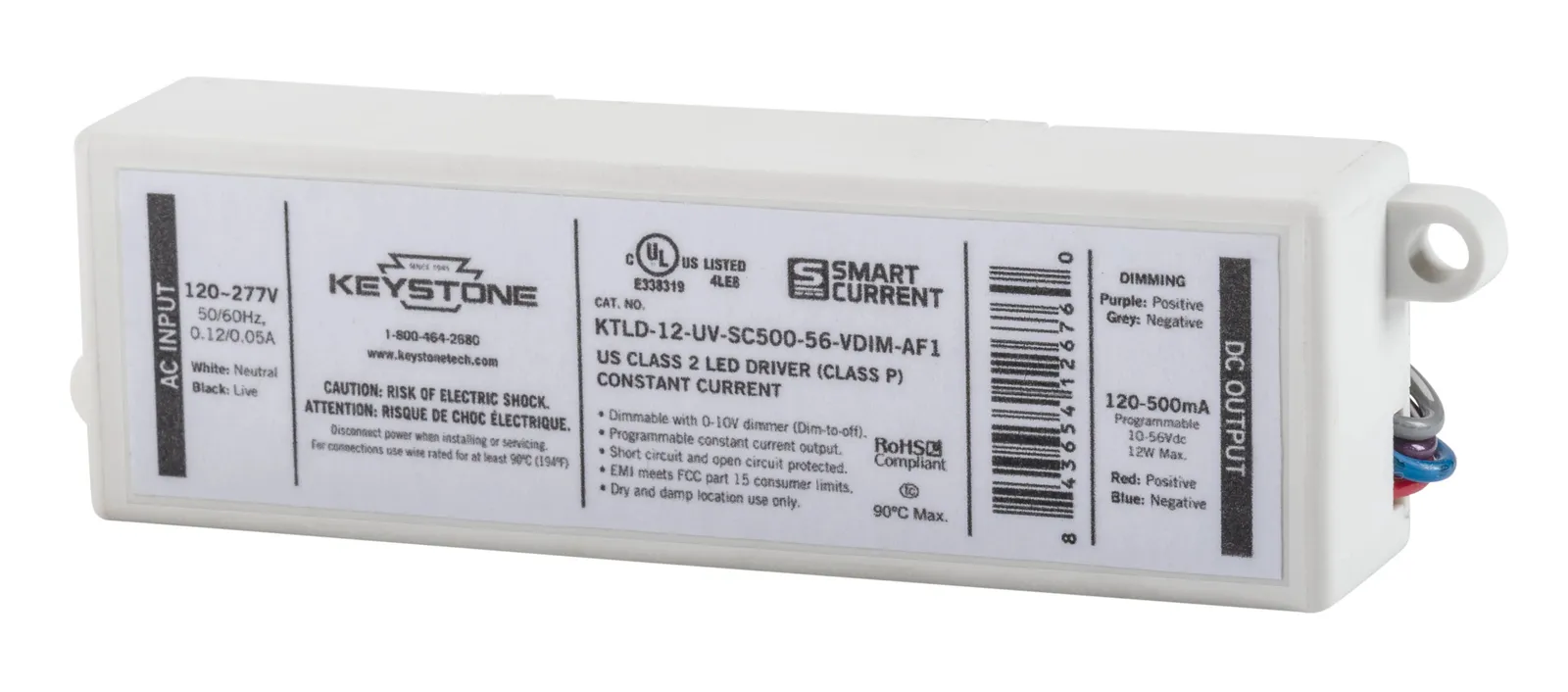

 | KTLD-12-UV-SC500-56-VDIM-AF1-CP | Programmable Constant Current LED Driver, 12W, 120-500mA Output, 120-277V Input, 0-10V Dimming, Programmable via Smart Current software | 12W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||

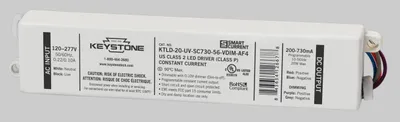

 | KTLD-20-UV-SC730-56-VDIM-AF4-CP | Programmable Constant Current LED Driver, 20W, 200-730mA Output, 120-277V Input, 0-10V Dimming, Programmable via Smart Current software | 20W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||

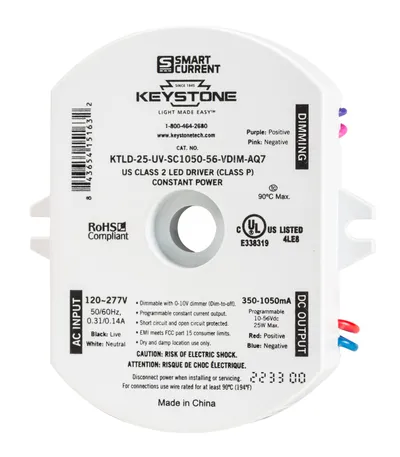

 | KTLD-25-UV-SC1050-56-VDIM-AQ7 | Programmable Constant Current LED Driver, 25W, 350-1050mA Output, 120-277V Input, 0-10V Dimming, Programmable via Smart Current software | 25W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||

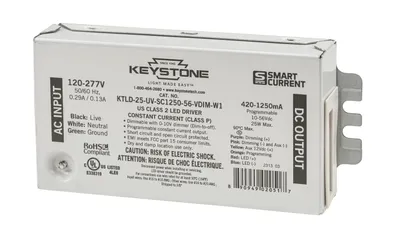

 | KTLD-25-UV-SC1250-56-VDIM-W1-CP | Programmable Constant Current LED Driver, 25W, 420-1250mA Output, 120-277V Input, 0-10V Dimming, Programmable via Smart Current software | 25W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-30-UV-SC1050-56-VDIM-U7-CP | Programmable Constant Current LED Driver, 30W, 350-1050mA Output, 120-277V Input, 0-10V Dimming, Programmable via Smart Current software | 30W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||

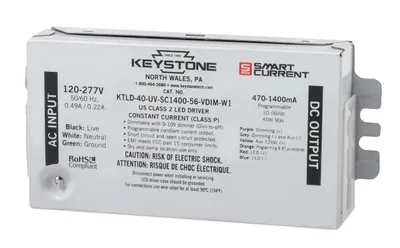

 | KTLD-40-UV-SC1400-56-VDIM-W1-CP | Programmable Constant Current LED Driver, 40W, 470-1400mA Output, 120-277V Input, 0-10V Dimming, Programmable via Smart Current software | 40W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-50-UV-SC1400-56-VDIM-U7-CP | Programmable Constant Current LED Driver, 50W, 470-1400mA Output, 120-277V Input, 0-10V Dimming, Programmable via Smart Current software | 50W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||

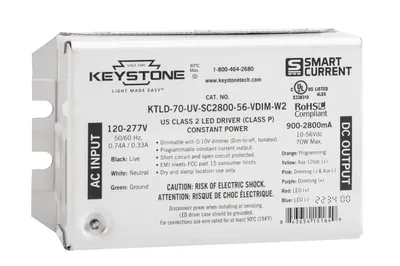

 | KTLD-70-UV-SC2800-56-VDIM-W2 | Programmable Constant Current LED Driver, 70W, 900-2800mA Output, 120-277V Input, 0-10V Dimming, Programmable via Smart Current software | 70W | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-85-UV-SC2600-56-VDIM-U4-CP | Programmable Constant Current LED Driver, 85W, 860-2600mA Output, 120-277V Input, 0-10V Dimming, Programmable via Smart Current software | 85W | — | — | 120–277V | 0-10V | — | — | Call for pricing |
