Keystone Technologies
LED Light Engines – Circular

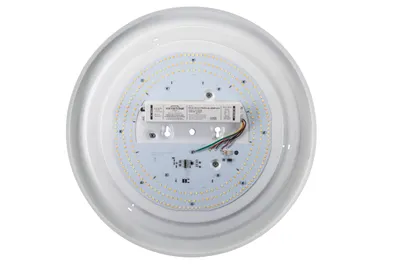

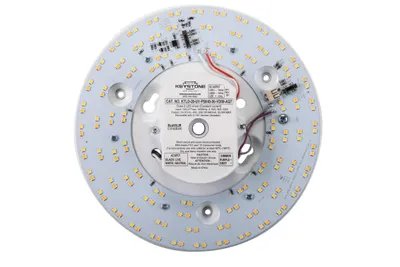

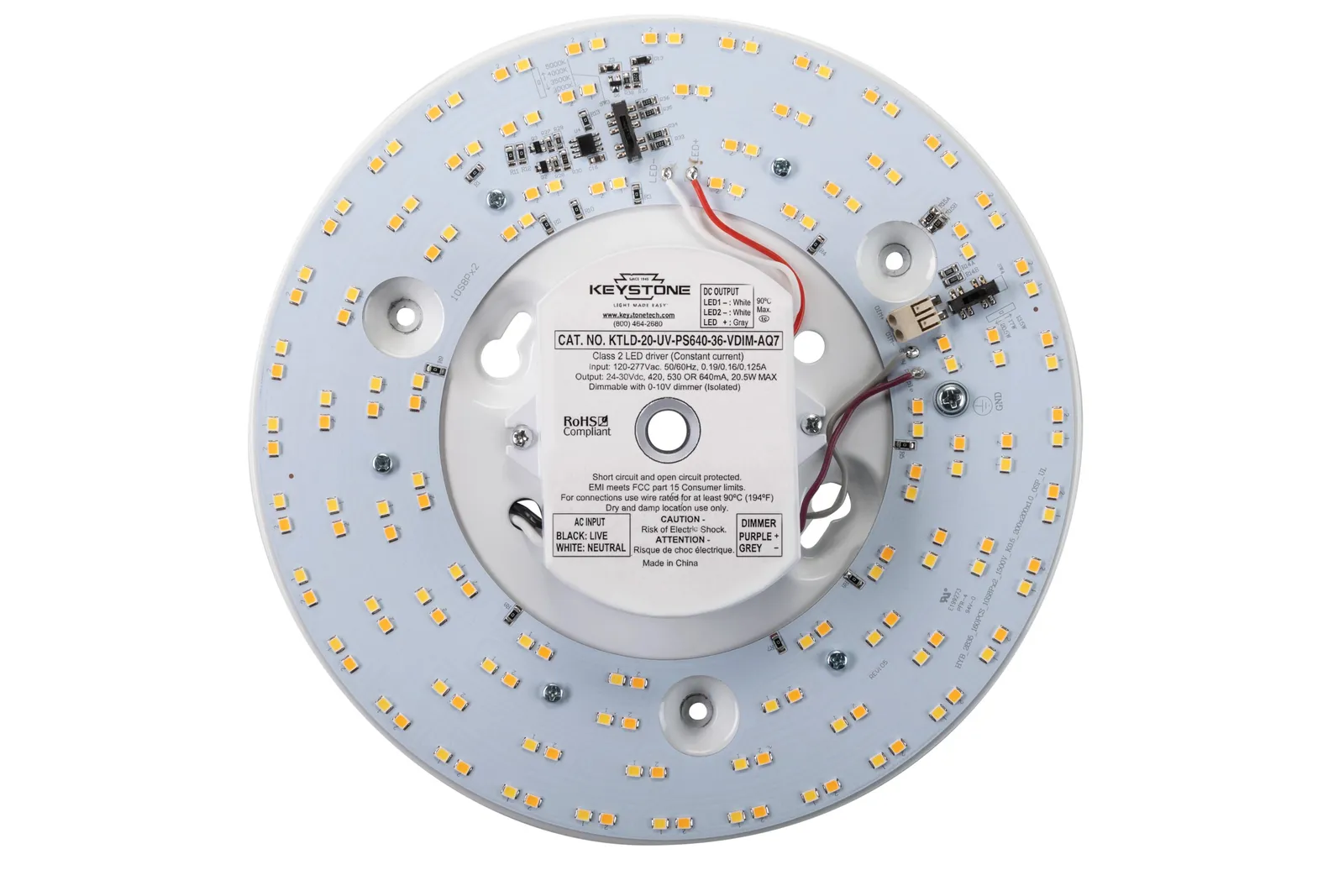

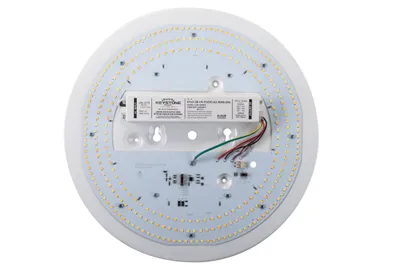

Circular units in several sizes pre-packaged with appropriate drivers, modules, and mounting accessories.
2 part numbers · Components
- Wattage
- 13–28W
- Lumens
- 2,150–4,150 lm
- Color temperature
- 3000K, 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Warranty
- 10 years
Overview
Circular units in several sizes pre-packaged with appropriate drivers, modules, and mounting accessories. Available with Power and Color Select. Qualified for Energy Star CSD on some models.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | KT-RKIT20PS-8CP-8CSC-VDIM | LED Retrofit Kit, 8in Circular Pan, 120-277V Input, 0-10V Dimming, Power Selectable between 13.5W, 16.5W, and 20.5W, Color Selectable between 3,000K, 3500K, 4000K, and 5,000K | 13/16/20W | 2,150/2,700/3,150 lm | 3000K/3500K/4000K/5000K | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KT-RKIT28PS-13CP-8CSC-VDIM | LED Retrofit Kit, 13in Circular Pan, 120-277V Input, 0-10V Dimming, Power Selectable between 21W and 28.5W, Color Selectable between 3,000K, 3500K, 4000K, and 5,000K | 21/28W | 3,150/4,150 lm | 3000K/3500K/4000K/5000K | 120–277V | 0-10V | — | — | Call for pricing |
