Keystone Technologies
LED Light Engines – Rectangular

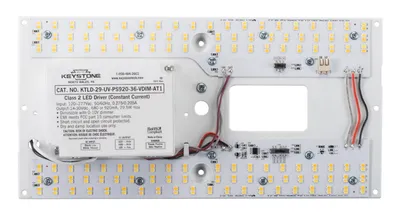

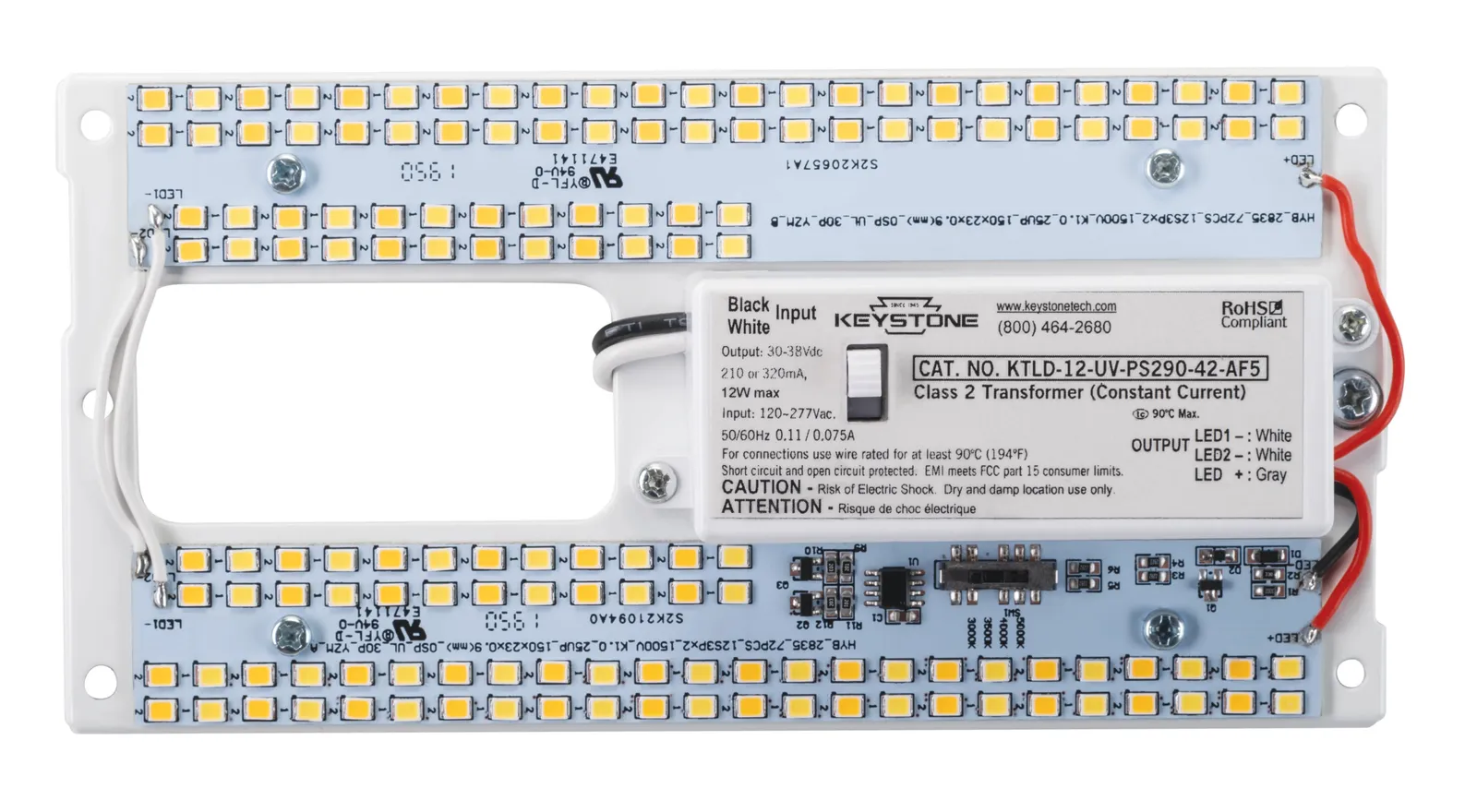

Compact, preassembled LED light engines with Power and Color Select technology in multiple nominal sizes and various form factors.
2 part numbers · Components
- Wattage

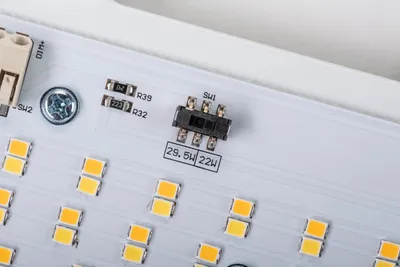

- 8–30W
- Lumens
- 1,100–4,150 lm
- Color temperature

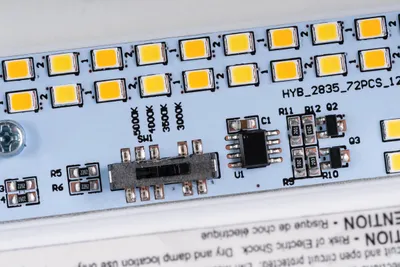

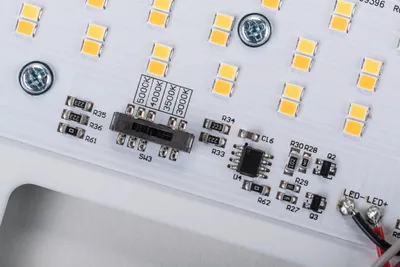

- 3000K, 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- Non-dimming, 0-10V
- CRI
- 80+
- Warranty
- 10 years
Overview
Compact, preassembled LED light engines with Power and Color Select technology in multiple nominal sizes and various form factors. Energy Star listed. Comes with all appropriate hardware.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | KT-RKIT12PS-6RP-8CSC | LED Retrofit Kit, 6in Rectangular Pan, 120-277V Input, Power Selectable between 8W and 12W, Color Selectable between 3,000K, 3500K, 4000K, and 5,000K | 8/12W | 1,100/1,600 lm | 3000K/3500K/4000K/5000K | 120–277V | Non-dimming | — | — | Call for pricing | ||
 | KT-RKIT30PS-11RP-8CSC-VDIM | LED Retrofit Kit, 11in Rectangular Pan, 120-277V Input, 0-10V Dimming, Power Selectable between 22W and 29.5W, Color Selectable between 3,000K, 3500K, 4000K, and 5,000K | 22/30W | 3,150/4,150 lm | 3000K/3500K/4000K/5000K | 120–277V | 0-10V | — | — | Call for pricing |
