Keystone Technologies
LED Modules - Circular
Circular LED modules for use in Class 2 lighting systems.
9 part numbers · Components
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- CRI
- 80+
- Warranty
- 5 years
Overview
Circular LED modules for use in Class 2 lighting systems. UL recognized components with highly reflective white soldermask, thermally conductive metal core PCB and 4-step MacAdam color binning.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

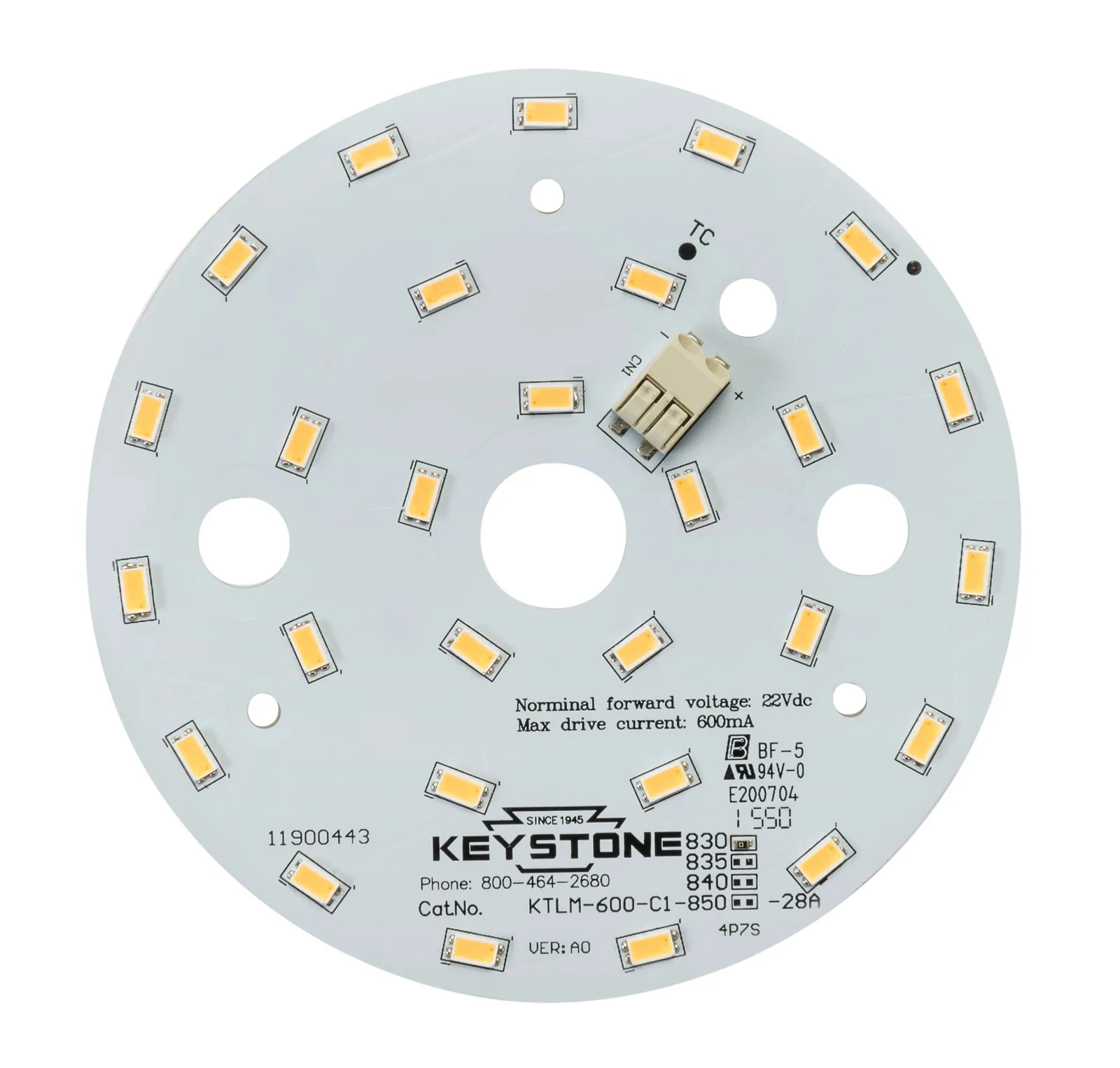

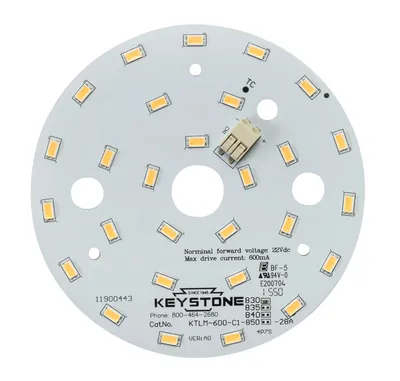

 | KTLM-600-C1-830-35B-CP | LED Module, 600mA Max, Circular, 4.16" Diameter, 800 Series, 3000K, 35 LED's | — | — | 3000K | — | — | — | — | Call for pricing | ||
| KTLM-600-C1-840-35B-CP | LED Module, 600mA Max, Circular, 4.16" Diameter, 800 Series, 4000K, 35 LED's | — | — | 4000K | — | — | — | — | Call for pricing | ||

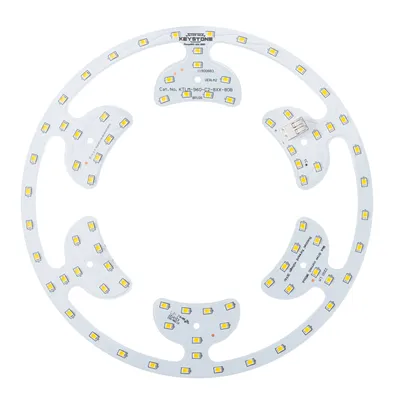

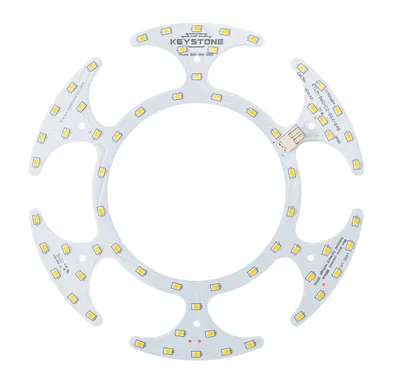

 | KTLM-960-C2-827-80B-CP | LED Module, 960mA Max, Circular, 8" Nominal Ring, 800 Series, 2700K, 80 LED's | — | — | 2700K | — | — | — | — | Call for pricing | ||
| KTLM-960-C2-830-80B-CP | LED Module, 960mA Max, Circular, 8" Nominal Ring, 800 Series, 3000K, 80 LED's | — | — | 3000K | — | — | — | — | Call for pricing | ||
| KTLM-960-C2-835-80B-CP | LED Module, 960mA Max, Circular, 8" Nominal Ring, 800 Series, 3500K, 80 LED's | — | — | 3500K | — | — | — | — | Call for pricing | ||
 | KTLM-960-C2-840-64B-CP | LED Module, 960mA Max, Circular, 8" Nominal Ring, 800 Series, 4000K, 64 LED's | — | — | 4000K | — | — | — | — | Call for pricing | ||
| KTLM-960-C2-840-80B-CP | LED Module, 960mA Max, Circular, 8" Nominal Ring, 800 Series, 4000K, 80 LED's | — | — | 4000K | — | — | — | — | Call for pricing | ||
| KTLM-960-C2-850-64B-CP | LED Module, 960mA Max, Circular, 8" Nominal Ring, 800 Series, 5000K, 64 LED's | — | — | 5000K | — | — | — | — | Call for pricing | ||
| KTLM-960-C2-850-80B-CP | LED Module, 960mA Max, Circular, 8" Nominal Ring, 800 Series, 5000K, 80 LED's | — | — | 5000K | — | — | — | — | Call for pricing |
