Keystone Technologies

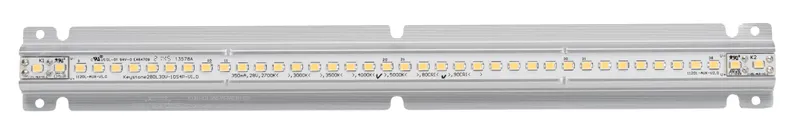

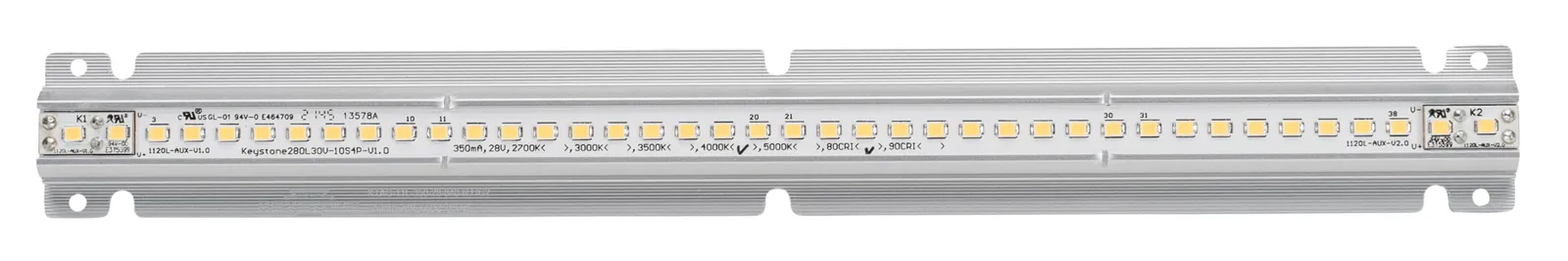

LED Modules - Linear – Aluminum Extrusion
A patented technology combining a rigid aluminum chassis with a pre-mounted linear LED module.
38 part numbers · Components
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 28V, 46V
- CRI
- 80–90+
- Finish
- White
- Warranty
- 5–10 years
Overview
A patented technology combining a rigid aluminum chassis with a pre-mounted linear LED module. Designed to be powered by constant current LED drivers, our innovative heat sink allows this stand-alone system to be installed almost anywhere.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | KTAG-11L-350-28-830-RJ /G2 | AlumaGroove Linear LED Module, 11" long: 350mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 3000K, Rear Junction Connectors | — | — | 3000K | 28V | — | — | — | Call for pricing | ||
| KTAG-11L-350-28-835-RJ /G2 | AlumaGroove Linear LED Module, 11" long: 350mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 3500K, Rear Junction Connectors | — | — | 3500K | 28V | — | — | — | Call for pricing | ||
| KTAG-11L-350-28-840-RJ /G2 | AlumaGroove Linear LED Module, 11" long: 350mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 4000K, Rear Junction Connectors | — | — | 4000K | 28V | — | — | — | Call for pricing | ||
| KTAG-11L-350-28-850-RJ /G2 | AlumaGroove Linear LED Module, 11" long: 350mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 5000K, Rear Junction Connectors | — | — | 5000K | 28V | — | — | — | Call for pricing | ||
| KTAG-11L-350-28-927-RJ /G2 | AlumaGroove Linear LED Module, 11 inches long: 350mA Max Drive Current, Nominal Forward Voltage 28Vdc, 90+ CRI, 2700K, Rear Junction Connectors | — | — | 2700K | 28V | — | — | — | Call for pricing | ||
| KTAG-11L-350-28-930-RJ /G2 | AlumaGroove Linear LED Module, 11" long: 350mA Max Drive Current, Nominal Forward Voltage 28Vdc, 90+ CRI, 3000K, Rear Junction Connectors | — | — | 3000K | 28V | — | — | — | Call for pricing | ||
| KTAG-11L-350-28-940-RJ /G2 | AlumaGroove Linear LED Module, 11" long: 350mA Max Drive Current, Nominal Forward Voltage 28Vdc, 90+ CRI, 4000K, Rear Junction Connectors | — | — | 4000K | 28V | — | — | — | Call for pricing | ||
| KTAG-11L-350-28-950-RJ /G2 | AlumaGroove Linear LED Module, 11" long: 350mA Max Drive Current, Nominal Forward Voltage 28Vdc, 90+ CRI, 5000K, Rear Junction Connectors | — | — | 5000K | 28V | — | — | — | Call for pricing | ||
| KTAG-11L-350-46-830-RJ /G2 | High Output AlumaGroove Linear LED Module, 11" long: 350mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 3000K, Rear Junction Connectors | — | — | 3000K | 46V | — | — | — | Call for pricing | ||
| KTAG-11L-350-46-835-RJ /G2 | High Output AlumaGroove Linear LED Module, 11" long: 350mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 3500K, Rear Junction Connectors | — | — | 3500K | 46V | — | — | — | Call for pricing | ||
 | KTAG-11L-350-46-840-RJ /G2 | High Output AlumaGroove Linear LED Module, 11in long: 350mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 4000K, Rear Junction Connectors | — | — | 4000K | 46V | — | — | — | Call for pricing | ||
| KTAG-11L-350-46-850-RJ /G2 | High Output AlumaGroove Linear LED Module, 11in long: 350mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 5000K, Rear Junction Connectors | — | — | 5000K | 46V | — | — | — | Call for pricing | ||

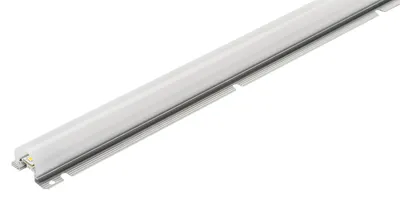

 | KTAG-11L-LENS | Diffused Lens for 11" long AlumaGroove LED Modules, Snap on. | — | — | — | — | — | — | — | Call for pricing | ||
 | KTAG-22L-700-28-830-RJ /G2 | AlumaGroove Linear LED Module, 22in long: 700mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 3000K, Rear Junction Connectors | — | — | 3000K | 28V | — | — | — | Call for pricing | ||
| KTAG-22L-700-28-835-RJ /G2 | AlumaGroove Linear LED Module, 22in long: 700mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 3500K, Rear Junction Connectors | — | — | 3500K | 28V | — | — | — | Call for pricing | ||
| KTAG-22L-700-28-840-RJ /G2 | AlumaGroove Linear LED Module, 22in long: 700mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 4000K, Rear Junction Connectors | — | — | 4000K | 28V | — | — | — | Call for pricing | ||
| KTAG-22L-700-28-850-RJ /G2 | AlumaGroove Linear LED Module, 22in long: 700mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 5000K, Rear Junction Connectors | — | — | 5000K | 28V | — | — | — | Call for pricing | ||
| KTAG-22L-700-28-927-RJ /G2 | AlumaGroove Linear LED Module, 22" long: 700mA Max Drive Current, Nominal Forward Voltage 28Vdc, 90+ CRI, 2700K, Rear Junction Connectors | — | — | 2700K | 28V | — | — | — | Call for pricing | ||
| KTAG-22L-700-28-930-RJ /G2 | AlumaGroove Linear LED Module, 22" long: 700mA Max Drive Current, Nominal Forward Voltage 28Vdc, 90+ CRI, 3000K, Rear Junction Connectors | — | — | 3000K | 28V | — | — | — | Call for pricing | ||
| KTAG-22L-700-46-830-RJ /G2 | High Output AlumaGroove Linear LED Module, 22in long: 700mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 3000K, Rear Junction Connectors | — | — | 3000K | 46V | — | — | — | Call for pricing | ||
| KTAG-22L-700-46-835-RJ /G2 | High Output AlumaGroove Linear LED Module, 22in long: 700mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 3500K, Rear Junction Connectors | — | — | 3500K | 46V | — | — | — | Call for pricing | ||
 | KTAG-22L-700-46-840-RJ /G2 | High Output AlumaGroove Linear LED Module, 22in long: 700mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 4000K, Rear Junction Connectors | — | — | 4000K | 46V | — | — | — | Call for pricing | ||
| KTAG-22L-700-46-850-RJ /G2 | High Output AlumaGroove Linear LED Module, 22in long: 700mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 5000K, Rear Junction Connectors | — | — | 5000K | 46V | — | — | — | Call for pricing | ||
| KTAG-22L-LENS | Diffused Lens for 22" long AlumaGroove LED Modules, Snap on. | — | — | — | — | — | — | — | Call for pricing | ||
| KTAG-33L-1050-30-830-RJ-CP | AlumaGroove Linear LED Module, 33" long: 1050mA Max Drive Current, Nominal Forward Voltage 30Vdc, 80+ CRI, 3000K, Rear Junction Connectors | — | — | 3000K | — | — | — | — | Call for pricing | ||
| KTAG-33L-1050-30-835-RJ-CP | AlumaGroove Linear LED Module, 33" long: 1050mA Max Drive Current, Nominal Forward Voltage 30Vdc, 80+ CRI, 3500K, Rear Junction Connectors | — | — | 3500K | — | — | — | — | Call for pricing | ||
| KTAG-33L-1050-30-840-RJ-CP | AlumaGroove Linear LED Module, 33" long: 1050mA Max Drive Current, Nominal Forward Voltage 30Vdc, 80+ CRI, 4000K, Rear Junction Connectors | — | — | 4000K | — | — | — | — | Call for pricing | ||
| KTAG-33L-LENS | Diffused Lens for 33" long AlumaGroove LED Modules, Snap on. | — | — | — | — | — | — | — | Call for pricing | ||
 | KTAG-44L-1400-28-830-RJ /G2 | AlumaGroove Linear LED Module, 44in long: 1400mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 3000K, Rear Junction Connectors | — | — | 3000K | 28V | — | — | — | Call for pricing | ||
| KTAG-44L-1400-28-835-RJ /G2 | AlumaGroove Linear LED Module, 44in long: 1400mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 3500K, Rear Junction Connectors | — | — | 3500K | 28V | — | — | — | Call for pricing | ||
| KTAG-44L-1400-28-840-RJ /G2 | AlumaGroove Linear LED Module, 44in long: 1400mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 4000K, Rear Junction Connectors | — | — | 4000K | 28V | — | — | — | Call for pricing | ||
| KTAG-44L-1400-28-850-RJ /G2 | AlumaGroove Linear LED Module, 44in long: 1400mA Max Drive Current, Nominal Forward Voltage 28Vdc, 80+ CRI, 5000K, Rear Junction Connectors | — | — | 5000K | 28V | — | — | — | Call for pricing | ||
| KTAG-44L-1400-46-830-RJ /G2 | High Output AlumaGroove Linear LED Module, 44in long: 1400mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 3000K, Rear Junction Connectors | — | — | 3000K | 46V | — | — | — | Call for pricing | ||
| KTAG-44L-1400-46-835-RJ /G2 | High Output AlumaGroove Linear LED Module, 44in long: 1400mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 3500K, Rear Junction Connectors | — | — | 3500K | 46V | — | — | — | Call for pricing | ||
 | KTAG-44L-1400-46-840-RJ /G2 | High Output AlumaGroove Linear LED Module, 44 inch long: 1400mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 4000K, Rear Junction Connectors | — | — | 4000K | 46V | — | — | — | Call for pricing | ||
| KTAG-44L-1400-46-850-RJ /G2 | High Output AlumaGroove Linear LED Module, 44 in long: 1400mA Max Drive Current, Nominal Forward Voltage 46Vdc, 80+ CRI, 5000K, Rear Junction Connectors | — | — | 5000K | 46V | — | — | — | Call for pricing | ||
| KTAG-44L-LENS | Diffused Lens for 44" long AlumaGroove LED Modules, Snap on. | — | — | — | — | — | — | — | Call for pricing | ||

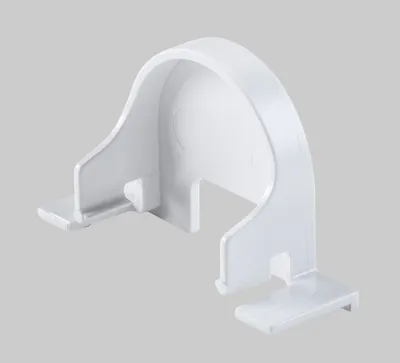

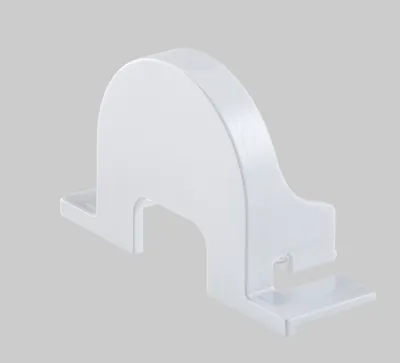

 | KTAG-LENS-EC | Alumagroove Lens Endcaps (sold Individually) | — | — | — | — | — | White | — | Call for pricing |
