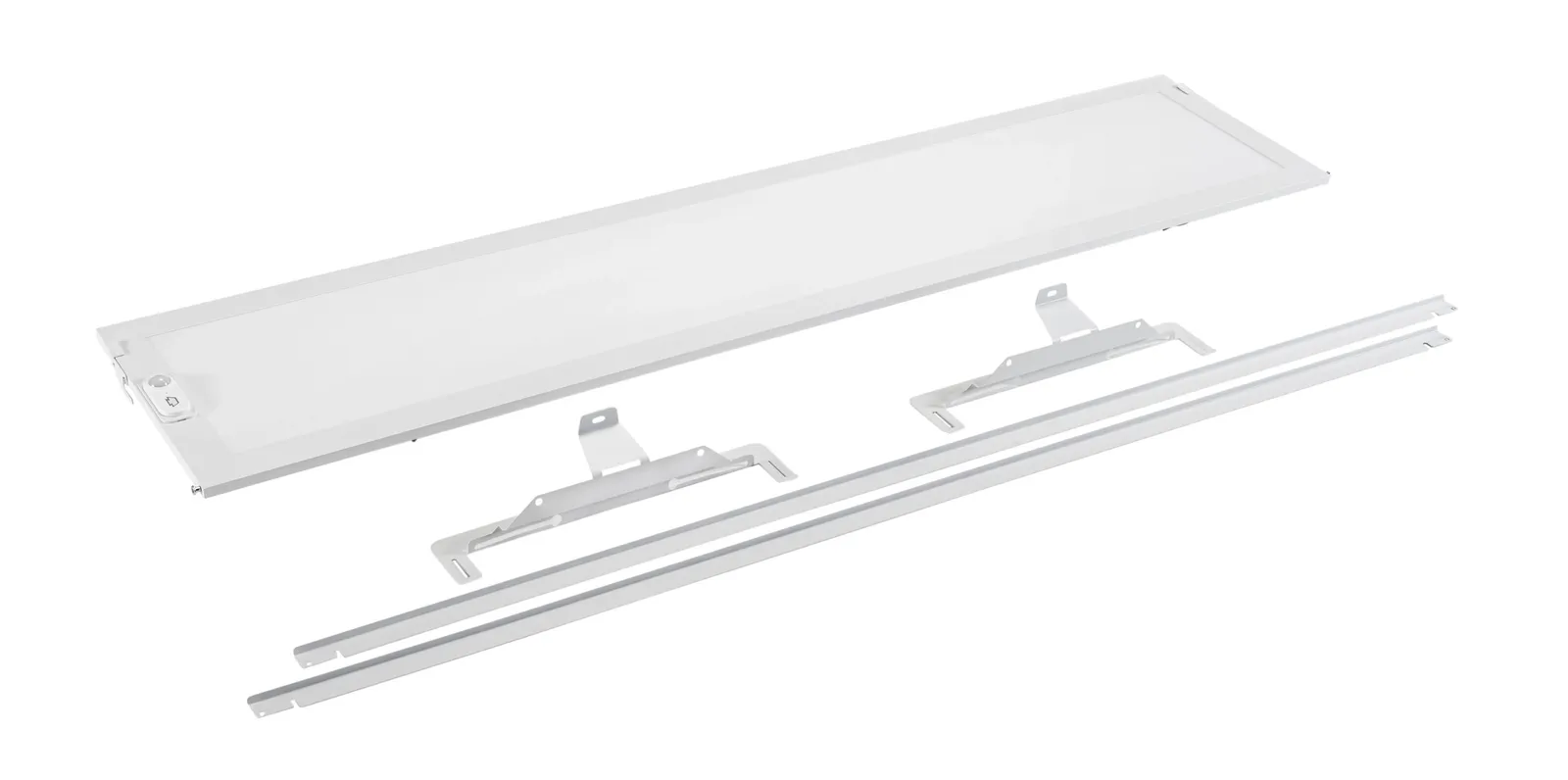

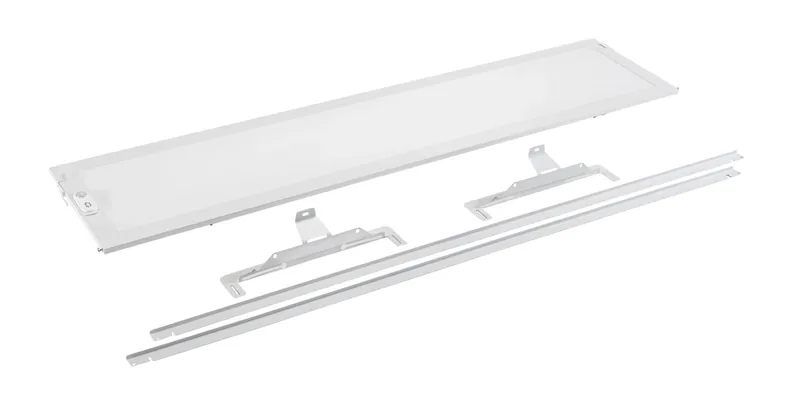

1x4 LED Doorframe Retrofit Panel feat. Power Select & Color Select with Embedded Smartloop PIR Sensor. 35/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Gen 2. 2pcs Carton.

1 / 12

Keystone Technologies

1x4 LED Doorframe Retrofit Panel feat. Power Select & Color Select with Embedded Smartloop PIR Sensor. 35/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Gen 2. 2pcs Carton.

KT-RKIT35PS-14PD-8CSA-VDIM /G2/FC5 /2PK

20/30/35W · 2,200/3,300/3,850 lm · 3500K/4000K/5000K · 120–277V

Part of LED Retrofit Kits – Troffer Retrofit – Back-Lit Panel

Call for pricing Add it to your cart and send us a quote request — or call 678-467-5515.

Request a QuoteSpec sheet

Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.

Specifications

Electrical
Wattage20/30/35W (selectable)
Voltage120–277V
Dimming0-10V
Photometric
Lumens2,200/3,300/3,850 lm
Efficacy110 lm/W
Color temperature3500K/4000K/5000K (selectable)
CRI80+
Physical
MountingRetrofit
Size1x4
FinishWhite
LensPanel
Lifetime, warranty & ordering
Rated life50,000 hrs
Warranty5 years
UPC843654171739
Pack quantity2
