Keystone Technologies

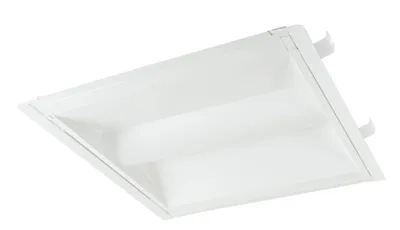

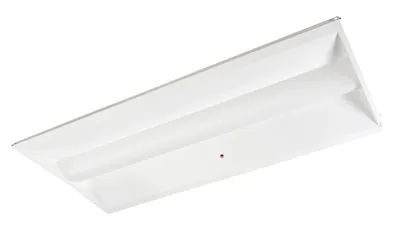

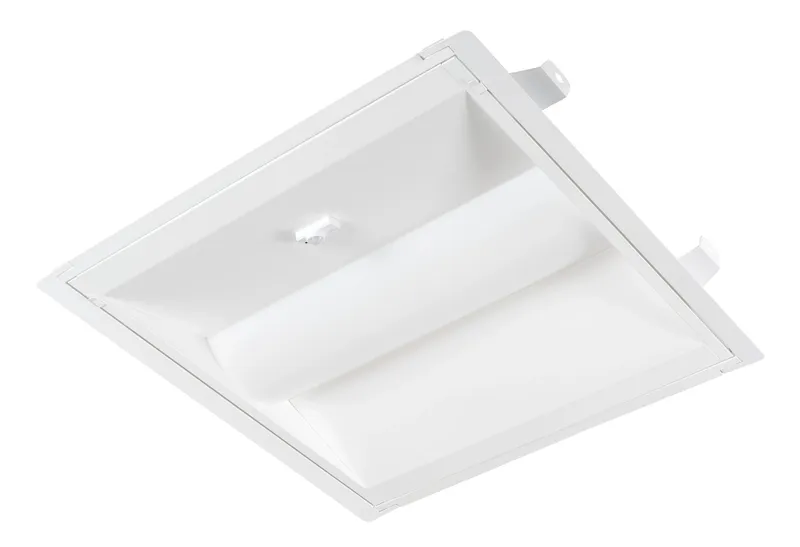

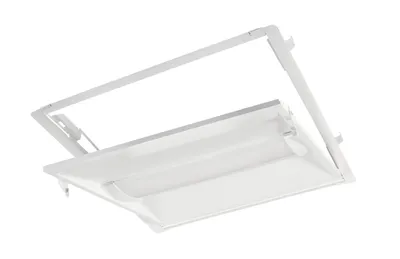

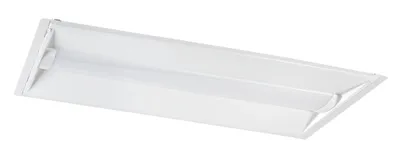

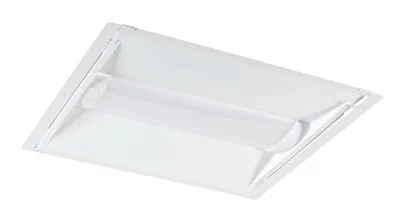

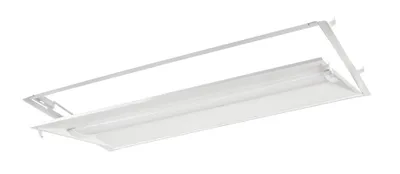

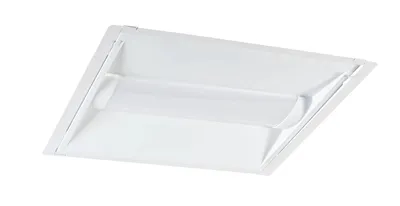

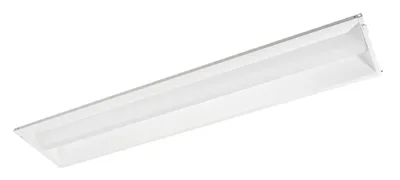

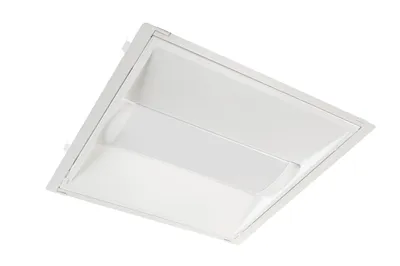

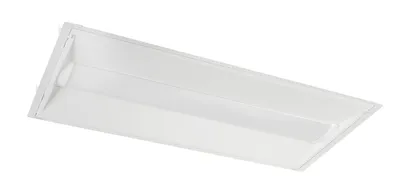

LED Retrofit Kits – Troffer Retrofit – Center Basket Troffer

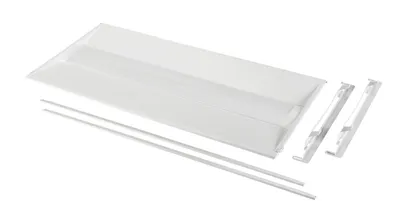

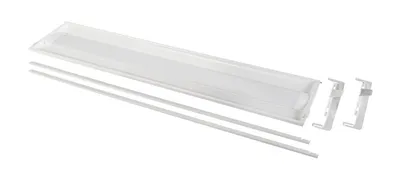

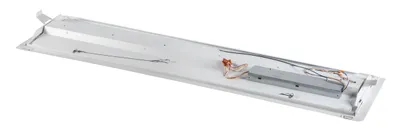

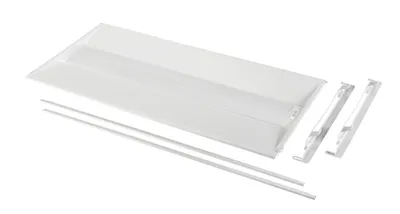

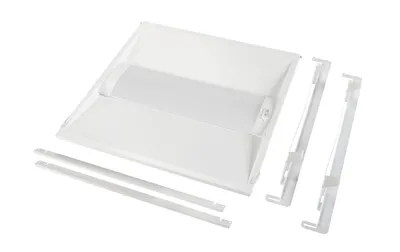

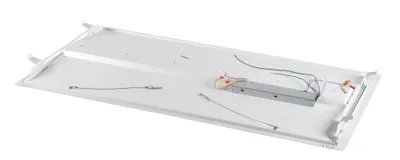

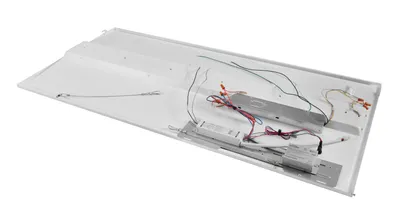

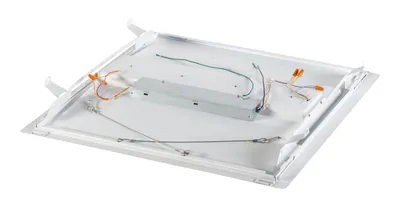

An LED troffer retrofit kit, that includes everything -- housings with pre-wired drivers, installation brackets, lenses, hardware, and instructions – to upgrade in minutes.
17 part numbers · Indoor
- Wattage
- 15–45W
- Lumens
- 1,950–5,850 lm
- Color temperature
- 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- Warranty
- 5 years
Overview
An LED troffer retrofit kit, that includes everything -- housings with pre-wired drivers, installation brackets, lenses, hardware, and instructions – to upgrade in minutes.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

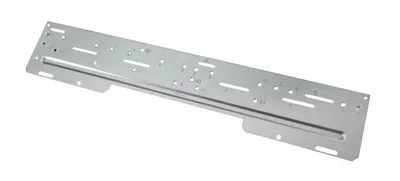

 | KT-RKIT-DC-EM-KIT | Emergency LED Backup Mounting Kit for Keystone Center Basket Doorframe Kits. (Style C) Includes Bracket and mounting hardware. | — | — | — | — | — | — | — | Call for pricing | ||

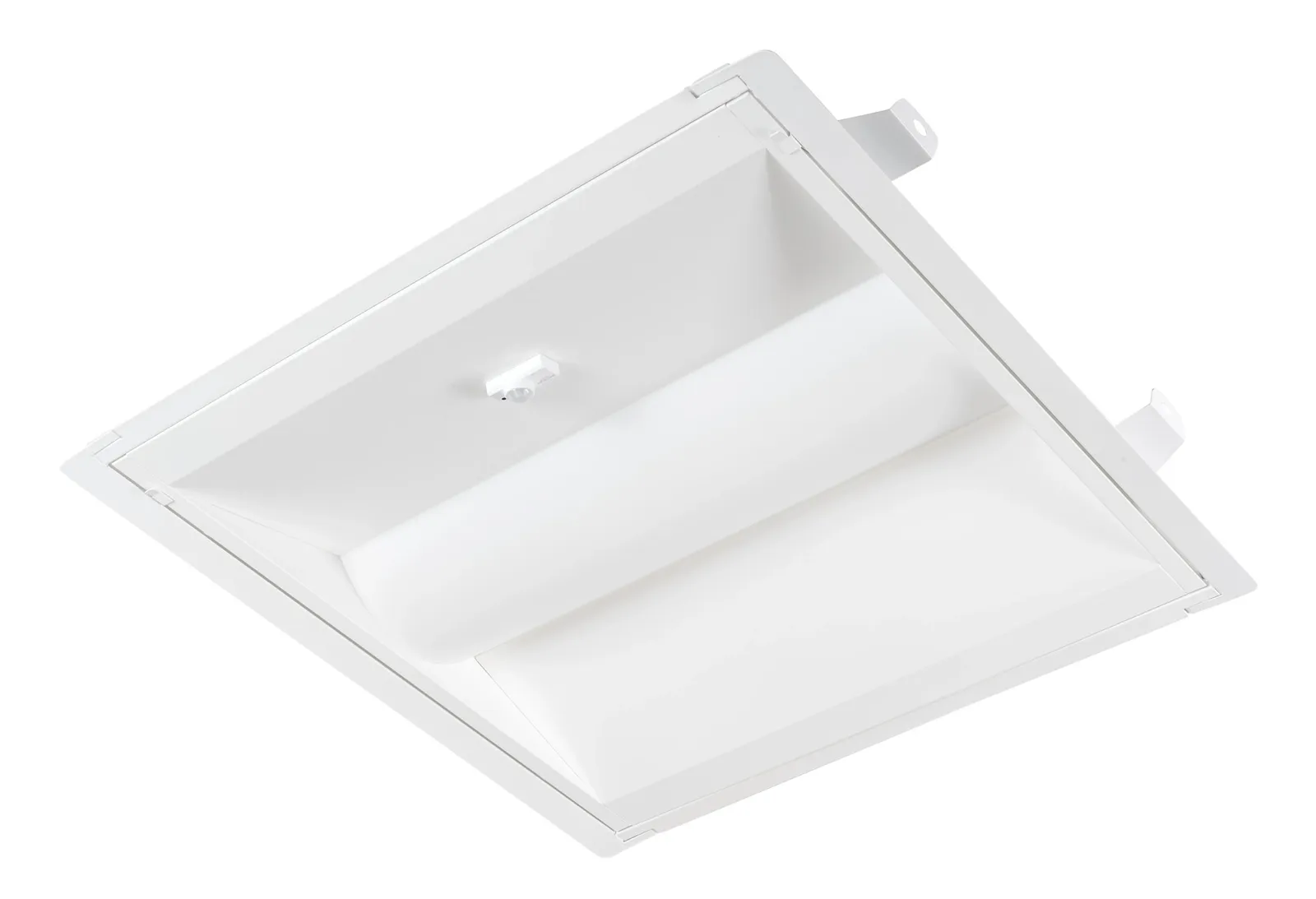

 | KT-RKIT24PS-22DB-8CSA-VDIM /FC2 | 2x2 LED Center Basket Doorframe Retrofit feat. Power Select & Color Select, 24/18/15W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. Factory Installed SmartLoop Fixture Controller w/ PIR sensor | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-RKIT30PS-24DB-8CSA-VDIM /FC2 | 2x4 LED Center Basket Doorframe Retrofit feat. Power Select & Color Select, 30/25/20W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. Factory Installed SmartLoop Fixture Controller w/ PIR sensor | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-RKIT30PS-24DC-8CSA-VDIM /CR /2PK | 2x4 LED Center Basket Doorframe Retrofit|Power Select 30/25/20W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | 2pcs Carton | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-RKIT35PS-14DB-8CSA-VDIM /FC2 | 1x4 LED Center Basket Doorframe Retrofit feat. Power Select & Color Select, 35/30/24W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. Factory Installed SmartLoop Fixture Controller w/ PIR sensor | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-RKIT35PS-22DB-8CSA-VDIM /FC2 | 2x2 LED Center Basket Doorframe Retrofit feat. Power Select & Color Select, 35/30/24W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. Factory installed PIR Motion Sensor. | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-RKIT24PS-22DC-8CSA-VDIM | 2x2 LED Center Basket Doorframe Retrofit |Power Select 24/18/15W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 15/18/24W | 1,950/2,340/3,150 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-RKIT24PS-22DC-8CSA-VDIM /2PK | 2x2 LED Center Basket Doorframe Retrofit |Power Select 24/18/15W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 2pcs Carton | 15/18/24W | 1,950/2,340/3,150 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-RKIT24PS-22DC-8CSA-VDIM /CR /2PK | 2x2 LED Center Basket Doorframe Retrofit |Power Select 24/18/15W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | 2pcs Carton | 15/18/24W | 1,950/2,340/3,150 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-RKIT30PS-24DC-8CSA-VDIM | 2x4 LED Center Basket Doorframe Retrofit|Power Select 30/25/20W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 20/25/30W | 2,600/3,250/3,900 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-RKIT30PS-24DC-8CSA-VDIM /2PK | 2x4 LED Center Basket Doorframe Retrofit|Power Select 30/25/20W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 2pcs Carton | 20/25/30W | 2,600/3,250/3,900 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-RKIT35PS-14DC-8CSA-VDIM | 1x4 LED Center Basket Doorframe Retrofit |Power Select 35/30/24W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 24/30/35W | 3,120/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| KT-RKIT35PS-14DC-8CSA-VDIM /2PK | 1x4 LED Center Basket Doorframe Retrofit |Power Select 35/30/24W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 2pcs Carton | 24/30/35W | 3,120/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-RKIT35PS-14DC-8CSA-VDIM /CR /2PK | 1x4 LED Center Basket Doorframe Retrofit |Power Select 35/30/24W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | 2pcs Carton | 24/30/35W | 3,120/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-RKIT35PS-22DC-8CSA-VDIM /2PK | 2x2 LED Center Basket Doorframe Retrofit |Power Select 35/30/24W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 2pcs Carton | 24/30/35W | 3,150/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| KT-RKIT45PS-24DC-8CSA-VDIM /2PK | 2x4 LED Center Basket Doorframe Retrofit |Power Select 45/38/30W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 2pcs Carton | 30/38/45W | 3,900/4,950/5,850 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-RKIT45PS-24DC-8CSA-VDIM /CR /2PK | 2x4 LED Center Basket Doorframe Retrofit |Power Select 45/38/30W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | 2pcs Carton | 30/38/45W | 3,900/4,950/5,850 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- IES fileKT-RKIT35PS-14DC-8CSA-VDIM_35W_3K_2V.ies
- IES fileKT-RKIT35PS-14DC-8CSA-VDIM_IES.zip
- IES fileKT-RKIT24PS-22DC-8CSA-VDIM_24W_3K_2V.ies
- IES fileKT-RKIT24PS-22DC-8CSA-VDIM_IES.zip
- IES fileKT-RKIT35PS-22DC-8CSA-VDIM_IES.zip
- IES fileKT-RKIT30PS-24DC-8CSA-VDIM_30W_3K_2V.ies
- IES fileKT-RKIT30PS-24DC-8CSA-VDIM_IES.zip
- IES fileKT-RKIT45PS-24DC-8CSA-VDIM_IES.zip
