Keystone Technologies
LED Tubes – Type C - External Driver – Type C - External Drivers

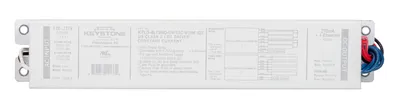

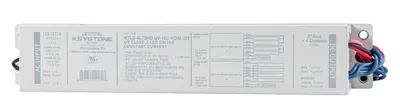

A line of LED Drivers designed to work with Keystone External Drive T8 LED Lamps.
23 part numbers · Ballasts, LED drivers and power supplies
- Wattage
- 18–60W
- Voltage
- 120–277V
- Dimming
- 0-10V
- Finish
- White
- Warranty
- 10 years
Overview
A line of LED Drivers designed to work with Keystone External Drive T8 LED Lamps. These constant current drivers are UL8750 Recognized and are Type 1 Outdoor, Suitable for Dry and Damp Locations
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | KTLD-2LT5HE-UV-10C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 1 or 2 of the KT-LED10T5HE-36G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-2LT5HE-UV-12C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 1 or 2 of the KT-LED12T5HE-48G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-2LT5HE-UV-8C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 1 or 2 of the KT-LED8T5HE-24G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-2LT5HO-UV-12C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 1 or 2 of the KT-LED12T5HO-24G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-2LT5HO-UV-15C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 1 or 2 of the KT-LED15T5HO-36G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-2LT5HO-UV-22C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 1 or 2 of the KT-LED22T5HO-48G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-2LT8-UV-12C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 1 or 2 of the KT-LED12T8-xxG-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-2LT8-UV-13.5C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 1 or 2 of the KT-LED13.5T8-48G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-4LT5HE-UV-10C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 3 or 4 of the KT-LED10T5HE-36G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-4LT5HE-UV-12C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 3 or 4 of the KT-LED12T5HE-48G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-4LT5HE-UV-8C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 3 or 4 of the KT-LED8T5HE-24G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-4LT5HO-UV-12C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 3 or 4 of the KT-LED12T5HO-24G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-4LT5HO-UV-15C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 3 or 4 of the KT-LED15T5HO-36G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-4LT5HO-UV-22C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 3 or 4 of the KT-LED22T5HO-48G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-4LT8-UV-10C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 3 or 4 of the KT-LED10T8-48G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-4LT8-UV-12C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 3 or 4 of the KT-LED12T8-xxG-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||
 | KTLD-4LT8-UV-13.5C-VDIM /G2 | LED Driver for External Drive Type C LED tubes, Runs 3 or 4 of the KT-LED13.5T8-48G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | ||

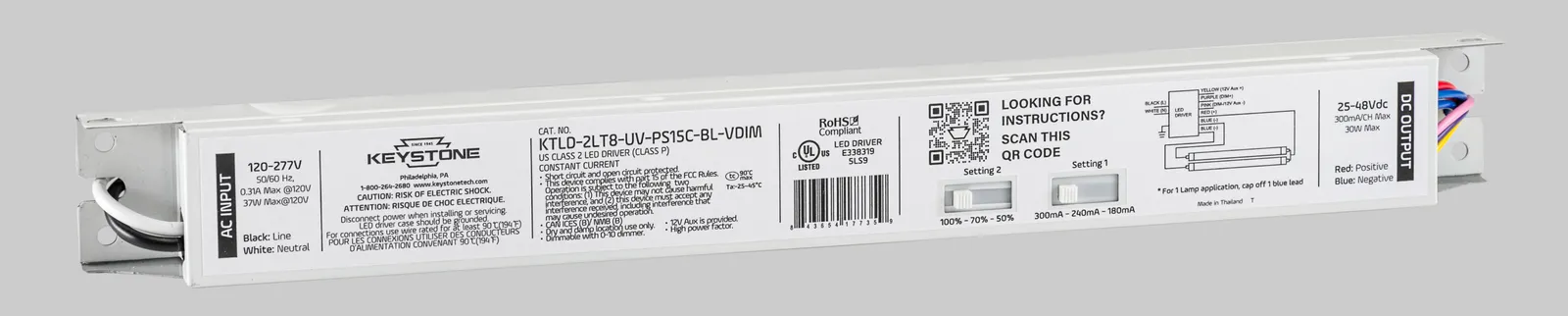

 | KTLD-2LT8-UV-PS15C-BL-VDIM | LED Driver, Type C, 2-Channel, 120-277V Input, Bi-Level Dimming (50/70/100%), 0-10V Dimming, Power Select (60/80/100%), 15W Per Channel, 12V Aux | 18/24/30W | — | — | 120–277V | — | White | — | Call for pricing | ||
 | KTLD-4LT8-UV-PS15C-BL-VDIM | LED Driver, Type C, 4-Channel, 120-277V Input, Bi-Level Dimming (50/70/100%), 0-10V Dimming, Power Select (60/80/100%), 15W Per Channel, 12V Aux | 36/48/60W | — | — | 120–277V | — | White | — | Call for pricing | ||
 | KTLD-1LT8-UV-12C-VDIM /G2DISC | LED Driver for External Drive Type C LED tubes, Runs 1 of the KT-LED12T8-xxG-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | — | |
 | KTLD-2LT8-UV-10C-VDIM /G2DISC | LED Driver for External Drive Type C LED tubes, Runs 1 or 2 of the KT-LED10T8-48G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | — | |
 | KTLD-2LT8-UV-8C-VDIM /G2DISC | LED Driver for External Drive Type C LED tubes, Runs 1 or 2 of the KT-LED8T8-24G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | — | |
 | KTLD-4LT8-UV-8C-VDIM /G2DISC | LED Driver for External Drive Type C LED tubes, Runs 3 or 4 of the KT-LED8T8-24G-8xx-E /G2 lamps, 120-277V Input, 0-10V Dimming, 70k hrs | — | — | — | 120–277V | 0-10V | — | — | Call for pricing | — |
