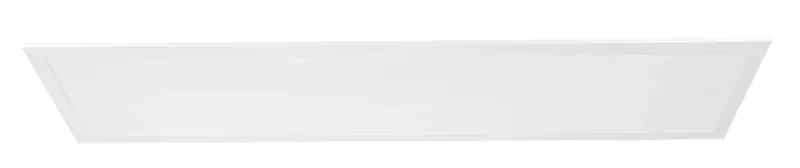

Panels & Troffers – Back-Lit Panel - Contractor Prime

A basic, easy-to-install solution, available in multiple sizes with different mounting capabilities

21 part numbers · Indoor

Wattage
20–45W
Lumens
2,200–5,350 lm
Color temperature
3500K, 4000K, 5000K
Voltage
120–277V
Dimming
0-10V
CRI
80+
Finish
White
Warranty
5–10 years
Request a QuoteSpec sheet678-467-5515

Overview

A basic, easy-to-install solution, available in multiple sizes with different mounting capabilities

Part numbers & ordering

Part #DescriptionWattsLumensCCTVoltageDimmingFinishDLCPriceAdd to cartCompare

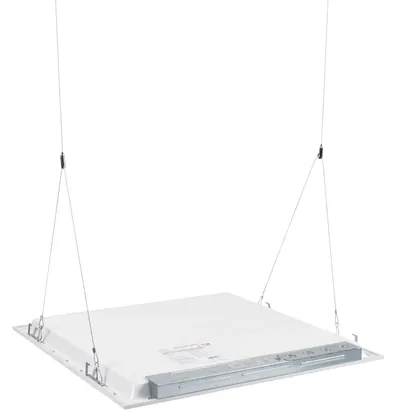

KT-BPLED-CABLE-KITCable Hanging Kit for LED Backlit Panel Lights. Includes 2 Cable sets.———————Call for pricing

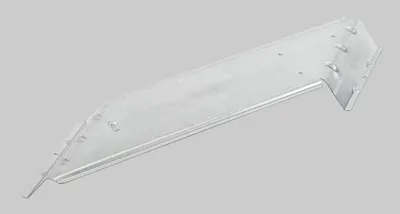

KT-BPLED-EM-14C-KITEmergency LED Backup Mounting Kit for 1x4 Keystone Backlit Panels Version . Includes Bracket and mounting hardware.———————Call for pricing
KT-BPLED-EM-14D-KITEmergency LED Backup Mounting Kit for 1x4 Keystone Backlit Panels | Includes Bracket and mounting hardware | Series D Construction———————Call for pricing

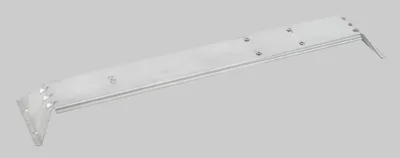

KT-BPLED-EM-22/4C-KITEmergency LED Backup Mounting Kit for 1x4 Keystone Backlit Panels. Includes Bracket and mounting hardware.———————Call for pricing
KT-BPLED-EM-22/4D-KITEmergency LED Backup Mounting Kit for 2x2 and 2x4 Keystone Backlit Panels | Includes Bracket and mounting hardware | Series D Construction———————Call for pricing

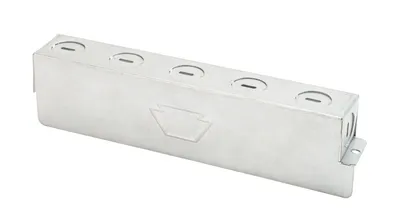

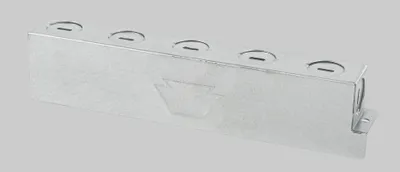

KT-BPLED-JBOX-3Larger J-Box add-on for C style form factor LED Backlit Panels———————Call for pricing
KT-BPLED-JBOX-4Larger J-Box add-on for D style form factor LED backlit Panels———————Call for pricing

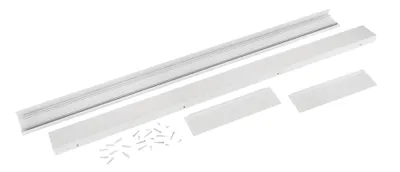

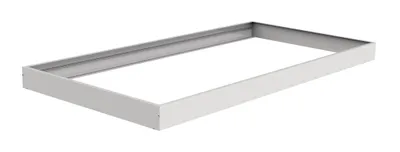

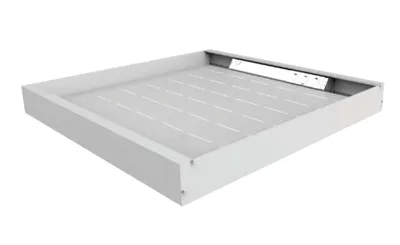

KT-BPLED-SM-14-KIT /G2Surface Mount Kit for 1x4 LED Backlit Panels. Includes frame and mounting hardware. Generation 2.—————White—Call for pricing
KT-BPLED-SM-22-KIT /G2Surface Mount Kit for 2x2 LED Backlit Panels. Includes frame and mounting hardware. Generation 2.—————White—Call for pricing
KT-BPLED-SM-24-KIT /G2Surface Mount Kit for 2x4 LED Backlit Panels. Includes frame and mounting hardware. Generation 2.—————White—Call for pricing

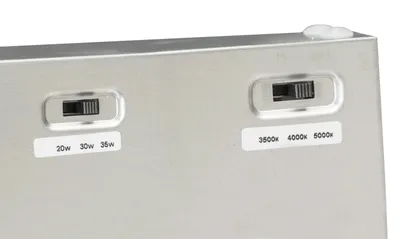

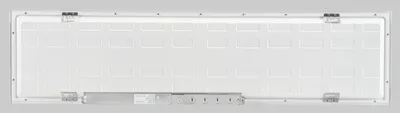

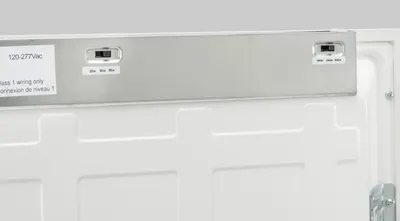

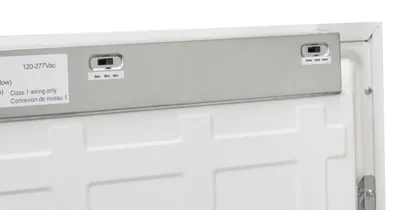

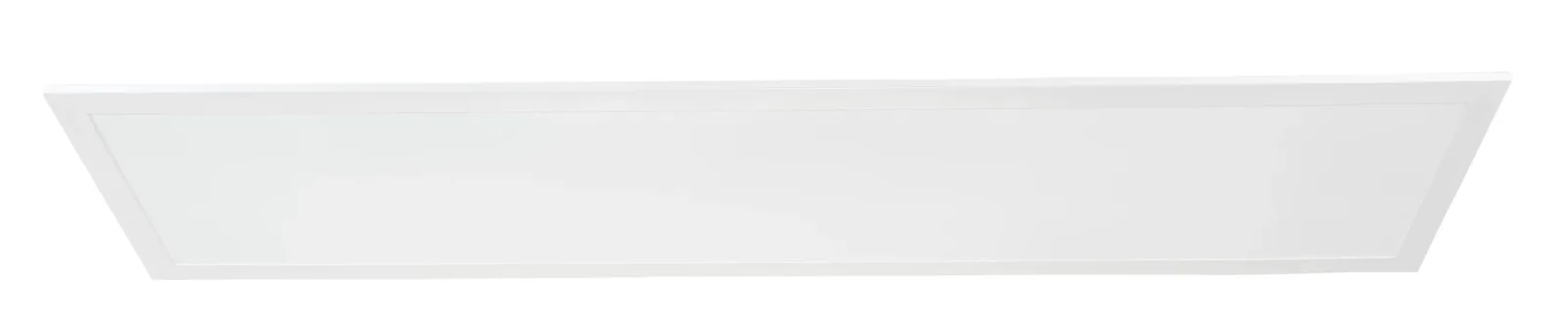

KT-BPLED35PS-14C-8CSA-VDIM1x4 LED Panel feat. Power Select & Color Select. 35/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design.20/30/35W2,400/3,450/3,950 lm3500K/4000K/5000K120–277V0-10VWhite—Call for pricing
KT-BPLED35PS-14C-8CSA-VDIM /1PK1x4 LED Panel feat. Power Select & Color Select. 35/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. 1pcs Cartons in a 4 pcs Master Carton20/30/35W2,400/3,450/3,950 lm3500K/4000K/5000K120–277V0-10VWhite—Call for pricing
KT-BPLED35PS-14D-8CSA-VDIM1x4 LED Panel | Power Select & Color Select | 35/30/20W | 3500/4000/5000K | 120-277V Input | 0-10V Dimming | Backlit Design | Series D Construction20/30/35W2,450/3,500/4,000 lm3500K/4000K/5000K120–277V—White—Call for pricing

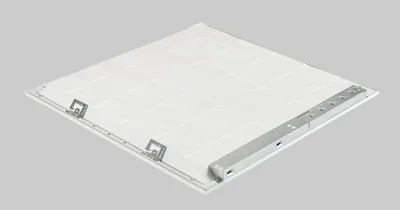

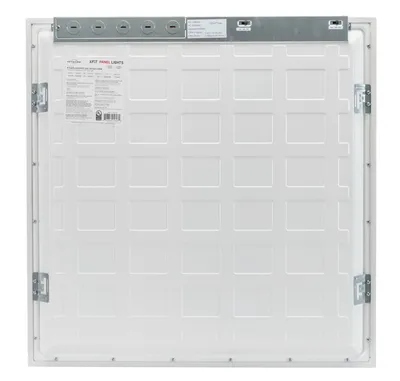

KT-BPLED35PS-22C-8CSA-VDIM2x2 LED Panel feat. Power Select & Color Select. 35/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design.20/30/35W2,400/3,450/3,950 lm3500K/4000K/5000K120–277V0-10VWhite—Call for pricing
KT-BPLED35PS-22C-8CSA-VDIM /1PK2x2 LED Panel feat. Power Select & Color Select. 35/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. 1pcs Cartons in a 4 pcs Master Carton20/30/35W2,400/3,450/3,950 lm3500K/4000K/5000K120–277V0-10VWhite—Call for pricing

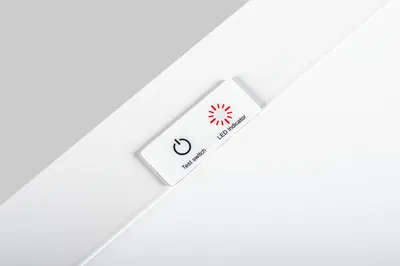

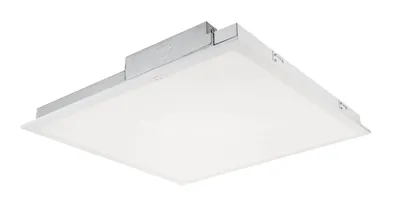

KT-BPLED35PS-22C-8CSA-VDIM-EM82x2 LED Panel with Integrated 8W EM, Power Select & Color Select. 35/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Includes add-on J-box. 1pcs Cartons in a 2 pcs Master Carton20/30/35W2,400/3,450/3,950 lm3500K/4000K/5000K120–277V0-10VWhite—Call for pricing
KT-BPLED35PS-22D-8CSA-VDIM2x2 LED Panel | Power Select & Color Select | 35/30/20W | 3500/4000/5000K | 120-277V Input | 0-10V Dimming | Backlit Design | Seies D Construction20/30/35W2,200/3,300/3,850 lm3500K/4000K/5000K120–277V—White—Call for pricing

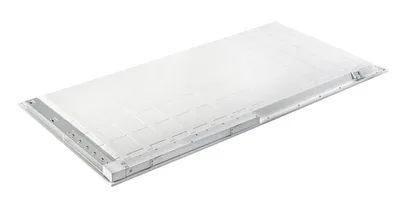

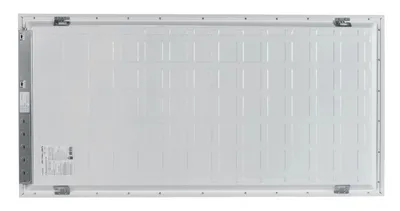

KT-BPLED45PS-24C-8CSA-VDIM2x4 LED Panel feat. Power Select & Color Select. 45/35/30W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design.30/35/45W3,850/4,200/5,300 lm3500K/4000K/5000K120–277V0-10VWhite—Call for pricing
KT-BPLED45PS-24C-8CSA-VDIM /1PK2x4 LED Panel feat. Power Select & Color Select. 45/35/30W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. 1pcs Cartons in a 4 pcs Master Carton30/35/45W3,850/4,200/5,300 lm3500K/4000K/5000K120–277V0-10VWhite—Call for pricing
KT-BPLED45PS-24C-8CSA-VDIM-EM82x4 LED Panel with Integrated 8W EM, Power Select & Color Select. 45/35/30W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Includes add-on J-box. 1pcs Cartons in a 2 pcs Master Carton30/35/45W3,900/4,235/5,350 lm3500K/4000K/5000K120–277V0-10VWhite—Call for pricing
KT-BPLED45PS-24D-8CSA-VDIM2x4 LED Panel | Power Select & Color Select | 45/35/30W | 3500/4000/5000K | 120-277V Input | 0-10V Dimming | Backlit Design | Seies D Construction30/35/45W3,300/3,850/4,950 lm3500K/4000K/5000K120–277V—White—Call for pricing
