Keystone Technologies

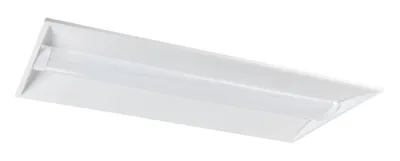

Panels & Troffers – Center Basket Troffer
An architectural-grade fixture available in multiple sizes and with different mounting capabilities, as well as with embedded SmartLoop wireless controls.
19 part numbers · Indoor
- Wattage
- 15–45W
- Lumens
- 1,950–5,850 lm
- Color temperature
- 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- Warranty
- 5 years
Overview
An architectural-grade fixture available in multiple sizes and with different mounting capabilities, as well as with embedded SmartLoop wireless controls.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

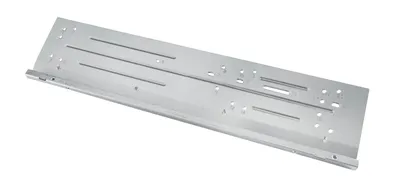

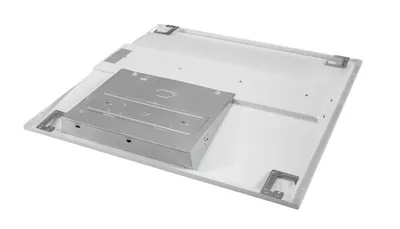

 | KT-CBLED-C-EM-KIT | Emergency LED Backup Mounting Kit for Keystone Center Basket Troffers. (Style C) Includes Bracket and mounting hardware. | — | — | — | — | — | — | — | Call for pricing | ||

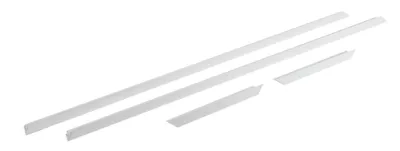

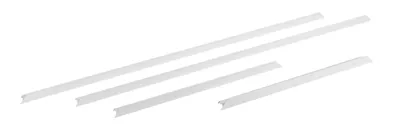

 | KT-CBLED-RMF-14-KIT | Recessed Mount Flange Kit for 1x4 Center Basket Fixtures | — | — | — | — | — | White | — | Call for pricing | ||
 | KT-CBLED-RMF-22-KIT | Recessed Mount Flange Kit for 2x2 Center Basket Fixtures | — | — | — | — | — | White | — | Call for pricing | ||
 | KT-CBLED-RMF-24-KIT | Recessed Mount Flange Kit for 2x4 Center Basket Fixtures | — | — | — | — | — | White | — | Call for pricing | ||

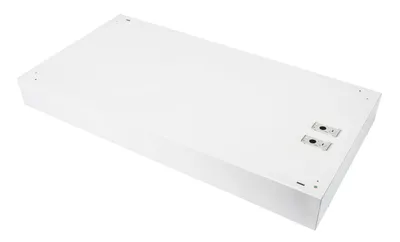

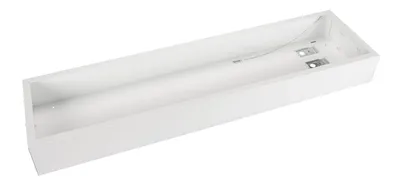

 | KT-CBLED-SM-14-KIT | Surface Mount Kit for 1x4 LED Center Basket Troffers | — | — | — | — | — | White | — | Call for pricing | ||

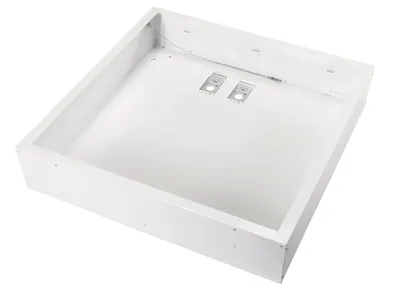

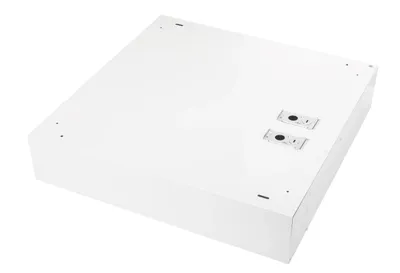

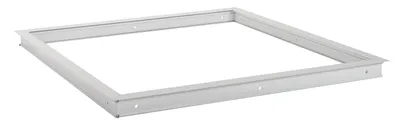

 | KT-CBLED-SM-22-KIT | Surface Mount Kit for 2x2 LED Center Basket Troffers | — | — | — | — | — | White | — | Call for pricing | ||

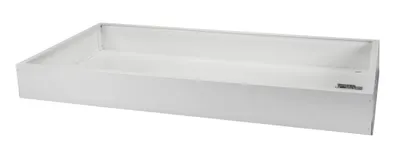

 | KT-CBLED-SM-24-KIT | Surface Mount Kit for 2x4 LED Center Basket Troffers | — | — | — | — | — | White | — | Call for pricing | ||

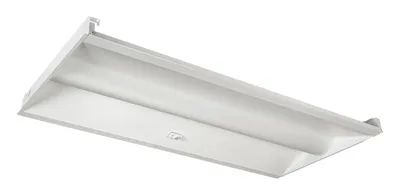

 | KT-CBLED30PS-24B-8CSA-VDIM /FC2 | 2x4 LED Center Basket Troffer feat. Power Select & Color Select, 30/25/20W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. Factory Installed SmartLoop Fixture Controller w/ PIR sensor | — | — | — | — | — | — | — | Call for pricing | ||
| KT-CBLED45PS-24B-8CSA-VDIM /FC2 | 2x4 LED Center Basket Troffer feat. Power Select & Color Select, 45/38/30W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. Factory Installed SmartLoop Fixture Controller w/ PIR sensor. | — | — | — | — | — | — | — | Call for pricing | ||

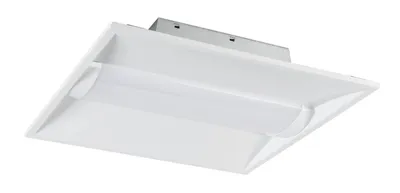

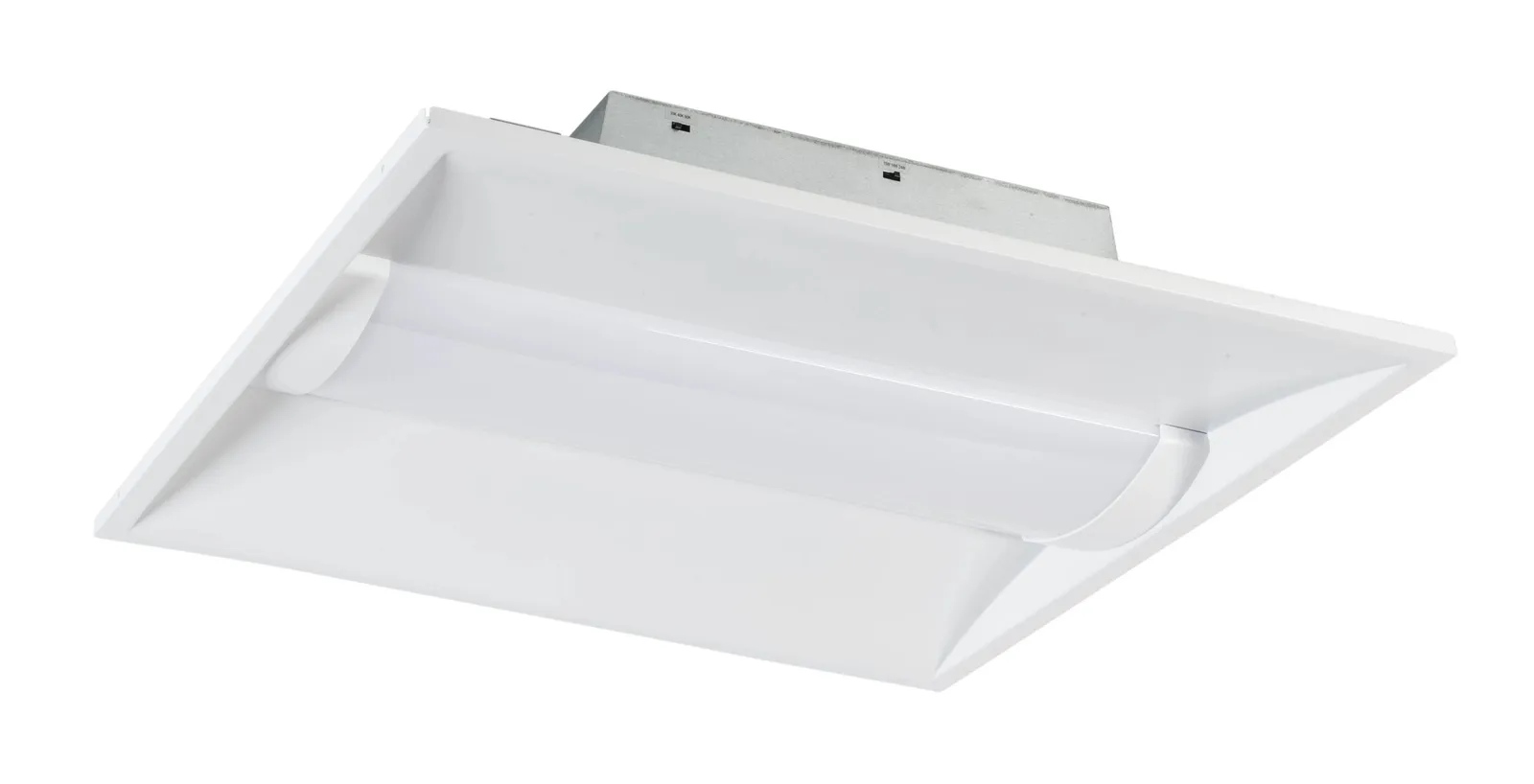

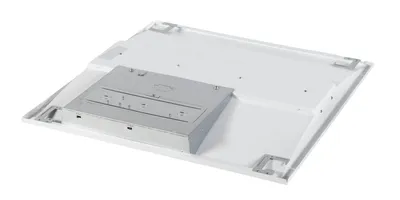

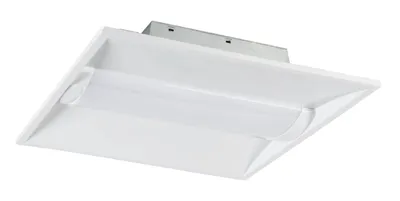

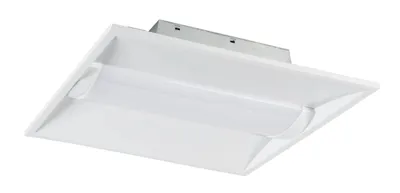

 | KT-CBLED24PS-22C-8CSA-VDIM | 2x2 LED Center Basket Troffer|Power Select 24/18/15W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 15/18/24W | 1,950/2,340/3,150 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-CBLED24PS-22C-8CSA-VDIM /CR | 2x2 LED Center Basket Troffer|Power Select 24/18/15W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | 15/18/24W | 1,950/2,340/3,150 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

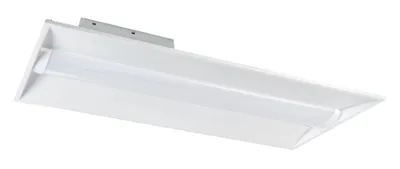

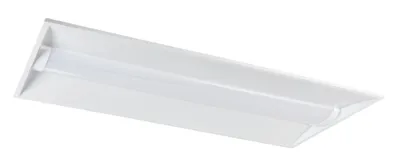

 | KT-CBLED30PS-24C-8CSA-VDIM | 2x4 LED Center Basket Troffer|Power Select 30/25/20W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 20/25/30W | 2,600/3,250/3,900 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-CBLED30PS-24C-8CSA-VDIM /CR | 2x4 LED Center Basket Troffer|Power Select 30/25/20W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | 20/25/30W | 2,600/3,250/3,900 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

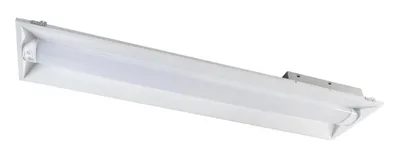

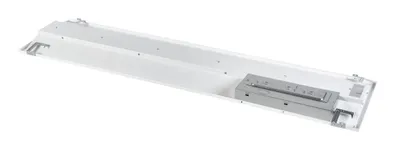

 | KT-CBLED35PS-14C-8CSA-VDIM | 1x4 LED Center Basket Troffer|Power Select 35/30/24W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 24/30/35W | 3,120/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-CBLED35PS-14C-8CSA-VDIM /CR | 1x4 LED Center Basket Troffer|Power Select 35/30/24W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | 24/30/35W | 3,120/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-CBLED35PS-22C-8CSA-VDIM | 2x2 LED Center Basket Troffer|Power Select 35/30/24W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 24/30/35W | 3,150/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-CBLED35PS-22C-8CSA-VDIM /CR | 2x2 LED Center Basket Troffer|Power Select 35/30/24W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | 24/30/35W | 3,150/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

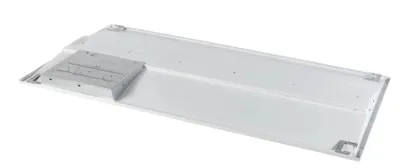

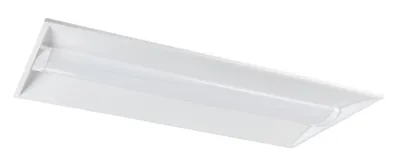

 | KT-CBLED45PS-24C-8CSA-VDIM | 2x4 LED Center Basket Troffer|Power Select 45/38/30W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | 30/38/45W | 3,900/4,950/5,850 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-CBLED45PS-24C-8CSA-VDIM /CR | 2x4 LED Center Basket Troffer|Power Select 45/38/30W & Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | 30/38/45W | 3,900/4,950/5,850 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileKT-CBLED24PS-22C-8CSA-VDIM_IES.zip
- IES fileKT-CBLED24PS-22C-8CSA-VDIM_24W_3K_2V.ies
- IES fileKT-CBLED30PS-24C-8CSA-VDIM_IES.zip
- IES fileKT-CBLED30PS-24C-8CSA-VDIM_30W_3K_2V.ies
- IES fileKT-CBLED35PS-14C-8CSA-VDIM_IES.zip
- IES fileKT-CBLED35PS-22C-8CSA-VDIM_IES.zip
- IES fileKT-CBLED45PS-24C-8CSA-VDIM_IES.zip
