Keystone Technologies

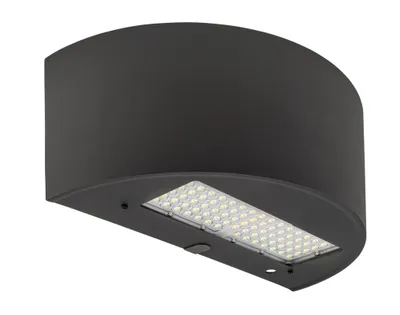

Wall Packs – Full Cutoff
Precision-crafted optical lens offers a wide distribution pattern; wall pack has an updated design but covers the existing footprint of mid-size legacy HID wall pack fixtures.
18 part numbers · Outdoor
- Wattage
- 15–100W
- Lumens
- 2,200–13,000 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Bronze, Black, White
- DLC
- DLC Premium
- Warranty
- 1–10 years
Overview
Precision-crafted optical lens offers a wide distribution pattern; wall pack has an updated design but covers the existing footprint of mid-size legacy HID wall pack fixtures.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

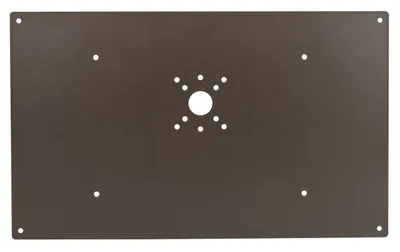

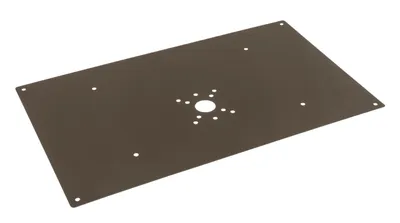

 | KT-WPLED-BP-M | Back Plate for Medium Size Wallpacks, Covers Legacy Style Large HID Housing Dimensions. Standard Bronze Color | — | — | — | — | — | Bronze | — | Call for pricing | ||

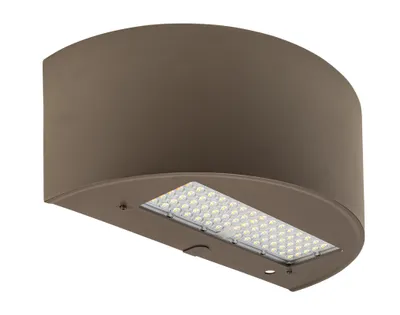

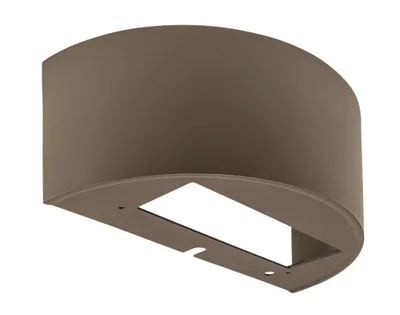

 | KT-WPLED-M5-HM-1-KIT | Half moon shell. Bronze. Used on series 5 full cutoff wall packs | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-WPLED-M5-HM-1-KIT-B | Half moon shell. Black. Used on series 5 full cutoff wall packs | — | — | — | — | — | Black | — | Call for pricing | ||
 | KT-WPLED-M5-HM-1-KIT-U | Half moon shell. Unpainted. Used on series 5 full cutoff wall packs | — | — | — | — | — | — | — | Call for pricing | ||

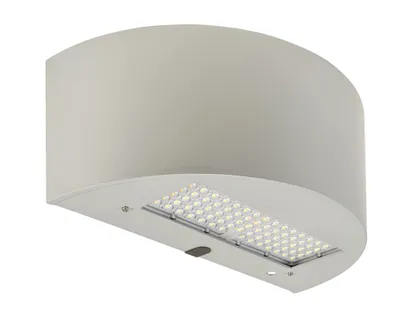

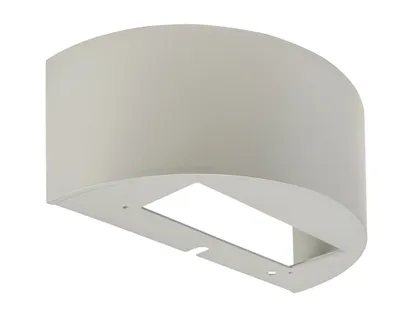

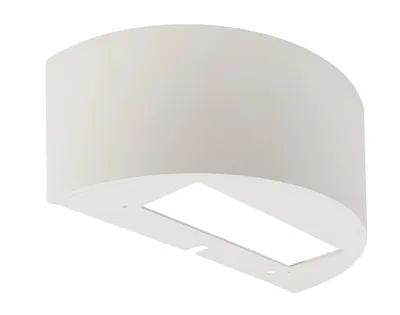

 | KT-WPLED-M5-HM-1-KIT-W | Half moon shell. White. Used on series 5 full cutoff wall packs | — | — | — | — | — | White | — | Call for pricing | ||

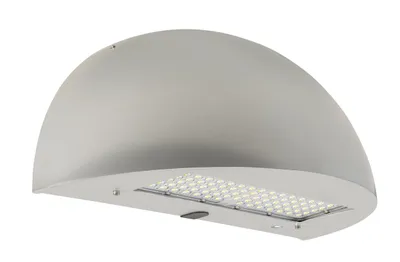

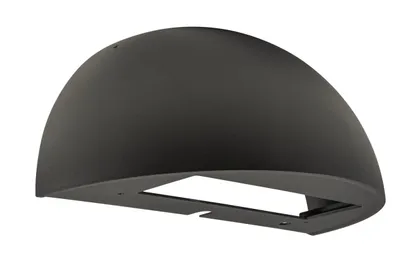

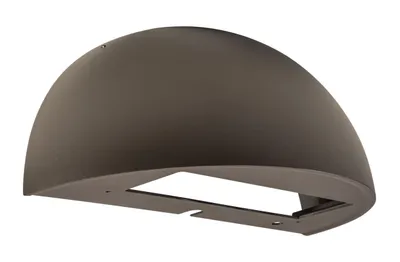

 | KT-WPLED-M5-QS-1-KIT | Quarter sphere shell. Bronze. Used on series 5 full cutoff wall packs | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-WPLED-M5-QS-1-KIT-B | Quarter sphere shell. Black. Used on series 5 full cutoff wall packs | — | — | — | — | — | Black | — | Call for pricing | ||

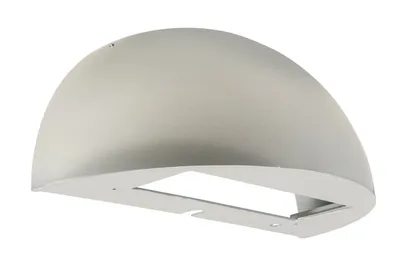

 | KT-WPLED-M5-QS-1-KIT-U | Quarter sphere shell. Unpainted. Used on series 5 full cutoff wall packs | — | — | — | — | — | — | — | Call for pricing | ||

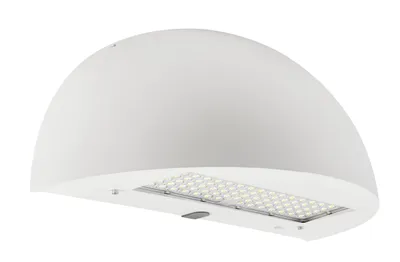

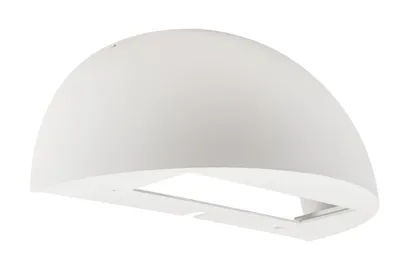

 | KT-WPLED-M5-QS-1-KIT-W | Quarter sphere shell. White. Used on series 5 full cutoff wall packs | — | — | — | — | — | White | — | Call for pricing | ||

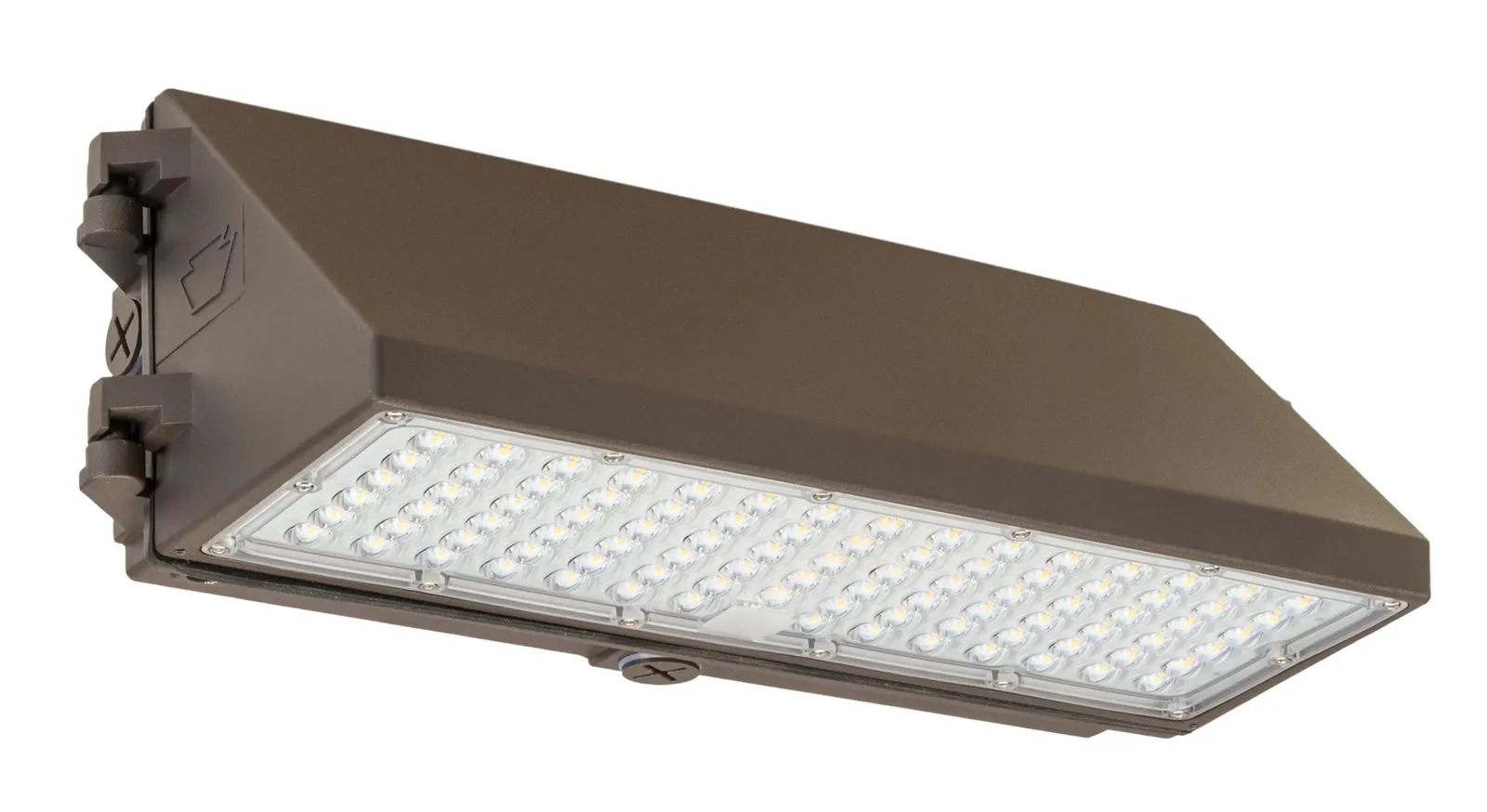

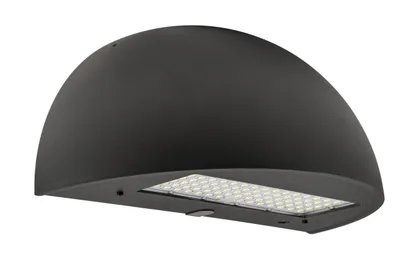

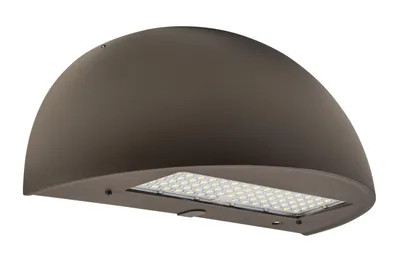

 | KT-WPLED35PS-M5-8CSB-VDIM | Series 5 full cutoff wall pack. Power Select 35/25/15W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Bronze. Compatible with interchangeable shells | 15/25/35W | 2,200/3,600/4,900 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||

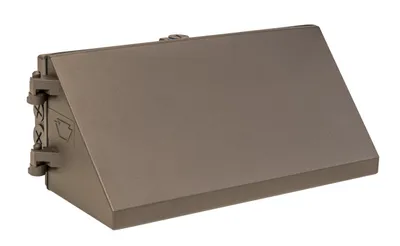

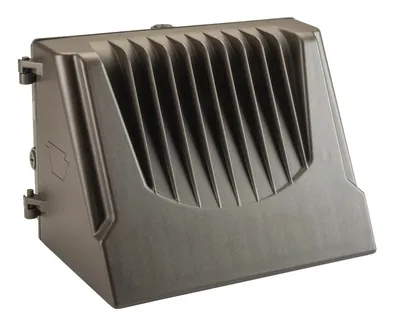

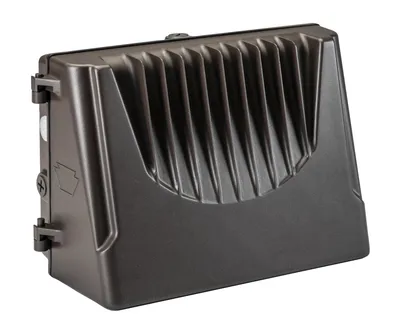

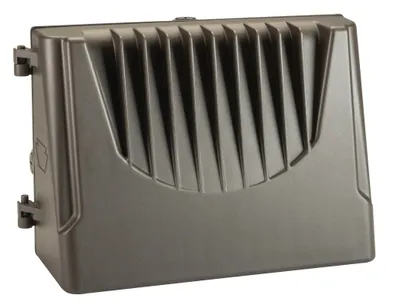

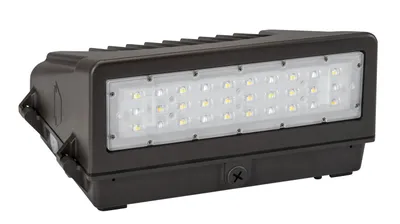

 | KT-WPLED40-M2-840-VDIM | 40W LED Wall Pack, Full Cutoff Medium Housing. 120-277V Input, 4000K, 0-10V Dimmable. Wide Angle Dist Pattern, Standard Bronze Housing | 40W | 5,200 lm | 4000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| KT-WPLED40-M2-850-VDIM | 40W LED Wall Pack, Full Cutoff Medium Housing. 120-277V Input, 5000K, 0-10V Dimmable. Wide Angle Dist Pattern, Standard Bronze Housing | 40W | 5,200 lm | 5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| KT-WPLED55PS-M5-8CSB-VDIM | Series 5 full cutoff wall pack. Power Select 55/45/35W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Bronze. Compatible with interchangeable shells | 35/45/55W | 5,200/6,500/7,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-WPLED60-M2-840-VDIM | 60W LED Wall Pack, Full Cutoff Medium Housing. 120-277V Input, 4000K, 0-10V Dimmable. Wide Angle Dist Pattern, Standard Bronze Housing | 60W | 7,800 lm | 4000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| KT-WPLED60-M2-850-VDIM | 60W LED Wall Pack, Full Cutoff Medium Housing. 120-277V Input, 5000K, 0-10V Dimmable. Wide Angle Dist Pattern, Standard Bronze Housing | 60W | 7,800 lm | 5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| KT-WPLED80PS-M5-8CSB-VDIM | Series 5 full cutoff wall pack. Power Select 80/70/55W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Bronze. Compatible with interchangeable shells | 55/70/80W | 8,400/10,100/11,300 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||
 | KT-WPLED100-M2-840-VDIM | 100W LED Wall Pack, Full Cutoff Medium Housing. 120-277V Input, 4000K, 0-10V Dimmable. Wide Angle Dist Pattern, Standard Bronze Housing | 100W | 13,000 lm | 4000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| KT-WPLED100-M2-850-VDIM | 100W LED Wall Pack, Full Cutoff Medium Housing. 120-277V Input, 5000K, 0-10V Dimmable. Wide Angle Dist Pattern, Standard Bronze Housing | 100W | 13,000 lm | 5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing |
