Keystone Technologies

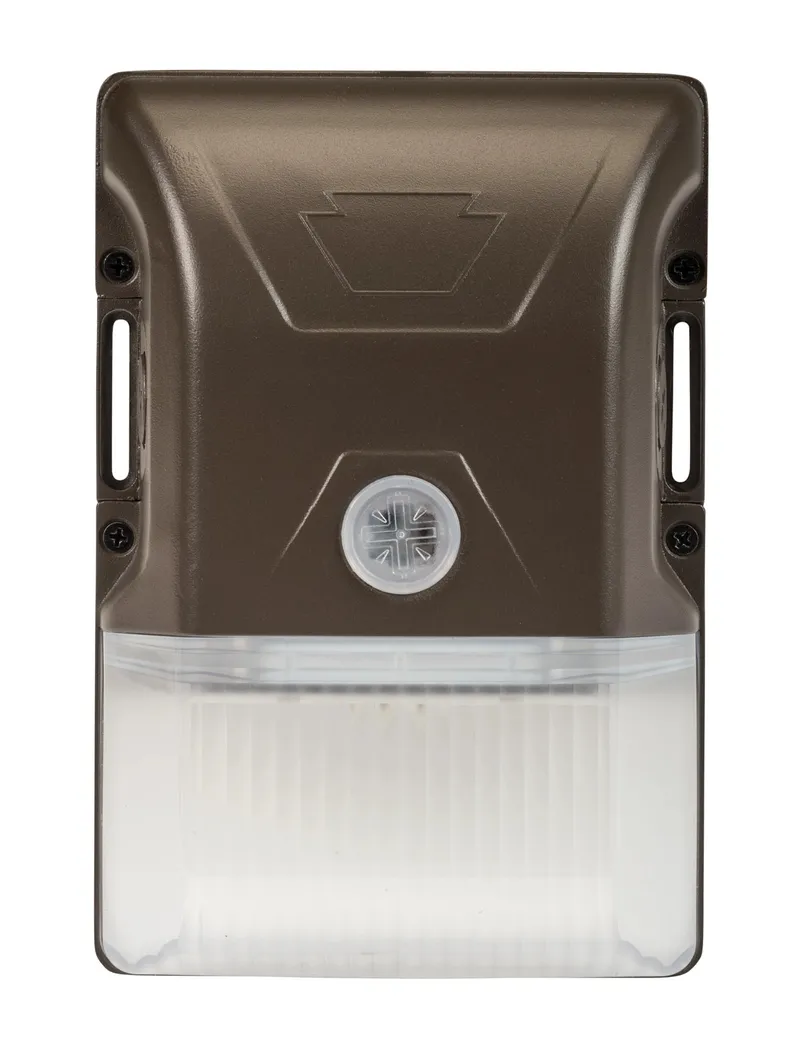

Wall Packs – Small Low-Profile

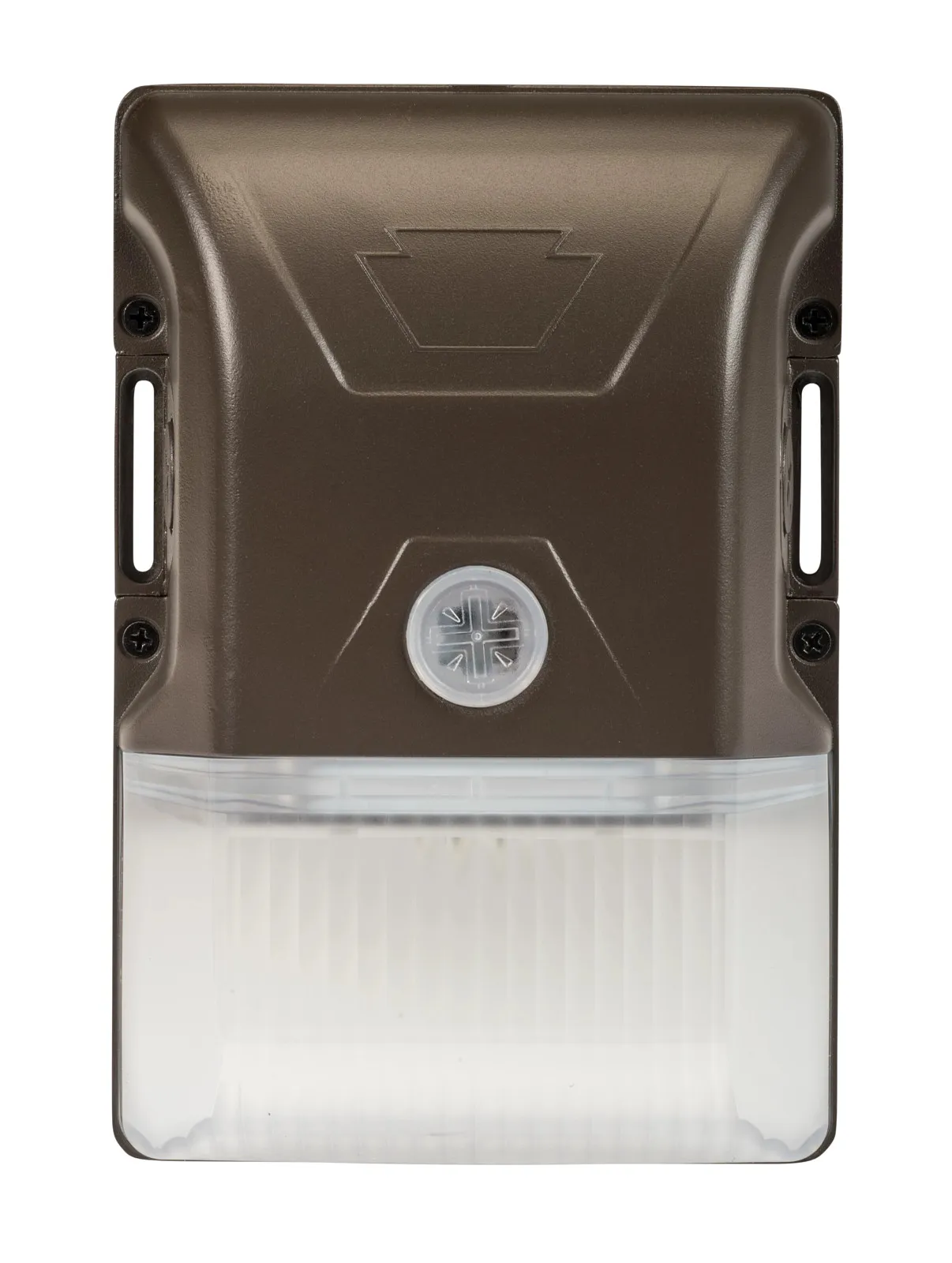

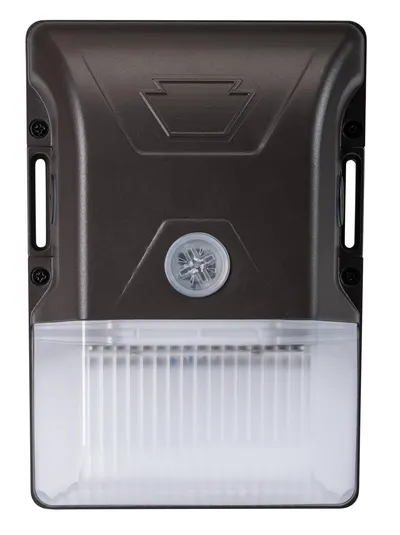

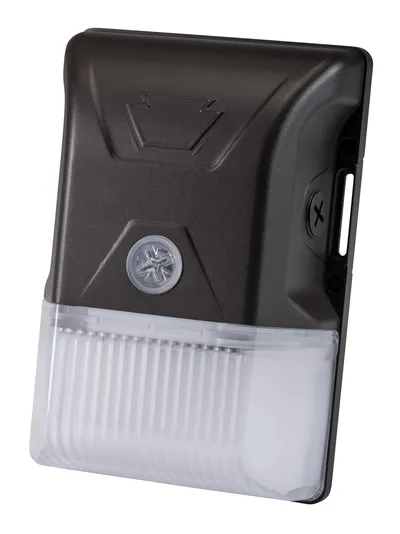

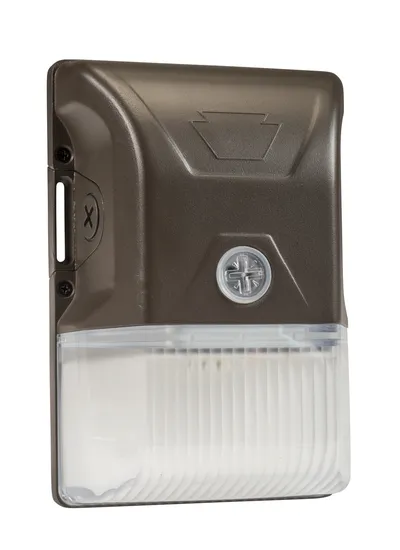

Mountable virtually anywhere thanks to a compact design, and featuring a built-in dusk-to-dawn photocell to ensure the lights are only on when needed.
7 part numbers · Outdoor
- Wattage
- 20W
- Lumens
- 2,500–2,600 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Bronze, Black, White
- DLC
- DLC Premium
- Warranty
- 5–10 years
Overview

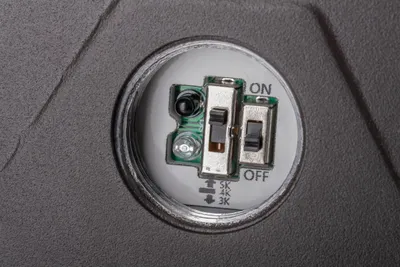

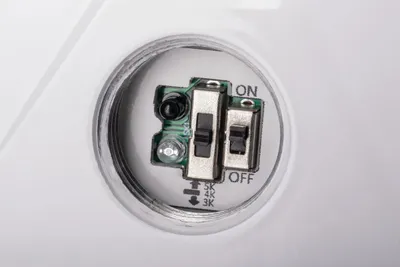

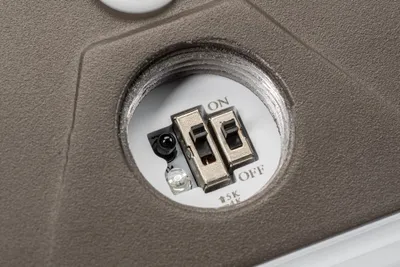

Mountable virtually anywhere thanks to a compact design, and featuring a built-in dusk-to-dawn photocell to ensure the lights are only on when needed. Available with Keystone Color Select technology.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | KT-WPLED20-S1-8CSB-VDIM /TAA | 20W LED Wall Pack feat Color Select, Small/Entryway Style Housing, Series 1 with built in photocell. 120-277V Input, 3000K/4000K/5000K. Standard Bronze Housing. Dimmable. TAA compliant | — | — | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-WPLED20-S1-840-VDIM | 20W LED Wall Pack, Small/Entryway Style Housing, Series 1 with built in photocell. 120-277V Input, 4000K. Standard Bronze Housing. Dimmable | 20W | 2,500 lm | 4000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| KT-WPLED20-S1-850-VDIM | 20W LED Wall Pack, Small/Entryway Style Housing, Series 1 with built in photocell. 120-277V Input, 5000K. Standard Bronze Housing. Dimmable | 20W | 2,500 lm | 5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-WPLED20-S1-8CSB-VDIM | 20W LED Wall Pack feat Color Select, Small/Entryway Style Housing, Series 1 with built in photocell. 120-277V Input, 3000K/4000K/5000K. Standard Bronze Housing. Dimmable | 20W | 2,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||

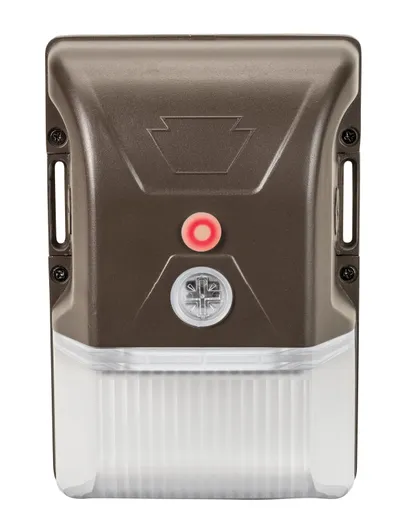

 | KT-WPLED20-S1-8CSB-VDIM /EM4 | 20W LED Mini Wall Pack, Color Select 30/40/50K, 120-277V Input, 0-10V Dimmable, Photocell, Bronze Housing, Integrated 4W 550 Lumen Emergency Battery Backup | 20W | 2,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||

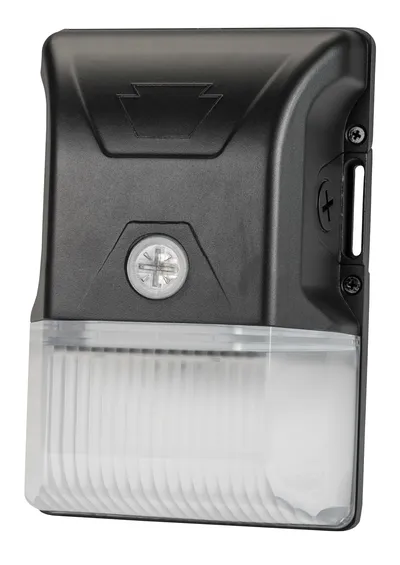

 | KT-WPLED20-S1-8CSB-VDIM-B | 20W LED Wall Pack feat Color Select, Small/Entryway Style Housing, Series 1 with built in photocell. 120-277V Input, 3000K/4000K/5000K. Black Housing. Dimmable | 20W | 2,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | — | Call for pricing | ||

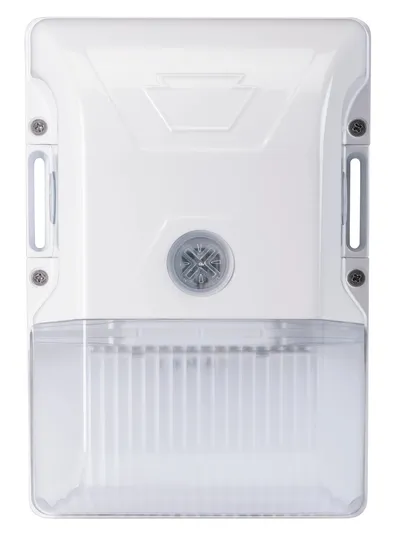

 | KT-WPLED20-S1-8CSB-VDIM-W | 20W LED Wall Pack feat Color Select, Small/Entryway Style Housing, Series 1 with built in photocell. 120-277V Input, 3000K/4000K/5000K. White Housing. Dimmable | 20W | 2,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing |
