Wall Packs – Traditional

1 / 24

Keystone Technologies

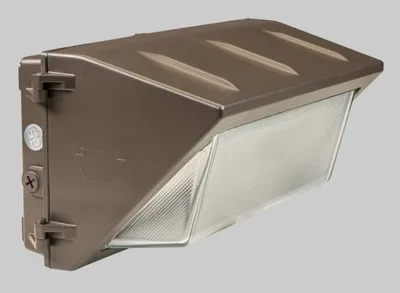

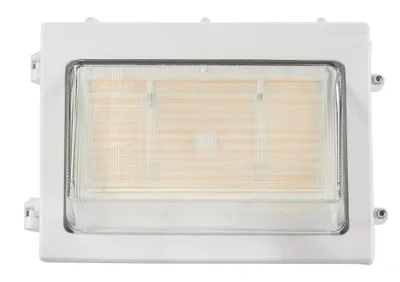

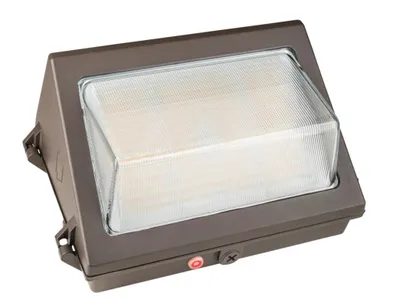

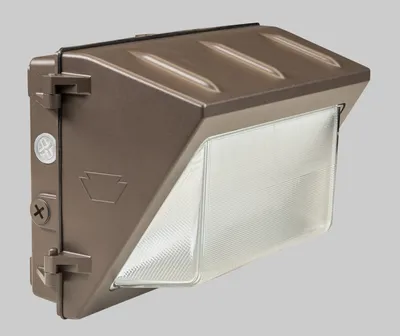

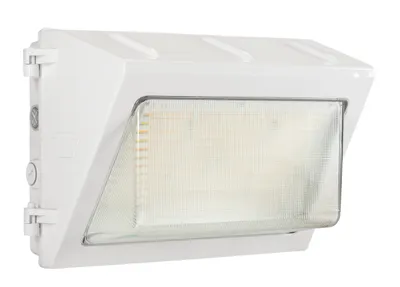

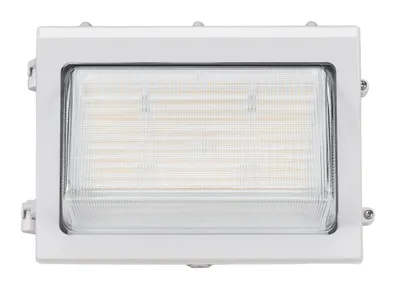

Wall Packs – Traditional

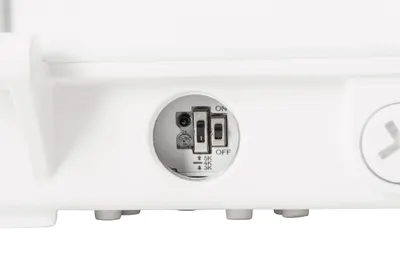

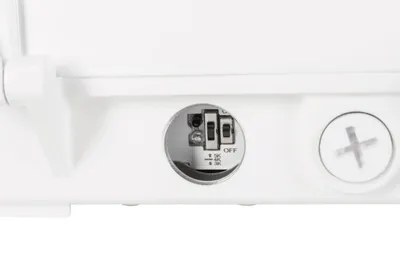

Featuring Color Select and Power select with a built-in dusk-to-dawn photocell; matches legacy footprints for 1:1 replacement.

16 part numbers · Outdoor

Wattage
15–120W
Lumens
2,370–18,560 lm
Color temperature
3000K, 4000K, 5000K
Voltage
120–277V, 277–480V
Dimming
0-10V
CRI
80+
Finish
Bronze, White
DLC
DLC Premium
Warranty
5–10 years
Request a QuoteSpec sheet678-467-5515

Overview

Featuring Color Select and Power select with a built-in dusk-to-dawn photocell; matches legacy footprints for 1:1 replacement.

Part numbers & ordering

Part #DescriptionWattsLumensCCTVoltageDimmingFinishDLCPriceAdd to cartCompare
KT-WPLED35-M1-8CSB-VDIM35W LED Wall Pack feat. Color Select, Traditional Open Face Medium Housing. 120-277V Input, 3000K/4000K/5000K. 0-10V Dimmable. Standard Bronze Housing.35W5,010 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
KT-WPLED35-M1-8CSB-VDIM-W35W LED Wall Pack feat. Color Select, Traditional Open Face Medium Housing. 120-277V Input, 3000K/4000K/5000K. 0-10V Dimmable. White Housing.35W5,010 lm3000K/4000K/5000K120–277V0-10VWhite—Call for pricing
KT-WPLED35PS-M1-8CSB-VDIM35W LED Traditional Open Face Wall Pack, Power Select 35/25/15W, Color Select 30/40/50K, 120-277V Input, 0-10V Dimmable, Photocell, Bronze Housing15/25/35W2,370/3,910/5,440 lm3000K/4000K/5000K120–277V—BronzePremiumCall for pricing
KT-WPLED35PS-M1-8CSB-VDIM-W35W LED Traditional Open Face Wall Pack, Power Select 35/25/15W, Color Select 30/40/50K, 120-277V Input, 0-10V Dimmable, Photocell, White Housing15/25/35W2,370/3,910/5,440 lm3000K/4000K/5000K120–277V—WhitePremiumCall for pricing
KT-WPLED55PS-M1-8CSB-VDIM55W LED Traditional Open Face Wall Pack, Power Select 55/45/35W, Color Select 30/40/50K, 120-277V Input, 0-10V Dimmable, Photocell, Bronze Housing35/45/55W5,620/7,180/8,710 lm3000K/4000K/5000K120–277V—BronzePremiumCall for pricing
KT-WPLED55PS-M1-8CSB-VDIM /EM1055W LED Traditional Open Face Wall Pack, Power Select 55/45/35W, Color Select 30/40/50K, 120-277V Input, 0-10V Dimmable, Photocell, Bronze Housing, Integrated 10W Emergency Battery Backup35/45/55W5,620/7,180/8,710 lm3000K/4000K/5000K120–277V—BronzePremiumCall for pricing
KT-WPLED55PS-M1-8CSB-VDIM-W55W LED Traditional Open Face Wall Pack, Power Select 55/45/35W, Color Select 30/40/50K, 120-277V Input, 0-10V Dimmable, Photocell, White Housing35/45/55W5,620/7,180/8,710 lm3000K/4000K/5000K120–277V—WhitePremiumCall for pricing
KT-WPLED55PSHV-M1-8CSB-VDIM55W LED Traditional Open Face Wall Pack, Power Select 55/45/35W, Color Select 30/40/50K, 277-480V Input, 0-10V Dimmable, Photocell, Bronze Housing35/45/55W5,620/7,180/8,710 lm3000K/4000K/5000K277–480V—BronzePremiumCall for pricing
KT-WPLED80-M1-8CSB-VDIM-W80W LED Wall Pack feat. Color Select, Traditional Open Face Medium Housing. 120-277V Input, 3000K/4000K/5000K. 0-10V Dimmable. White Housing.80W11,360 lm3000K/4000K/5000K120–277V0-10VBronze—Call for pricing
KT-WPLED80PS-M1-8CSB-VDIM80W LED Traditional Open Face Wall Pack, Power Select 80/70/55W, Color Select 30/40/50K, 120-277V Input, 0-10V Dimmable, Photocell, Bronze Housing55/70/80W8,710/11,150/12,590 lm3000K/4000K/5000K120–277V—BronzePremiumCall for pricing
KT-WPLED80PS-M1-8CSB-VDIM-W80W LED Traditional Open Face Wall Pack, Power Select 80/70/55W, Color Select 30/40/50K, 120-277V Input, 0-10V Dimmable, Photocell, White Housing55/70/80W8,710/11,150/12,590 lm3000K/4000K/5000K120–277V—WhitePremiumCall for pricing
KT-WPLED120-L1-8CSB-VDIM-W120W LED Wall Pack feat. Color Select, Traditional Open Face Large Housing. 120-277V Input, 3000K/4000K/5000K. 0-10V Dimmable. White Housing.120W16,900 lm3000K/4000K/5000K120–277V0-10VWhite—Call for pricing
KT-WPLED120PS-L1-8CSB-VDIM120W LED Traditional Open Face Wall Pack, Power Select 120/100/80W, Color Select 30/40/50K, 120-277V Input, 0-10V Dimmable, Photocell, Bronze Housing80/100/120W12,740/15,630/18,560 lm3000K/4000K/5000K120–277V—BronzePremiumCall for pricing
KT-WPLED120PS-L1-8CSB-VDIM /EM10120W LED Traditional Open Face Wall Pack, Power Select 120/100/80W, Color Select 30/40/50K, 120-277V Input, 0-10V Dimmable, Photocell, Bronze Housing, Integrated 10W Emergency Battery Backup80/100/120W12,740/15,630/18,560 lm3000K/4000K/5000K120–277V—BronzePremiumCall for pricing
KT-WPLED120PS-L1-8CSB-VDIM-W120W LED Traditional Open Face Wall Pack, Power Select 120/100/80W, Color Select 30/40/50K, 120-277V Input, 0-10V Dimmable, Photocell, White Housing80/100/120W12,740/15,630/18,560 lm3000K/4000K/5000K120–277V—WhitePremiumCall for pricing
KT-WPLED120PSHV-L1-8CSB-VDIM120W LED Traditional Open Face Wall Pack, Power Select 120/100/80W, Color Select 30/40/50K, 277-480V Input, 0-10V Dimmable, Photocell, Bronze Housing80/100/120W12,740/15,630/18,560 lm3000K/4000K/5000K277–480V—BronzePremiumCall for pricing
