Keystone Technologies

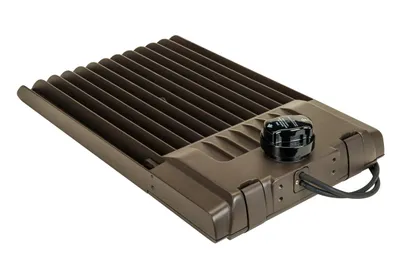

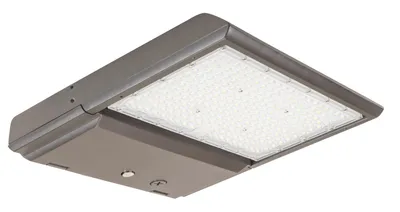

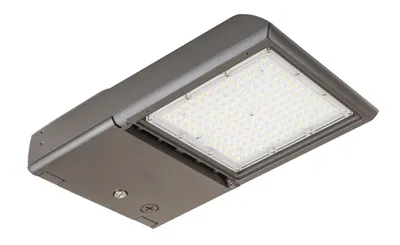

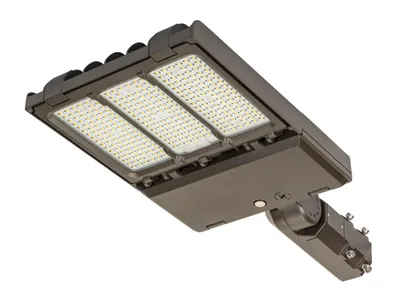

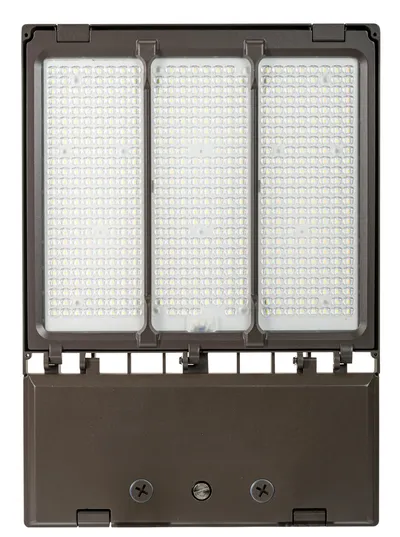

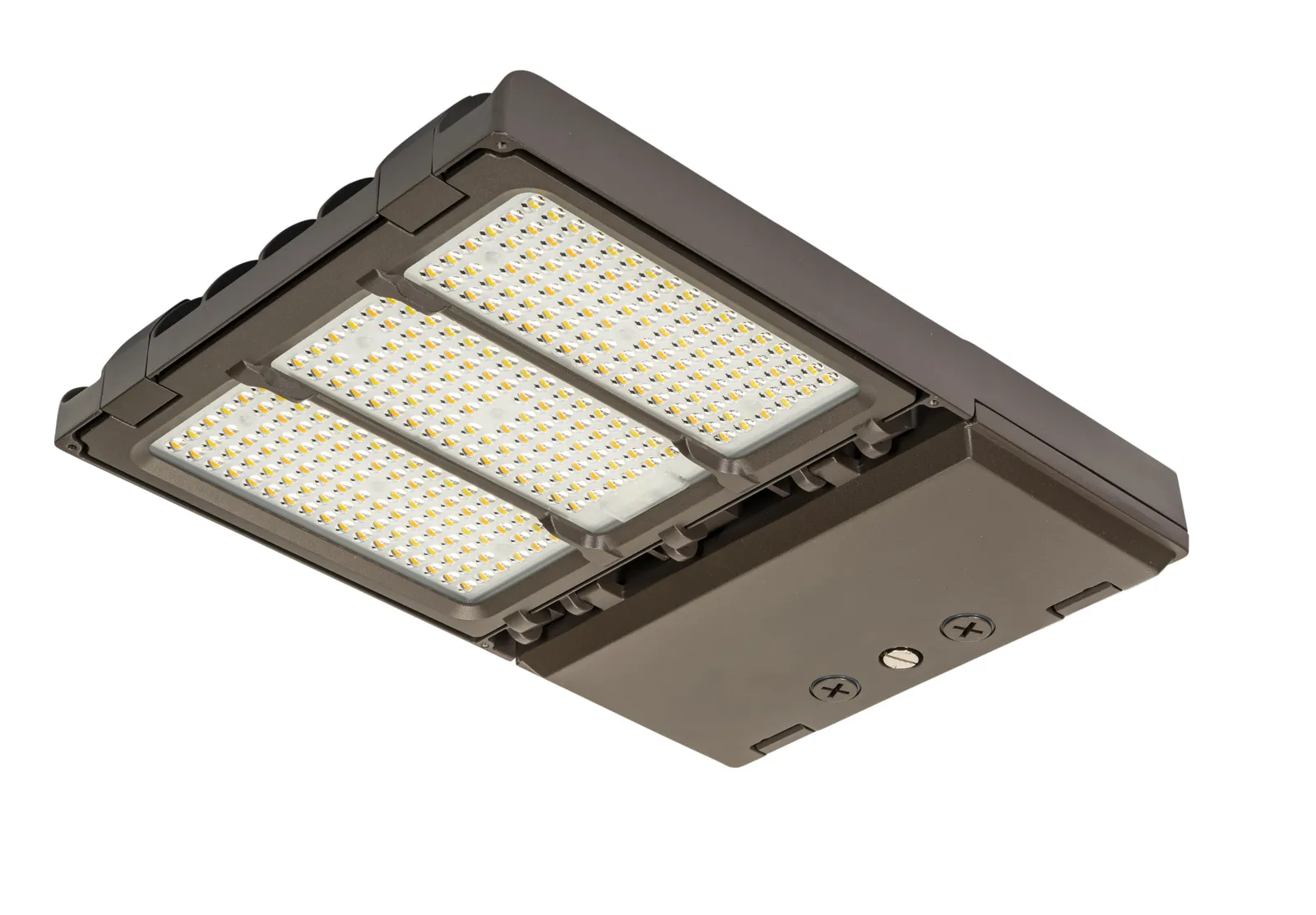

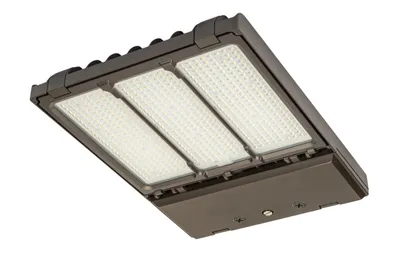

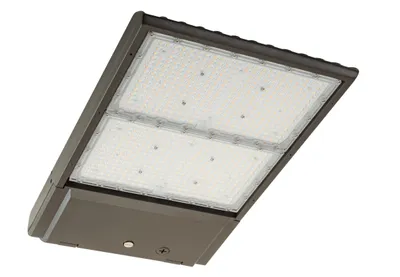

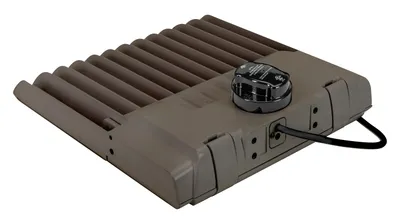

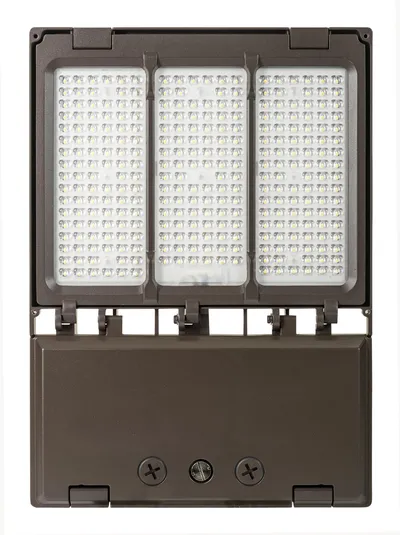

Whitebox Area Lights – Area Light
High-performance, energy-saving illumination available in multiple sizes, selectable versions, and dedicated models, in a modern, low-profile design.
19 part numbers · Outdoor
- Wattage
- 70–290W
- Lumens
- 9,500–40,300 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V, 277–480V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Bronze
- DLC
- DLC Premium
- Warranty
- 5–10 years
Overview
High-performance, energy-saving illumination available in multiple sizes, selectable versions, and dedicated models, in a modern, low-profile design.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | AL-LED-S1-3-70-840-NM | 70W LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Small Housing. 120-277V Input, 4000K, Type III Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 70W | 9,500 lm | 4000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||
| AL-LED-S1-3-70-850-NM | 70W LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Small Housing. 120-277V Input, 5000K, Type III Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 70W | 9,500 lm | 5000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||
| AL-LED-S1-5-70-840-NM | 70W LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Small Housing. 120-277V Input, 4000K, Type V Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 70W | 9,500 lm | 4000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||
| AL-LED-S1-5-70-850-NM | 70W LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Small Housing. 120-277V Input, 5000K, Type V Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 70W | 9,500 lm | 5000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||
| AL-LED-S1-5-100-850-NM | 100W LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Small Housing. 120-277V Input, 5000K, Type V Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 100W | 13,700 lm | 5000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||
 | AL-LED-M1-3-140HV-840-NM | 140W High Voltage LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Medium Housing. 200-480V Input, 4000K, Type III Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 140W | 19,400 lm | 4000K | 277–480V | 0-10V | Bronze | — | Call for pricing | ||
| AL-LED-M1-3-140HV-850-NM | 140W High Voltage LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Medium Housing. 200-480V Input, 5000K, Type III Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 140W | 19,400 lm | 5000K | 277–480V | 0-10V | Bronze | — | Call for pricing | ||
 | AL-LED-M1-5-140-840-NM | 140W LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Medium Housing. 120-277V Input, 4000K, Type V Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 140W | 19,400 lm | 4000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||
| AL-LED-M1-5-140HV-840-NM | 140W High Voltage LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Medium Housing. 200-480V Input, 4000K, Type V Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 140W | 19,400 lm | 4000K | 277–480V | 0-10V | Bronze | — | Call for pricing | ||
| AL-LED-M1-5-140HV-850-NM | 140W High Voltage LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Medium Housing. 200-480V Input, 5000K, Type V Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 140W | 19,400 lm | 5000K | 277–480V | 0-10V | Bronze | — | Call for pricing | ||
 | AL-LED-M2-OSA-140PS-8CSB-NM | 140W Wattage Selectable | CCT Selectable | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Medium Housing | Type III and V Distributions | 120-277V Input | 0-10V Dimmable | Standard Bronze Housing | White Box Program | 70/100/140W | 10,730/14,790/19,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| AL-LED-M2-OSA-140PSHV-8CSB-NM | 140W Wattage Selectable | CCT Selectable | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Medium Housing | Type III and V Distributions | 277-480V Input | 0-10V Dimmable | Standard Bronze Housing | White Box Program | 70/100/140W | 10,730/14,790/19,600 lm | 3000K/4000K/5000K | 277–480V | 0-10V | Bronze | Premium | Call for pricing | ||
 | AL-LED-L1-5-210-850-NM | 210W LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Large Housing. 120-277V Input, 5000K, Type V Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 210W | 29,500 lm | 5000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||
| AL-LED-L1-3-290HV-840-NM | 290W High Voltage LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Large Housing. 200-480V Input, 4000K, Type III Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 290W | 40,300 lm | 4000K | 277–480V | 0-10V | Bronze | — | Call for pricing | ||
| AL-LED-L1-5-290-840-NM | 290W LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Large Housing. 120-277V Input, 4000K, Type V Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 290W | 40,300 lm | 4000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||
| AL-LED-L1-5-290HV-840-NM | 290W High Voltage LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Large Housing. 200-480V Input, 4000K, Type V Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 290W | 40,300 lm | 4000K | 277–480V | 0-10V | Bronze | — | Call for pricing | ||
| AL-LED-L1-5-290HV-850-NM | 290W High Voltage LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap, Series 1 Large Housing. 200-480V Input, 5000K, Type V Optics, 0-10V Dimmable. Standard Bronze Housing. White Box Program | 290W | 40,300 lm | 5000K | 277–480V | 0-10V | Bronze | — | Call for pricing | ||
 | AL-LED-L2-OSA-290PS-8CSB-NM | 290W Wattage Selectable | CCT Selectable | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Large Housing | Type III and V Distributions | 120-277V Input | 0-10V Dimmable | Standard Bronze Housing | White Box Program | 185/210/290W | 27,540/30,860/39,960 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| AL-LED-L2-OSA-290PSHV-8CSB-NM | 290W Wattage Selectable | CCT Selectable | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Large Housing | Type III and V Distributions | 277-480V Input | 0-10V Dimmable | Standard Bronze Housing | White Box Program | 185/210/290W | 27,540/30,860/39,960 lm | 3000K/4000K/5000K | 277–480V | 0-10V | Bronze | Premium | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileAL-LED-M2-OSA-140PS-8CSB-NM_IES.zip
- IES fileAL-LED-M2-OSA-140PSHV-8CSB-NM_IES.zip
- IES fileAL-LED-L2-OSA-290PS-8CSB-NM_IES.zip
- IES fileAL-LED-L2-OSA-290PSHV-8CSB-NM_IES.zip
- IES fileAL-LED-L1-3-290HV-840-NM_290W_4K_T3_2V.ies
- IES fileAL-LED-L1-5-290-840-NM_290W_4K_T5_1V.ies
- IES fileAL-LED-L1-5-290HV-840-NM_290W_4K_T5_2V.ies
- IES fileAL-LED-M1-3-140HV-840-NM_140W_4K_T3_2V.ies
- IES fileAL-LED-M1-5-140-840-NM_140W_4K_T5_1V.ies
- IES fileAL-LED-M1-5-140HV-840-NM_140W_4K_T5_4V.ies
- IES fileAL-LED-S1-3-70-840-NM_70W_4K_T3_1V.ies
- IES fileAL-LED-S1-5-70-840-NM_70W_4K_T5_1V.ies
