Keystone Technologies

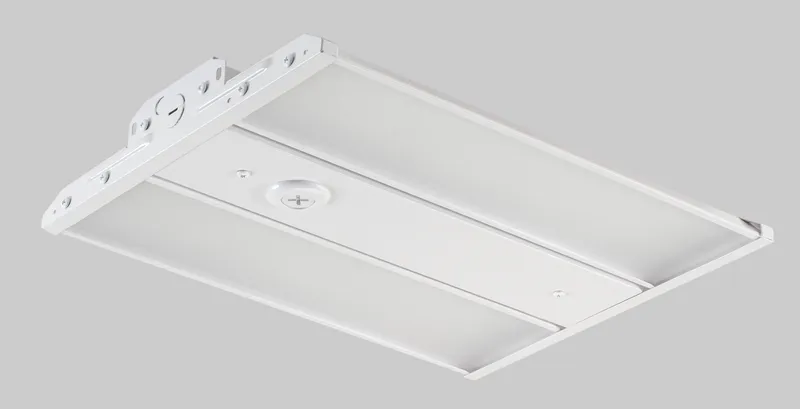

Whitebox High Bays – Linear High Bay
Linear high bays feature selectable power outputs and color temperatures, are compatible with SmartLoop wireless control and energy-saving sensors, and are perfect for lighting up big spaces such as warehouses and gymnasiums.
25 part numbers · Indoor
- Wattage
- 55–420W
- Lumens
- 9,000–68,400 lm
- Color temperature
- 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- DLC
- DLC Premium
- Warranty
- 5–10 years
Overview
Linear high bays feature selectable power outputs and color temperatures, are compatible with SmartLoop wireless control and energy-saving sensors, and are perfect for lighting up big spaces such as warehouses and gymnasiums. Dedicated models available.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

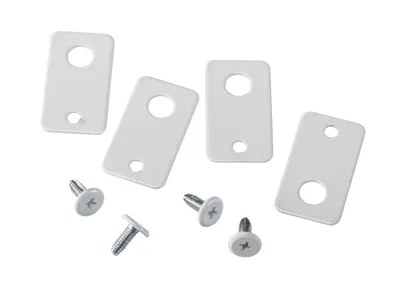

 | KT-HBLED-HT-1-KIT | Hanging Tab Kit for LED Highbay Fixtures. Option 1. Fits all Keystone 2 ft and 4 ft Highbay fixtures. Kit includes 4 tabs and screws. | — | — | — | — | — | — | — | Call for pricing | ||
 | HB-LED-1.5-80-840-P /G2 | 80W LED Highbay, 1.5ft Long, 120-277V Input, Frosted Lens, 4000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 80W | 11,700 lm | 4000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| HB-LED-1.5-80-850-P /G2 | 80W LED Highbay, 1.5ft Long, 120-277V Input, Frosted Lens, 5000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 80W | 11,700 lm | 5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| HB-LED-1.5-90-840-P /G2 | 90W LED Highbay, 1.5ft Long, 120-277V Input, Frosted Lens, 4000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 90W | 13,800 lm | 4000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| HB-LED-1.5-90-850-P /G2 | 90W LED Highbay, 1.5ft Long, 120-277V Input, Frosted Lens, 5000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 90W | 13,800 lm | 5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

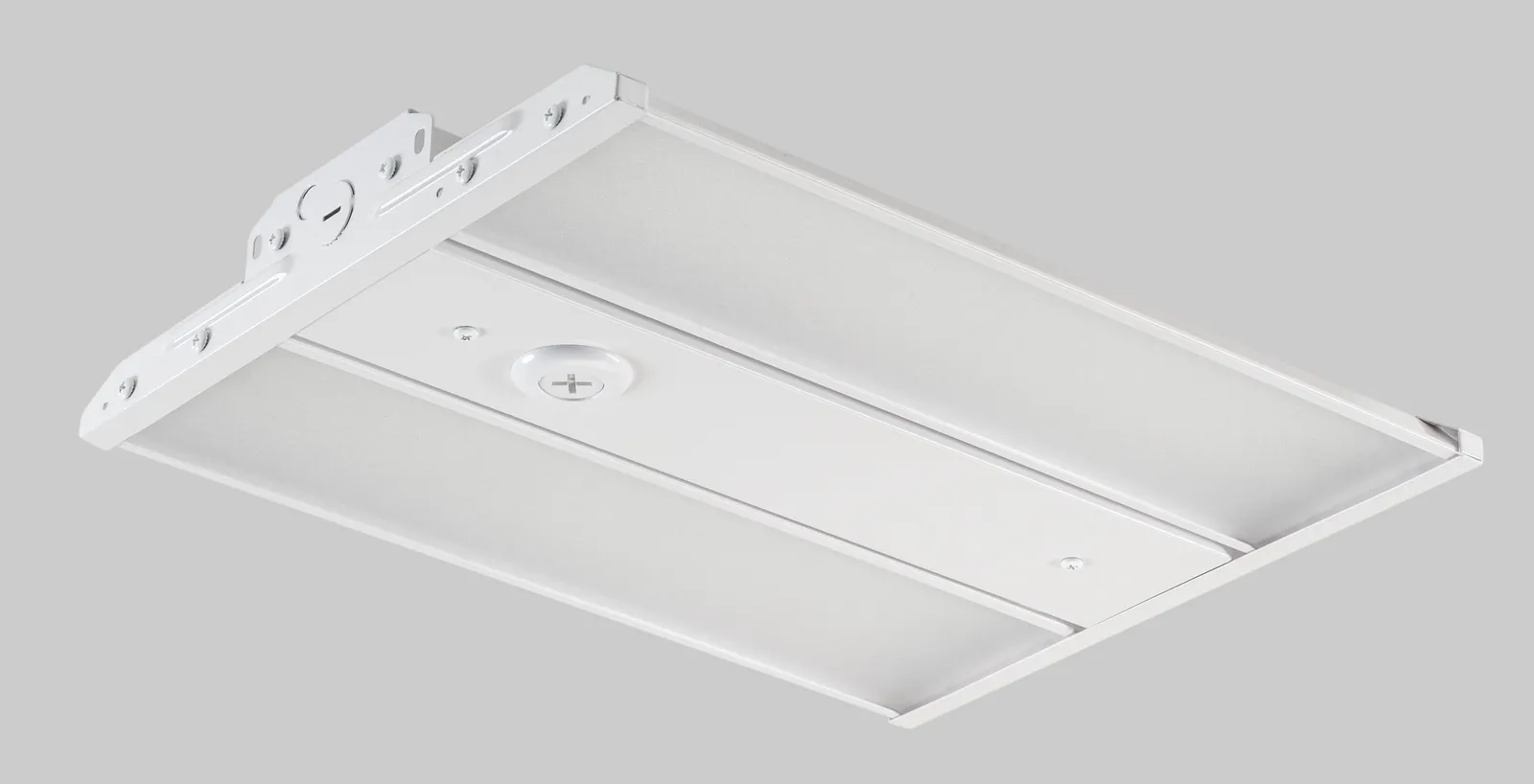

 | HB-LED-1G-95PS-8CSD-VDIM /G3 | 95W Linear High Bay | Power Select 95/75/55W | Color Select 4000/5000K |1ft G series body | 120-277V Input | Frosted Lens | 80+ CRI |90 deg lens |0-10V Dimmable | Built-in sensor receptacle | Gen3 | White Box Program | 55/75/95W | 9,000/12,100/15,000 lm | 4000K/5000K | 120–277V | — | White | Premium | Call for pricing | ||
| HB-LED-1.5-115-840-P /G2 | 115W LED Highbay, 1.5ft Long, 120-277V Input, Frosted Lens, 4000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 115W | 17,250 lm | 4000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| HB-LED-1.5-115-850-P /G2 | 115W LED Highbay, 1.5ft Long, 120-277V Input, Frosted Lens, 5000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 115W | 17,250 lm | 5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

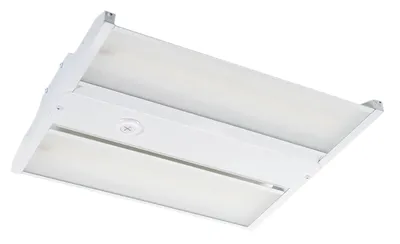

 | HB-LED-2G-150PS-8CSD-VDIM /G3 | 150W Linear High Bay | Power Select 150/120/90W | Color Select 4000/5000K |2ft G series body | 120-277V Input | Frosted Lens | 80+ CRI |90 deg lens |0-10V Dimmable | Built-in sensor receptacle | Gen3 | White Box Program | 90/120/150W | 15,300/19,900/24,300 lm | 4000K/5000K | 120–277V | — | White | Premium | Call for pricing | ||
 | HB-LED-2G-150PSHV-8CSD-VDIM /G3 | 150W Linear High Bay | Power Select 150/120/90W | Color Select 4000/5000K |2ft G series body | 277-480V Input | Frosted Lens | 80+ CRI |90 deg lens |0-10V Dimmable | Built-in sensor receptacle | Gen3 | White Box Program | 90/120/150W | 15,300/19,900/24,300 lm | 4000K/5000K | 120–277V | — | White | Premium | Call for pricing | ||
 | HB-LED-2-155-840-P /G2 | 155W LED Highbay, 2ft Long, 120-277V Input, Frosted Lens, 4000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 155W | 23,250 lm | 4000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| HB-LED-2-155-850-P /G2 | 155W LED Highbay, 2ft Long, 120-277V Input, Frosted Lens, 5000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 155W | 23,250 lm | 5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| HB-LED-2-185-840-P /G2 | 185W LED Highbay, 2ft Long, 120-277V Input, Frosted Lens, 4000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 185W | 27,750 lm | 4000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| HB-LED-2-185-850-P /G2 | 185W LED Highbay, 2ft Long, 120-277V Input, Frosted Lens, 5000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 185W | 27,750 lm | 5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | HB-LED-2G-200PS-8CSD-VDIM /G3 | 200W Linear High bay | Power Select 200/160/120W | Color Select 4000/5000K |2ft G series body | 120-277V Input | Frosted Lens | 80+ CRI |90 deg lens |0-10V Dimmable | Built-in sensor receptacle | Gen3 | White Box Program | 120/160/200W | 20,600/26,800/33,000 lm | 4000K/5000K | 120–277V | — | White | Premium | Call for pricing | ||
| HB-LED-2G-240PS-8CSD-VDIM /G3 | 240W Linear High bay | Power Select 240/200/160W | Color Select 4000/5000K |2ft G series body | 120-277V Input | Frosted Lens | 80+ CRI |90 deg lens |0-10V Dimmable | Built-in sensor receptacle | Gen3 | White Box Program | 160/200/240W | 27,300/33,200/38,640 lm | 4000K/5000K | 120–277V | — | White | Premium | Call for pricing | ||
| HB-LED-2G-240PSHV-8CSD-VDIM /G3 | 240W Linear High Bay | Power Select 240/200/160W | Color Select 4000/5000K |2ft G series body | 277-480V Input | Frosted Lens | 80+ CRI |90 deg lens |0-10V Dimmable | Built-in sensor receptacle | Gen3 | White Box Program | 160/200/240W | 27,300/33,200/38,640 lm | 4000K/5000K | 120–277V | — | White | Premium | Call for pricing | ||

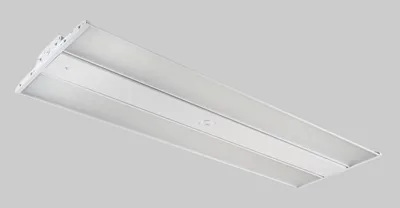

 | HB-LED-4-270-840-P /G2 | 270W LED Highbay, 4ft Long, 120-277V Input, Frosted Lens, 4000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 270W | 40,500 lm | 4000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| HB-LED-4-270-850-P /G2 | 270W LED Highbay, 4ft Long, 120-277V Input, Frosted Lens, 5000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program. | 270W | 40,500 lm | 5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | HB-LED-4G-400PS-8CSD-VDIM /G3 | 400W Linear High Bay | Power Select 400/350/320W | Color Select 4000/5000K |4ft G series body | 120-277V Input | Frosted Lens | 80+ CRI |90 deg lens |0-10V Dimmable | Built-in sensor receptacle | Gen3 | White Box Program | 320/350/400W | 53,700/58,000/68,400 lm | 4000K/5000K | 120–277V | — | White | Premium | Call for pricing | ||
| HB-LED-4G-400PSHV-8CSD-VDIM /G3 | 400W Linear High Bay | Power Select 400/350/320W | Color Select 4000/5000K |4 ft G series body | 277-480V Input | Frosted Lens | 80+ CRI |90 deg lens |0-10V Dimmable | Built-in sensor receptacle | Gen3 | White Box Program | 320/350/400W | 53,700/58,000/68,400 lm | 4000K/5000K | 120–277V | — | White | Premium | Call for pricing | ||
| HB-LED-4-420-850-P /G2 | 420W LED Highbay, 4ft Long, 120-277V Input, Frosted Lens, 5000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program | 420W | 63,000 lm | 5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| HB-LED-4-420-840-P /G2DISC | 420W LED Highbay, 4ft Long, 120-277V Input, Frosted Lens, 4000K, 0-10V Dimmable, Premium Series, Generation 2. White Box Program | — | 63,000 lm | 4000K | 120–277V | 0-10V | — | Listed | Call for pricing | — | |
 | HB-LED-2B-105PS-8CSD-PDISC | Linear LED Highbay featuring Power and Color Select, 2ft Long, 105W/90W/65W, 120-277V Input, Frosted Lens, 4000K/5000K, 0-10V Dimmable, Premium Series, White Box | 65/90/105W | 10,100/13,400/15,300 lm | 4000K/5000K | 120–277V | — | White | — | Call for pricing | — | |
| HB-LED-2B-215PS-8CSD-PDISC | Linear LED Highbay featuring Power and Color Select, 2ft Long, 215W/175W/135W, 120-277V Input, Frosted Lens, 4000K/5000K, 0-10V Dimmable, Premium Series, White Box | 135/175/215W | 20,900/26,000/30,600 lm | 4000K/5000K | 120–277V | — | White | — | Call for pricing | — |
