Keystone Technologies

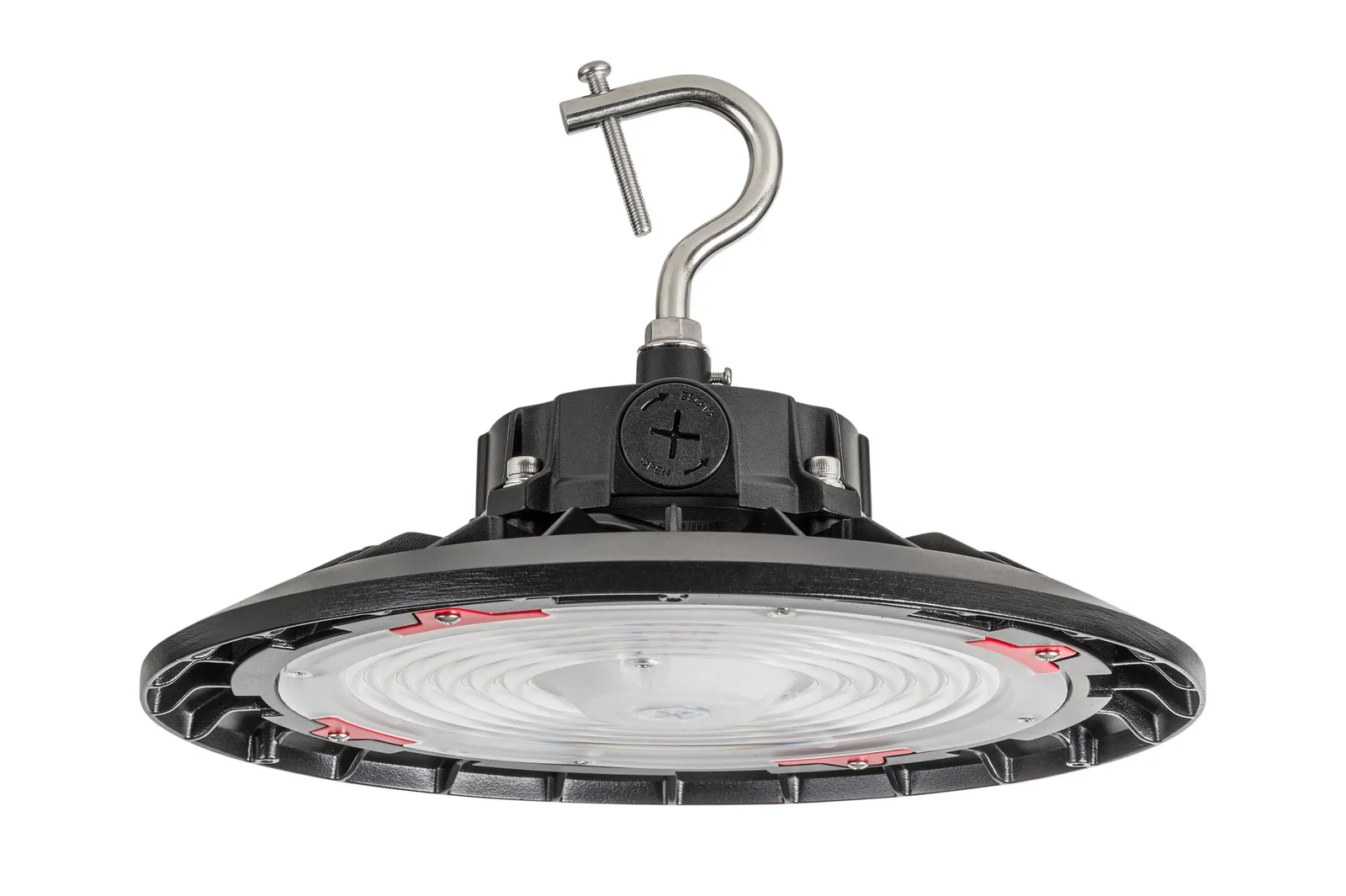

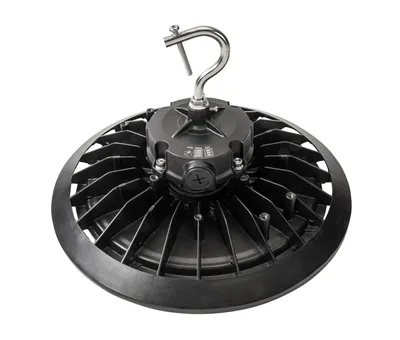

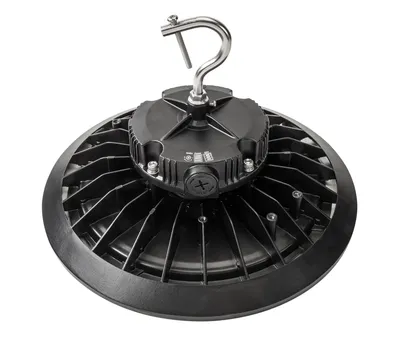

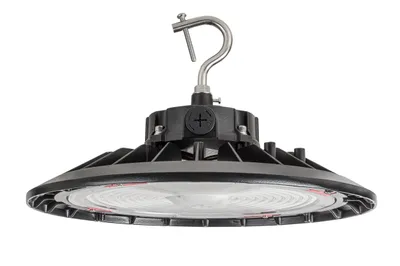

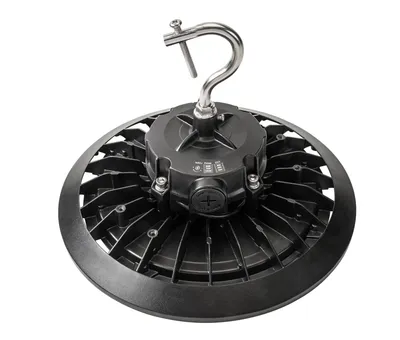

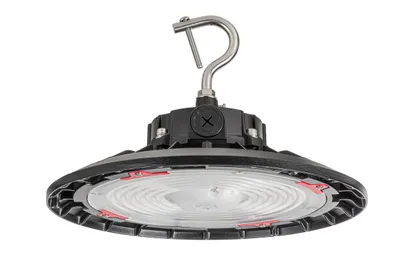

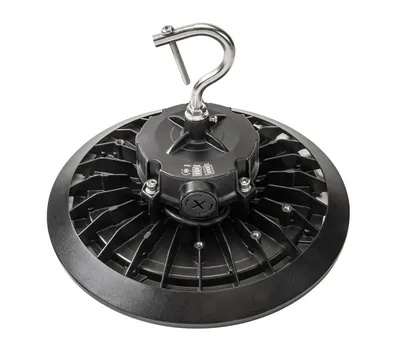

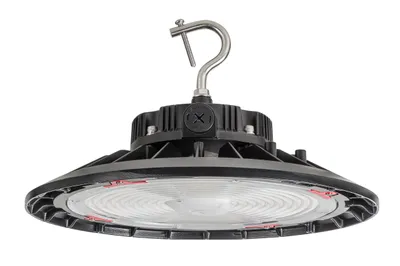

Whitebox High Bays – Round High Bay
With wireless compatibility, field-adjustable options, and reliability, round LED high bays offer versatility, energy savings, and installation convenience.
4 part numbers · Indoor
- Wattage
- 50–240W
- Lumens
- 7,500–33,600 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Black
- DLC
- DLC Premium
- Warranty
- 5 years
Overview
With wireless compatibility, field-adjustable options, and reliability, round LED high bays offer versatility, energy savings, and installation convenience. Compatible with Keystone’s SmartLoop wireless control system.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

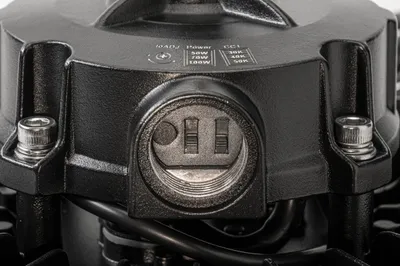

 | RH-LED-11-100PS-8CSB-VDIM /G2 | Round Highbay Fixture | Power Select 100/70/50W | Color Select 3000/4000/5000K | 120-277V Input | 90 deg lens | 11-inch diameter | 0-10V Dimming | Built-in sensor receptacle | Standard black housing | J-Hook Included |Gen2 | White Box Program | 50/70/100W | 7,500/10,290/14,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
 | RH-LED-11-150PS-8CSB-VDIM /G2 | Round Highbay Fixture | Power Select 150/100/70W | Color Select 3000/4000/5000K | 120-277V Input | 90 deg lens | 11-inch diameter | 0-10V Dimming | Built-in sensor receptacle | Standard black housing | J-Hook Included |Gen2 | White Box Program | 70/100/150W | 10,780/14,700/21,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
 | RH-LED-12-200PS-8CSB-VDIM /G2 | Round Highbay Fixture | Power Select 200/150/100W | Color Select 3000/4000/5000K | 120-277V Input | 90 deg lens | 11-inch diameter | 0-10V Dimming | Built-in sensor receptacle | Standard black housing | J-Hook Included |Gen2 | White Box Program | 100/150/200W | 15,400/22,050/28,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
 | RH-LED-13-240PS-8CSB-VDIM /G2 | Round Highbay Fixture | Power Select 240/200/150W | Color Select 3000/4000/5000K | 120-277V Input | 90 deg lens | 11-inch diameter | 0-10V Dimming | Built-in sensor receptacle | Standard black housing | J-Hook Included |Gen2 | White Box Program | 150/200/240W | 29,400/30,800/33,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing |
