Keystone Technologies

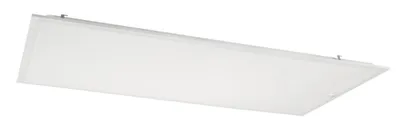

Whitebox Panels and Troffers – Back-Lit Panel
A robust, easy-to-install solution, available in multiple sizes with different mounting capabilities and embedded with SmartLoop wireless controls.
7 part numbers · Indoor
- Wattage
- 20–60W
- Lumens
- 2,400–8,000 lm
- Color temperature
- 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- Warranty
- 5–10 years
Overview
A robust, easy-to-install solution, available in multiple sizes with different mounting capabilities and embedded with SmartLoop wireless controls.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

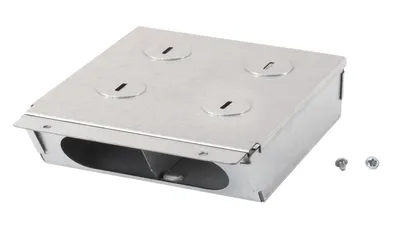

 | KT-BPLED-JBOX-2 | Larger J-Box add-on for LED backlit Panels, DLC Premium | — | — | — | — | — | — | — | Call for pricing | ||

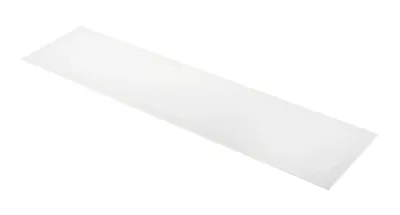

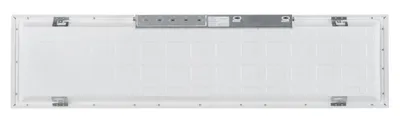

 | BPL-LED-14C-35PS-8CSA | 1x4 LED Panel feat. Power Select & Color Select. 35/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. WhiteBox Program | 20/30/35W | 2,400/3,450/3,950 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | BPL-LED-22C-35PS-8CSA | 2x2 LED Panel feat. Power Select & Color Select. 35/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. WhiteBox Program | 20/30/35W | 2,400/3,450/3,950 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | BPL-LED-22B-40PS-8CSA /FC2 | 2x2 LED Panel feat. Power Select & Color Select with Embedded Smartloop PIR Sensor. 40/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Whitebox Program | 20/30/40W | 2,500/3,500/4,500 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | BPL-LED-24C-45PS-8CSA | 2x4 LED Panel feat. Power Select & Color Select. 45/35/30W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. WhiteBox Program | 30/35/45W | 3,850/4,200/5,300 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | BPL-LED-24B-50PS-8CSA /FC2 | 2x4 LED Panel feat. Power Select & Color Select with Embedded Smartloop PIR Sensor. 50/40/30W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. WhiteBox Program | 30/40/50W | 4,200/5,200/6,200 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | BPL-LED-24-60PS-8CSA /G3 | 2x4 LED Panel feat. Power Select & Color Select. 60/50/40W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design, Gen 3. | 40/50/60W | 5,000/6,700/8,000 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing |
