Keystone Technologies

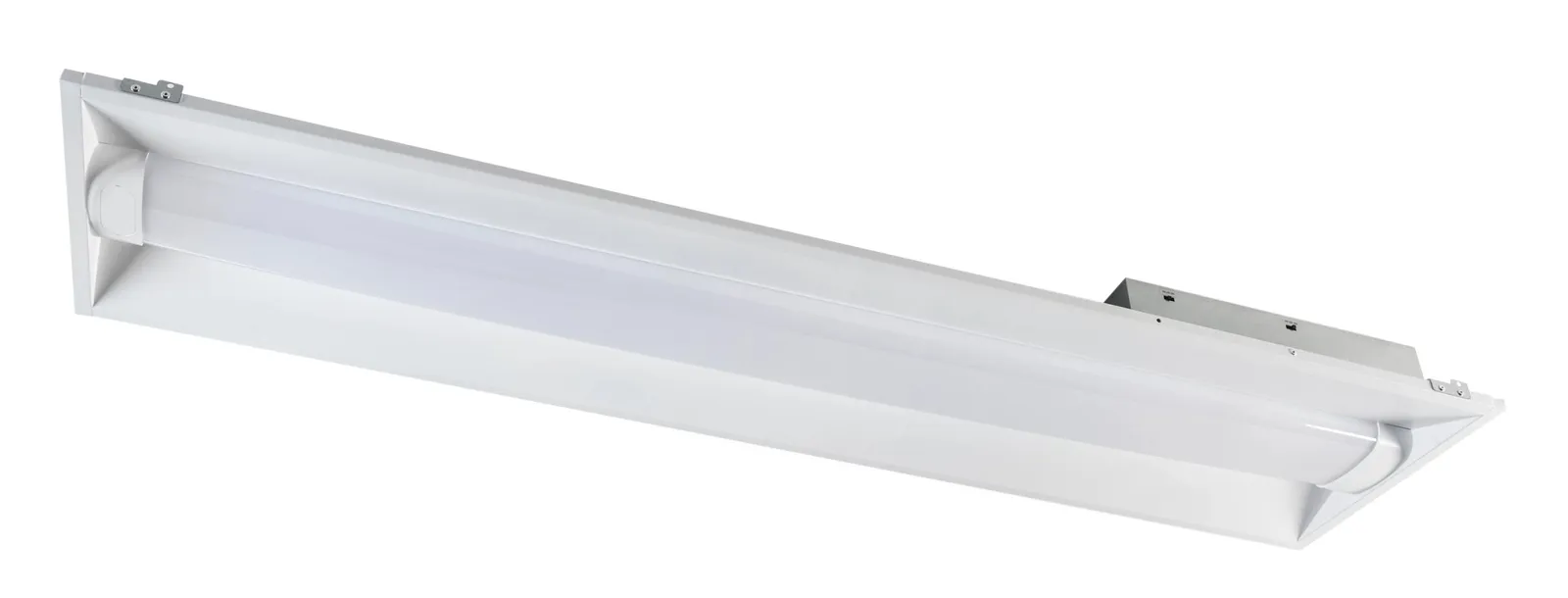

Whitebox Panels and Troffers – Center Basket Troffer
An architectural-grade fixture available in multiple sizes and with different mounting capabilities, as well as with embedded SmartLoop wireless controls.
5 part numbers · Indoor
- Wattage
- 15–45W
- Lumens
- 1,950–5,850 lm
- Color temperature
- 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- Warranty
- 5 years
Overview
An architectural-grade fixture available in multiple sizes and with different mounting capabilities, as well as with embedded SmartLoop wireless controls.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | CBT-LED-22C-24PS-8CSA /CR /2PK | 2x2 LED Center Basket Troffer|Power Select 24/18/15W | Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program | 15/18/24W | 1,950/2,340/3,150 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | CBT-LED-24C-30PS-8CSA /CR /2PK | 2x4 LED Center Basket Troffer|Power Select 30/25/20W | Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program | 20/25/30W | 2,600/3,250/3,900 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | CBT-LED-14C-35PS-8CSA /CR /2PK | 1x4 LED Center Basket Troffer|Power Select 35/30/24W | Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program | 24/30/35W | 3,120/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | CBT-LED-22C-35PS-8CSA /CR /2PK | 2x2 LED Center Basket Troffer|Power Select 35/30/24W | Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program | 24/30/35W | 3,150/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | CBT-LED-24C-45PS-8CSA /CR /2PK | 2x4 LED Center Basket Troffer|Power Select 45/38/30W | Color Select 3500/4000/5000K | 120-277V Input |Frosted Curved Lens | 0-10V Dimming | 12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program | 30/38/45W | 3,900/4,950/5,850 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing |
