Keystone Technologies

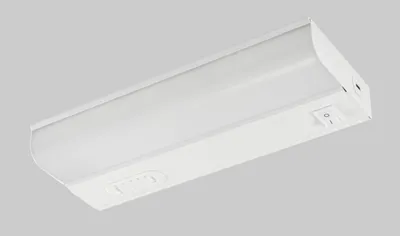

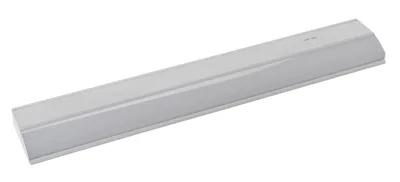

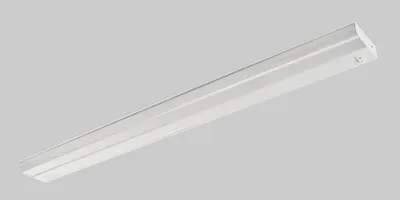

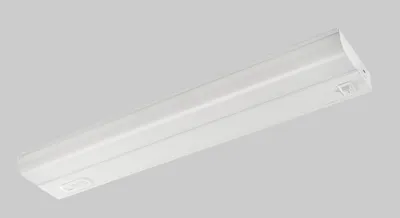

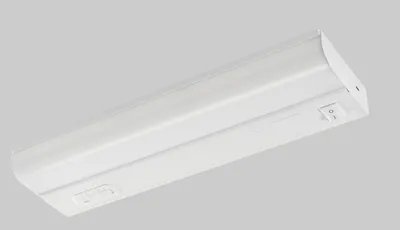

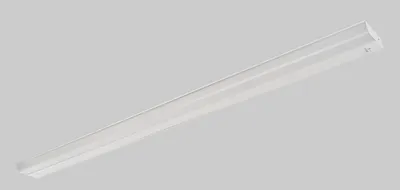

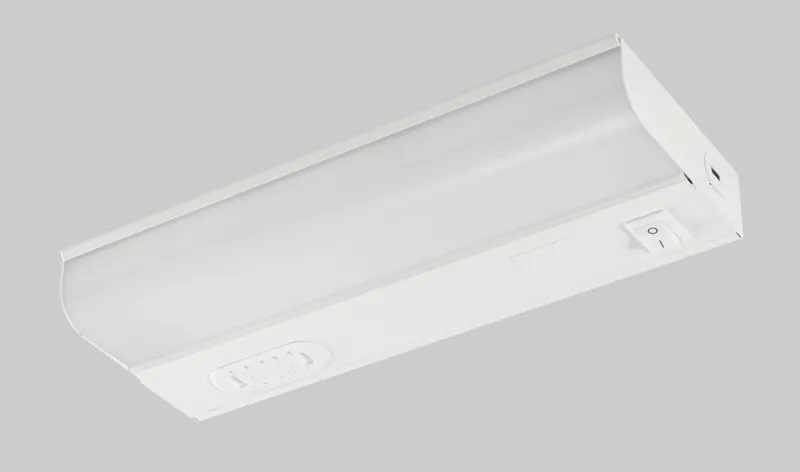

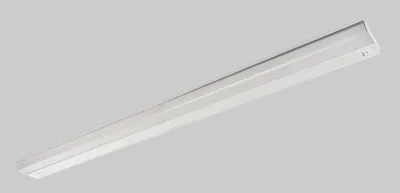

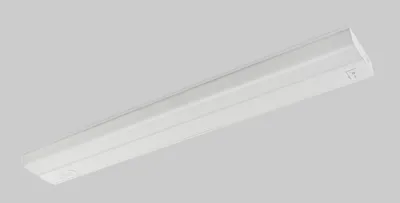

Whitebox Undercabinet – Direct Wire
Direct wire undercabinet LED fixture with highly diffused lens for even light distribution
12 part numbers · Indoor
- Wattage
- 5–23.5W
- Lumens
- 450–1,800 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- TRIAC/ELV
- CRI
- 80–90+
- Finish
- White
- Warranty
- 5 years
Overview
Direct wire undercabinet LED fixture with highly diffused lens for even light distribution
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | UC-LED-5-12A-9CSF | 12 inch Under Cabinet Fixture | 5W | Color Select | 2700/3000/3500/4000/5000K | 120V Input | Phase Dimming | White Box Program | 5W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | UC-LED-5-9A-9CSF | 9 inch Under Cabinet Fixture | 5W | Color Select | 2700/3000/3500/4000/5000K | 120V Input | Phase Dimming | White Box Program | 5W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | UC-LED-12-DW-830 | LED Under-Cabinet Fixture: Direct Wire Only, 12" long, White Finish, 3000K (CRS KO for switch) | 7W | 450 lm | 3000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | UC-LED-9-18A-9CSF | 18 inch Under Cabinet Fixture | 9W | Color Select | 2700/3000/3500/4000/5000K | 120V Input | Phase Dimming | White Box Program | 9W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | UC-LED-9-24A-9CSF | 24 inch Under Cabinet Fixture | 9W | Color Select | 2700/3000/3500/4000/5000K | 120V Input | Phase Dimming | White Box Program | 9W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
| UC-LED-18-DW-830 | LED Under-Cabinet Fixture: Direct Wire Only, 18" long, White Finish, 3000K (CRS KO for switch) | 10W | 675 lm | 3000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | UC-LED-14-34A-9CSF | 34 inch Under Cabinet Fixture | 14W | Color Select | 2700/3000/3500/4000/5000K | 120V Input | Phase Dimming | White Box Program | 14W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
| UC-LED-36-DW-830 | LED Under-Cabinet Fixture: Direct Wire Only, 36" long, White Finish, 3000K (CRS KO for switch) | 18.5W | 1,350 lm | 3000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | UC-LED-20-42A-9CSF | 42 inch Under Cabinet Fixture | 20W | Color Select | 2700/3000/3500/4000/5000K | 120V Input | Phase Dimming | White Box Program | 20W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | UC-LED-20-46A-9CSF | 46 inch Under Cabinet Fixture | 20W | Color Select | 2700/3000/3500/4000/5000K | 120V Input | Phase Dimming | White Box Program | 20W | — | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | UC-LED-48-DW-830 | LED Under-Cabinet Fixture: Direct Wire Only, 48" long, White Finish, 3000K (CRS KO for switch) | 23.5W | 1,800 lm | 3000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
| UC-LED-24-DW-830DISC | LED Under-Cabinet Fixture: Direct Wire Only, 24" long, White Finish, 3000K (CRS KO for switch) | 12W | 900 lm | 3000K | 120V | TRIAC/ELV | White | — | Call for pricing | — |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileUC-LED-5-9A-9CSF_5W_5K_1V.ies
- IES fileUC-LED-5-12A-9CSF_5W_5K_1V.ies
- IES fileUC-LED-9-18A-9CSF_9W_5K_1V.ies
- IES fileUC-LED-9-24A-9CSF_9W_5K_1V.ies
- IES fileUC-LED-14-34A-9CSF_14W_5K_1V.ies
- IES fileUC-LED-20-42A-9CSF_20W_5K_1V.ies
- IES fileUC-LED-20-46A-9CSF_20W_5K_1V.ies
- IES fileUC-LED-12-DW-830_12W_3K_1V.IES
- IES fileUC-LED-18-DW-830_18W_3K_1V.IES
- IES fileUC-LED-24-DW-830_24W_3K_1V.IES
- IES fileUC-LED-36-DW-830_36W_3K_1V.IES
- IES fileUC-LED-48-DW-830_48W_3K_1V.IES
