Keystone Technologies
Wraps – Low Profile
A sleek, linkable LED wrap with end-to-end or cord linking for maximum flexibility.
11 part numbers · Indoor
- Wattage
- 9–44W
- Lumens
- 1,230–5,750 lm
- Color temperature
- 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- Warranty
- 5–10 years
Overview
A sleek, linkable LED wrap with end-to-end or cord linking for maximum flexibility. Features Power & Color Select, high efficacy, 0–10V dimming, and optional SmartLoop controls for easy, versatile lighting.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

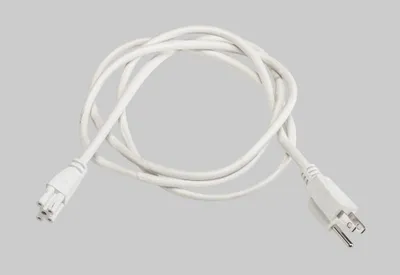

 | KT-CS-515P-6-5PC-W | Cordset with plug for 5-pin linking fixtures | 125V NEMA 5-15P Straight Blade Plug | 6ft. long SJTW cable | 18/3 wire | White | — | — | — | — | — | White | — | Call for pricing | ||

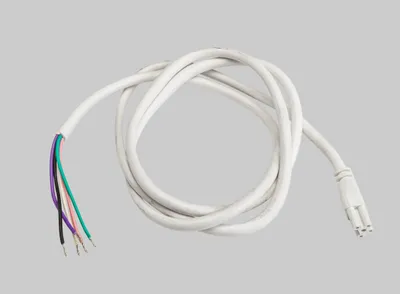

 | KT-CS-NP-6-5PC-W | Cordset with flying leads for 5-pin linking fixtures | 6ft long SJTW cable |18/5 wire | White | — | — | — | — | — | White | — | Call for pricing | ||

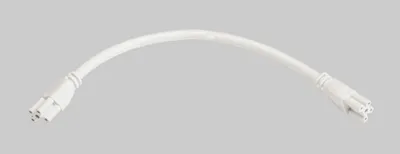

 | KT-LC-1-5PC | Linking Cordset for 5-pin linking fixture| 1 ft. | White | — | — | — | — | — | White | — | Call for pricing | ||

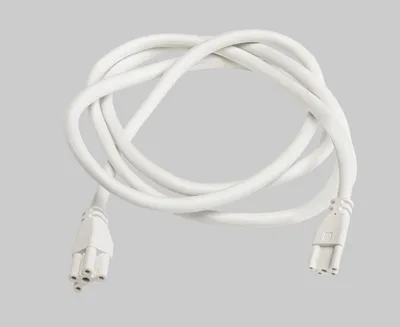

 | KT-LC-6-5PC | Linking Cordset for 5-pin linking fixture| 6 ft. | White | — | — | — | — | — | White | — | Call for pricing | ||

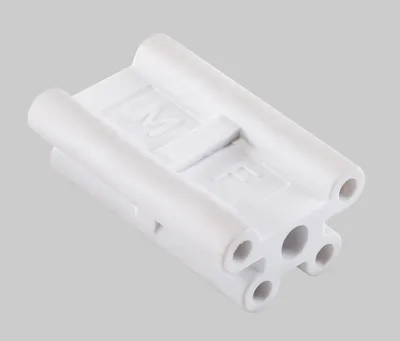

 | KT-LC-E2E-5PC | Linking Connector for 5-pin linking fixture| For End to End connections | — | — | — | — | — | — | — | Call for pricing | ||

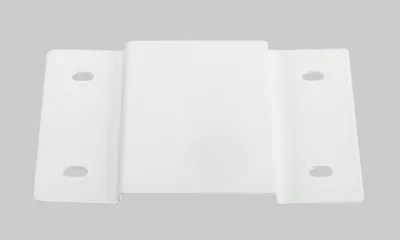

 | KT-WLED-LMB-KIT | Linking Mount Kit for Servies B Wrap fixtures | Includes End to End Metal bracket | — | — | — | — | — | — | — | Call for pricing | ||

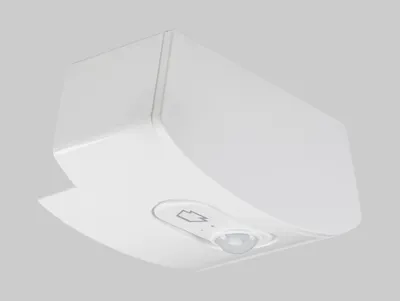

 | KT-WLED-SLB-ER /FC5 | Integrated Sensor mount for B series Wraps | For end of run mouting | Incldued KTSL-FC5-12V-IM-PIR | White | — | — | — | — | — | White | — | Call for pricing | ||
 | KT-WLED-SLB-MR /FC5 | Integrated mount for B series Wraps | For Middle of run mounting | Included KTSL-FC5-12V-IM-PIR | White | — | — | — | — | — | White | — | Call for pricing | ||

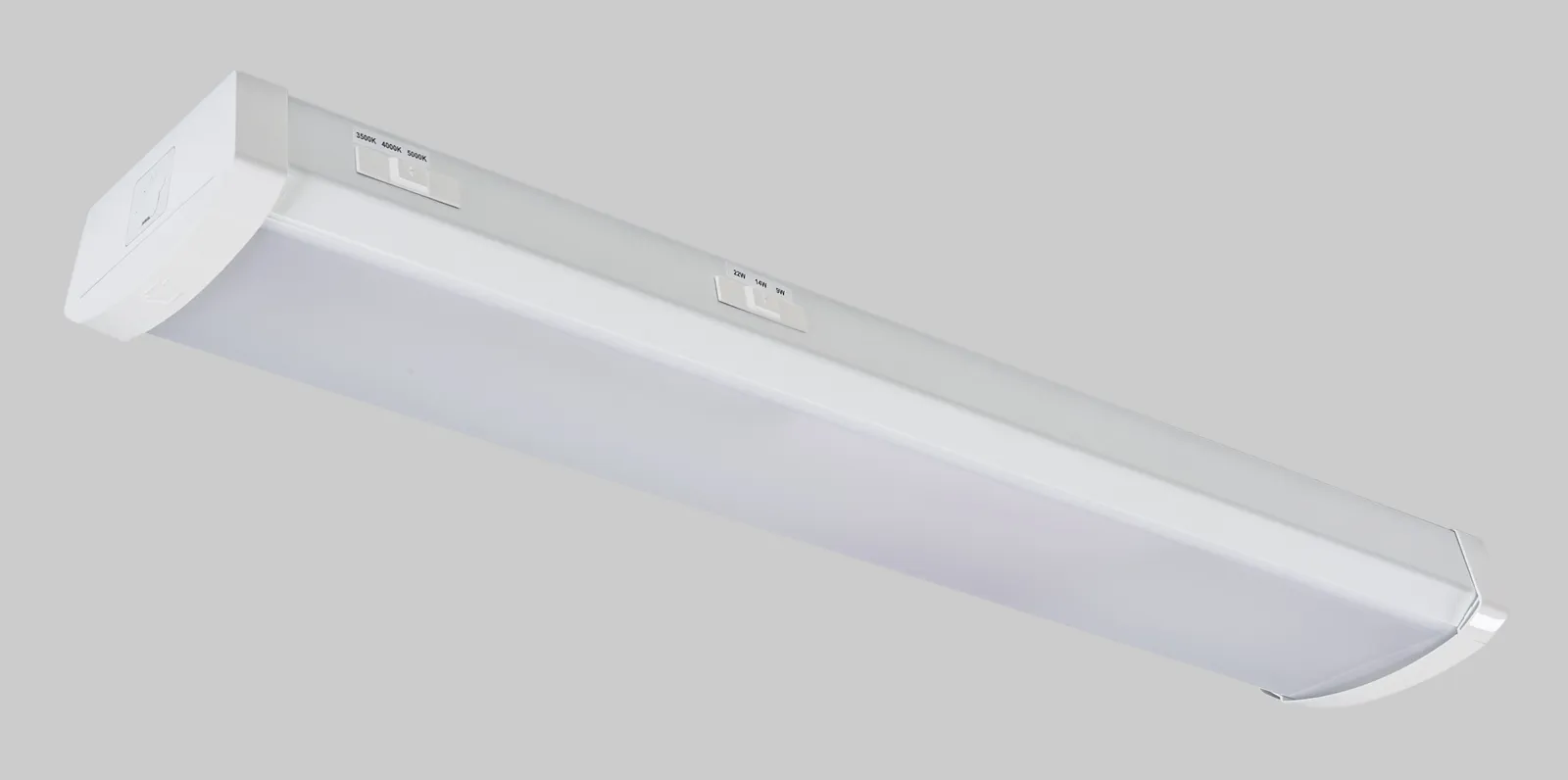

 | KT-WLED22PS-2B-8CSA-VDIM | 2ft Wrap Fixture | Power Select & Color Select | Series B | 22/14/9W, 120-277V Input | 3500/4000/5000K | Frosted Lens | 0-10V Dimming | 9/14/22W | 1,230/1,826/3,000 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||

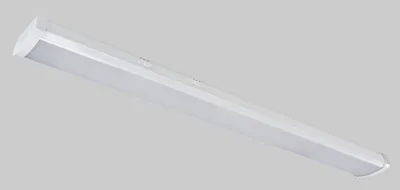

 | KT-WLED33-4B-840 | 4ft Wrap Fixture | Series B | 33W | 120-277V Input | 4000K | Frosted Lens | 33W | 3,520 lm | 4000K | 120–277V | 0-10V | White | — | Call for pricing | ||

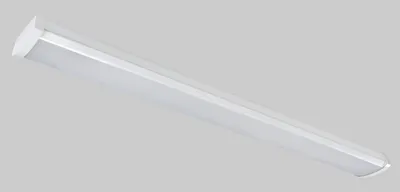

 | KT-WLED44PS-4B-8CSA-VDIM | 4ft Wrap Fixture | Power Select & Color Select | Series B | 44/28/18W | 120-277V Input | 3500/4000/5000K | Frosted Lens | 0-10V Dimming | 18/28/44W | 2,600/3,900/5,750 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing |
