LED Wall Pack With 3 CCT Selectable TK-WP01™ SERIES

Overview

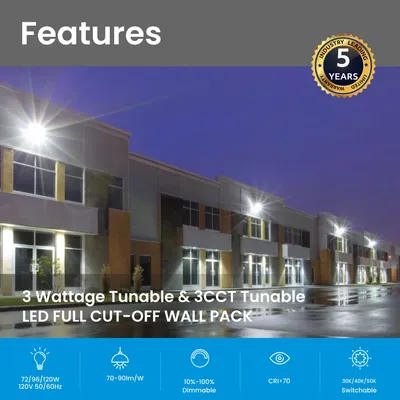

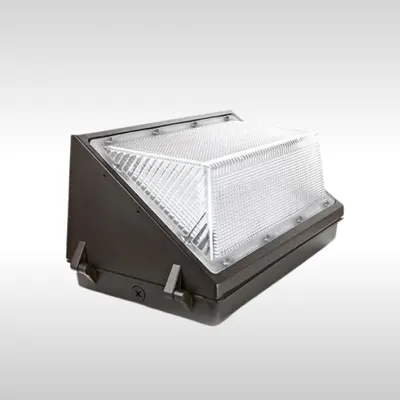

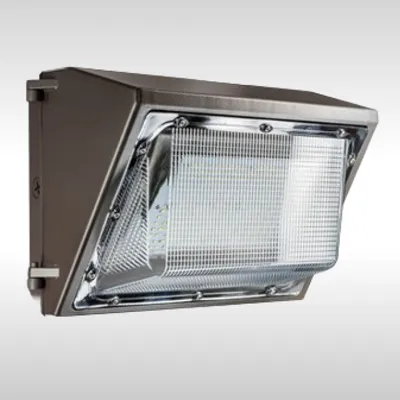

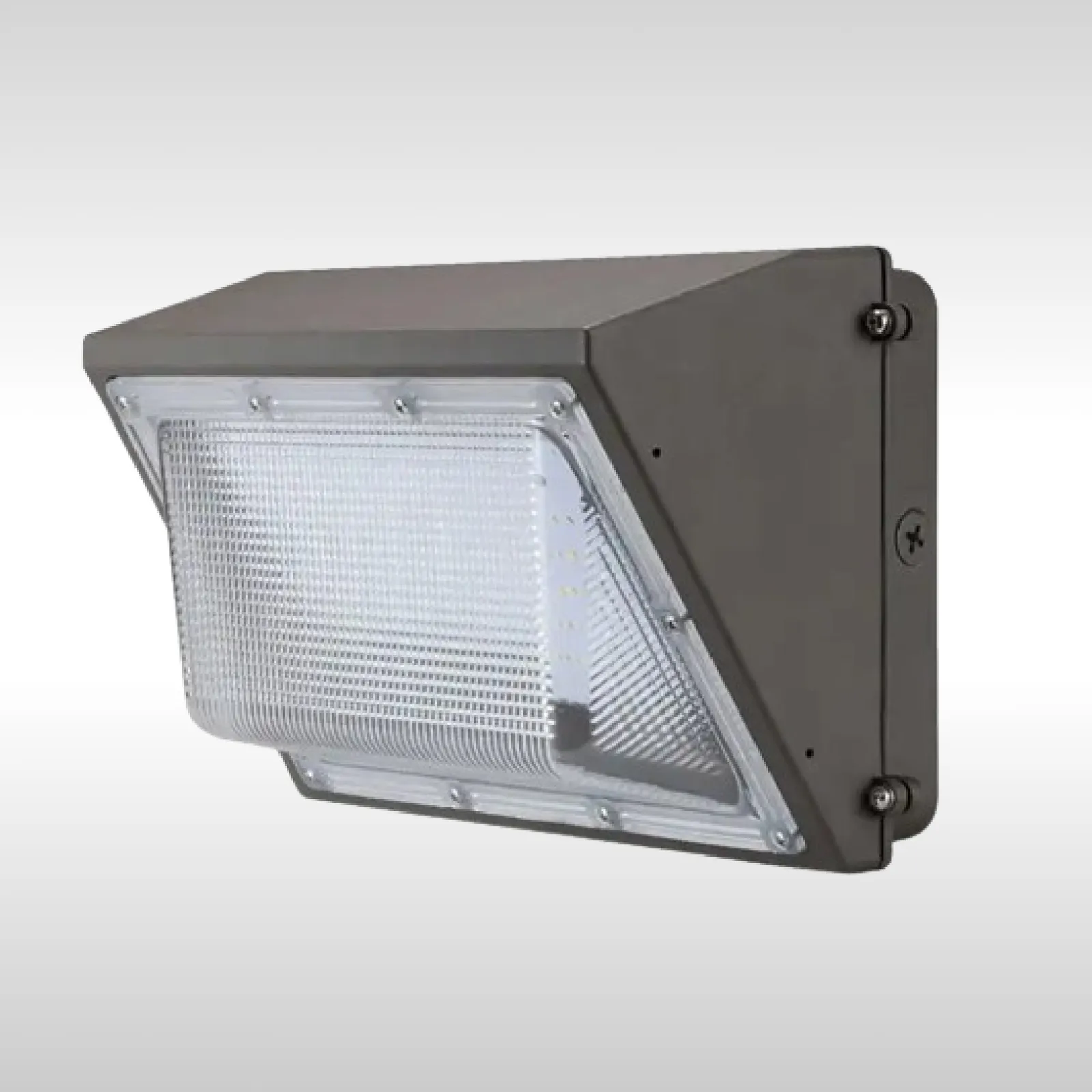

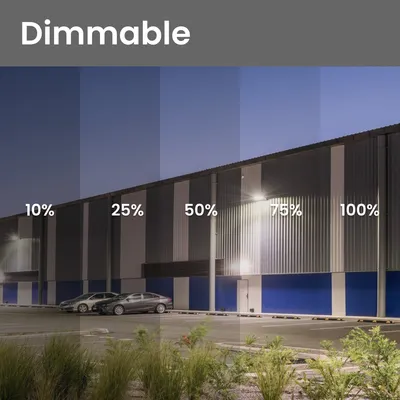

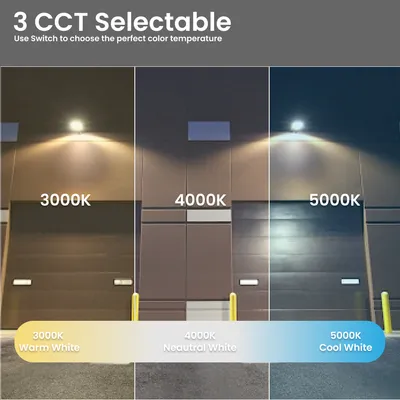

Tektron presents the Full Cut-Off Wallpack, an advanced lighting solution engineered for demanding outdoor commercial applications. This versatile wallpack LED offers exceptional performance with its durable die-casting aluminum housing and efficient heatsink, ensuring longevity and effective heat dissipation. Featuring 0-10V dimming and selectable lumen and wattage outputs via the DIP switch, it provides customizable lighting solutions. The fixture is IP65 rated, making it suitable for outdoor wet locations, with optional photocell and motion sensor integration for enhanced energy efficiency and control. Operating on a wide input voltage range of 120-277 VAC or 120-347 VAC at 50/60Hz, the Full Cut-Off Wallpack offers 3CCT color temperature options (3000K, 4000K, 5000K) and achieves a luminous efficacy of 120-140 Lm/W using 5050 SMD LEDs. With a high color rendering index (CRI) of Ra>70 and a power factor greater than 0.90, it delivers bright, natural light. The fixture operates in temperatures from -13°F to 122°F and has a lifespan exceeding 50,000 hours, ensuring reliable, long-term performance. Ideal for commercial outdoor settings, this wallpack is perfect for building facades and can easily replace any existing semi cut-off and full cut-off wall packs. Its high efficacy and robust design make it an excellent choice for energy-efficient outdoor lighting. Backed by a 5-year limited warranty, the Full Cut-Off Wallpack meets stringent industry standards, including ETL Listing, DLC Premium, and IP65 rating, guaranteeing superior performance, safety, and reliability.
