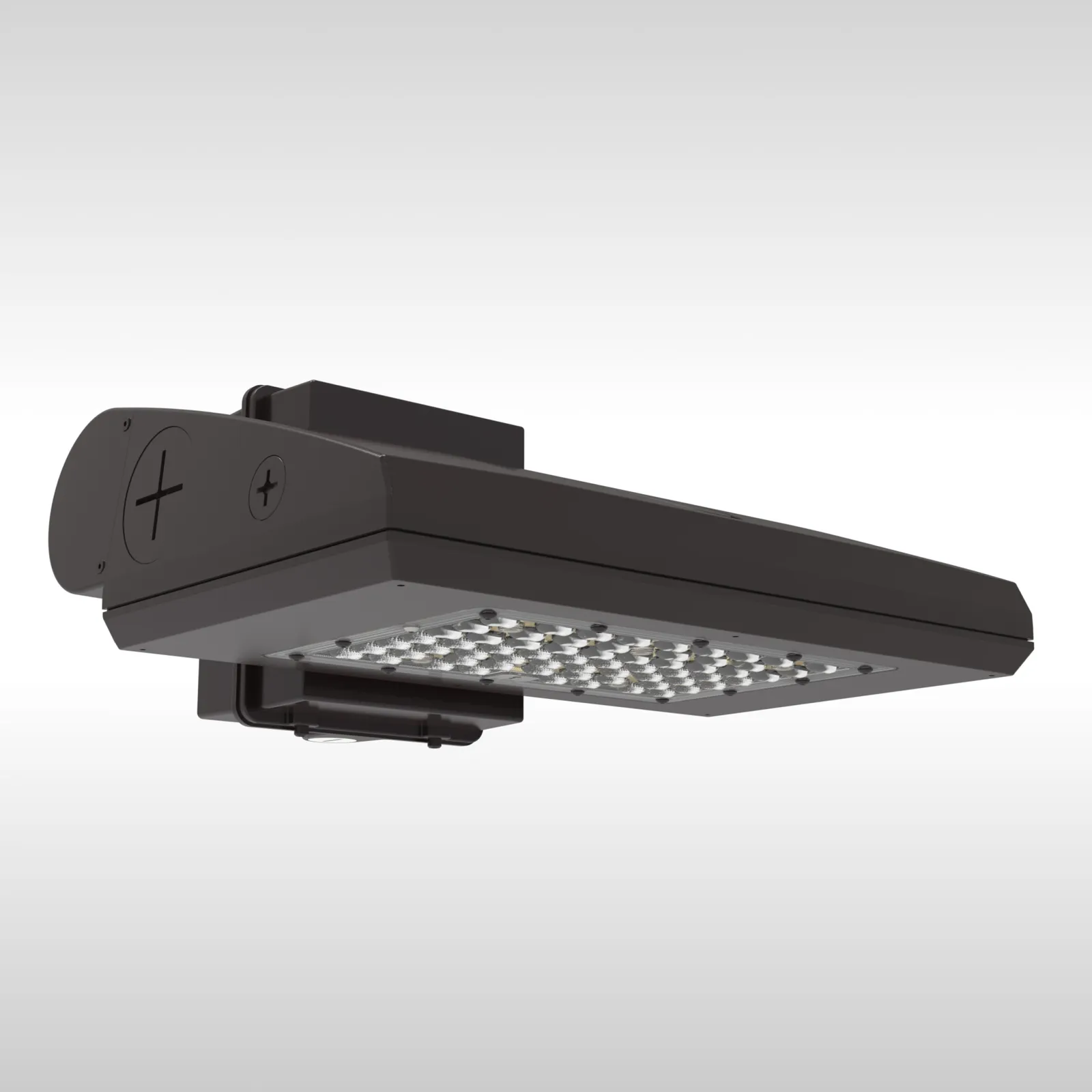

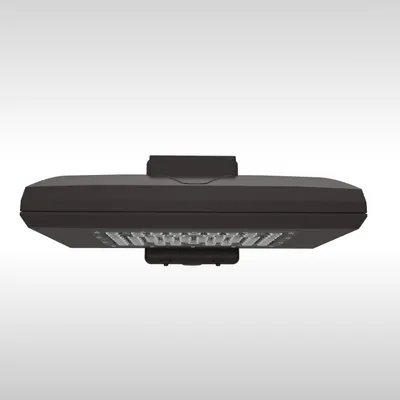

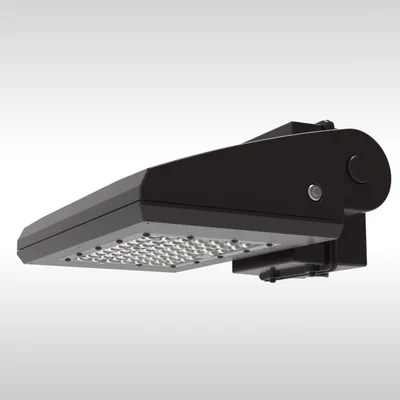

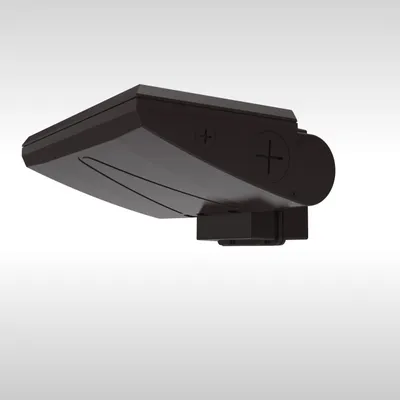

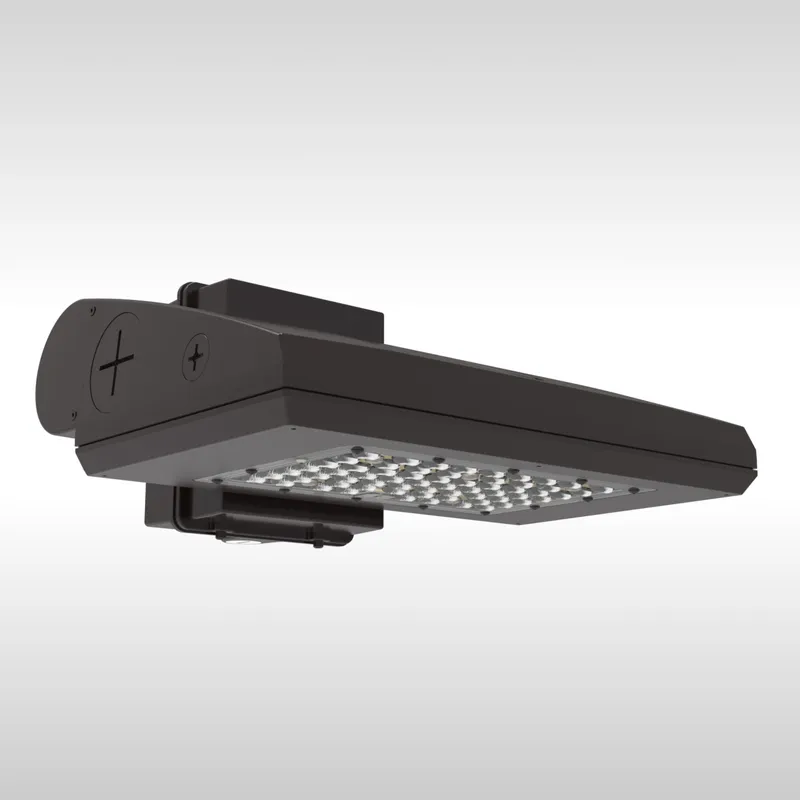

Tektron LED Full Cut-off Wall Pack Watt & CCT Selectable TK-WPX2 Series

Overview

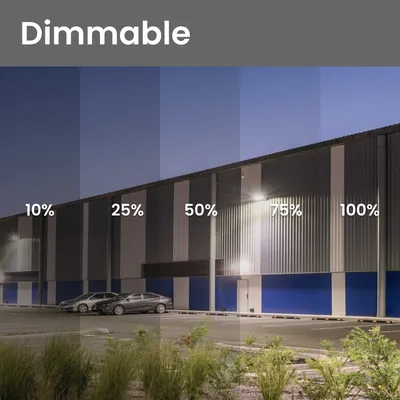

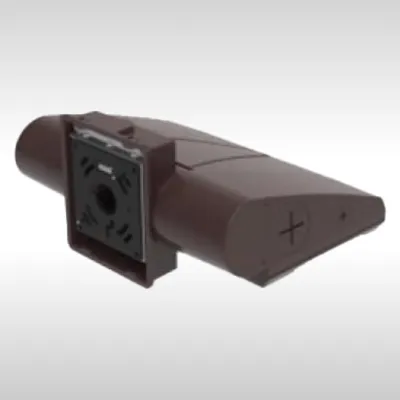

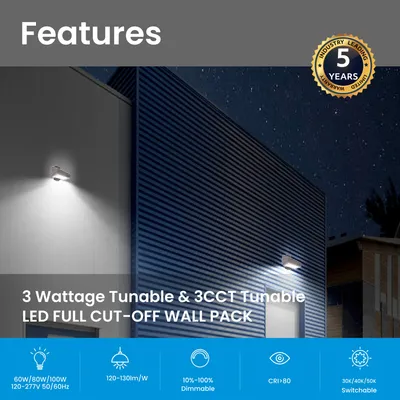

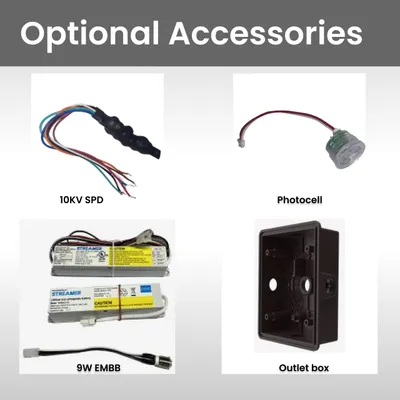

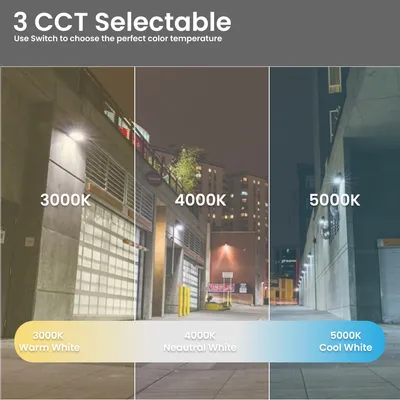

Tektron presents the LED Full Cut-off Wallpack, a versatile and energy-efficient lighting solution designed for outdoor commercial applications. This fixture combines advanced technology with robust construction, ensuring reliable performance and longevity in various environments. The LED Full Cut-off Wallpack features 0-10V dimming and offers three selectable lumens and wattage outputs via a DIP switch. It is constructed with die-casting aluminum housing and heatsink, providing excellent heat dissipation and durability. Rated IP65, it is suitable for wet locations. The wallpack supports input voltages of 120-277 VAC / 120-347 VAC at 50/60Hz. It offers a 3CCT option with color temperatures of 3000K, 4000K, and 5000K, and boasts a luminous efficacy of 120-140 Lm/W using 5050 SMD LEDs. The fixture has a high color rendering index (CRI) of Ra>80, a power factor of >0.90, and operates efficiently in temperatures ranging from -30°C to 45°C. Additionally, it includes photocell and motion sensor options for enhanced control and efficiency. This LED wallpack is ideal for commercial outdoor settings, providing effective illumination for building exteriors. It is an excellent replacement for traditional semi cut-off and full cut-off wall packs, offering improved performance and energy savings. Tektron’s LED Full Cut-off Wallpack comes with a 5-year limited warranty and meets rigorous standards, including ETL Listing, DLC Premium, TITLE 24, and IP65 rating, ensuring high quality and safety compliance.
