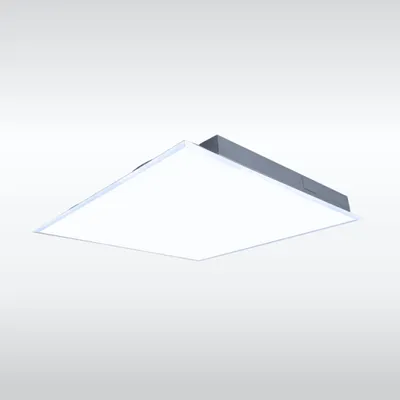

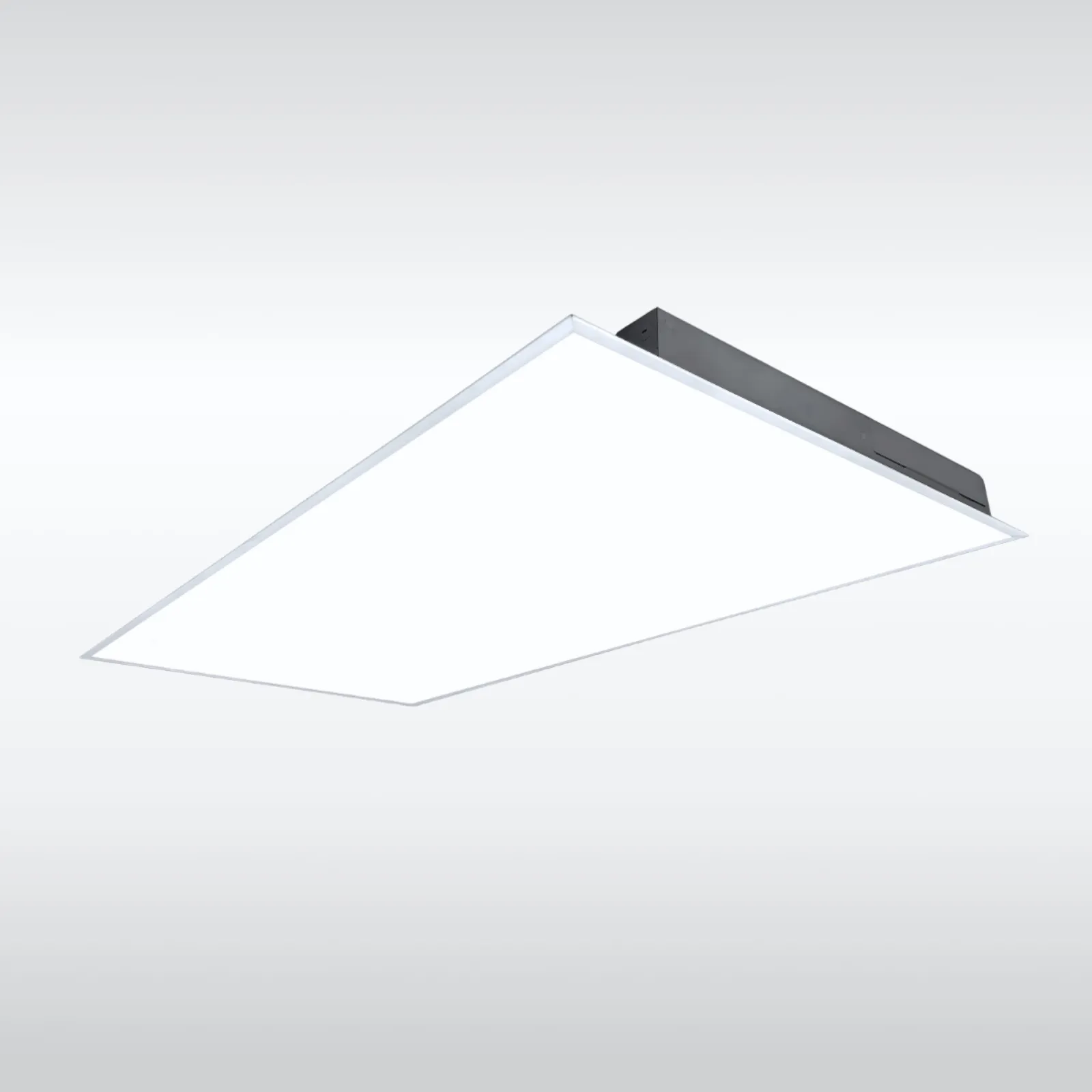

TK-BLFP2 LED Backlit Panel

Overview

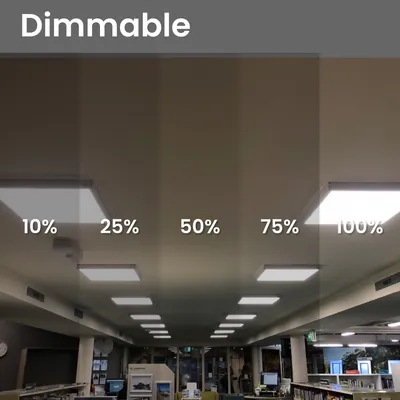

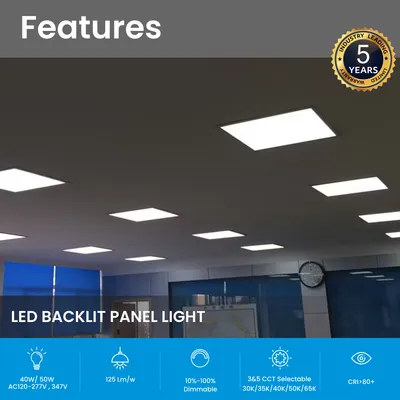

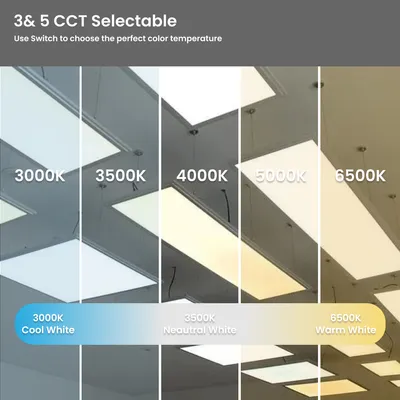

The TekTron TK-BLFP2 Series Back-Lit Panel LED Light is engineered for versatile and energy-efficient commercial lighting applications. Featuring 3- and 5-wattage selectable options along with 3CCT and 5CCT selectable color temperatures , this panel allows users to easily customize light output and color temperature from a single fixture, reducing inventory and installation complexity. Constructed with a galvanized steel housing in a white finish and a high-quality polycarbonate diffuser , the TK-BLFP2 provides excellent durability while delivering uniform, low-glare illumination that will not yellow over time. With a lumen output range of 2,500 to 5,000 lumens and an efficacy of up to 125 lm/W , it ensures bright, efficient lighting with reduced energy consumption. The fixture supports 0–10V dimming and operates on AC 120–277V / 347V , making it compatible with a wide range of commercial electrical systems. It is designed for recessed T-bar grid ceiling installation and includes integral earthquake clips for secure mounting, with optional surface mount kits available for added flexibility. Certified with UL Listing, DLC Premium, RoHS compliance, and IC rating , and rated for a 50,000-hour lifespan , the TK-BLFP2 Series is backed by a 5-year limited warranty . Optional accessories such as motion sensors, photocell sensors, Bluetooth controls, and emergency backup further enhance its functionality. This panel light is an ideal solution for offices, schools, shopping malls, supermarkets, retail stores, hospitals, and laboratories requiring reliable, high-quality illumination.
