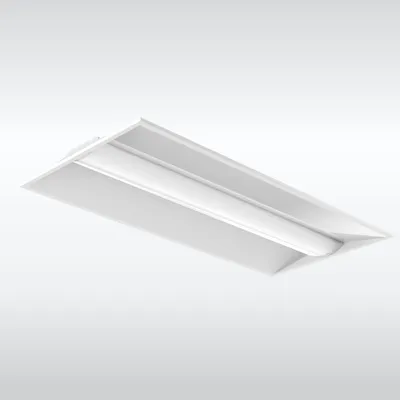

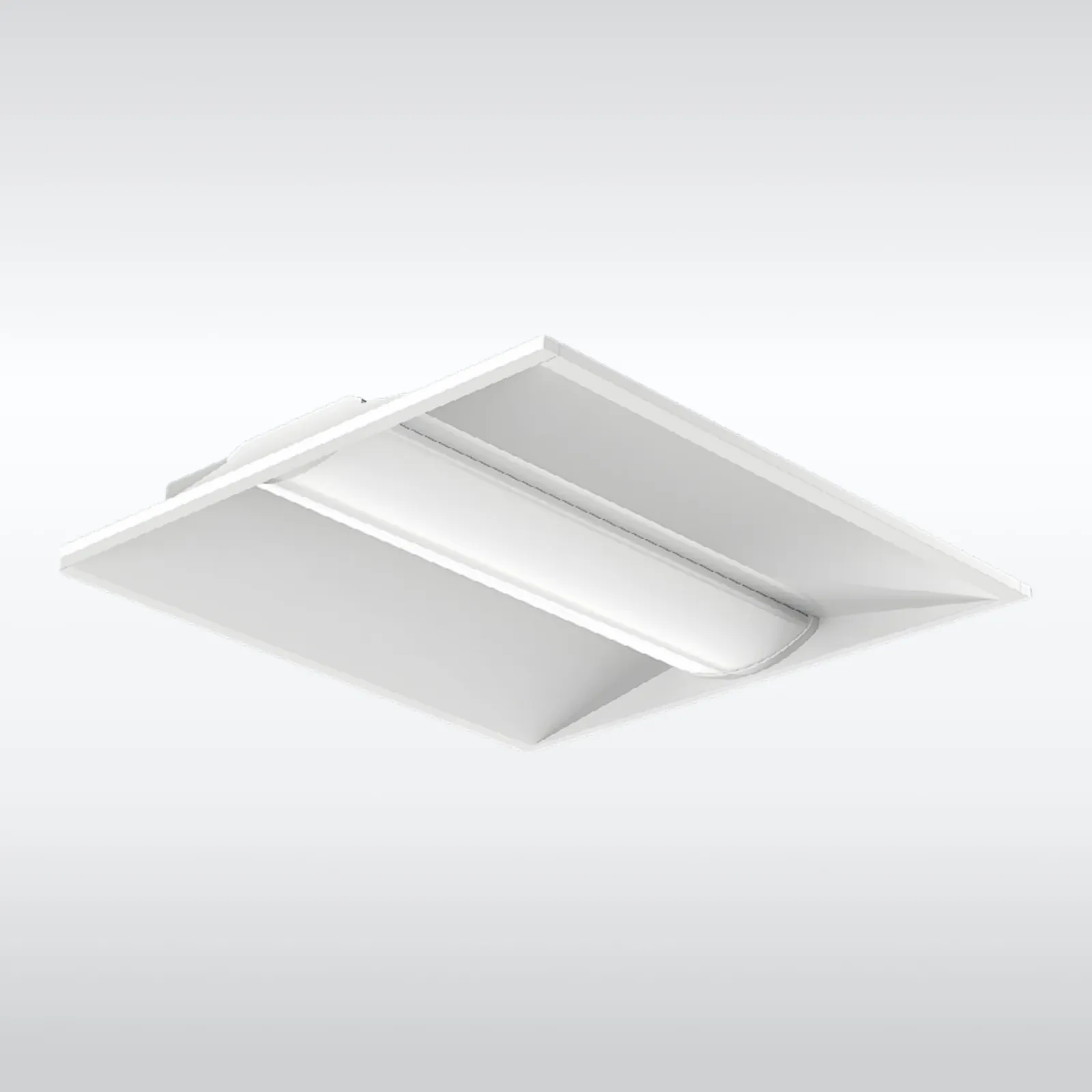

TK-CBT5 CENTER BASKET TROFFER

Overview

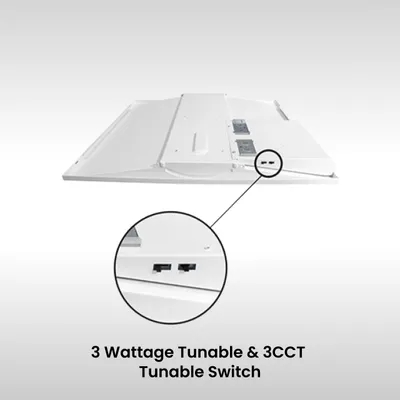

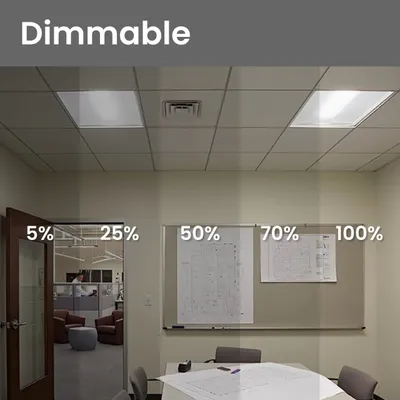

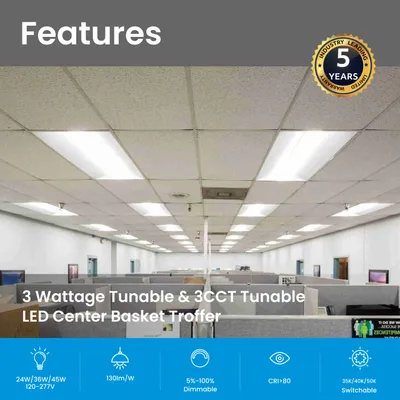

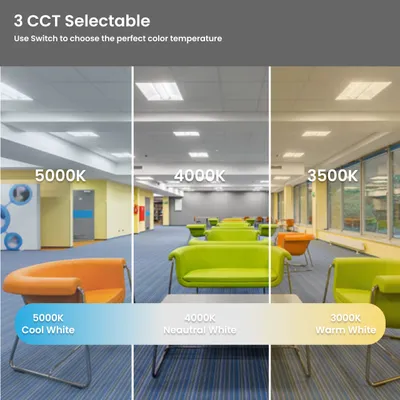

The TK-CBT5 Series LED Center Basket Troffer by TekTron is engineered for versatile and efficient commercial lighting applications. It offers advanced 3CCT (3500K/4000K/5000K) and wattage-selectable options, allowing users to customise lighting output according to specific needs. Built with a robust galvanised steel housing and a high-quality PC lens that resists yellowing, the fixture ensures consistent, uniform light distribution with minimal glare. Operating on AC 120–277 V, it delivers lumen output ranging from 2500 to 6250 lumens with an efficacy of up to 125 lm/W. The troffer supports 0–10V dimming, has a long lifespan of 50,000 hours, and maintains reliable performance across a wide temperature range (-4°F to 95°F). It is UL listed, DLC Premium certified, RoHS compliant, and IC rated, ensuring safety and efficiency standards. Designed for recessed installation in T-bar grid ceilings, it includes earthquake clips for secure mounting, with optional accessories such as motion sensors, emergency backup, photocell sensors, and surface mount kits. Backed by a 5-year limited warranty, this troffer is an ideal solution for offices, schools, malls, supermarkets, hospitals, and laboratories.
