Tektron LED

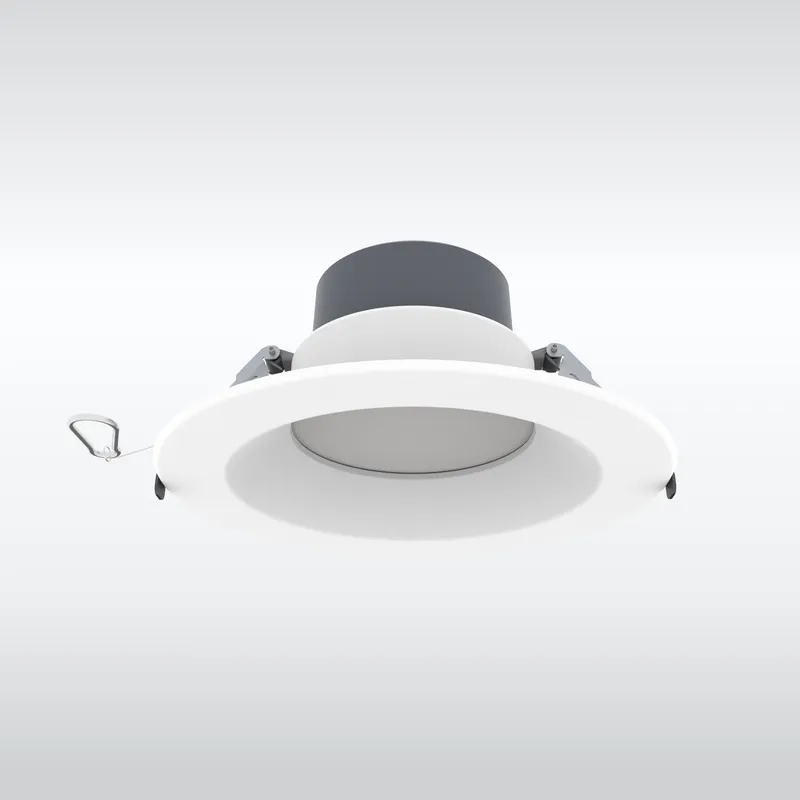

TK-CDL3MAX Commercial-grade Downlight
TK-CDL3MAX
12/13/24/30/38W · 2700K/3000K/3500K/4000K/5000K · 120–347V
Part of TK-CDL3MAX Commercial-grade Downlight
Call for pricing Add it to your cart and send us a quote request — or call 678-467-5515.
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
Specifications
| Wattage | 12/13/24/30/38W (selectable) |
|---|---|
| Voltage | 120–347V |
| Dimming | 0-10V, TRIAC/ELV |
| Power factor | ≥ 0.9 |
| THD | < 25% |
| Efficacy | 90 lm/W |
|---|---|
| Color temperature | 2700K/3000K/3500K/4000K/5000K (selectable) |
| CRI | 90+ |
| Beam angle | 90° |
| Size | 4in, 6in, 8in, 10in |
|---|
| Operating temperature | 4.4°C to 45.6°C (40°F to 114°F) |
|---|---|
| Listing | ETL |
| ENERGY STAR | Yes |
| Title 24 (JA8) | Yes |
| Rated life | 50,000 hrs |
|---|---|
| Warranty | 5 years |
