Kennedy Valve Gate Valves

Overview

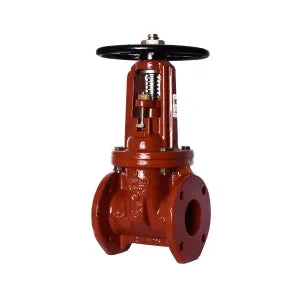

The KENNEDY VALVE 10306007068A is a 6 IN resilient wedge OSY gate valve with a ductile iron body and flanged connection. Designed for water supply service, it features a fusion-bonded epoxy coating and O-ring seals at all joints. The valve is UL Listed, FM Approved, and certified to NSF/ANSI 61-G and AWWA C515 standards, with a pressure rating of 200 PSI. Ductile iron body and bonnet coated with fusion bonded epoxy. Wedge is fully encapsulated with EPDM rubber, bonded to meet ASTM D429. Certified to UL Listed, FM Approved, NSF/ANSI 61-G, and AWWA C515 standards. Product Highlights 6 IN resilient wedge OSY gate valve with flanged connection, ductile iron body, and fusion-bonded epoxy coating. UL Listed and FM Approved. Product Information Standard Information Brand : KENNEDY VALVE Manufacturer Part Number : 10306007068A Technical Specifications Item Name : Gate Valve Type : Resilient Wedge, Outside Screw And Yoke Series/Model : Model 7068A Nominal Size : 6 IN Connection Type : Flanged Pressure Rating : 200 PSI Body Material : Ductile Iron Operator Type : Handwheel Handle Material : Ductile Iron Stem Material : Brass Packing Material : Lubricated Fiber Gland Material : Ductile Iron Seal Material : Buna-N O-ring Material Standard : Body: ASTM A536 Grade 65-45-12, Handle: ASTM A536 Grade 65-45-12, Stem: ASTM B16, Gland: ASTM A536 Grade 65-45-12 Material Specification : Stem: C36000 Finish/Color : Fusion Bonded Epoxy Coated Industry Standards : UL Listed, FM Approved, NSF/ANSI…
