BigBattery

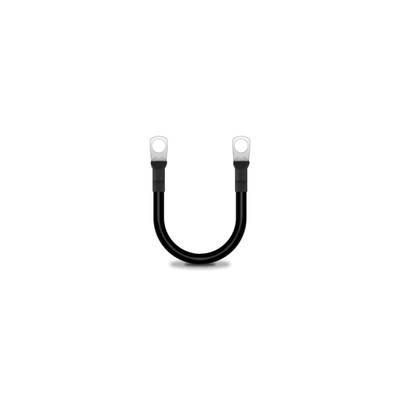

BigBattery Battery Capacity Meter w/ 10" Ring to Ring Black Terminal Cable – 100V – 350A
DK-1622017
Part of BigBattery Battery Capacity Meter w/ 10" Ring to Ring Black Terminal Cable – 100V – 350A
$40.00 each
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Stay informed about your power system's performance effortlessly this cutting-edge Capacity Meter by BigBattery. The LCD display offers comprehensive metrics, including charge and discharge current, voltage, remaining capacity, and State of Charge, simplifying battery monitoring. Easy to install, it comes complete with a low-resistance copper shunt, base mount, mounting bracket, and shielded wiring for enhanced signal stability. Boasting precise current detection and a durable, water-resistant design, this capacity meter ensures long-lasting support for your power applications. Invest in dependable battery monitoring technology – order the 350A Battery Capacity Meter today!
- High-Precision Current Detection
- Durable & Water Resistant

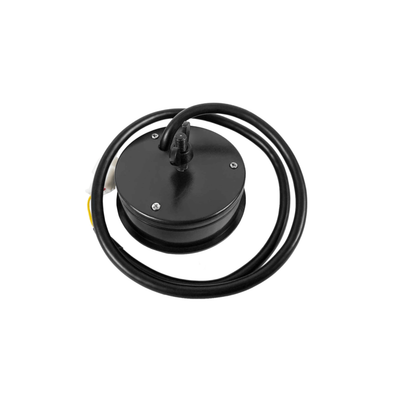

- In-Depth LCD Display
- Testing Data Storage

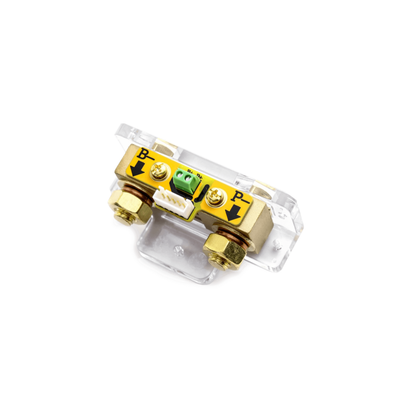

- Pure Copper Shunt

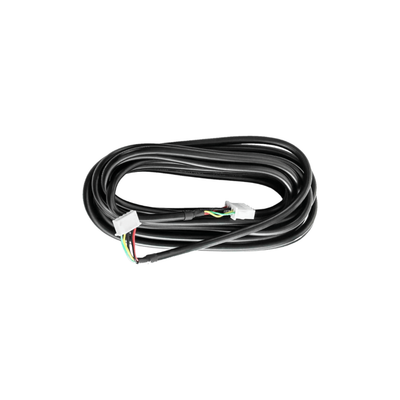

- Shielded Wiring
Specifications
| Product type | Wiring & system component |
|---|
| Working Voltage | 8 - 120V |
|---|---|
| Working Dissipation | 10 - 12mA |
| Standby Dissipation | 0.5 - 0.6mA |
| Sleep Dissipation | 50 - 60uA |
| Voltage Accuracy | ±1% |
| Current Accuracy | ±1% |
| Capacity Accuracy | ±1% |
| Preset Capacity Value | 0.1 - 999Ah |
| Sampler Current | 350A (500A Peak) |
|---|---|
| Temperature Range | 14ºF - 140ºF (-10ºC - 60ºC) |
| Weight | 0.9 lbs (410 g) |
| Height | 2.32 in (59 mm) |
| Width | 2.32 in (59 mm) |
| Depth | 0.78 in (20 mm) |
| Cable Length | 13.1 ft (4 m) |
