EG4

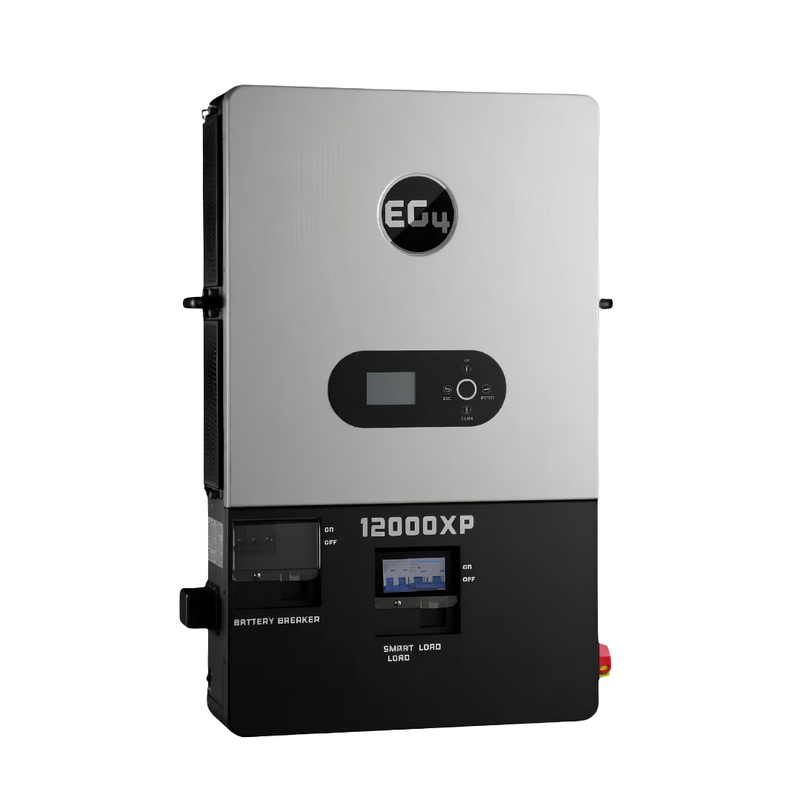

EG4 12000XP Off-Grid Inverter – V2
DK-1510979-NF
Off-grid
Part of EG4 12000XP Off-Grid Inverter – V2
- Type
- Off-grid
- Warranty
- 5-year
$1,899.99 eachReg. $2,589.29
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Maximum Power. Zero Compromise. Built to Last.
The EG4 12000XP is a high-capacity, split-phase off-grid inverter engineered to provide reliable, continuous power for homes, cabins, and remote properties. As the only ESS off-grid system of its kind, it supports up to 24 kW of PV input without a combiner box and maximizes solar production through dual MPPT tracking. Built for demanding off-grid environments, it delivers advanced system control, dependable battery integration, and scalable performance for long-term energy independence.
Use Cases
The EG4 12000XP is suited for residential homes, cabins, off-grid properties, and remote installations requiring dependable, high-output power. It also supports commercial and light industrial setups that need scalable energy storage and multi-inverter configurations. Ideal for hybrid systems, backup power applications, and full off-grid systems.
- High-Voltage PV Input: Accepts up to 480 VDC and 24 kW of solar input, reducing cabling requirements and simplifying system design.
- Dual MPPT Optimization: Maximizes solar energy production by independently tracking two PV strings for stable performance in changing conditions.
- Built-In Wi-Fi Monitoring: Allows remote system monitoring and adjustments through the EG4 App or Monitor Center for added convenience and visibility.
- Closed-Loop Battery Communications: Integrates directly with EG4 48V batteries and supported brands for accurate charging, protections, and safe operation.
- Smart Load Port: Manages dedicated circuits or appliances through load shedding, AC coupling, or selective power delivery to increase system efficiency.
- Parallel Capability: Supports up to 16 units in parallel, enabling large systems up to 240 kW of total output.
- NEC-Compliant Safety: Rapid shutdown–ready (RSD) to meet NEC 690.12 safety requirements.
Documents & manuals
Specifications
| Product type | Inverter — Off-grid |
|---|---|
| Warranty | 5-year |
| Nominal Power Output* | w/ PV: 15000W @ 240V & w/ out PV: 12000W @ 240V |
|---|---|
| Paralleling | Parallel up to 16 units for 192kW |
| Number of MPPTs | 2 (12000 per MPPT) |
| Nominal Power Output | 15,000W with PV input* / 12,000W without PV |
| PV Input Capacity | Up to 24,000W |
| Recommended Battery Capacity | >400Ah per inverter |
| Battery Communications | Closed-loop compatible with EG4 48V batteries + supported brands |
| Connectivity | Plug-in Wi-Fi module for EG4 App / EG4 Monitor |
| Dimensions | 34.25 × 20.87 × 5.91 in |
| Weight | 104.7 lbs |
| Model Note | 15 kW output is available only on model number IV-15000-XP-IN-01 |
