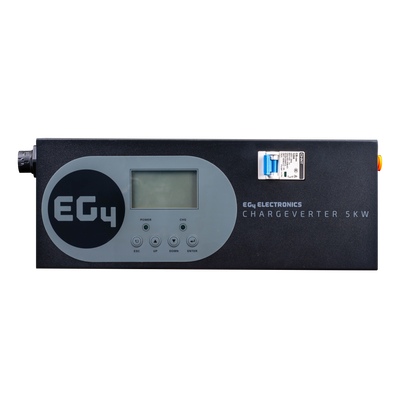

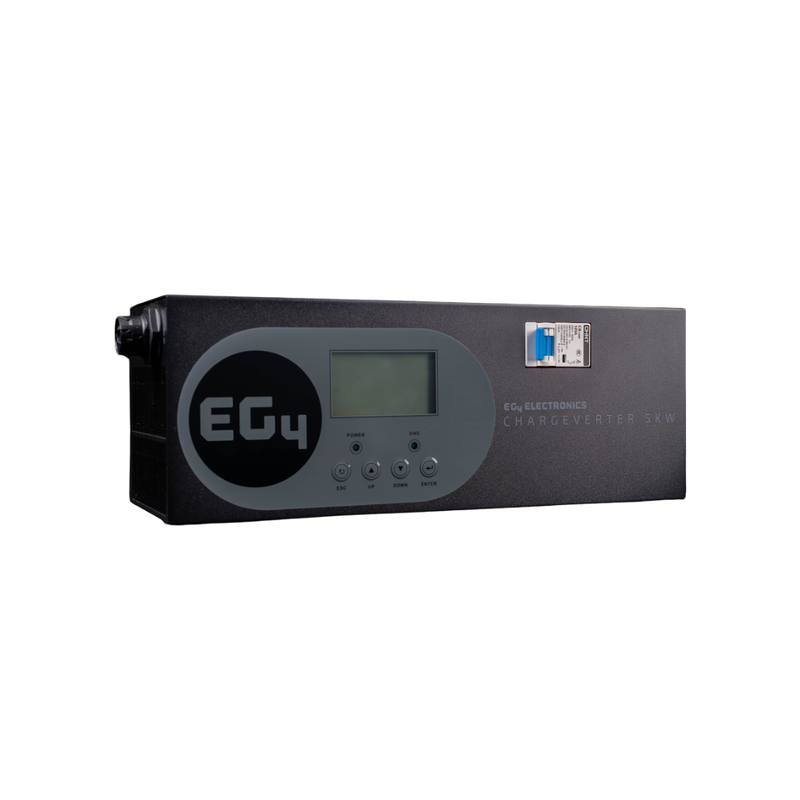

EG4 Chargeverter - GC 48V 100A Battery Charger 5120W Output
EG4CV48V100AV3
Part of EG4 Chargeverter - GC 48V 100A Battery Charger 5120W Output
- Warranty
- 3-year
$529.99 eachReg. $549.99
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
EG4 Chargeverter - GC | 48V 100A Battery Charger 5120W Output | 240/120V Input
Introducing the EG4 Chargeverter 5KW AC Charger, a high-performance battery charger designed for reliability and versatility. With its 48V 100A capacity and 5120W output, this charger ensures efficient power supply for various applications. Its compact design and dual 240/120V input make it suitable for diverse setups.
Dry Contacts
Using EG4 Batteries?
- Charge batteries during low light conditions using a generator (up to 100A)
- Ideal for unpredictable weather patterns
- Guards against unreliable sine waves from lower-budget generators
- Protects inverters from power quality issues
- Optimized for 240 VAC power supply
- Plug directly into a generator without concern for power issues
- Control of generator start/stop function based on Voltage or state of charge (SOC)
- Closed loop communication with EG4 batteries for charging based on battery state of charge (SOC), when batteries are not in communication with the inverter. EG4 Chargeverter Adapter Cables are required to enable this communication between the Chargeverter…
Documents & manuals
Specifications
| Product type | Monitoring / accessory |
|---|---|
| Warranty | 3-year |
| Cable Length | 6ft |
|---|---|
| Terminal Lug Size | 8mm |
| Nominal Battery Voltage | 48VDC |
| Adjustable Charge Current | 0-100A at 240VAC |
| Adjustable Charge Voltage | 43-57VDC (Default at 54VDC) |
| Maximum Output Watts | 5120W at 240 VAC |
| AC Input Voltage Range | 90-264VAC |
| Maximum Input Amps | 26A at 240VAC, 28A at 120VAC |
