Growatt

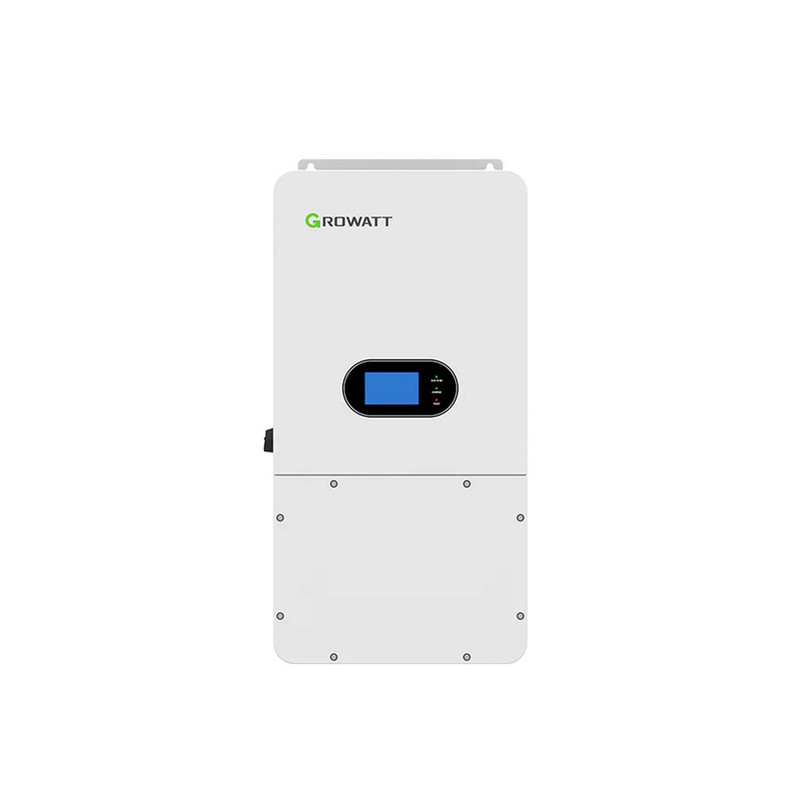

Growatt 10kW Hybrid Inverter
DK-1519114
10 kW · Hybrid
Part of Growatt 10kW Hybrid Inverter
- AC output
- 10 kW
- Solar input
- 15 kWmax PV
- Type
- Hybrid
- Warranty
- 10-year
$2,816.00 each
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Growatt SPH 10000TL-HU-US 10KW Hybrid Inverter
The Growatt SPH 10000TL-HU-US 10KW hybrid inverter offers robust features for efficient energy management:
Whether it’s your first project or your fifth, our USA-based team is here for you. Lifetime support means you’re never on your own.
- Split Phase Output : Supports 120/240Vac output.
- Configurable Charging : Allows for customizable battery charging current and voltage.
- Charger Priority : Set priority for AC, solar, or generator charging via the touch screen interface.
- Versatile Compatibility : Works with grid power or generator power. Automatically restarts when AC power is lost.
- Smart Battery Charger : Designed to optimize battery performance.
- Advanced Monitoring : Supports WIFI, 4G, and Bluetooth monitoring (Growatt Monitoring Platform).
- Multiple MPPTs : Features built-in 3 MPPT (Maximum Power Point Tracking).
- Comprehensive Protection : Protects against overload, over temperature, and short circuits.
- Programmable Supply Priority : Allows setting priority for battery or grid supply.
- Flexible Operation Modes : Includes On Grid Mode, Self-consumption Mode, and Zero Export Limit.
Documents & manuals
Specifications
| Product type | Inverter — Hybrid |
|---|---|
| AC output | 10 kW |
| Max solar (PV) input | 15 kW |
| Warranty | 10-year |
| Rated Output Power | 10000W |
|---|---|
| Max PV Input | 15000W |
| Max Charging Current | 200A |
| Paralleling | Parallel up to 6 units for 60kw |
| Number of MPPTs | 3 |
| Warranty | 10 Years |
