OutBack

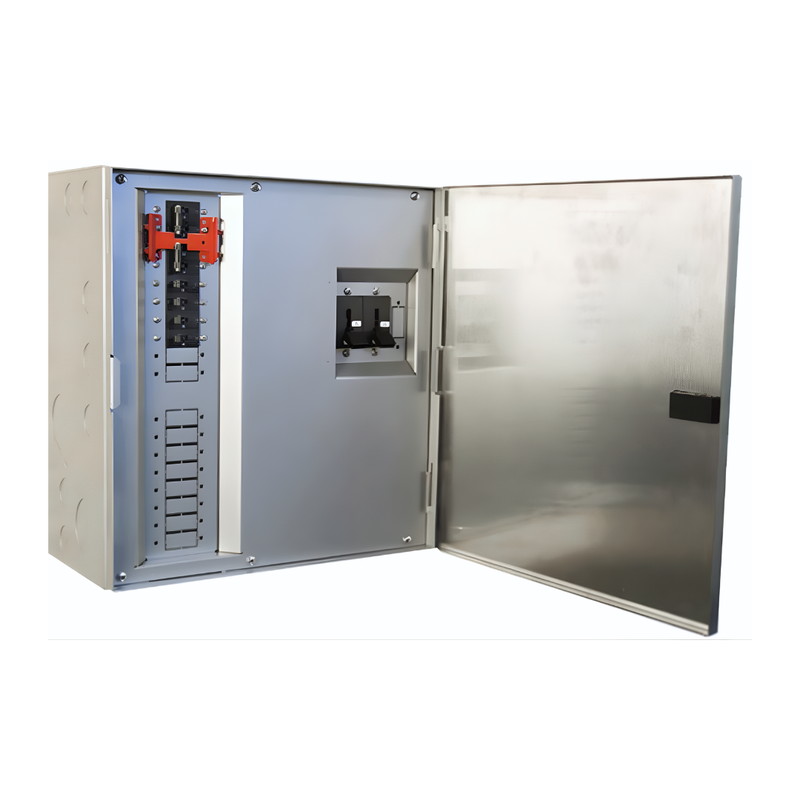

OutBack Power Radian Load Center
GSLC175-PV-120/240
Part of OutBack Power Radian Load Center
- Warranty
- 2-year
$1,987.00 each
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Simply Integrate Your System Connections with the OutBack Radian GS Load Center
OutBack Power’s Radian GS Load Centers are integrated connection enclosures designed to simplify AC and DC system wiring for Radian Series inverter/charger installations. It includes built-in DC overcurrent protection, disconnects, dual AC inputs, and maintenance bypass options for 120/240VAC . GS Load Centers provides a standardized way to streamline system configuration and energy storage integration.
Use Cases
The Radian GS Load Center is ideal for residential and light commercial energy storage systems using OutBack Radian inverter/chargers. It simplifies installation for off-grid, grid-tied, and hybrid solar applications by centralizing system connections and reducing wiring complexity.
- Integrated System Connection: Combines AC and DC connections into one centralized enclosure for simplified system wiring.
- Built-In Overcurrent Protection & Disconnects: Enhances system safety while reducing the need for additional components.
- Maintenance Bypass Capability: Allows servicing without interrupting system operation.
- Multiple Voltage Configurations: Supports both 120/240VAC system designs.
- UL 1741 Certified: Meets industry safety standards for energy storage and inverter integration.
Specifications
| Product type | Wiring & system component |
|---|---|
| Warranty | 2-year |
| Dimensions (H × W × D) | 17 × 16 × 8.5 in |
|---|---|
| Weight | 26 lb |
| Enclosure Type | Indoor |
| Voltage Support | 120/240VAC |
