Pytes

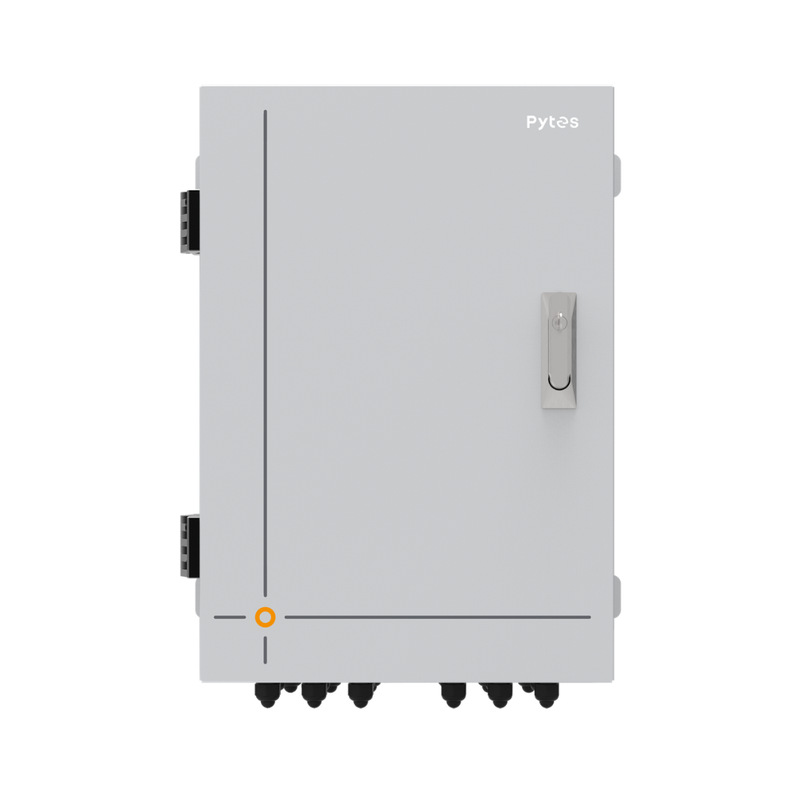

Pytes HV Combiner Box
DK-1650040
Part of Pytes HV Combiner Box
$631.00 each
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
The Pytes HV C01 Combiner Box simplifies high-voltage battery installations by providing a centralized connection point for HV Series battery systems. Designed for outdoor use with an IP65-rated enclosure, it features an integrated busbar and breaker to help create a clean, organized, and dependable energy storage installation. Built for durability and ease of integration, the HV C01 is an essential component for scalable high-voltage battery systems.
Use Cases
Ideal for residential and commercial high-voltage battery storage systems using Pytes HV Series batteries. The HV C01 Combiner Box provides a reliable connection point that simplifies installation while supporting safe and efficient system operation.
- Simplified Battery Connections: Combines multiple HV Series battery connections into a single enclosure for a cleaner, more organized installation.
- Integrated Protection: Includes a 300A, 1000VDC-rated busbar and a 325A, 1000VDC-rated breaker for dependable system protection.
- Outdoor Ready: IP65-rated enclosure protects internal components from dust and water, making it suitable for outdoor installations.
- Designed for Easy Integration: Features six M6 battery connection studs and three M6 inverter connection studs for streamlined wiring.
Specifications
| Product type | Wiring & system component |
|---|
| Compatibility | Pytes HV Series Batteries |
|---|---|
| Dimensions | 16.93 × 24.41 × 9.33 in (430 × 620 × 237 mm) |
| Weight | 55 lbs |
| Enclosure Rating | IP65 |
