RibBracket II: Rail-Less Solar Mounting Made Simple

The RibBracket II is the perfect solution for mounting solar PV systems on metal roofs—no rails required. Designed for use with the PVKIT , this versatile bracket offers a low-cost, high-strength attachment point that mounts directly to the roof sheeting.

Key Features

Rail-Less Simplicity Designed for use with the PVKIT to create a clean, low-profile, rail-less mounting system.

Flexible Placement Mount anywhere along roof ribs—no need to align with structural members.

Engineered for Wind Resistance Angled design converts wind uplift into shear force for industry-leading holding strength.

Adjustable for Easy Alignment Slotted top hole allows lateral adjustability, making it easy to square up your array.

Optimized Cooling & Access Provides 4” (100 mm) of clearance above the roof for airflow and easy wire access.

Integrated Wire Management Built-in channel above the rib keeps cables organized and protected.

Designed for popular African and Australian profiles, such as Lysaght Trimdek 1015, Safintra Trimflute 1015, and similarly-dimensioned profiles.

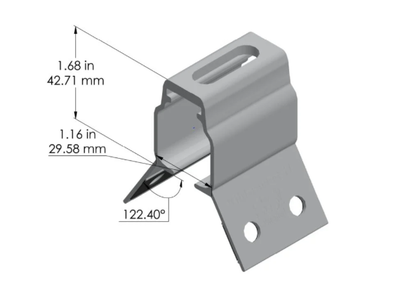

Compatible RibBracket II top rib dimension range:

1 in +/- to 1 1/4 in +/- (25 mm to 32 mm)

Easy, Secure Installation

Flex-to-fit legs conform to a variety of rib profiles

EPDM sealing washer for reliable weatherproofing

4 stainless-capped, self-piercing screws (included)

1 M8 nut included for securing the PVKIT
